The JL Audio LoC-22 is a fully active, two-channel speaker-level to line-output converter with automatic turn-on. It accepts up to 40V RMS per channel and outputs up to 8V RMS via RCA, allowing aftermarket amplifiers and signal processors to connect to a factory audio system.

Key specifications

• Channels: 2 in, 2 out
• Input: differential-balanced, up to 40V RMS per channel
• Input load switch: 20 kΩ (normal) or 60 Ω (low Z)
• Output: stereo RCA, up to 8V RMS unclipped
• Frequency response: 3 Hz – 32 kHz (+0, -1 dB)
• Turn-on: DC-offset or signal sensing
• Remote output: +12V, 100 mA maximum
• Operating voltage: 9–16V DC
• Dimensions: 120 mm W x 77 mm D x 31 mm H

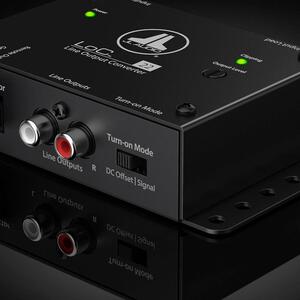

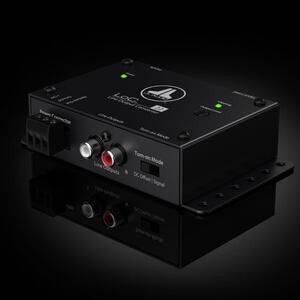

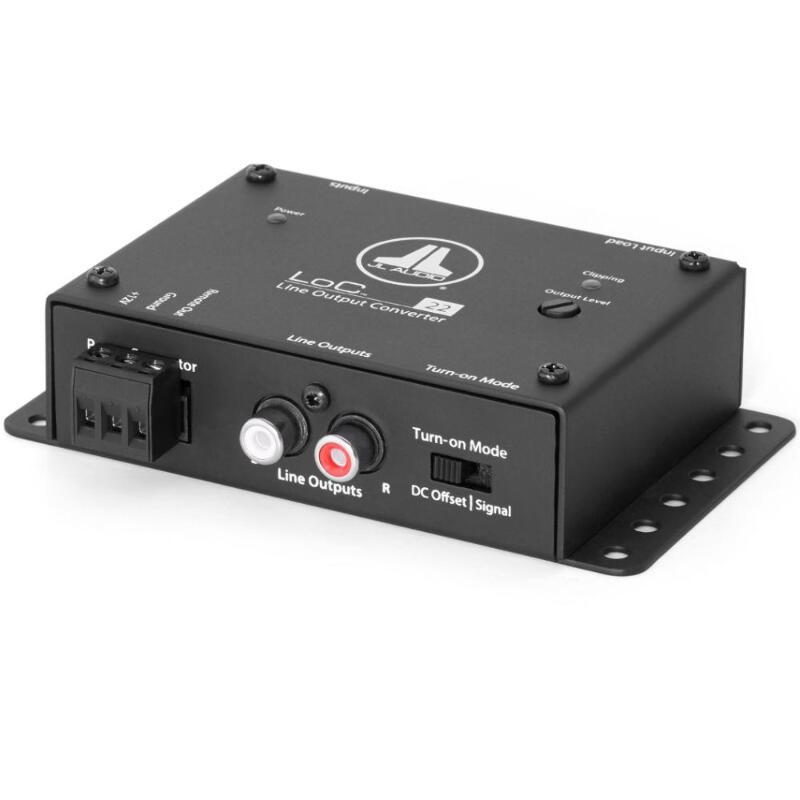

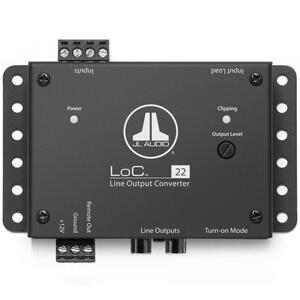

LoC-22 fully active, two-channel speaker level to line output converter with auto turn-on

Designed by JL Audio Senior Engineer Bruce Macmillan, the LoC-22 is an active two-channel processor built to attenuate factory audio signals for use with aftermarket amplifiers and signal processors.

It uses a fully regulated switching MOSFET power supply and an all-analog circuit design to deliver flat frequency response at any signal level (3 Hz – 32 kHz, +0, -1 dB), without the bass roll-off that affects many passive line output converters at high signal levels.

The differential-balanced input architecture rejects induced cable noise and is compatible with virtually any analogue audio signal. With an input capacity of up to 40V RMS per channel (equivalent to 400W at 4 ohms), it handles the most powerful factory amplifier outputs. An onboard dual-range input load switch ensures compatibility with factory amplifiers that use impedance sensing to mute channels.

A pair of RCA line-level output jacks (up to 8V RMS) feeds your aftermarket amplifier or signal processor. Output level setting is straightforward using the onboard LED clipping indicator, which works with test tones or music. The LoC-22 offers two automatic turn-on methods — DC-offset sensing or signal sensing — and provides a +12V remote output to activate downstream electronics such as a JL Audio MBT-RXv2 Bluetooth receiver.

LoC-22 features

• Fully active, all-analog circuit design by Bruce Macmillan — handles factory amplifier outputs up to 40V RMS per channel
• Differential-balanced input architecture for noise rejection and broad compatibility with OEM source units and amplifiers

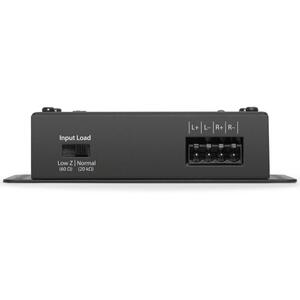

• Dual-range input load switch (20 kΩ/Normal, 60 Ω/Low Z, thermally protected) for maximum OEM amplifier compatibility

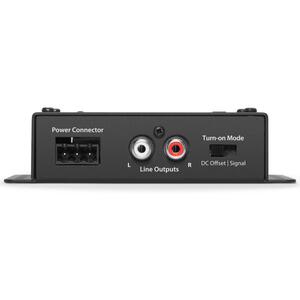

• One stereo pair of RCA line-level output jacks (up to 8V RMS)
• Automatic turn-on via DC-offset or signal sensing
• Dedicated +12V remote turn-on output (100 mA maximum) to activate aftermarket amplifiers or signal processors
• Onboard LED clipping indicator for quick, accurate output level setting

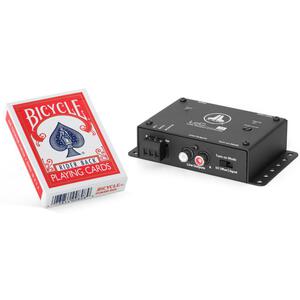

• Ultra-compact chassis fits into almost any installation location

• Power Supply Type    Switching, MOSFET PWM, Regulated
• Operating Voltage    9 - 16 V DC
• Standby Current Draw    <1.6 mA
• Operating Current Draw    0.13 A at 13.8V
• Frequency Response    3 Hz - 32 kHz (+0 dB, -1dB)
• S/N Ratio @ 2V RMS    Gain at Min: 118 dB Gain at Max: 103 dB (20 kHz Bandwidth)
• Remote Output Capacity    100 mA (maximum)
• Recommended Fuse Value    1 A
• Recommended Fuse Type    Fast-Acting, ATO/ATC or similar
• Input Channels    Two
• Input Type    Differential-Balanced
• Input Voltage    40V RMS per channel (maximum)
• Input Impedance    Normal: 20kΩ
• Low Z: 60Ω
• Turn-On Threshold    Signal-Sensing: 5 mV On/3.5 mV Off at1 kHz (Left Input) DC-Offset: 4.5 V
• Output Channels    Two
• Analog Output    Unbalanced, stereo RCA jacks
• Max. Unclipped Output    8V RMS
• Output Impedance    450 Ω
• Gain Range    -27.3 dB (full CCW) to +3.2 dB (full CW)
• THD+N    0.01% at 2V RMS (1kHz)
• Height (H)    1.23 in / 31 mm
• Width (W)    4.72 in / 120 mm
• Depth (D)    3.04 in / 77 mm
• Net Weight    2.58 lb / 1.17 kg

• JL Audio LoC-22 Line output converter
• 4-Pin Euroblock connector (pre-installed)
• 3-Pin Euroblock connector (pre-installed)
• Owner's manual
