Pioneer 6.5" 2-Way Component Car Door Speaker System 330W Max 110W RMS TS Z65CH
Pioneer 6.5" 2-Way Component Car Door Speaker System 330W Max 110W RMS TS Z65CH
Price:
£309.99

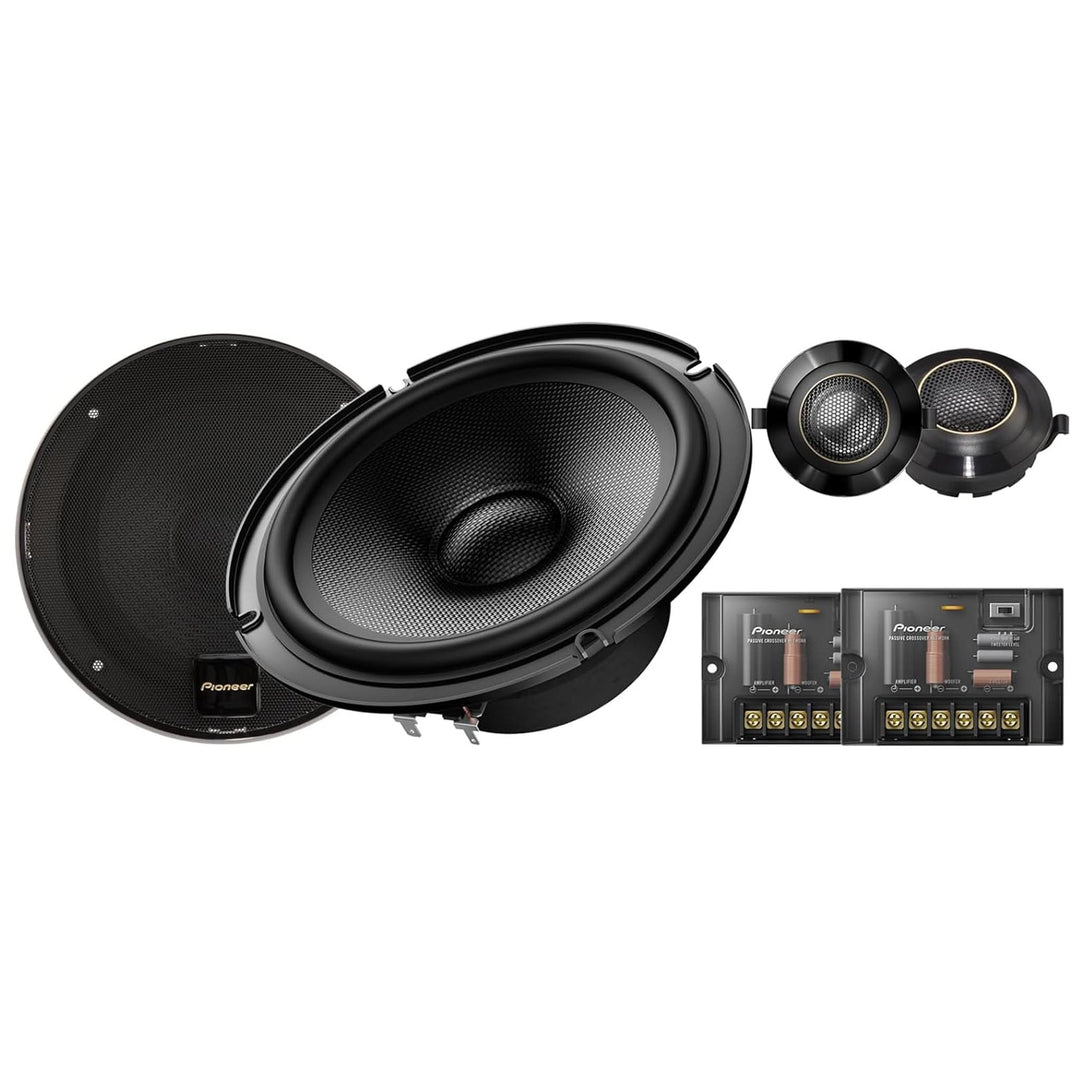

Pioneer TS-Z65CH 6.5" 2-Way Component Speakers
330W Max Power • Hi-Res Audio Certified • Twaron® Aramid Fiber Cone • 29mm Aluminum Alloy Dome Tweeter
Overview
The Pioneer TS-Z65CH Z-Series component speakers are engineered for listeners who want detailed, natural and powerful in-car sound reproduction. Designed around Pioneer’s OPEN & SMOOTH™ sound concept, these speakers deliver smooth frequency response, precise imaging and exceptional clarity across the entire frequency range.
Featuring a premium Twaron® Aramid + Cellulose Fiber dual-layer woofer cone and a 29mm HSDOM aluminum alloy dome tweeter, the TS-Z65CH reproduces deep bass, clean mids and highly detailed highs with impressive accuracy. Hi-Res Audio certification ensures playback up to 96 kHz for outstanding detail and realism.
Key Features
- 330 Watts maximum power handling
- 110 Watts RMS / nominal power
- 6.5" 2-way component speaker system
- Hi-Res Audio certified
- Twaron® Aramid + Cellulose Fiber dual-layer cone
- 29mm HSDOM aluminum alloy dome tweeter
- OPEN & SMOOTH™ sound technology
- Wide frequency response: 30 Hz – 96 kHz
- Compact swivel tweeter mounting system
- External crossover network included
- Ferrite woofer magnet and neodymium tweeter magnet
- Butyl rubber surround for durability
- Designed for accurate high-resolution playback
- Sold as a pair
Premium Z-Series Audio Performance
Pioneer developed the Z-Series for high-end automotive audio systems where sound quality and detail are the priority. The TS-Z65CH uses carefully selected premium materials and advanced acoustic engineering to deliver an exceptionally natural and dynamic listening experience.

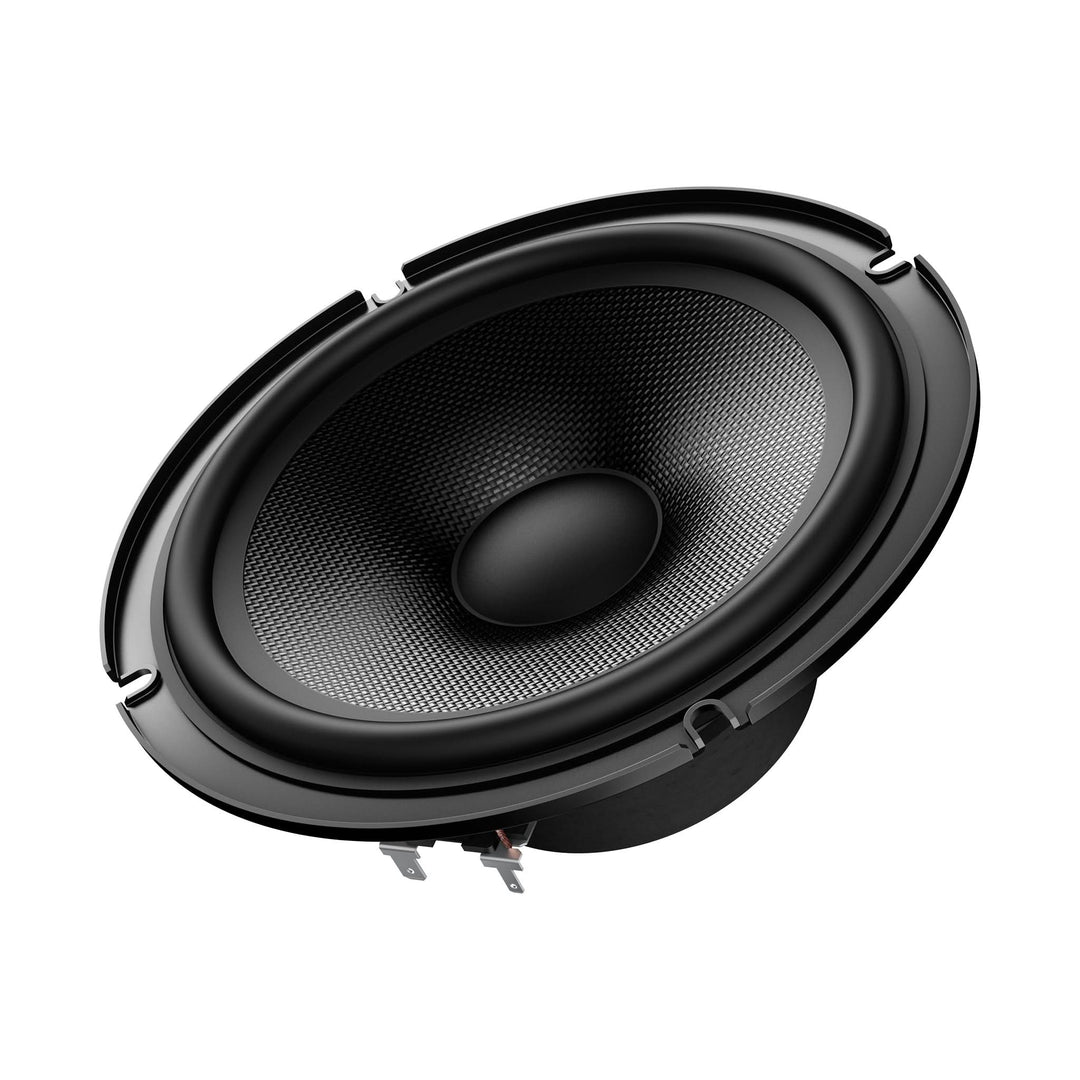

The Twaron® Aramid Fiber and Cellulose Fiber dual-layer woofer cone combines rigidity with natural damping characteristics. This allows the speaker to reproduce bass and midrange frequencies with excellent speed, low distortion and impressive tonal accuracy.
The oversized 29mm aluminum alloy balanced dome tweeter uses Pioneer’s HSDOM technology together with the Vertex Drive System for accurate high-frequency reproduction with improved dispersion and reduced distortion, even at high listening levels.
Hi-Res Audio Certified
The TS-Z65CH is designed to reproduce frequencies far beyond standard CD quality, allowing you to hear more detail, texture and realism from high-resolution audio recordings. With an extended frequency response reaching up to 96 kHz, the speakers reproduce harmonics and fine details that conventional speakers often miss.
Pioneer’s OPEN & SMOOTH™ tuning concept creates seamless integration between woofer and tweeter drivers, producing a wide and natural soundstage optimized specifically for vehicle interiors.
Flexible Installation
The included swivel tweeter mounting kit provides flexible installation options including flush, surface and bracket mounting. The compact tweeter design also makes it easier to integrate behind factory tweeter grilles while maintaining optimal stereo imaging and sound staging.
External crossover networks are included to optimize frequency distribution between the woofer and tweeter for smooth and balanced sound reproduction.
Specifications
| Model | TS-Z65CH |
| Series | Z-Series |
| Speaker Type | 6.5" 2-Way Component Speaker System |
| Maximum Power | 330 W |
| RMS Power | 110 W |
| Frequency Response | 30 Hz – 96,000 Hz |
| Sensitivity | 85 dB (1W/1M) |
| Impedance | 4 Ω |
| Woofer Size | 6.5" |
| Tweeter Size | 29 mm |
| Tweeter Type | HSDOM Aluminum Alloy Balanced Dome |
| Cone Material | Twaron® Aramid Fiber + Cellulose Fiber Dual Layer |
| Woofer Magnet | Ferrite |
| Tweeter Magnet | Neodymium |
| Surround Material | Butyl Rubber |
| Mounting Depth | 2-1/2" Woofer / 5/8" Tweeter |
| Cut-Out Diameter | 5-5/8" |
| Tweeter Mount | Swivel Mount Included |
| Crossover Network | Included |
| Hi-Res Audio | Certified |
| Sold As | Pair (2 Speakers) |
| Manufacturer Part Number | TS Z65CH |
| Brand | Pioneer |
| Driver | Tweeter, Midrange |
| Size | 6.5 in |
| Speaker Design | 2 Way |
| Number of Driver | 2 |
| Impedance | 4 O |
| Type | Component, 2 Way Component System |
| Power Recommendation | 110 W |
| Midrange Speaker Size | 6.5" |
| Diaphragm material | Aluminum Alloy - Tweeter |
| Load capacity RMS / Max. | 110W/330W |
| Power RMS / Max. | 110W/330W |
| Magnet Material | Ferrite - Speaker,Neodymium - Tweeter |
| Outer Diameter | 2-3/8" |
| Power Handling (Max) | 330 W |
| Power Handling (RMS) | 110 W |
| Woofer Cone Material | Aramid Fiber plus Cellulose Fiber Dual Layer Cone |
| Speaker Size (Tweeter) | 1.14" |
| Number of Tweeters | 2 |
| Tweeter Technology | Balance Dome |
| Tweeter Magnet | Neodymium |
| Grill Included | Yes |
| Dimensions | 165 mm x 90 mm |
| Woofer mounting depth | 65 mm |
| Frequency response | 30 Hz to 96 kHz |
| Sensitivity | 85 dB (+- 1.5dB) |
| Tweeter diameter | 2" |
| Placement on Vehicle | Left Front Door, Right Front Door |
| Shape | Round |
| RMS Power | 110W |
| Unit Type | Unit |
| Mounting Depth | 2-1/2" - Midrange,5/8" - Tweeter (Woofer: 65 mm. Tweeter: 15 mm) |
| Series | Z-Series |
