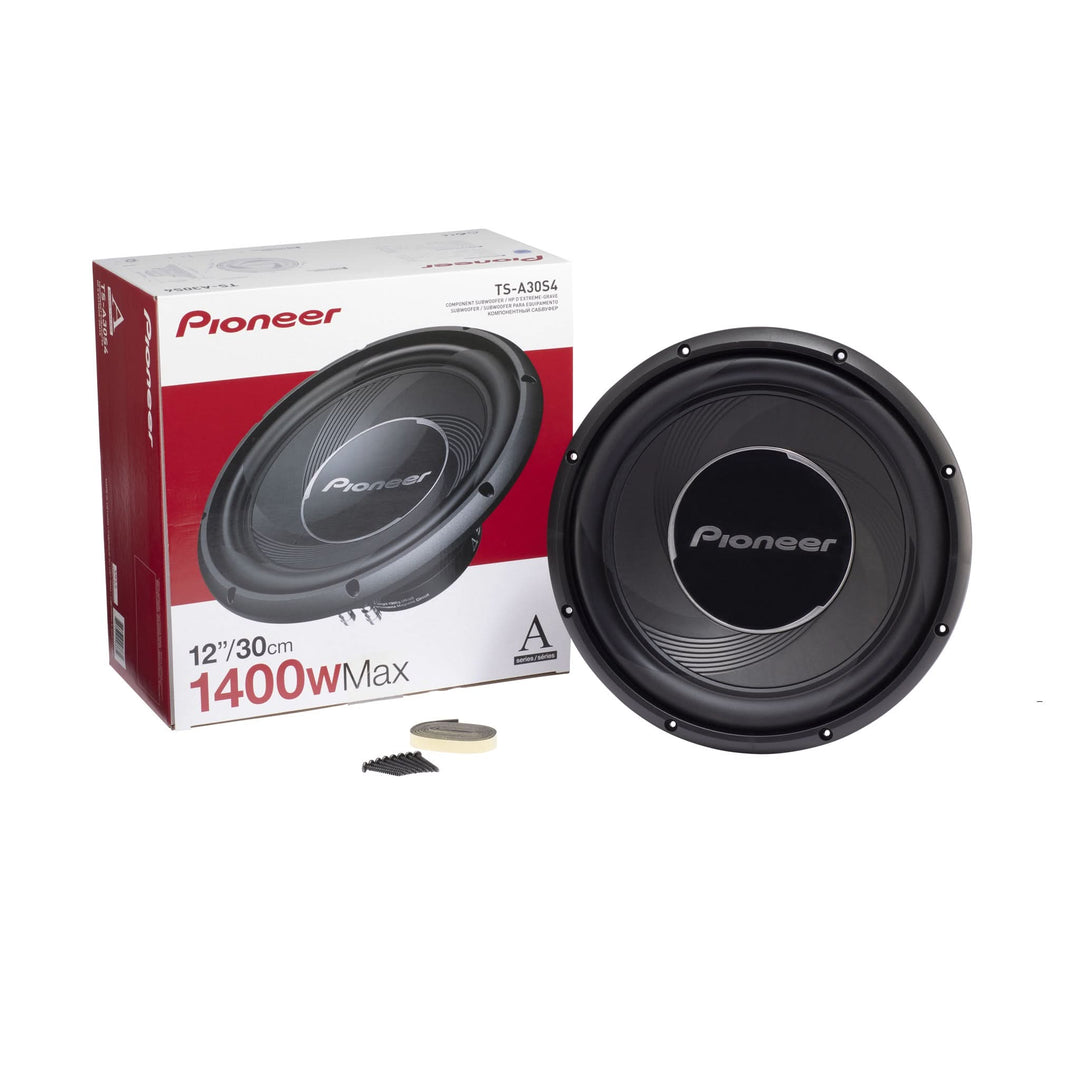

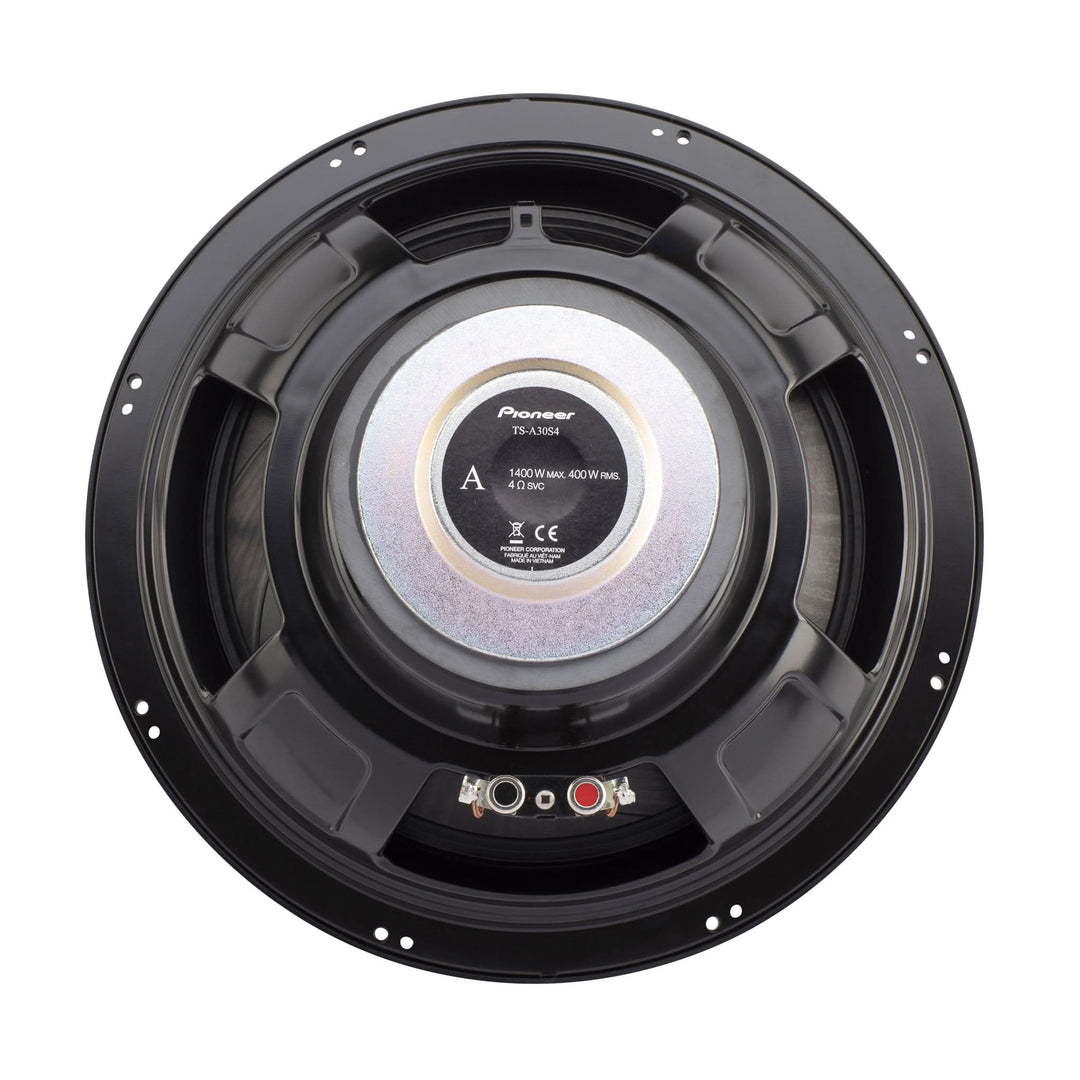

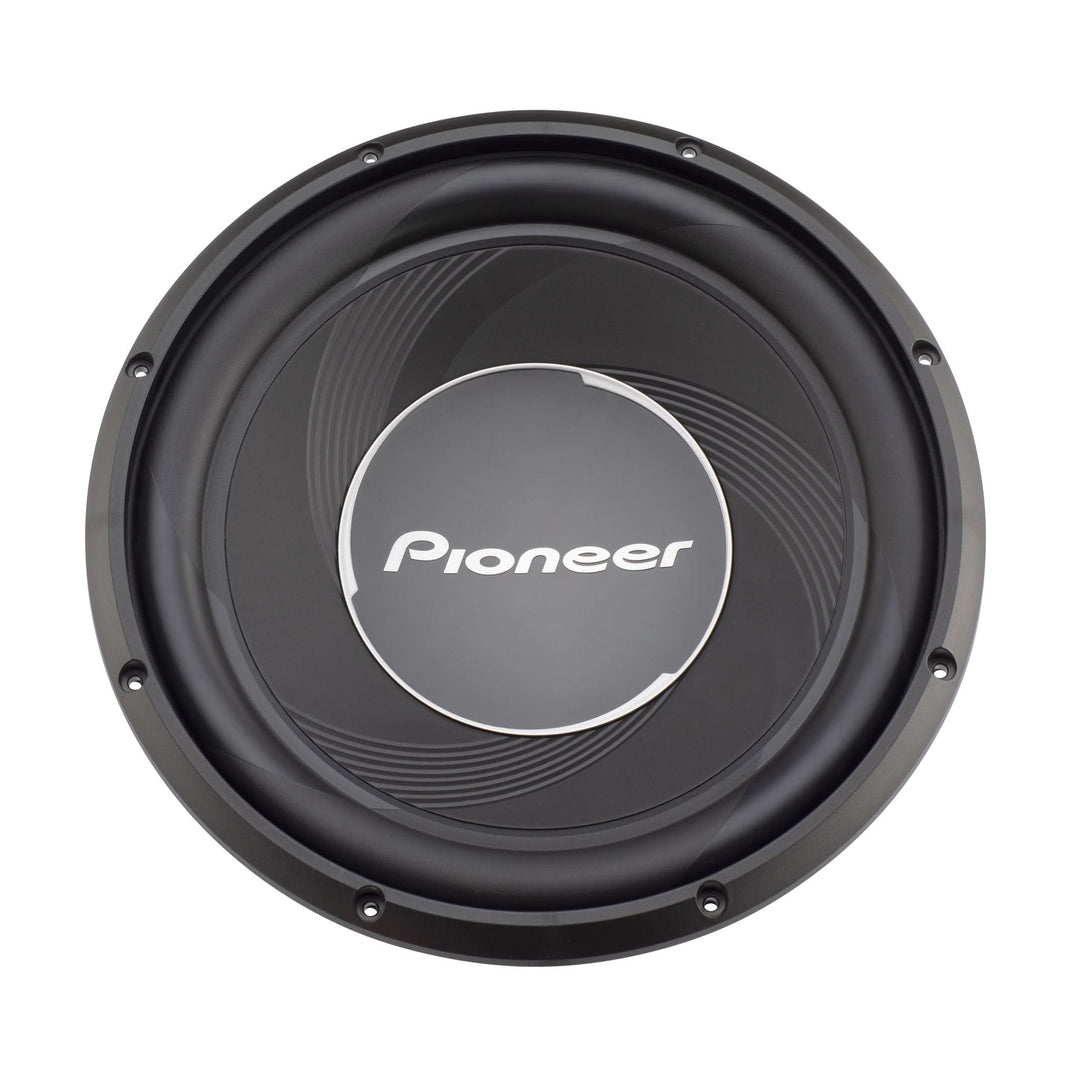

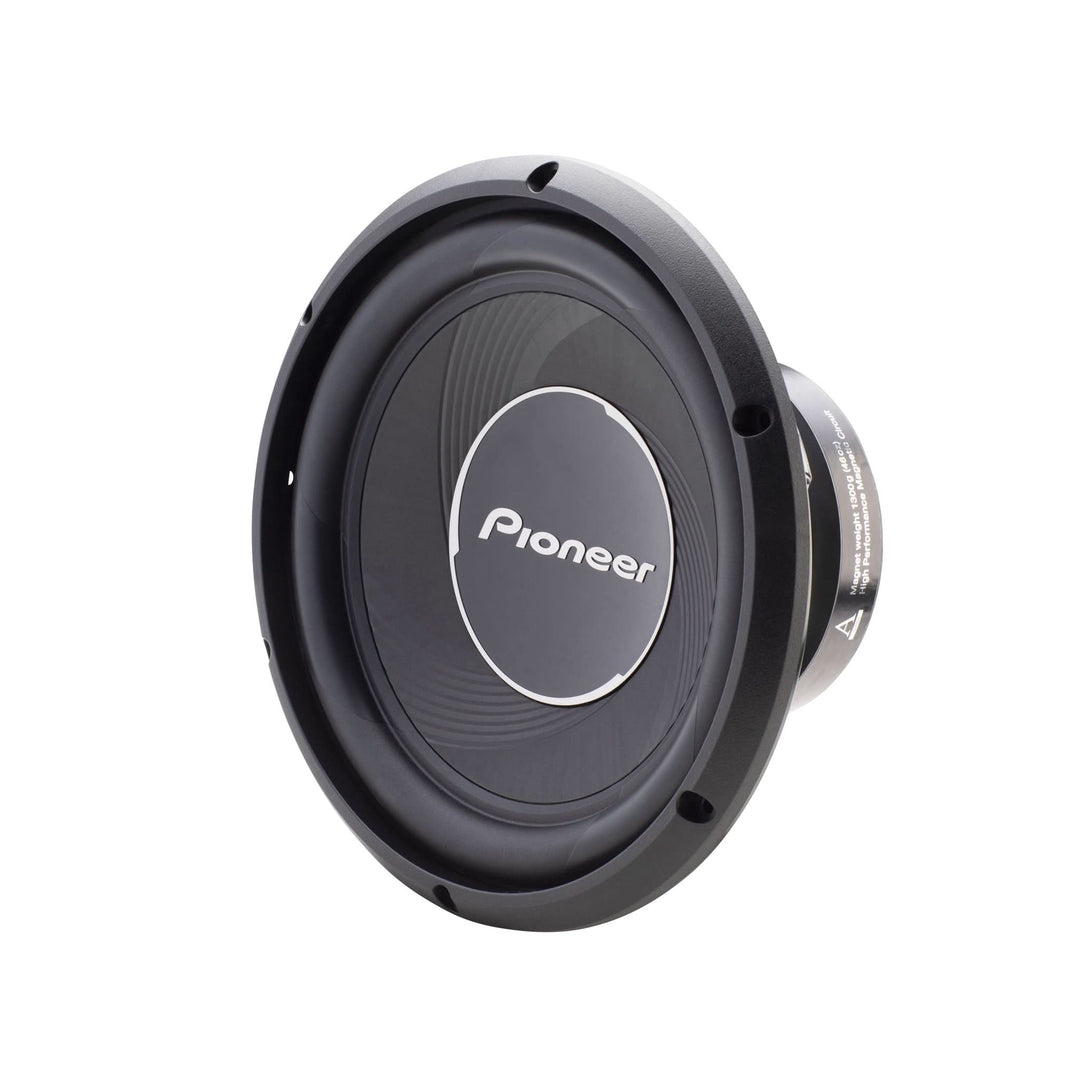

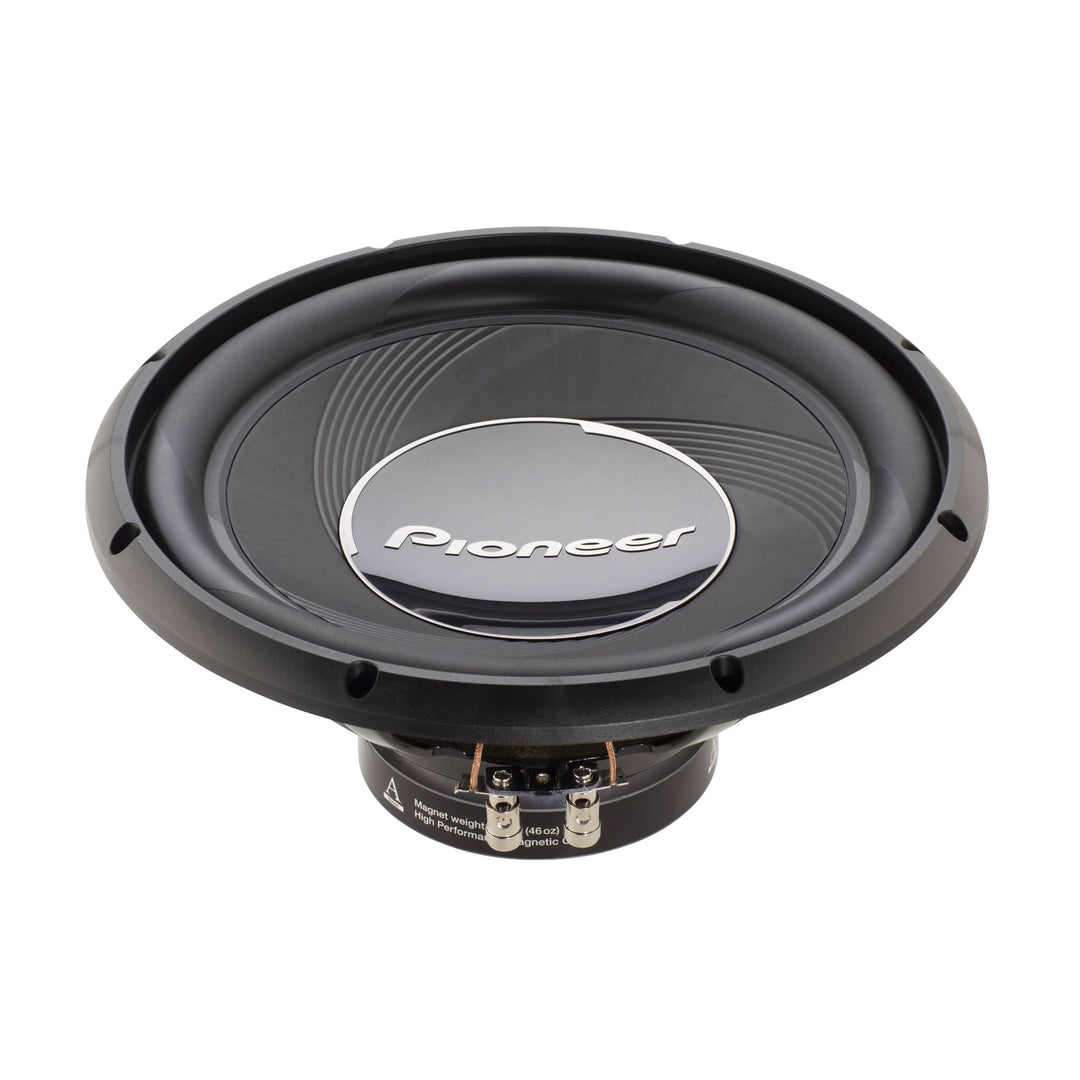

Pioneer 12" Car Audio Component Subwoofer Speaker 1400W Max 400W RMS TS A30S4
Pioneer 12" Car Audio Component Subwoofer Speaker 1400W Max 400W RMS TS A30S4
Price:
£79.99
Pioneer 12" A-Series Subwoofer 1400W Max 4Ω Component Car Audio Bass Speaker
Key Features
- 12" (30cm) component subwoofer
- 1400W max power / 400W RMS
- 4 Ohm single voice coil
- IMPP™ composite cone for tight, accurate bass
- Glass-fiber & mica reinforced cone design
- Wide frequency response (22 Hz – 1.6 kHz)
- High sensitivity (87 dB)
- Strontium magnet for strong bass control
- Large copper voice coil for improved power handling
- Aluminium voice coil former for heat dissipation
- Optimised for sealed and ported enclosures
- Pioneer A-Series sound matching
Powerful A-Series Bass Upgrade
Upgrade your car audio system with the Pioneer A-Series subwoofer, designed to deliver deep, punchy bass with excellent control. It is engineered to match full-range speakers for a balanced and dynamic sound experience.
IMPP™ Reinforced Cone
The glass-fiber and mica reinforced IMPP™ cone provides a strong yet lightweight structure, reducing distortion while delivering precise and powerful low frequencies even at higher volumes.
Deep and Controlled Bass
Equipped with a strontium magnet and large copper voice coil, this subwoofer ensures stable performance and consistent bass output. The aluminium voice coil former improves heat dissipation during high power use.
Flexible Installation Options
Designed for both sealed and ported enclosures, this subwoofer allows you to fine-tune your setup depending on your preference for tighter or more powerful bass response.
CarSoundFit Compatibility
Use the Pioneer CarSoundFit app to simulate how this subwoofer will sound in your vehicle and compare it with other Pioneer upgrades before installation.
Specifications
| Speaker Type | Component Subwoofer |
| Size | 12" (30 cm) |
| Maximum Power | 1400 W |
| RMS Power | 400 W |
| Impedance | 4 Ω |
| Frequency Response | 22 Hz – 1.6 kHz |
| Sensitivity | 87 dB |
| Voice Coil | Single Voice Coil (4 Ohm) |
| Mounting Depth | 5-3/8" |
| Cut-Out Diameter | 11-1/8" |
| Recommended Sealed Box | 35.4 Litres (1.25 cu ft) |
| Recommended Ported Box | 42.5 Litres (1.5 cu ft) |
| Resonance Frequency (Fs) | 32.1 Hz |
| Xmax | 8.25 mm |
| Magnet Type | Ferrite (46 oz) |
| Cone Material | IMPP™ Composite |
| Surround | Rubber (Rolled) |
| Voice Coil Former | Aluminium |
| Terminals | Push Type |
| Manufacturer Part Number | TS A30S4 |
| Brand | Pioneer |
| Driver | Woofer |
| Size | 12 in |
| Speaker Design | Component |
| Number of Driver | 1 |
| Impedance | 4 |
| Type | Component, High End Subwoofer |
| Power Recommendation | 400 |
| Max. Excursion (Xmax) | 8.25 mm, 0.33" |
| Spider Type | Polycotton |
| Dust Cap | ABS |
| Terminal | Push Type |
| Load capacity RMS / Max. | 400W/1400W |
| Magnet Material | Ferrite |
| Power Handling (Max) | 1400W |
| Power Handling (RMS) | 400W |
| Woofer Cone Material | Glass Fiber & Mica Reinforced Interlaced Injection Molded PolyPropylene (IMPP™) Cone |
| Woofer mounting depth | 136 mm |
| Frequency response | 22 Hz - 1600 Hz |
| Sensitivity | 87 dB |
| Mounting Depth | 136 mm |
| Surround | Rubber |
