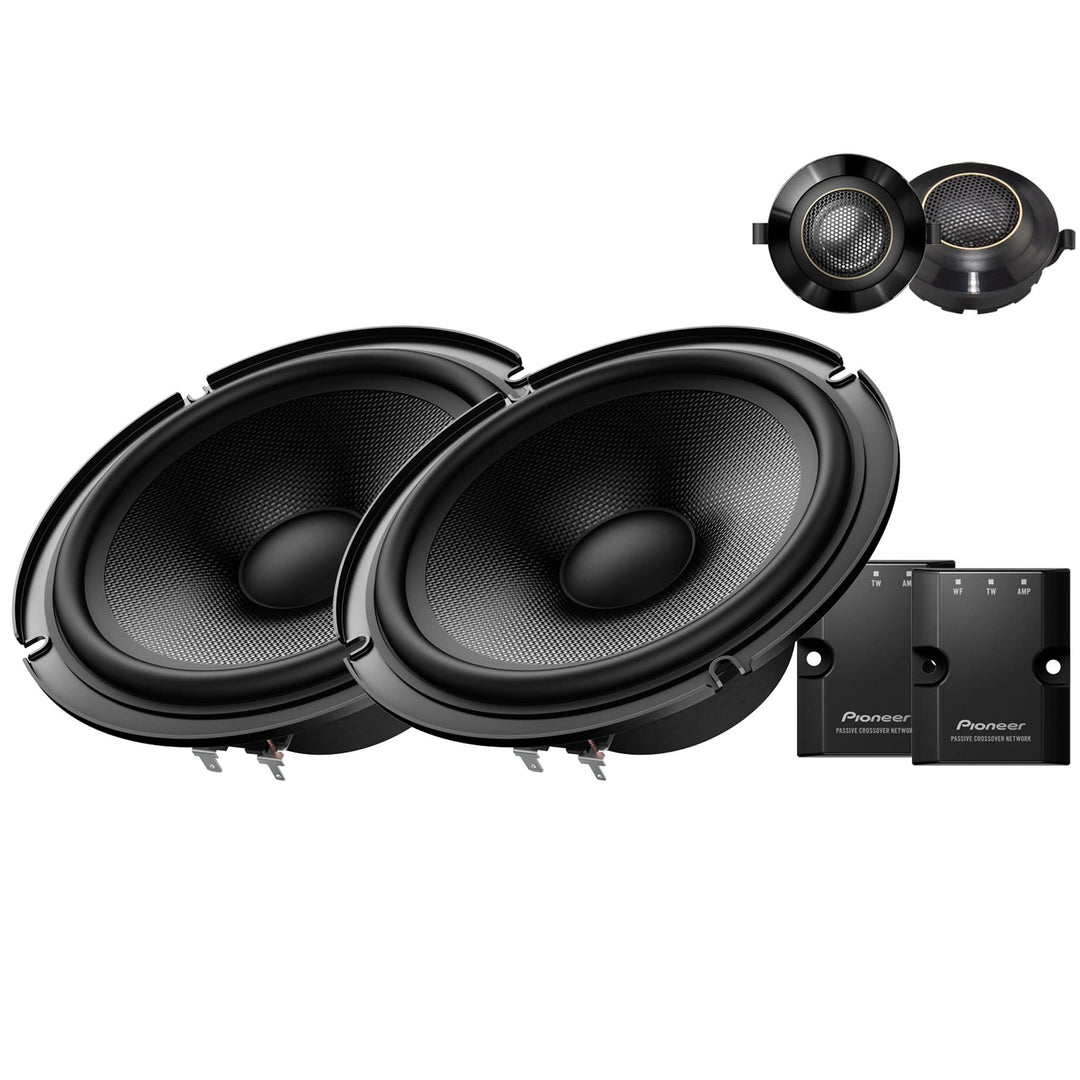

Pioneer 6.5" 2-Way Component Car Door Speaker System 300W Max 100W RMS TS Z65C
Pioneer 6.5" 2-Way Component Car Door Speaker System 300W Max 100W RMS TS Z65C
Price:
£259.99
Pioneer TS-Z65C 6.5" 2-Way Component Speaker System 300W Hi-Res Audio
Overview
The Pioneer TS-Z65C is a premium 6.5-inch 2-way component speaker system from the flagship Z-Series range, engineered for audiophile-grade sound quality and High-Resolution Audio playback. Designed around Pioneer’s advanced Open & Smooth™ sound concept, this speaker system delivers precise imaging, expansive soundstage performance and outstanding tonal balance inside the vehicle cabin.
Built with premium materials including Twaron® aramid fiber dual-layer cone construction and a 29 mm aluminum alloy balanced dome tweeter, the TS-Z65C reproduces music with impressive clarity, detailed vocals and deep controlled bass response across an ultra-wide frequency range up to 96 kHz.
The included dedicated crossover network and compact swivel tweeter system allow flexible installation and accurate sound integration, making the TS-Z65C an excellent upgrade for premium car audio systems.
Main Features
- 6.5" (16.5 cm) 2-way component speaker system
- 300W maximum peak power handling
- 100W RMS continuous power handling
- Hi-Res Audio certified
- Pioneer Open & Smooth™ sound technology
- Twaron® aramid fiber + cellulose fiber dual-layer cone
- Aramid Fiber IMPP woofer cone
- 29 mm aluminum alloy balanced dome tweeter
- Wide frequency response up to 96 kHz

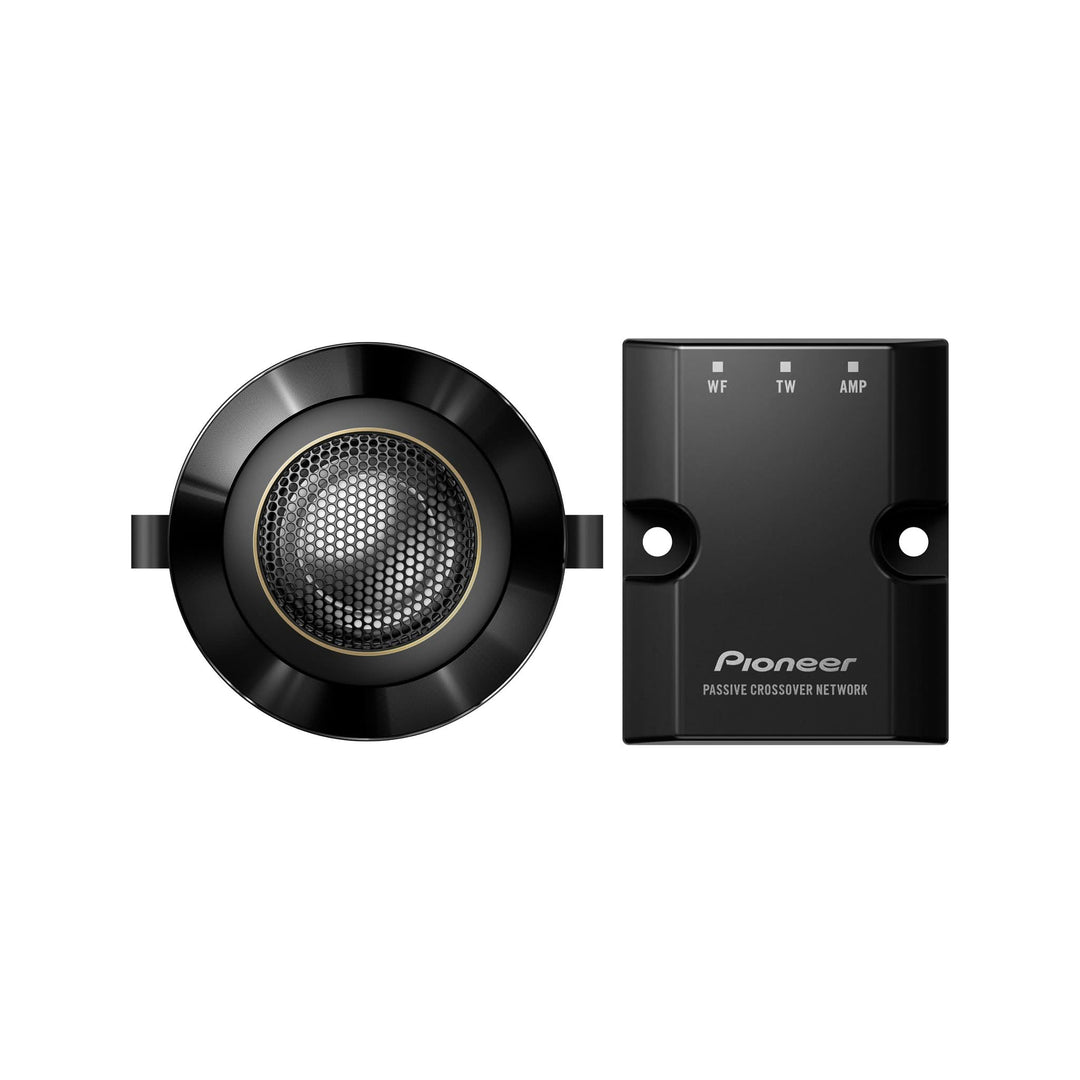

- Dedicated Pioneer crossover network included
- Compact swivel tweeter design
- Tri-position tweeter mounting kit included
- Multi-fit adaptors for most Asian vehicles
- Excellent soundstage and vocal clarity
- Low distortion and accurate bass response
- Butyl rubber surround for durability
- Glass imide voice coil material
- Plug & Play installation support
Open & Smooth™ Sound Technology
Pioneer’s proprietary Open & Smooth™ sound technology is engineered to improve sound staging and frequency integration inside the vehicle cabin. The TS-Z65C creates a wide, natural sound image with smooth transitions between midrange and high frequencies for a more immersive listening experience.
Combined with the dedicated crossover network and balanced dome tweeter, the system delivers highly detailed vocals, accurate instrument separation and natural tonal reproduction.
Premium Z-Series Construction
The TS-Z65C uses advanced Twaron® aramid fiber cone technology combined with cellulose fiber materials to improve rigidity while reducing unwanted resonance and distortion. This dual-layer cone structure provides deep and controlled bass while maintaining excellent midrange detail and clarity.
The aluminum alloy balanced dome tweeter extends high-frequency performance far beyond standard speakers, supporting High-Resolution Audio playback up to 96 kHz for exceptional detail and accuracy.
Flexible Installation
The compact swivel tweeter with tri-position mounting kit allows flexible installation options for improved sound positioning and staging. Multi-fit adaptors are included to support Plug & Play installation in many Asian vehicles, making system upgrades faster and easier.
The shallow mounting depth also allows installation in a wider range of vehicle doors and custom audio builds.
Specifications
| Model | Pioneer TS-Z65C |
| Series | Z-Series |
| Speaker Type | 2-Way Component Speaker System |
| Speaker Size | 6.5" / 16.5 cm |
| Maximum Power | 300 W |
| RMS Power | 100 W |
| Frequency Response | 32 Hz – 96,000 Hz |
| Sensitivity | 85 dB (±1.5 dB) |
| Impedance | 4 Ω |
| Hi-Res Audio Certified | Yes |
| Crossover Frequency | 4000 Hz (Acoustic), 1800 Hz (Electric) |
| Woofer Size | 6.5" |
| Tweeter Size | 29 mm / 1.14" |
| Tweeter Type | Balanced Dome Tweeter |
| Tweeter Material | Aluminum Alloy |
| Cone Material | Twaron® Aramid Fiber + Cellulose Fiber |
| Woofer Cone | Aramid Fiber IMPP Cone |
| Basket Material | Stamped Steel |
| Center Cap Material | Polypropylene |
| Damper Material | Aramid Fiber |
| Surround Material | Butyl Rubber |
| Surround Type | Rolled |
| Voice Coil Material | Glass Imide |
| Voice Coil Wire | Copper |
| Shorting Ring Material | Copper |
| Magnet Material | Ferrite (Woofer), Neodymium (Tweeter) |
| Magnet Weight | 11.3 oz (Woofer), 6.4 g (Tweeter) |
| Cut-Out Diameter | 5-5/8" |
| Mounting Depth | 2-1/2" (Midrange), 5/8" (Tweeter) |
| Tweeter Mounting Hole | 2" |
| Tweeter Swivel Type | Yes |
| Outer Diameter | 2-3/8" |
| Protrusion | 1/2" |
| Wire Terminals | Lug Type |
| Multi-Fit Adaptors | Included |
| Manufacturer Part Number | TS Z65C |
| Brand | Pioneer |
| Driver | Tweeter, Midrange |
| Size | 6.5 in |
| Speaker Design | 2 Way |
| Number of Driver | 2 |
| Impedance | 4 O |
| Type | Component, 2 Way Component System |
| Power Recommendation | 100 W |
| Midrange Speaker Size | 6.5" |
| Diaphragm material | Aluminum Alloy - Tweeter |
| Load capacity RMS / Max. | 100W/300W |
| Power RMS / Max. | 100W/300W |
| Magnet Material | Ferrite - Speaker, Neodymium - Tweeter |
| Outer Diameter | 2-3/8" |
| Power Handling (Max) | 300 W |
| Power Handling (RMS) | 100 W |
| Woofer Cone Material | Aramid Fiber plus Cellulose Fiber Dual Layer Cone |
| Speaker Size (Tweeter) | 1.14" |
| Number of Tweeters | 2 |
| Tweeter Technology | Balance Dome |
| Tweeter Magnet | Neodymium |
| Grill Included | Yes |
| Dimensions | 165 mm x 90 mm |
| Woofer mounting depth | 65 mm |
| Frequency response | 32 Hz to 96 kHz |
| Sensitivity | 85 dB (+- 1.5dB) |
| Tweeter diameter | 2" |
| Placement on Vehicle | Left Front Door, Right Front Door |
| Shape | Round |
| RMS Power | 100W |
| Unit Type | Unit |
| Mounting Depth | 2-1/2" - Midrange, 5/8" - Tweeter (Woofer: 65 mm. Tweeter: 15 mm) |
| Series | Z-Series |
