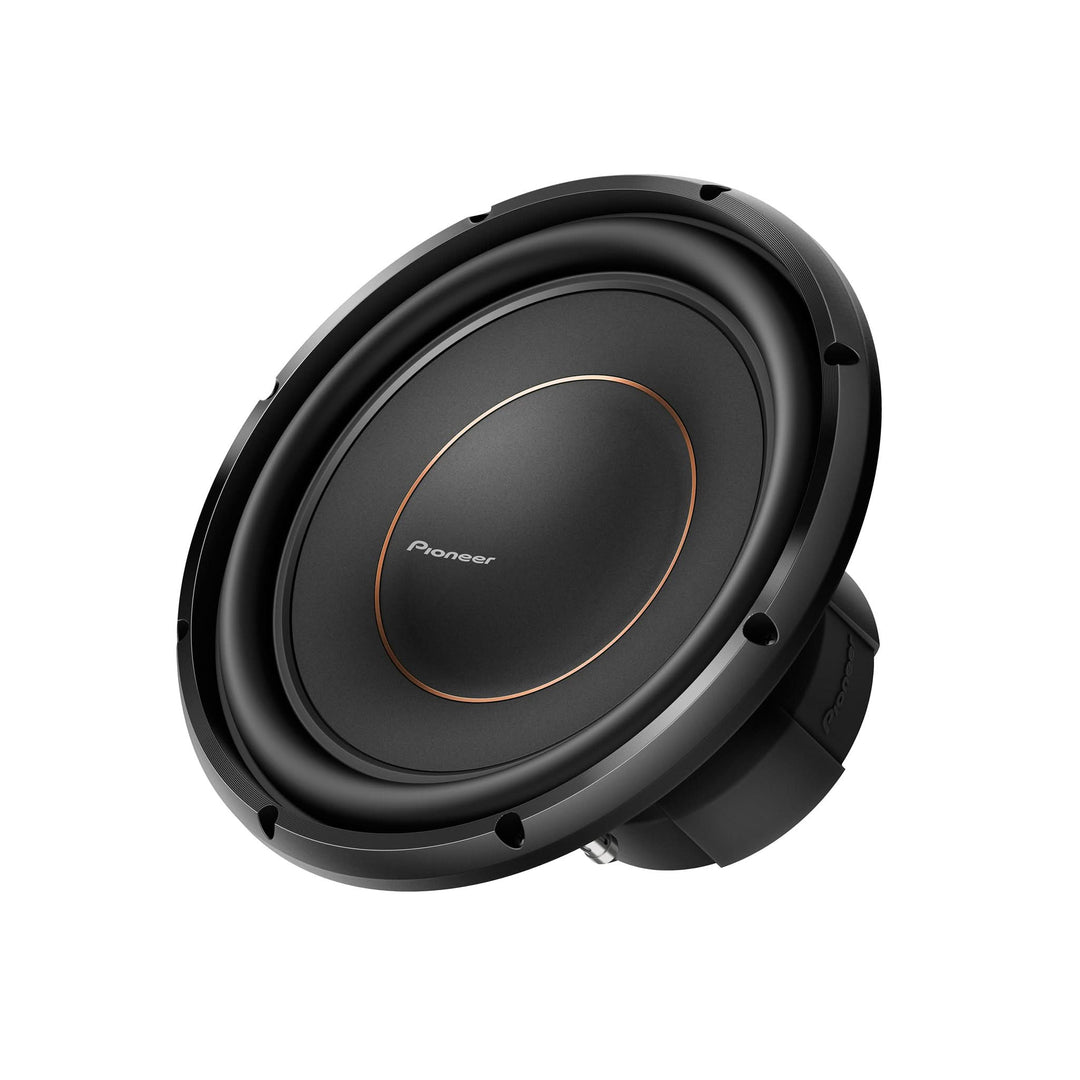

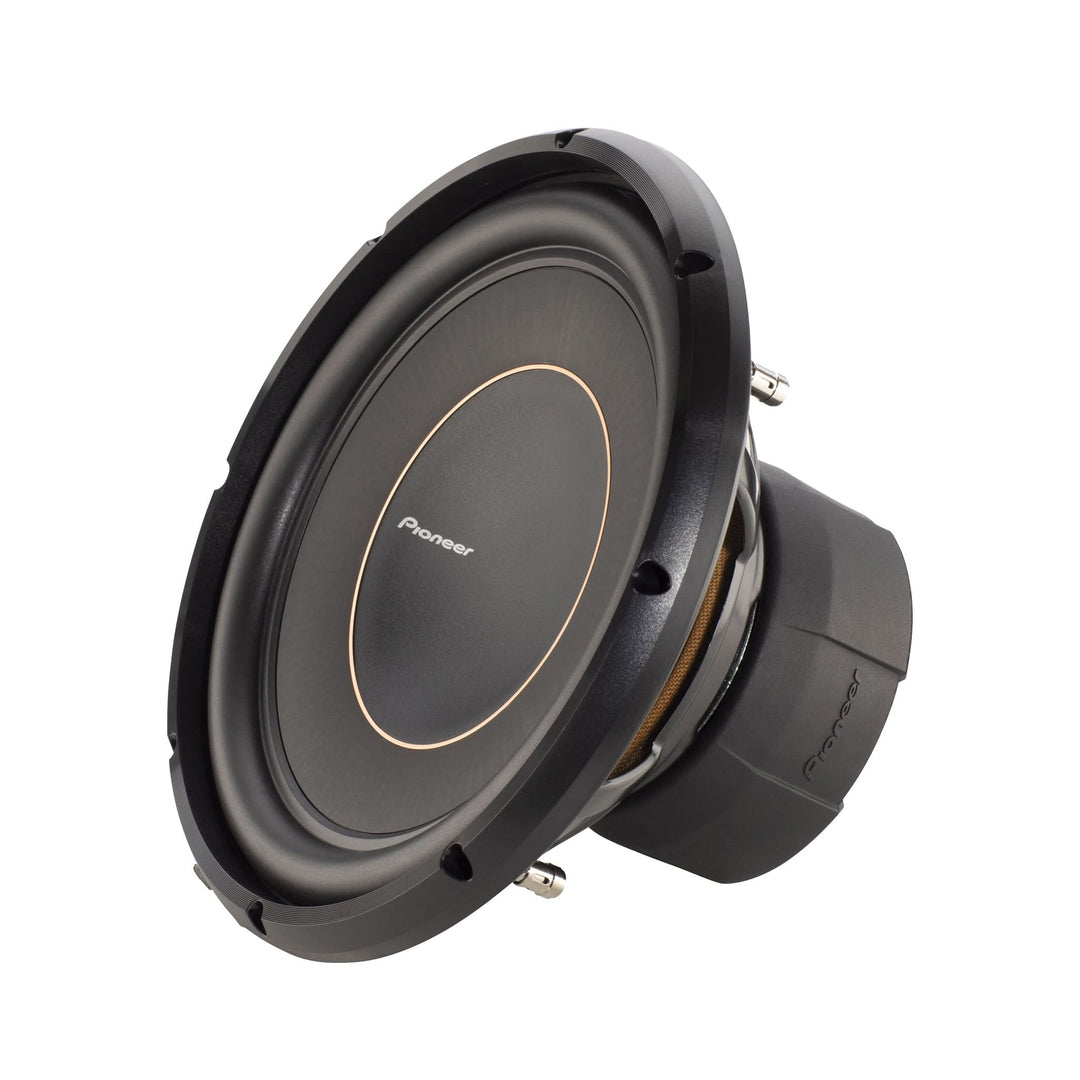

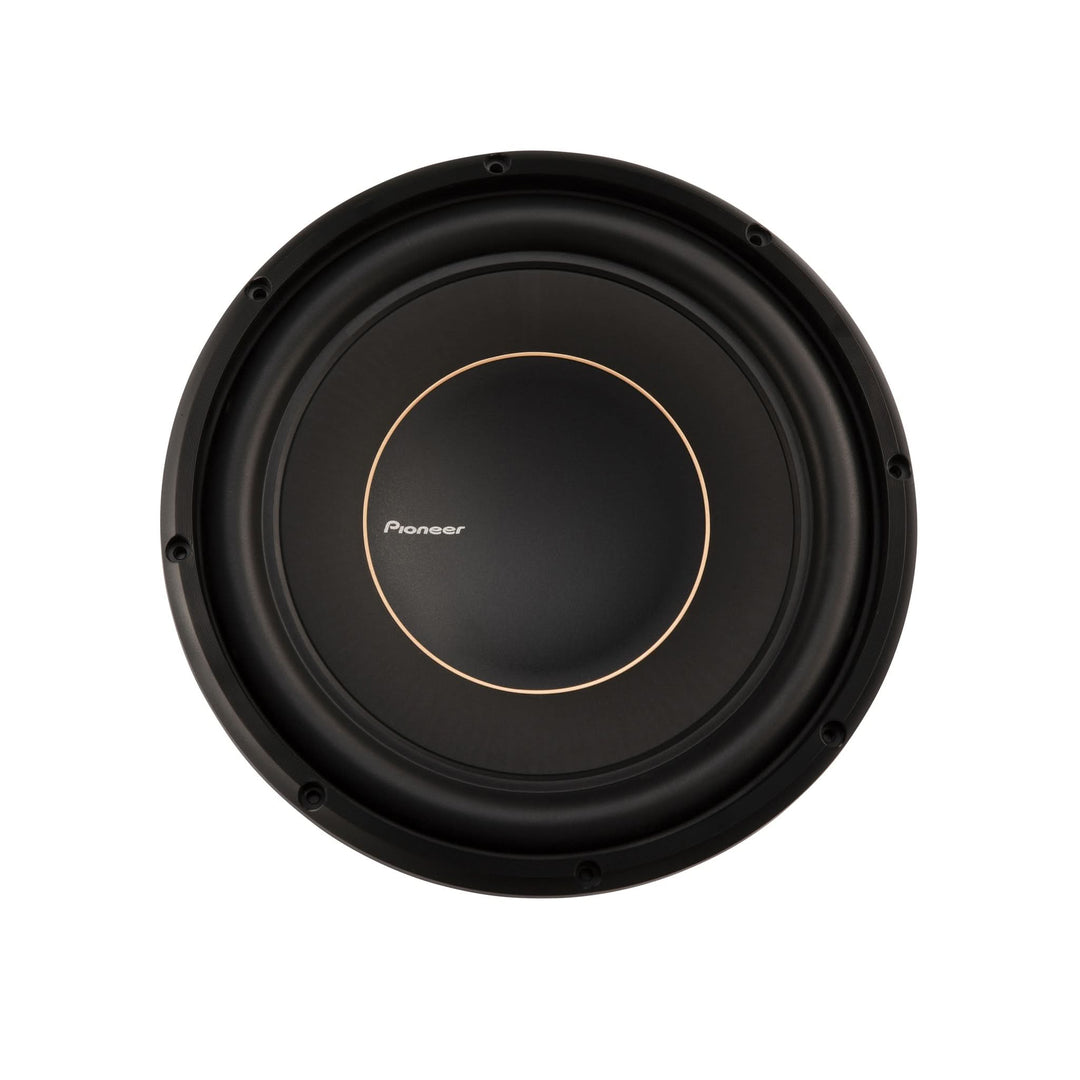

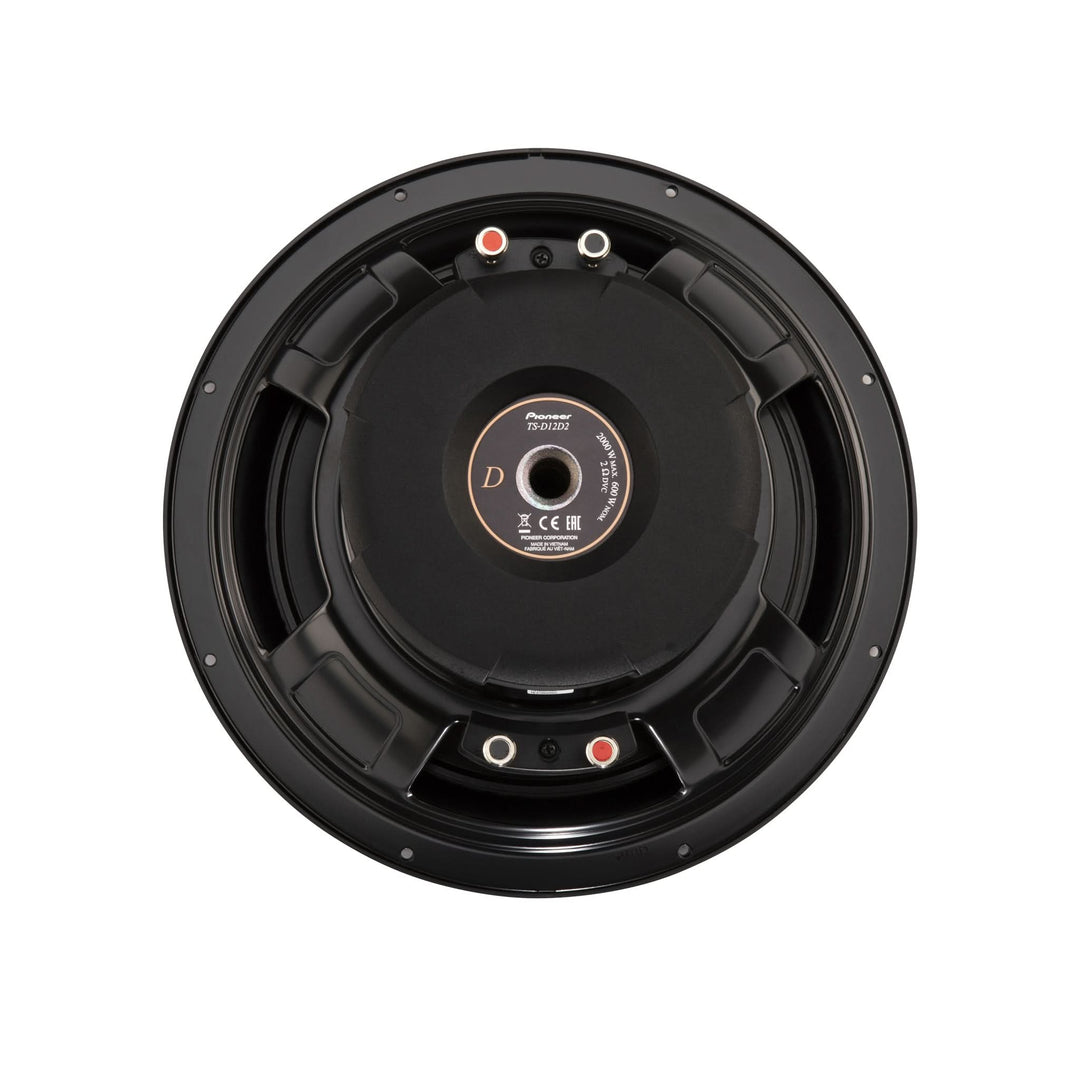

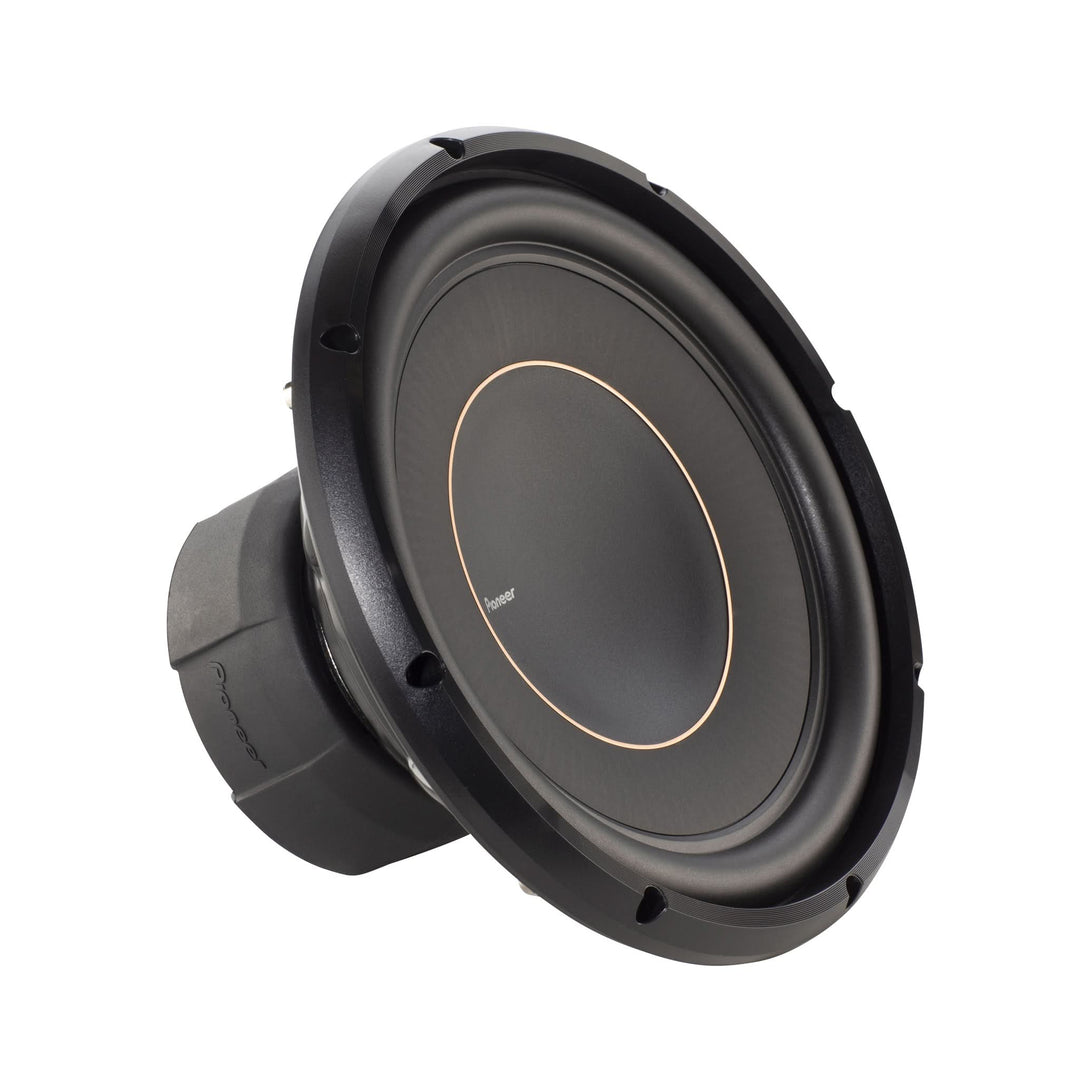

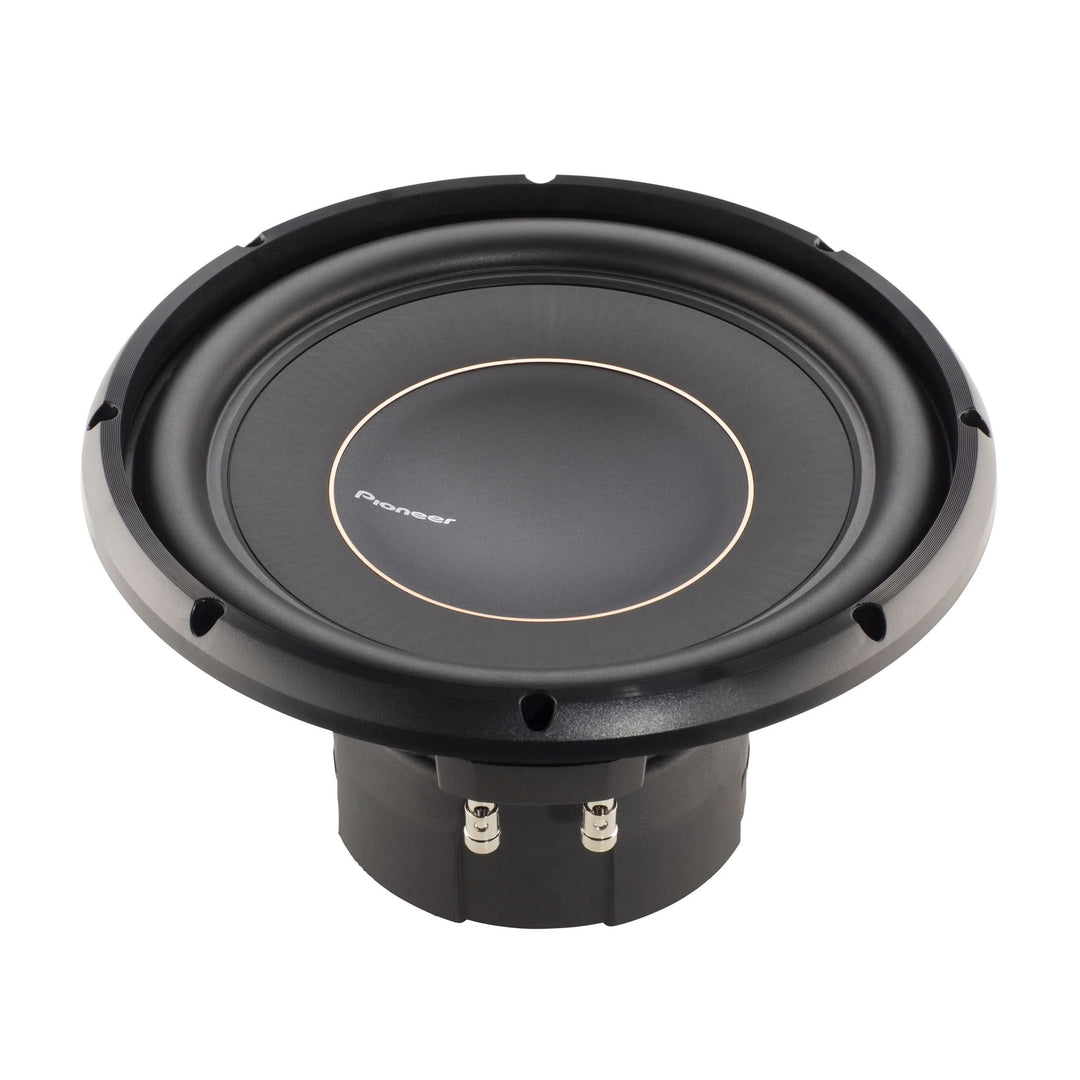

Pioneer 12" Car Audio Subwoofer Speaker Dual Voice Coil 4Ohm 2000W Max TS D12D4
Pioneer 12" Car Audio Subwoofer Speaker Dual Voice Coil 4Ohm 2000W Max TS D12D4
Price:
£189.99
Pioneer TS-D12D4 12" Subwoofer – 2000W Max, Dual 4 Ohm, Deep Bass Performance
Key Features
- 12" high-performance subwoofer
- 2000W max power / 600W RMS
- Dual 4 Ohm voice coil (DVC)
- Aramid fiber reinforced IMPP™ cone
- Butyl rubber surround for low distortion
- Meta-aramid fiber spider for stability
- Deep, powerful and accurate bass
- High excursion design (13mm Xmax)
- Works in sealed and ported enclosures
- Flexible wiring options for system setups
- High power handling with strong motor structure
- CarSoundFit app compatible
Deep & Powerful Bass
With 600W RMS power handling, the TS-D12D4 delivers strong low-frequency output with excellent control. Designed for both impact and clarity, it brings out the full depth of your music.
Aramid Fiber IMPP™ Cone
The lightweight yet rigid cone construction ensures precise bass reproduction with minimal distortion, even at high volume levels.
Advanced Suspension System
The butyl rubber surround combined with a meta-aramid fiber spider improves durability and maintains accurate cone movement during heavy bass playback.
High Power Motor Structure
Featuring a large multi-layer voice coil and double-stacked magnets, this subwoofer provides strong control, higher output, and improved heat management.
Flexible Installation
Dual 4 Ohm voice coils allow multiple wiring configurations, making it easy to match with different amplifiers and build custom subwoofer systems.
Specifications
| Speaker Type | Subwoofer |
| Series | Pioneer D-Series |
| Size | 12" |
| Max Power | 2000W |
| RMS Power | 600W |
| Frequency Response | 20 Hz – 4.7 kHz |
| Sensitivity | 76 dB |
| Impedance | Dual 4 Ohm |
| Voice Coil Type | Dual Voice Coil (DVC) |
| Voice Coil Bobbin | Aluminum |
| Cone Material | IMPP™ Aramid Fiber |
| Surround Material | Rubber |
| Spider | Meta-Aramid Fiber |
| Mounting Depth | 158 mm |
| Cut-Out Size | 28 cm |
| Recommended Sealed Box | 1.0 cu.ft. |
| Recommended Ported Box | 1.2 cu.ft. |
| VAS | 46.2 L |
| Fs | 33 Hz |
| Xmax | 13 mm |
| Qts | 0.64 |
| Magnet Type | Ferrite |
| Magnet Weight | 73.6 oz |
| Basket Material | Stamped Metal |
| CarSoundFit App | Supported |
| Manufacturer Part Number | TS D12D4 |
| Brand | Pioneer |
| Driver | Woofer |
| Size | 12 in |
| Speaker Design | Subwoofer Speaker |
| Number of Driver | 1 |
| Impedance | 4 O Dual Voice Coil (DVC) |
| Type | Component, High End Subwoofer |
| Power Recommendation | 600W |
| Max. Excursion (Xmax) | 1/2",13 mm |
| Spider Type | Meta-Aramid fiber |
| Dust Cap | ABS |
| Magnet Material | Ferrite |
| Power Handling (Max) | 2000W |
| Power Handling (RMS) | 600W |
| Woofer Cone Material | IMPP - Aramid Fiber |
| Grill Included | Not Included |
| Frequency response | 20 Hz to 4.7kHz |
| Sensitivity | 76dB |
| Mounting Depth | 6-1/8",16 cm |
| Series | D-Series |
