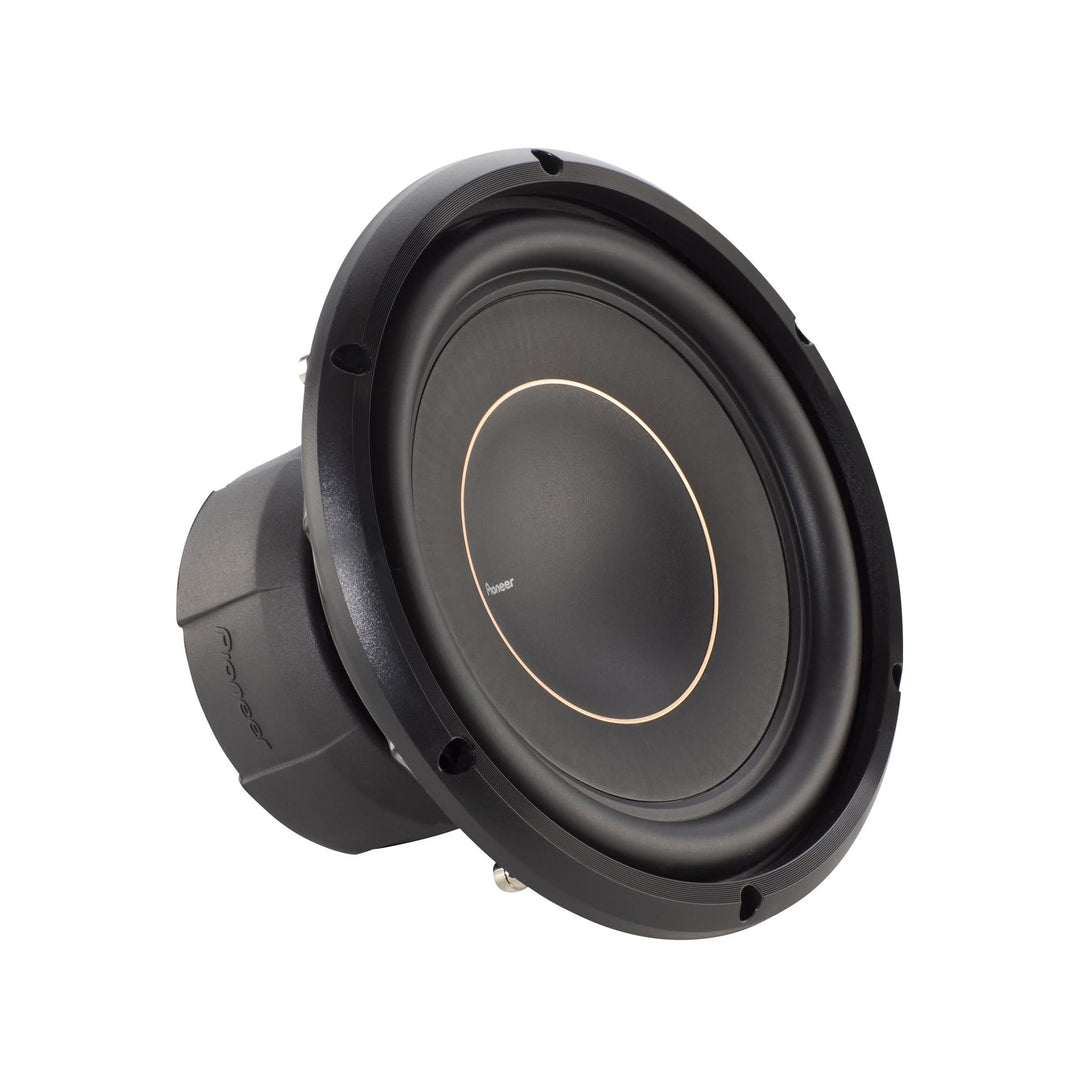

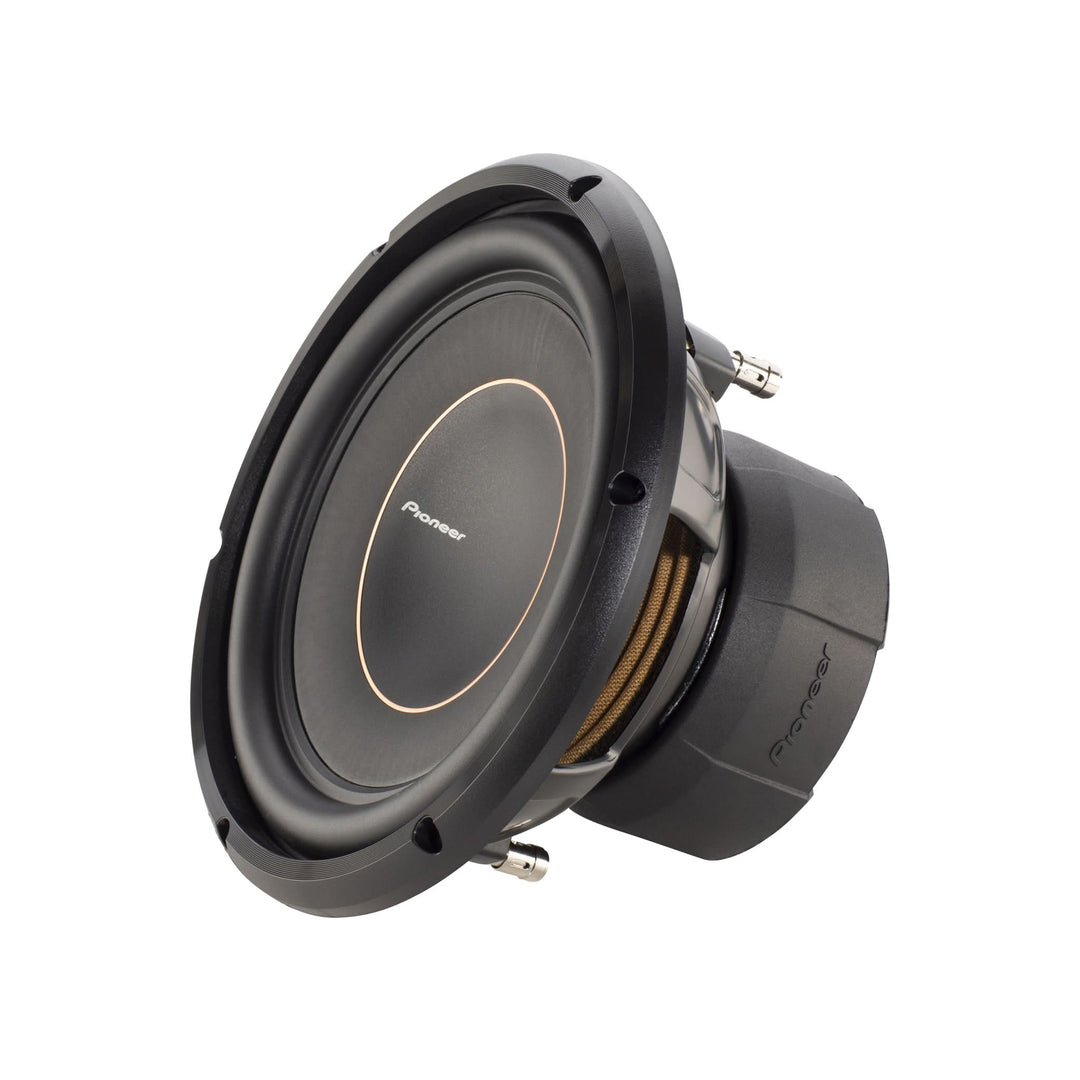

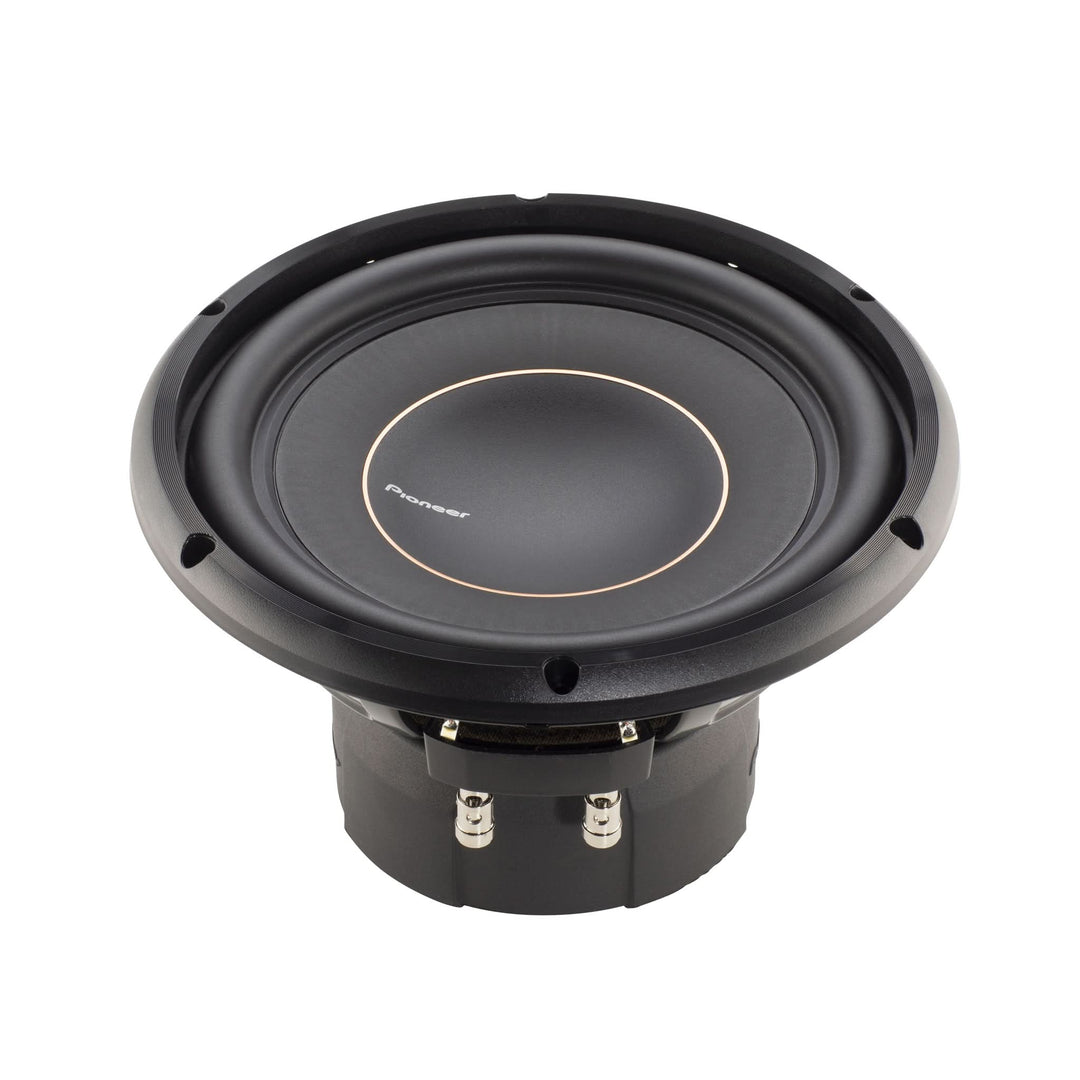

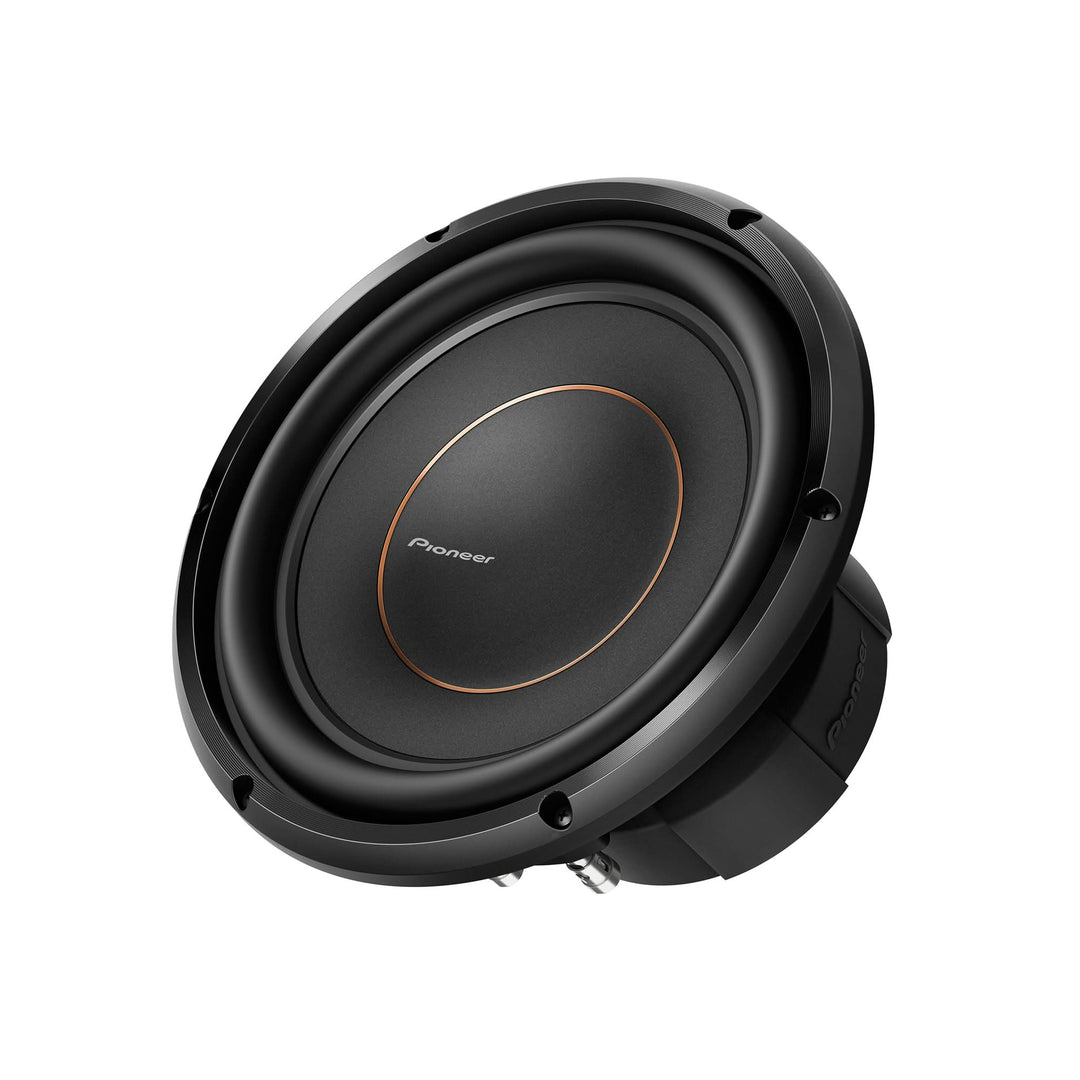

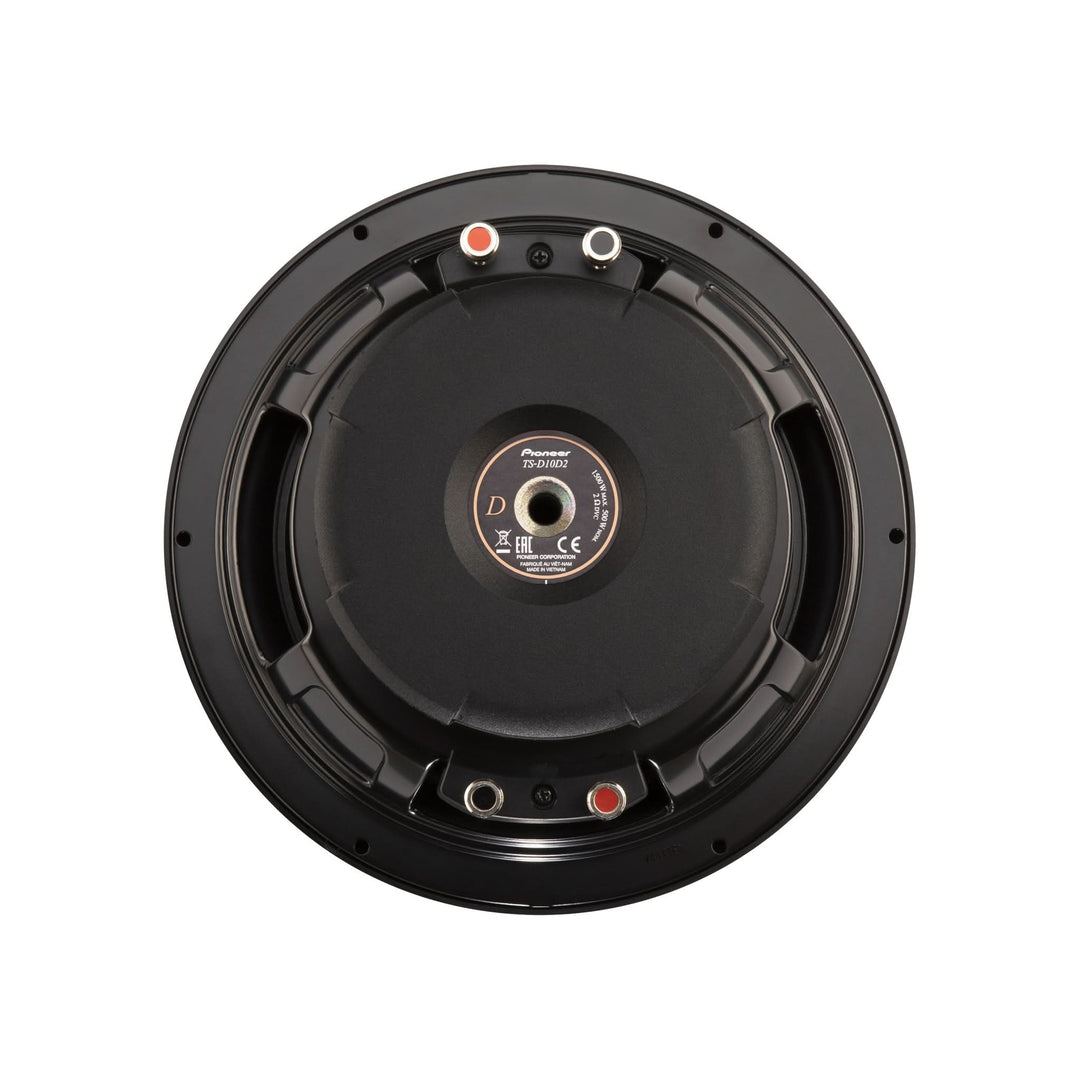

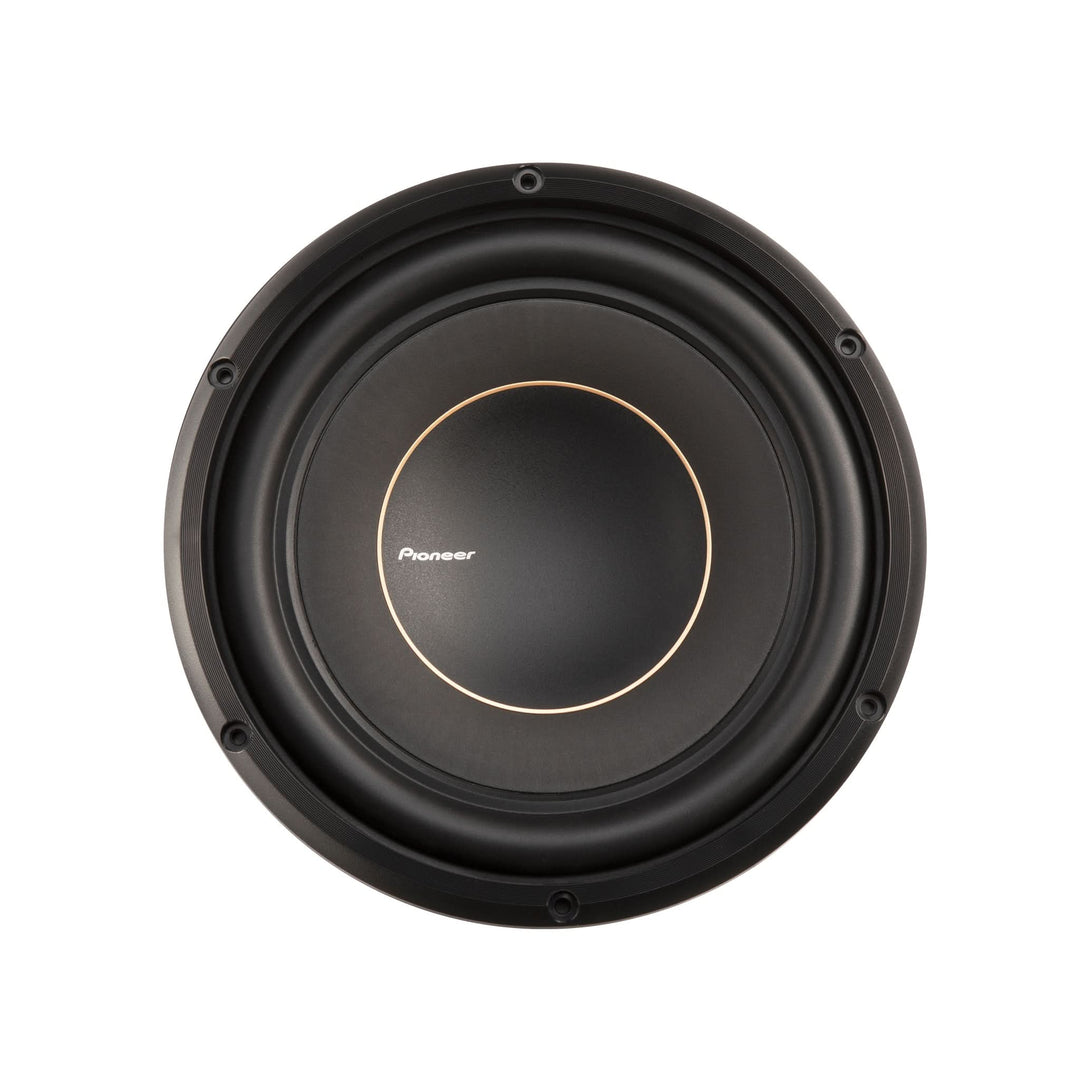

Pioneer 10" Subwoofer Car Audio Bass Speaker Dual Voice 2Ohm 1000W Max TS D10D2
Pioneer 10" Subwoofer Car Audio Bass Speaker Dual Voice 2Ohm 1000W Max TS D10D2
Price:
£149.99
Pioneer TS-D10D2 10" Subwoofer 1500W Max, Dual 2 Ohm DVC, Deep Bass Performance
Key Features
- 10" high-performance subwoofer
- 1500W max power / 500W RMS
- Dual 2 Ohm voice coil (DVC) for flexible wiring
- Aramid fiber interlaced IMPP™ cone
- Butyl rubber surround for durability
- Meta-aramid fiber spider for control and stability
- Deep and powerful bass response
- Wide frequency response: 20Hz – 6.6kHz
- High power handling with low distortion
- Works in sealed and ported enclosures
- Oversized 4-layer voice coil design
- Double-stacked magnet motor structure
- Clean and precise cone movement
- CarSoundFit app support
Deep & Powerful Bass
The Pioneer TS-D10D2 is built to deliver strong and controlled low frequencies. With up to 500W RMS handling, it produces deep bass that you can both hear and feel, making it ideal for high-performance car audio systems.
Aramid Fiber IMPP™ Cone
The injection-molded IMPP™ cone reinforced with aramid fibers offers high rigidity and low weight. This improves accuracy, reduces distortion, and delivers tight, punchy bass even at higher volume levels.
Durable Suspension System
The butyl rubber surround and meta-aramid fiber spider ensure smooth and controlled cone movement. This helps maintain consistent performance while minimizing unwanted vibration.
High Power Motor Structure
An oversized 4-layer voice coil combined with a double-stacked magnet system increases power handling and improves overall bass output and control.
Flexible Installation
The dual 2-ohm voice coil design allows multiple wiring configurations. It performs well in both sealed and ported enclosures, giving you flexibility when building your system.
Specifications
| Speaker Type | Subwoofer (Component) |
| Size | 10" |
| Max Power | 1500W |
| RMS Power | 500W |
| Frequency Response | 20 Hz – 6.6 kHz |
| Sensitivity | 74 dB |
| Impedance | Dual 2 Ohm |
| Voice Coil Type | Dual Voice Coil (DVC) |
| Voice Coil Material | Copper |
| Voice Coil Bobbin | Aluminum |
| Cone Material | IMPP™ Aramid Fiber |
| Surround Material | Butyl Rubber |
| Spider | Meta-Aramid Fiber |
| Mounting Depth | 140 mm (5.5") |
| Cut-Out Size | 230 mm (9") |
| Recommended Sealed Box | 0.7 cu.ft. |
| Recommended Ported Box | 0.8 cu.ft. |
| Magnet Type | Ferrite |
| Magnet Weight | 56.4 oz |
| Basket Material | Stamped Metal |
| Terminals | Push Type |
| VAS | 20.9 L |
| Fs | 40 Hz |
| Xmax | 9.8 mm |
| Qts | 0.7 |
| CarSoundFit App | Supported |
| Manufacturer Part Number | TS D10D2 |
| Brand | Pioneer |
| Placement on Vehicle | Boot |
| Size | 10 in |
| Impedance | Dual 2 O |
| Features | Subwoofer |
| Protection grill | Not Included |
| Power Handling (RMS) | 500W |
| Surround Type | Rolled |
| Load capacity RMS / Max. | 500W/1500W |
| Woofer Cone Material | IMPP - Aramid Fiber |
| Voice Coil Type | Dual Voice Coil 2-ohm |
| Terminal / Wire | Push Type |
| Mounting Depth | 5-1/2",14 cm |
| Sensitivity | 74dB |
| Surround Material | Rubber |
| Peak Power | 1500W |
