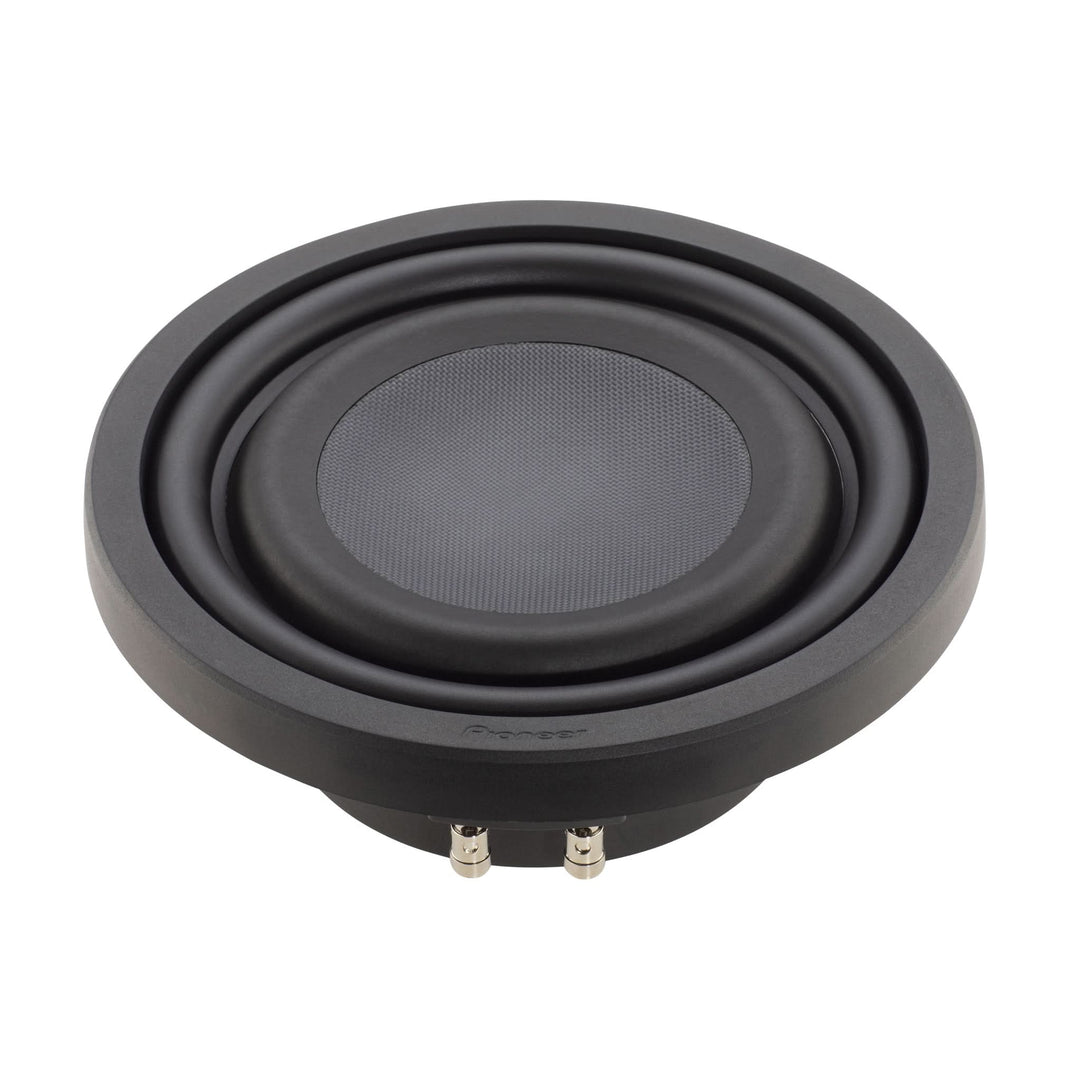

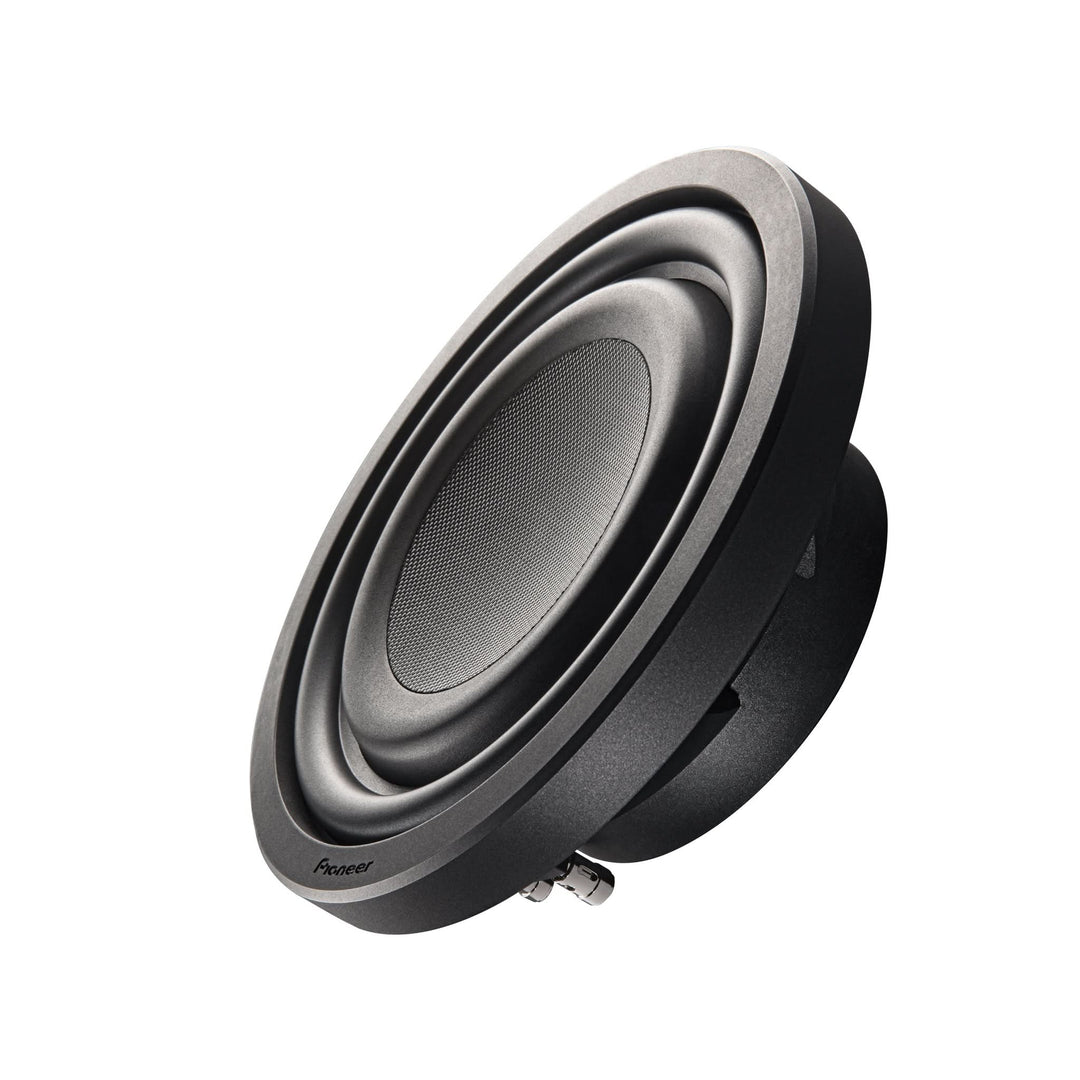

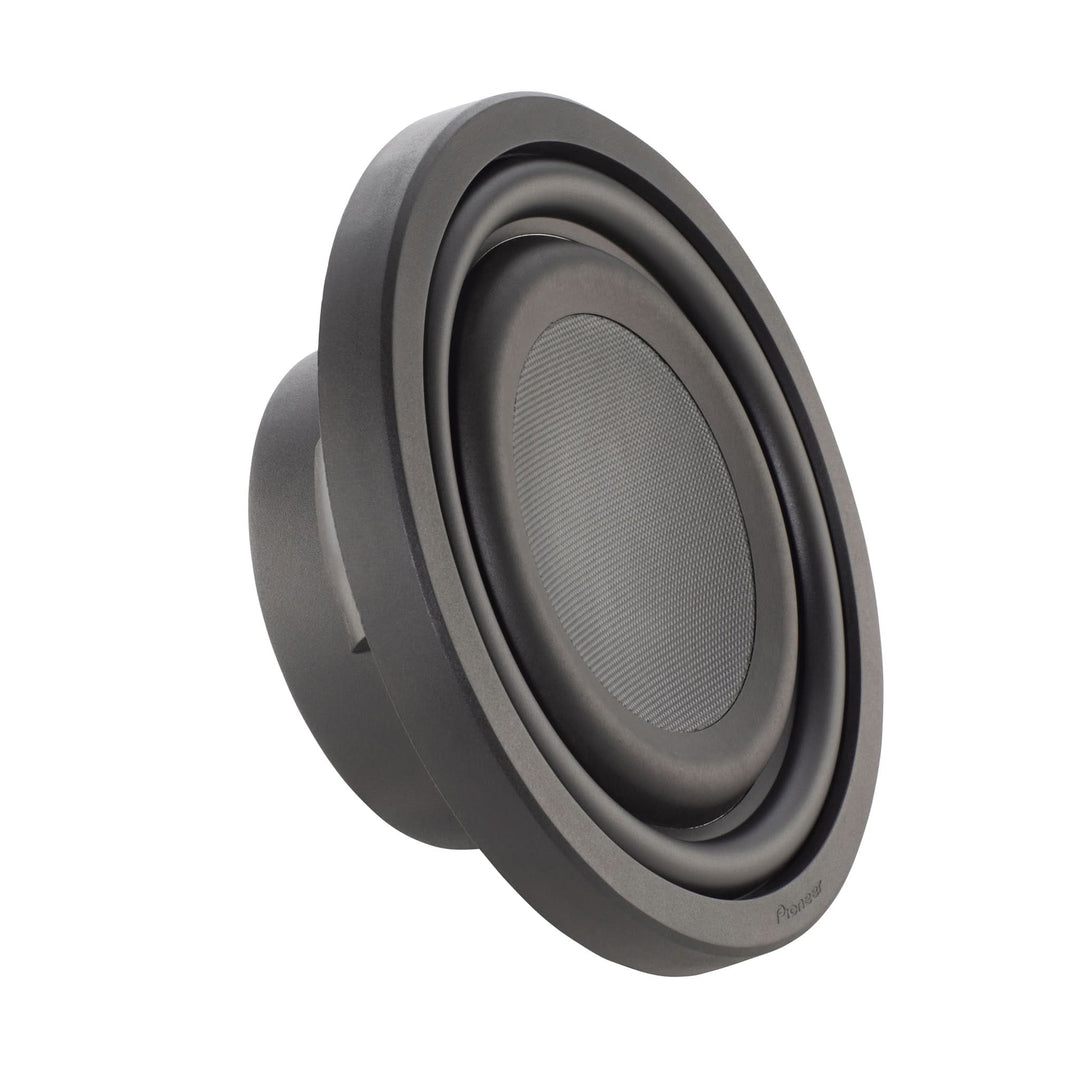

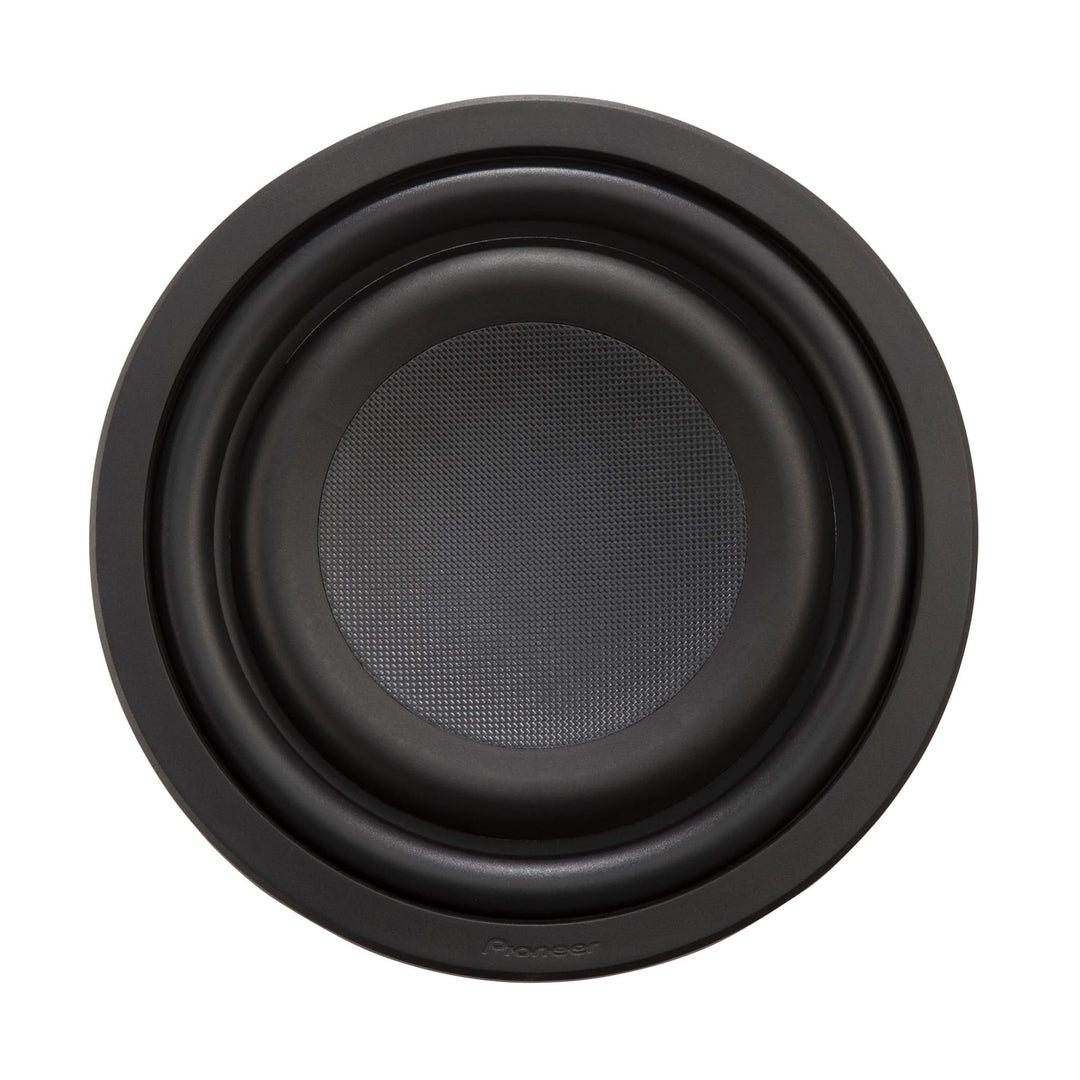

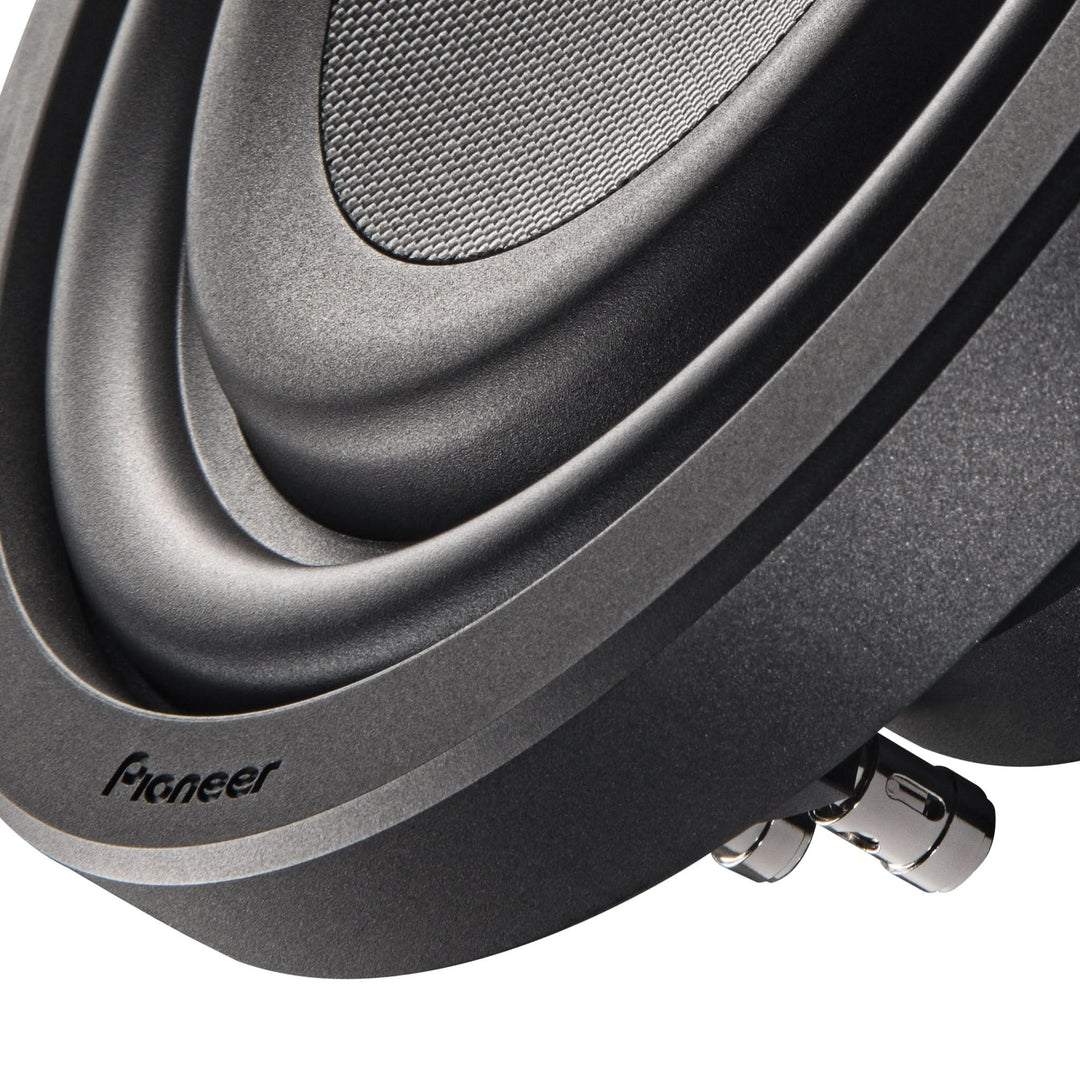

Pioneer TS-Z10LS4 10" Z-Series Component Subwoofer 1300W Max 4Ω Hi-Res Audio

Overview

The Pioneer TS-Z10LS4 is a premium 10-inch Z-Series component subwoofer designed for high-resolution audio systems and powerful low-frequency performance. Built with advanced materials and a shallow-profile design, this subwoofer delivers deep, controlled bass with excellent installation flexibility.

Featuring Pioneer’s Twaron® aramid fiber dual-layer cone construction, large double-stacked magnet structure and 4-layer copper voice coil, the TS-Z10LS4 is engineered for high power handling, low distortion and detailed bass reproduction even at demanding listening levels.

Optimized for Hi-Res Audio playback, this subwoofer combines accuracy, impact and reliability, making it ideal for premium car audio installations where space-saving design and uncompromising sound quality are equally important.

Main Features

• 10" (25 cm) Z-Series component subwoofer
• 1300W maximum peak power handling
• 400W RMS continuous power handling
• Designed for High-Resolution Audio systems
• Shallow-profile design for flexible installation
• Large double stacked ferrite magnet structure
• Twaron® aramid fiber + cellulose fiber dual-layer cone
• 4-layer copper voice coil wire construction
• Polyimide voice coil bobbin
• Die-cast aluminum basket
• Low distortion and high linearity bass response
• Extended voice coil and dual spider design
• Excellent thermal management and durability
• Recommended for sealed and ported enclosures
• Rubber gasket for clean installation finish
• Push type speaker terminals
• 4 Ohm impedance

High Power & Clean Bass Performance

The TS-Z10LS4 delivers powerful and accurate bass using a high-strength motor structure combined with a large double-stacked ferrite magnet. This oversized magnetic assembly improves cone control and linearity, allowing the subwoofer to reproduce deep low frequencies with excellent precision and reduced distortion.

Pioneer’s advanced 4-layer copper voice coil increases power handling capability while improving thermal efficiency and electrical conductivity. The result is stable and reliable bass performance even during extended high-volume listening sessions.

Twaron® Dual-Layer Cone Construction

The subwoofer cone combines Twaron® aramid fiber with cellulose fiber in a dual-layer structure. The aramid fiber layer increases rigidity and strength for improved durability and control, while the cellulose layer helps maintain natural and accurate bass reproduction with smooth tonal balance.

This advanced cone design allows the TS-Z10LS4 to maintain excellent sound clarity while handling demanding bass-heavy music with minimal audible distortion.

Installation Flexibility

Unlike many traditional high-power subwoofers that require large enclosures, the TS-Z10LS4 features a shallow mounting profile that simplifies installation in a wider range of vehicles. It is suitable for both sealed and ported enclosure applications and includes a clean rubber gasket design that conceals mounting screws for a professional finish.

The compact installation depth makes this subwoofer an excellent choice for custom audio systems where space is limited but high-quality bass performance is required.

Specifications
