QYAPP

Coilovers Suspension Lowering Kit For Acura RSX 02-06 / Honda Integra DC5 01-06

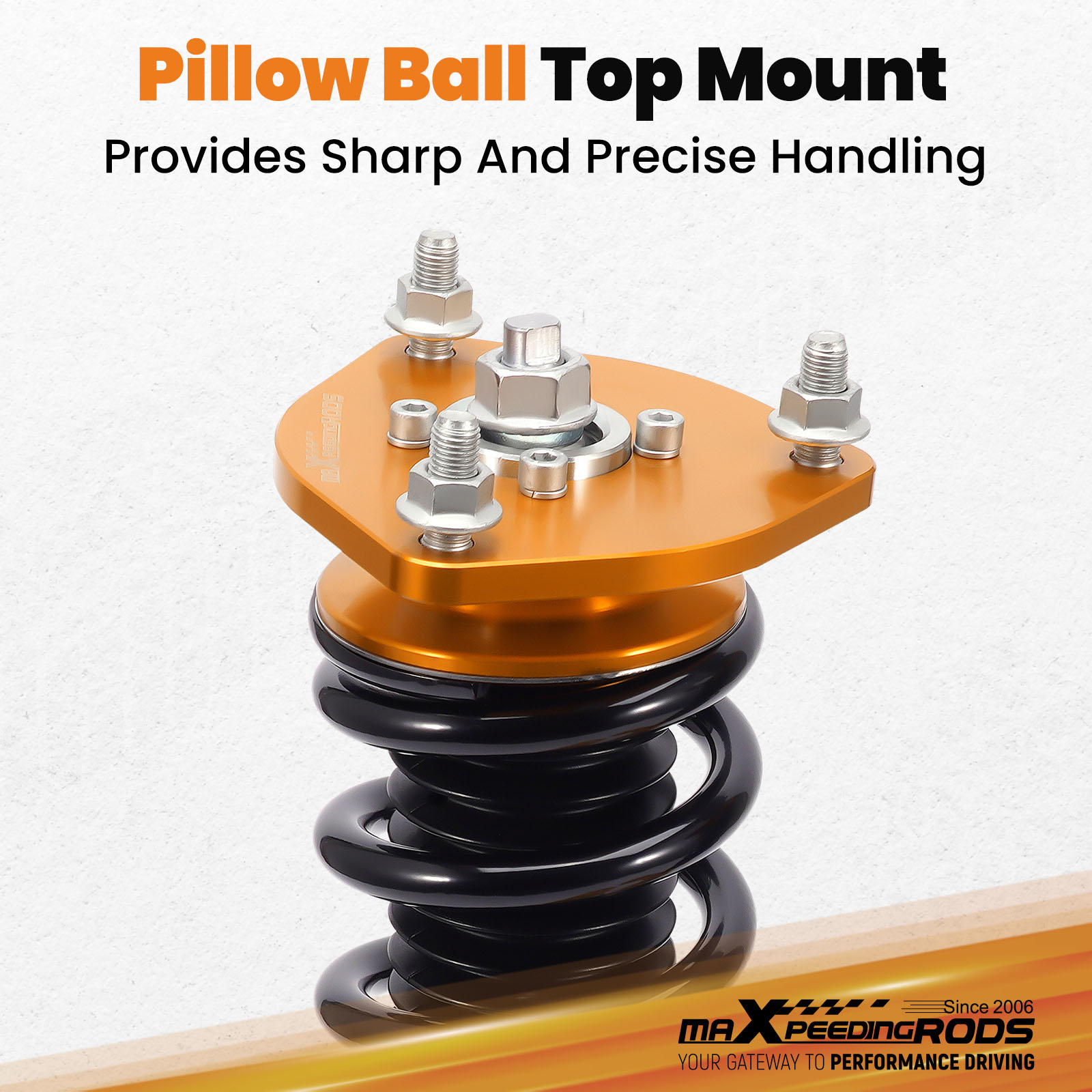

Pillow Ball Top Mounts

Pillow ball mounts provide bind free operation and precise feed-back to the driver.

Anodized Shock Body With Anti-Corrosion Coating

Manufactured From High Quality T-6061 Billet Aluminum With Anodized Finish For Superior Strength And Corrosion Protection.

Drops From 1 to 3 Inch From Factory Ride Height

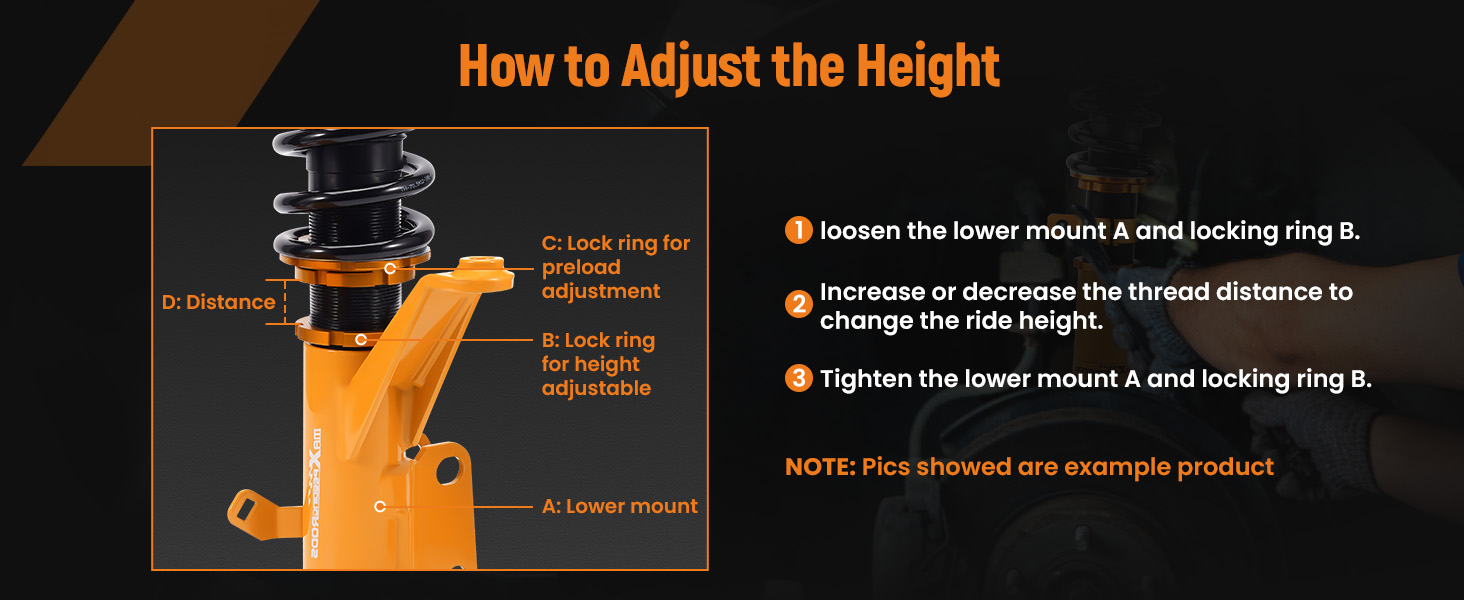

Full Threaded Absorber Tube Casing For Independent Height Adjustment.

Durable Cold Wound Steel & Heat Treated Coils

High Rigidity 55CrSi Steel Cold-bent Coil Springs - Over 600k Continuously Stress Test With 0.04% Distortion Rate.

Specifications


Front Top mounts Pillow ball
Adjustable height Yes, Lowering 1-3 inch
Front spring length 8 kg/mm(448 lbs/in)
Rear spring length 6 kg/mm (336 lbs/in)
Package Including 2 Front + 2 Rear
Warranty 1 Year

Features

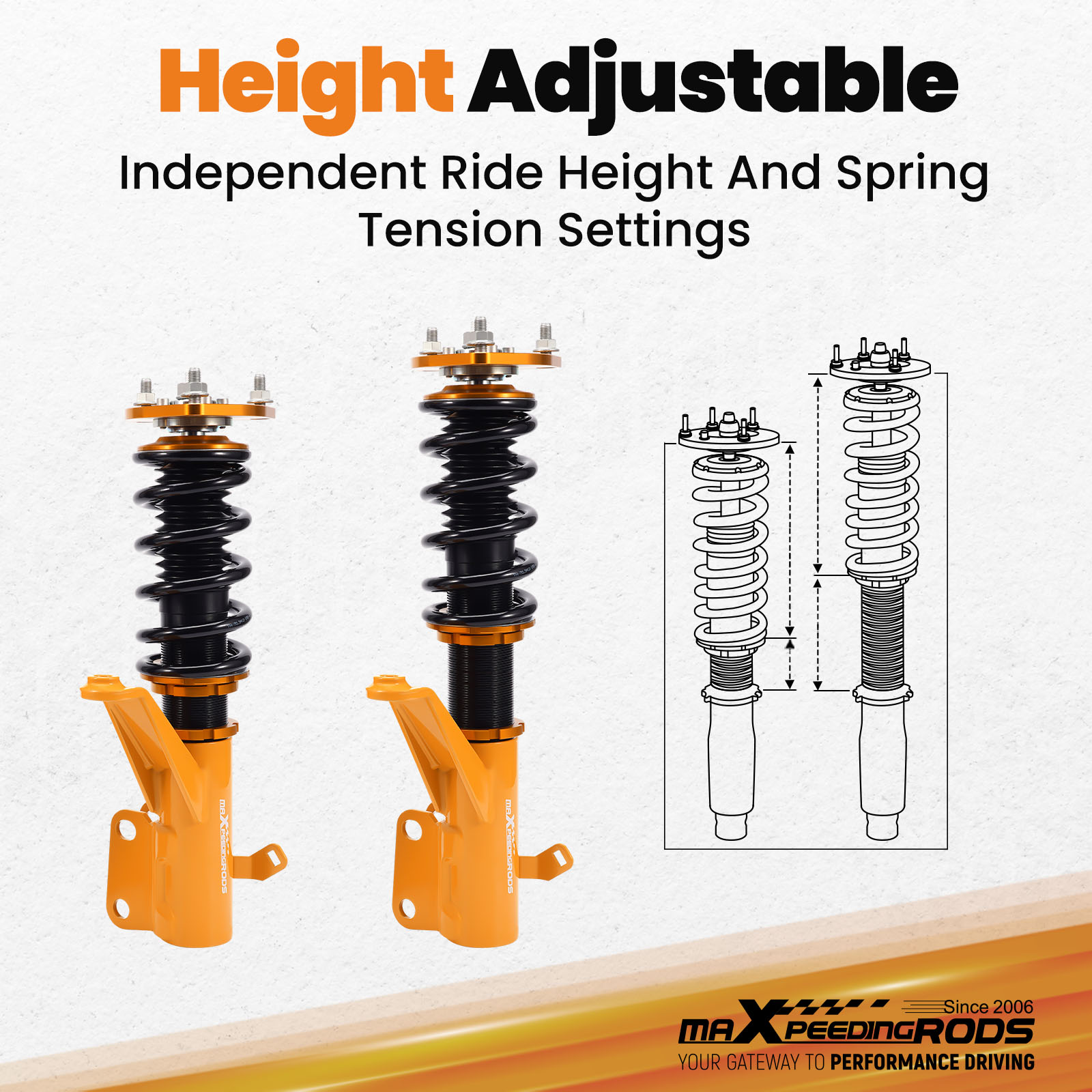

Ride Height Adjustable - Drops From 1 to 3 Inch From Factory Ride Height
Twin-Tube System for Comfortable Ride on Streets
High Rigidity 55CrSi Steel Cold-bent Coil Springs
Anodized Shock Body With Anti-Corrosion Coating
Adjustment spanner wrenches and pictured hardware are included
Full 1 Year Limited Warranty From Date of Purchase


Application


for Acura RSX & Type-S 2002-2006
for Honda Integra DC5 2001-2006


Specifications


- Top mounts: Front pillow ball top mount
- Shock type: Twin tube
- Adjustable height: Yes lowering 1'' to 3''
- Shock length (Front)：450mm-580mm
- Shock length (Rear)：355mm-410mm
- Adjustable damper: No
- Spring preload: 7-10 mm
- Spring rate Front: 8 kg/mm (448 lbs/in)
- Spring rate Rear: 6 kg/mm (336 lbs/in)
- Spring length Front: 180mm
- Spring length Rear: 140mm
- Color: gold


Package included


1 x Set of Coilover Spring Kit (2 Front + 2 Rear)
1 x Pair of wrenches for height adjustment


★ 30-day Money Back & 12-Month Replacement Guarantee. Please feel free to contact us if there is any question.

Height Adjustable Lowering Kit; Independent Ride Height And Spring Tension Settings; High Rigidity 55CrSi Steel Cold-bent Springs; Anodized Shock Body With Anti-Corrosion Coating; Top Pillow Ball Mount Provides More Precise Feel From Suspension And Steering; Full 1 Year Limited Warranty From Date Of Purchase.
