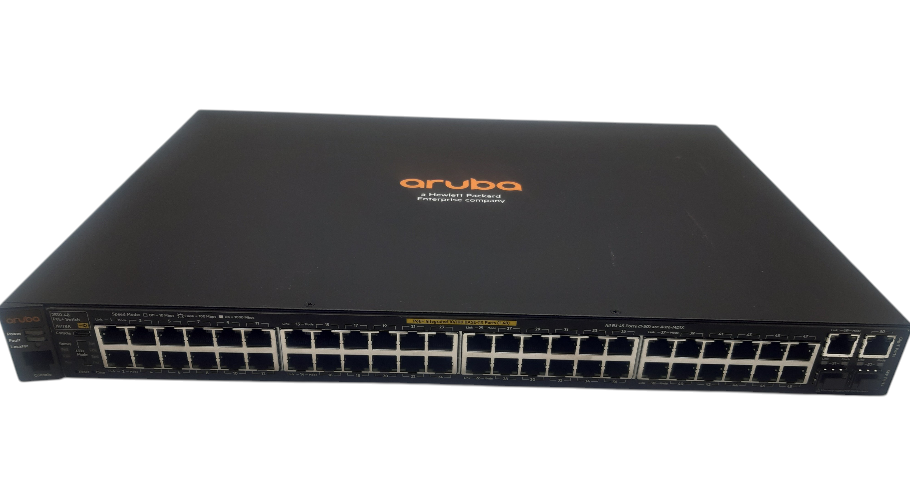

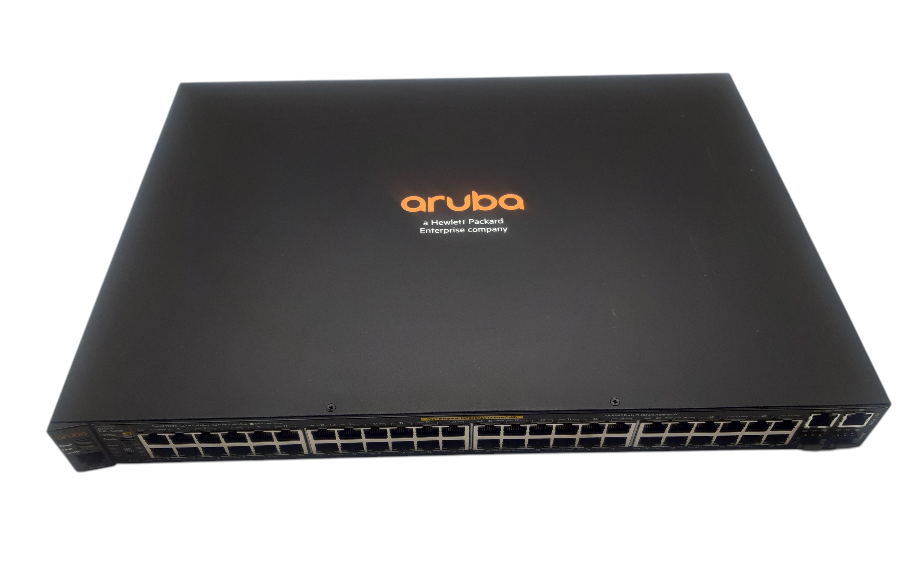

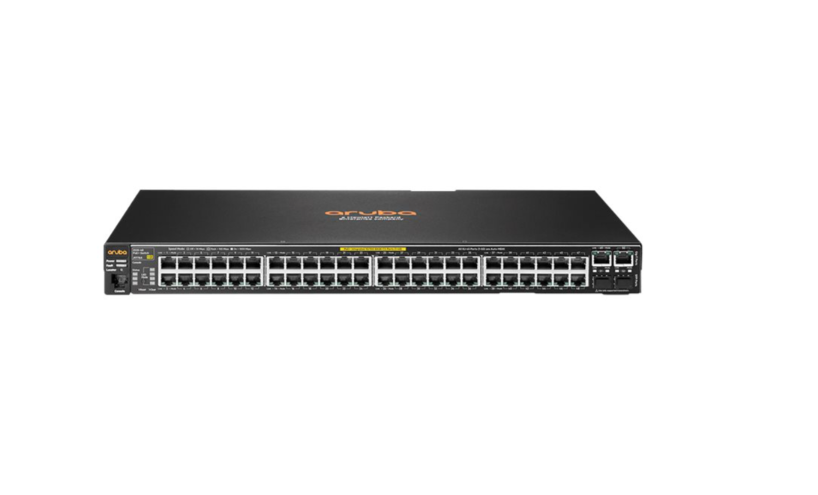

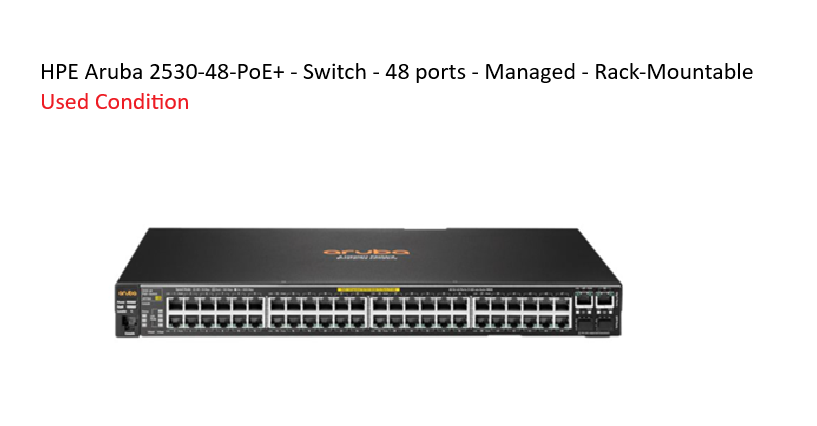

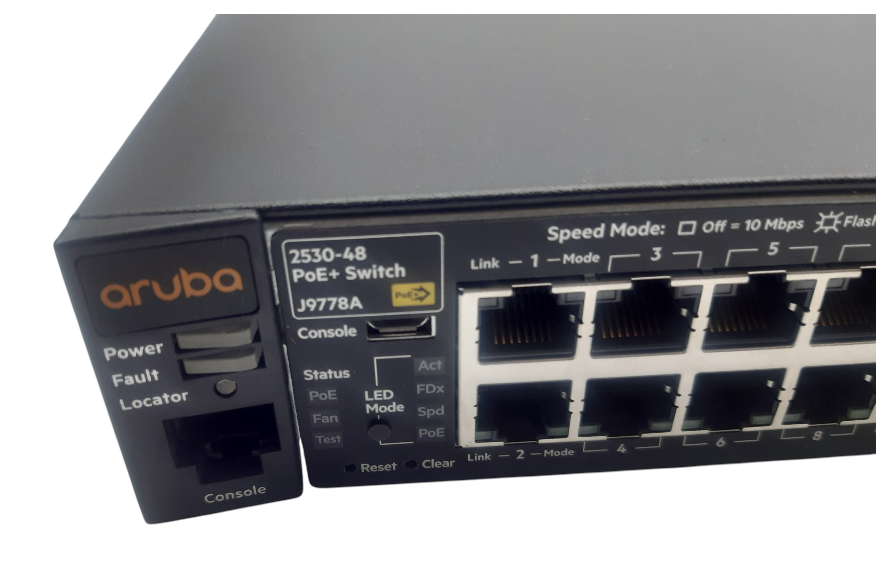

Switch HPE Aruba 2530-48-PoE+ 48 Ports Managed Rack-Mountable J9778A 10/100

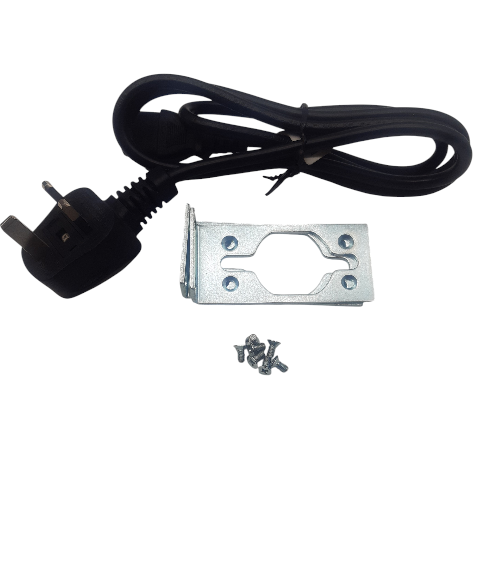

Item is in “USED CONDITION” Brackets and screws included, No docs, Non original box. Sold with 90 day return to base warranty, A VAT invoice will be provided.
Basic Specifications
- Manufacturer's Part Number
- J9778A
- Interfaces
- Fast Ethernet
- Remote Management Protocol
- SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH-2, CLI
- Device Type
- Switch - 48 ports - Managed
- Dimensions (WxDxH)
- 44.2 cm x 32.26 cm x 4.45 cm
- Capacity
- MAC addresses: 16000
- Power Over Ethernet (PoE)
- PoE+
- MAC Address Table Size
- 16000 entries
- Enclosure Type
- Rack-mountable 1U
- Power
- AC 120/230 V (50/60 Hz)
- Jumbo Frame Support
- 9220 bytes
- Ports
- 48 x 10/100 + 2 x Gigabit SFP + 2 x 10/100/1000
- Weight
- 4.58 kg
- Features
- Flow control, DHCP support, BOOTP support, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), port mirroring, IPv6 support, half duplex mode, full duplex mode, SNTP support, sFlow, MSTP support, ACL support, QoS, STP Root Guard, LLDP support, CoS, GARP
- Product Description
- HPE Aruba 2530-48-PoE+ - switch - 48 ports - Managed - rack-mountable
- Subtype
- Fast Ethernet
- Model
- HPE Aruba 2530-48-PoE+
- Performance
- Throughput: 13 Mpps ¦ Switching capacity: 17.6 Gbps
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Expansion / Connectivity
- Interfaces

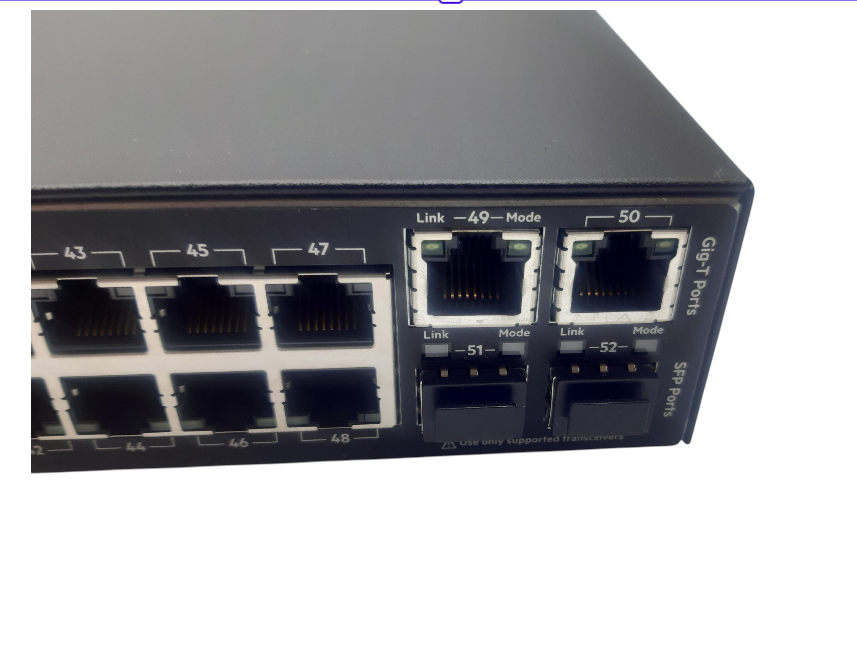

- 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 2 x SFP (mini-GBIC) ¦ 1 x management RJ-45 ¦ 48 x 10Base-T/100Base-TX - RJ-45
Power
- Power Device
- Internal power supply
- Voltage Required
- AC 120/230 V (50/60 Hz)
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 45 °C
- Humidity Range Operating
- 15 - 95% (non-condensing)
- Min Storage Temperature
- -40 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 15 - 90% (non-condensing)
General
- Device Type
- Switch - 48 ports - Managed
- Enclosure Type
- Desktop, rack-mountable, wall-mountable 1U
- Subtype
- Fast Ethernet
- Ports
- 48 x 10/100 + 2 x Gigabit SFP + 2 x 10/100/1000
- Power Over Ethernet (PoE)
- PoE+
- Performance
- Throughput: 13 Mpps ¦ Switching capacity: 17.6 Gbps
- Capacity
- MAC addresses: 16000
- MAC Address Table Size
- 16000 entries
- Jumbo Frame Support
- 9220 bytes
- Remote Management Protocol
- SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH-2, CLI
- Encryption Algorithm
- SSL
- Authentication Method
- RADIUS, TACACS+, Secure Shell v.2 (SSH2)
- Features
- Flow control, DHCP support, BOOTP support, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), port mirroring, IPv6 support, half duplex mode, full duplex mode, SNTP support, sFlow, MSTP support, ACL support, QoS, STP Root Guard, LLDP support, CoS, GARP
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
- Processor
- 1 x ARM: 800 MHz
- RAM
- 256 MB DDR3 SDRAM
- Flash Memory
- 128 MB
Dimensions & Weight
- Width
- 44.2 cm
- Depth
- 32.26 cm
- Height
- 4.45 cm
- Weight
- 4.58 kg
Miscellaneous
- Compliant Standards
- FCC Class A certified, CISPR 22 Class A, CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, VCCI Class A ITE, EN 61000-3-3, EN55024, EN 55022 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, EN 60825, CSA C22.2 No. 60950-1
