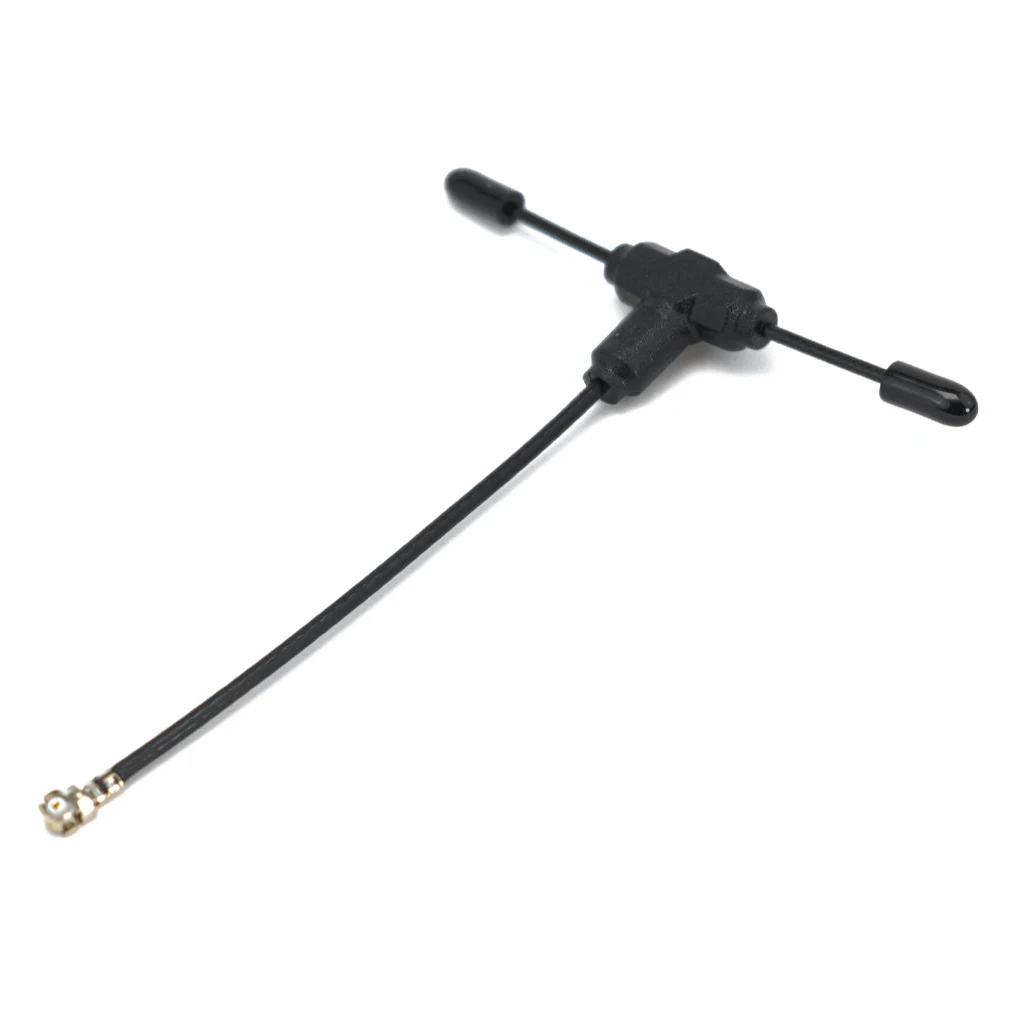

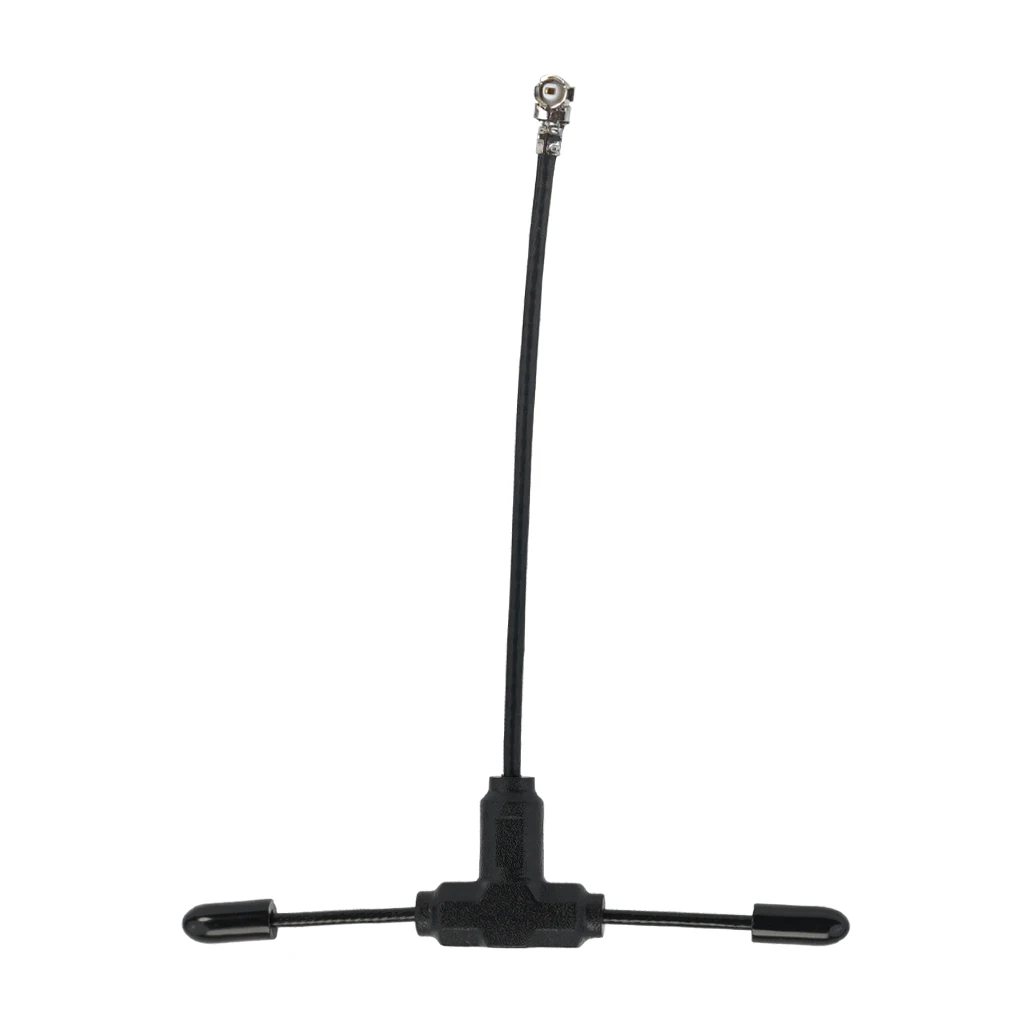

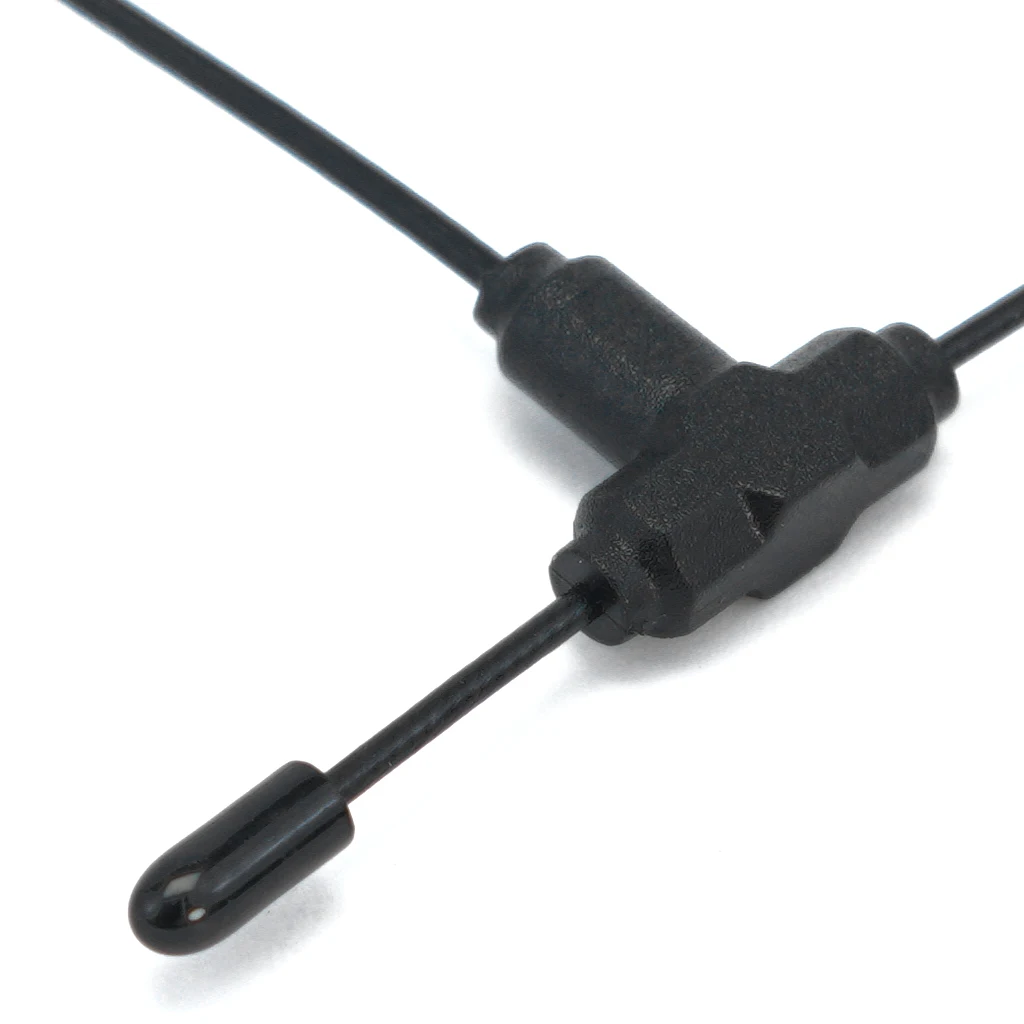

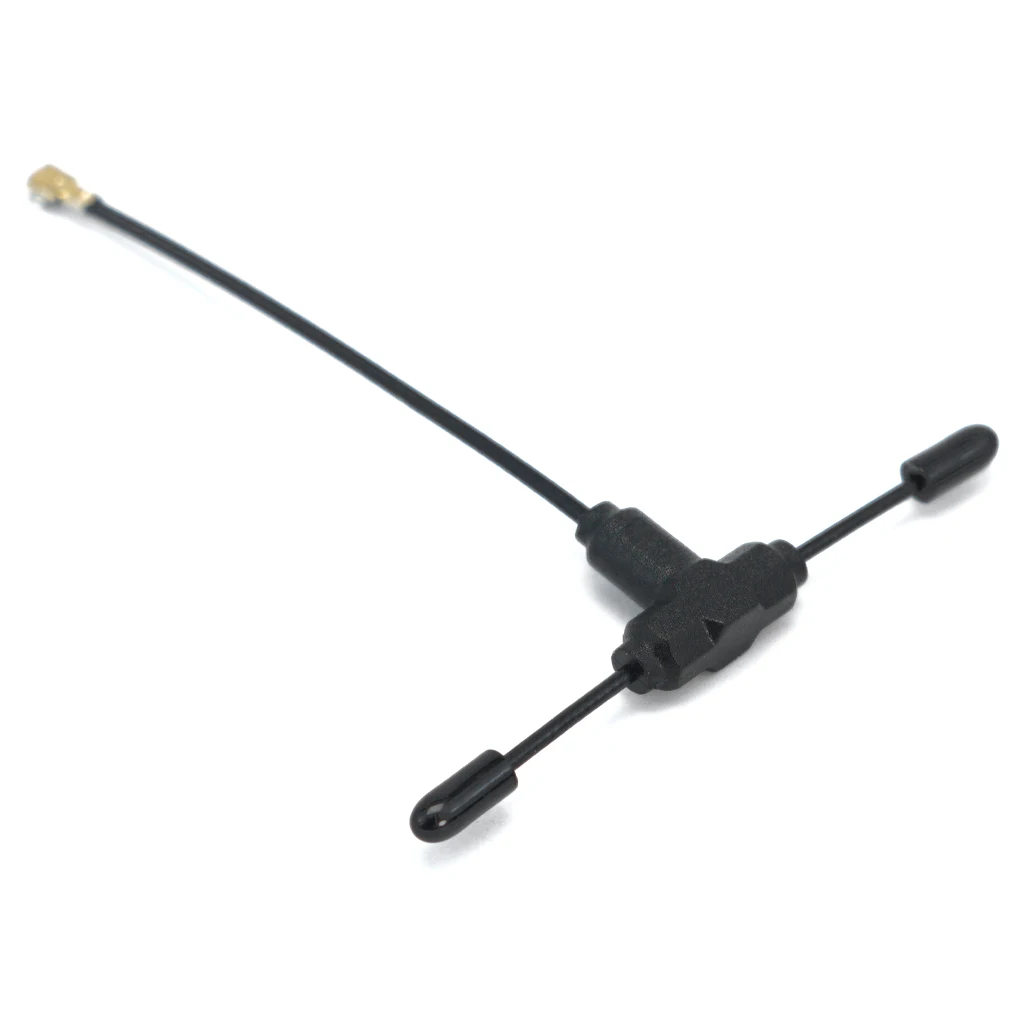

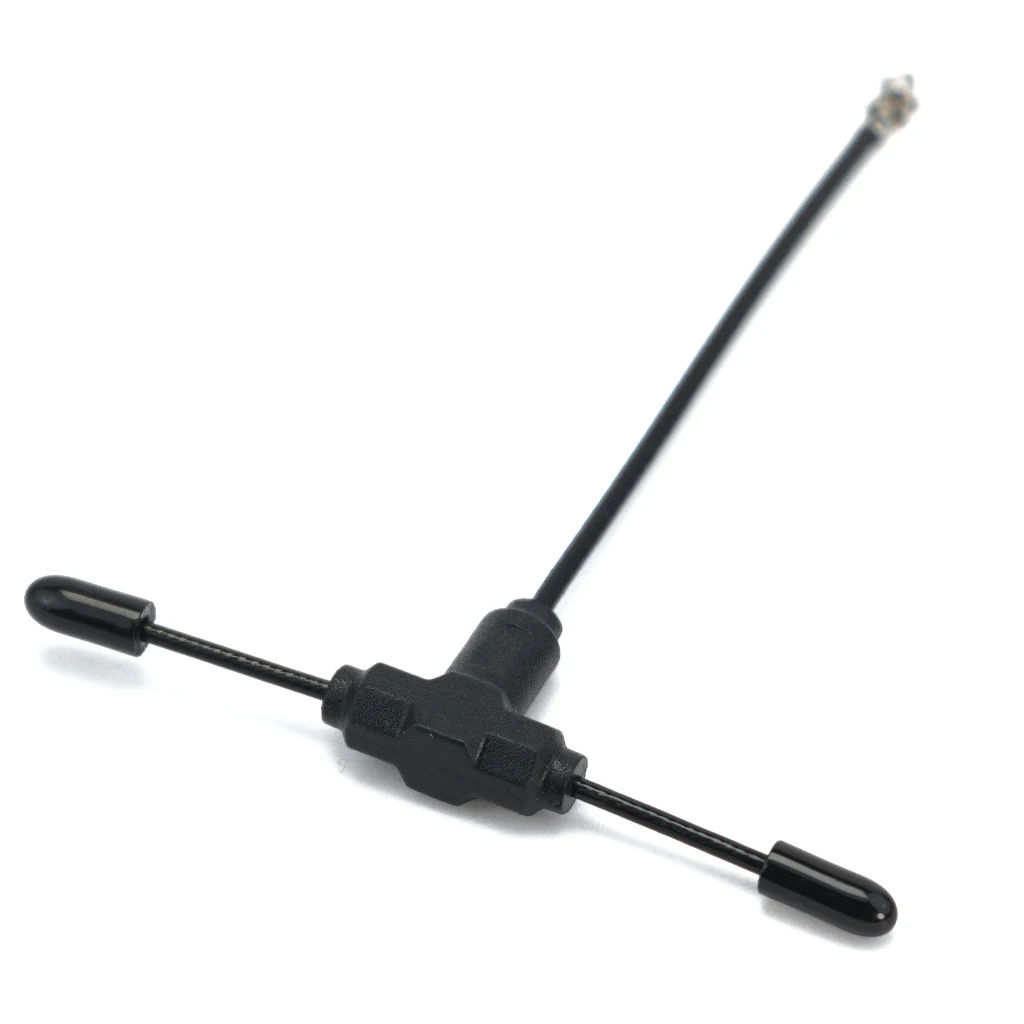

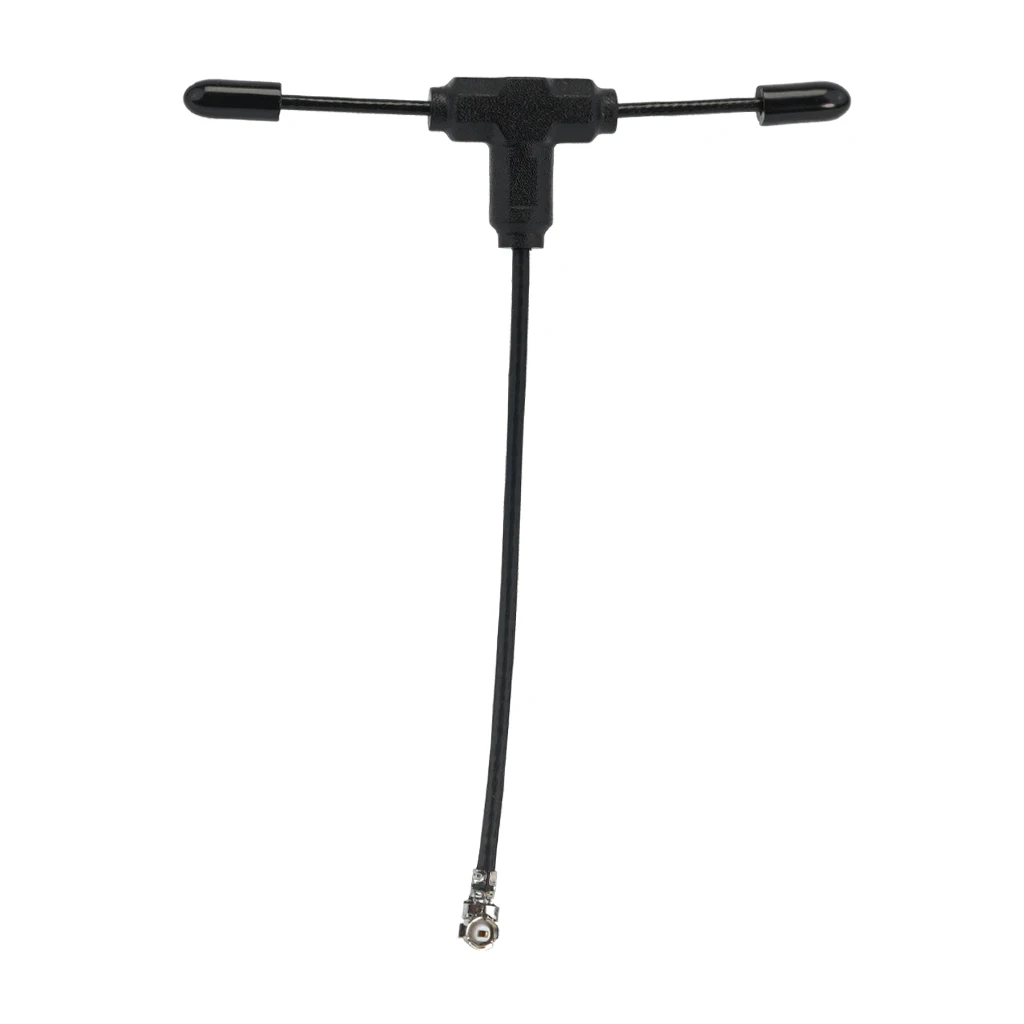

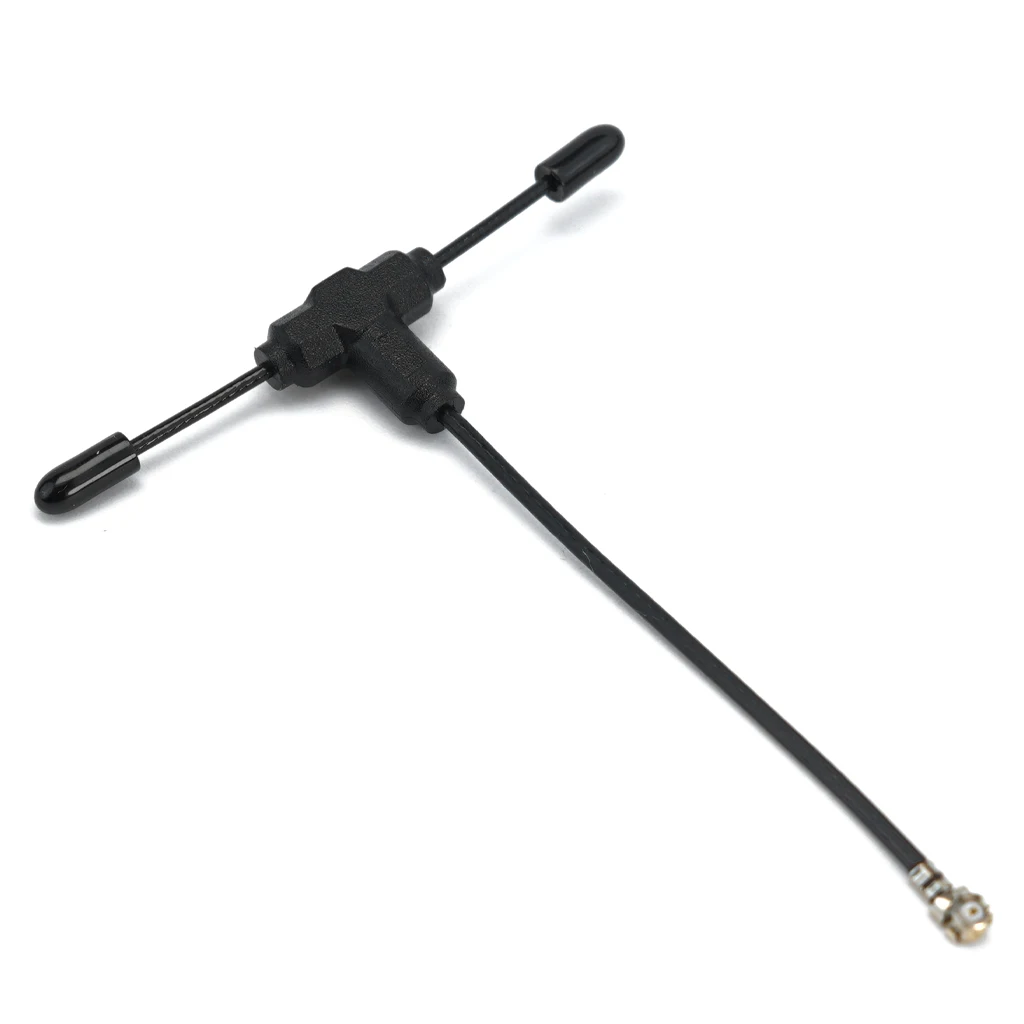

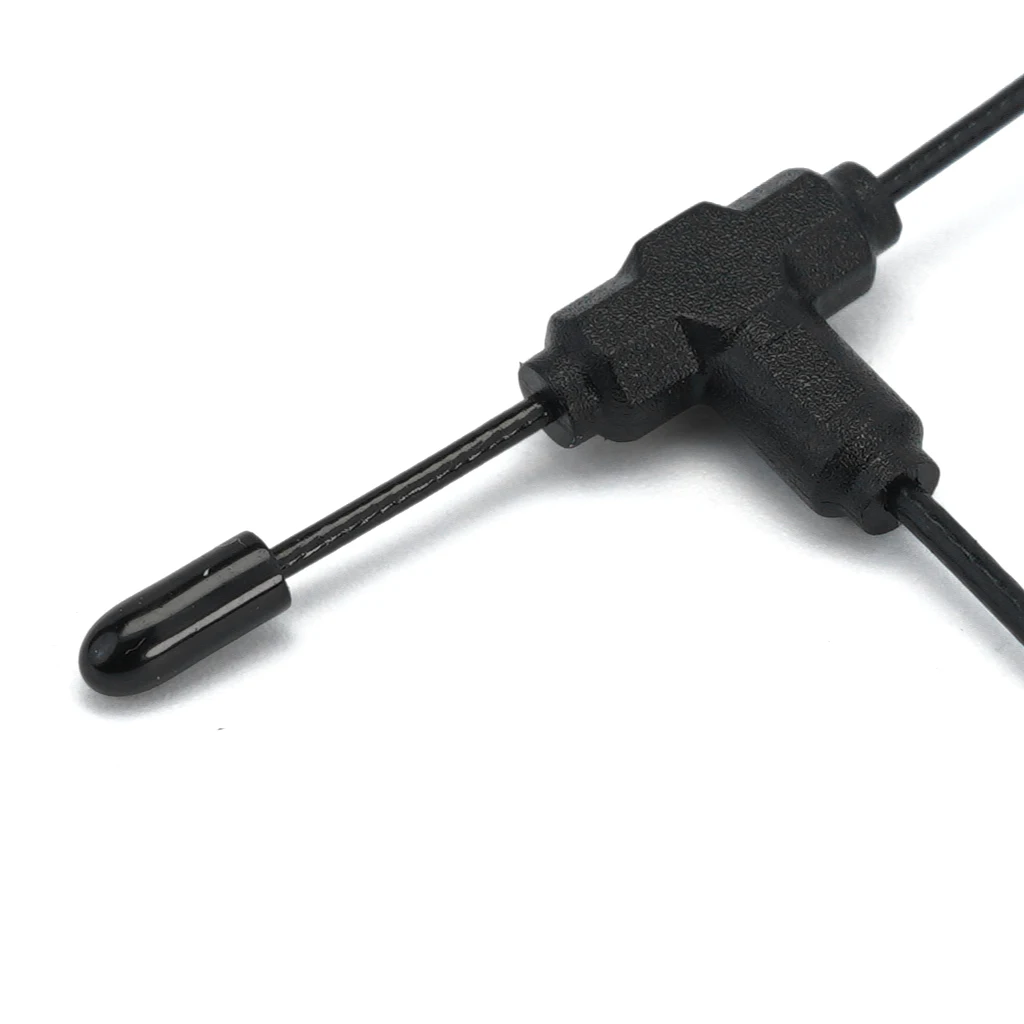

2.4G T-Type Omnidirectional Antenna 2.5dBi Ultra Light 1.8g

Stable Signal · Light Weight · Wide Compatibility

This 2.4G T-type omnidirectional antenna is specially designed for FPV drones, remote control systems and wireless transmission equipment. It features ultra-light weight, low loss, stable signal and strong anti-interference performance, making it an ideal upgrade part for RC models and DIY communication devices.

Main Features

2.4G full band coverage: 2400-2485MHz frequency, 85MHz bandwidth

Vertical omnidirectional polarization: 360° signal coverage

2.5dBi high gain: enhance signal strength and extend transmission distance

Low VSWR ≤1.5: reduce signal loss and improve transmission efficiency

50Ω input impedance: compatible with most standard equipment

Copper radiator: stable performance and long service life

Ultra-light design: only 1.8g, no extra flight burden

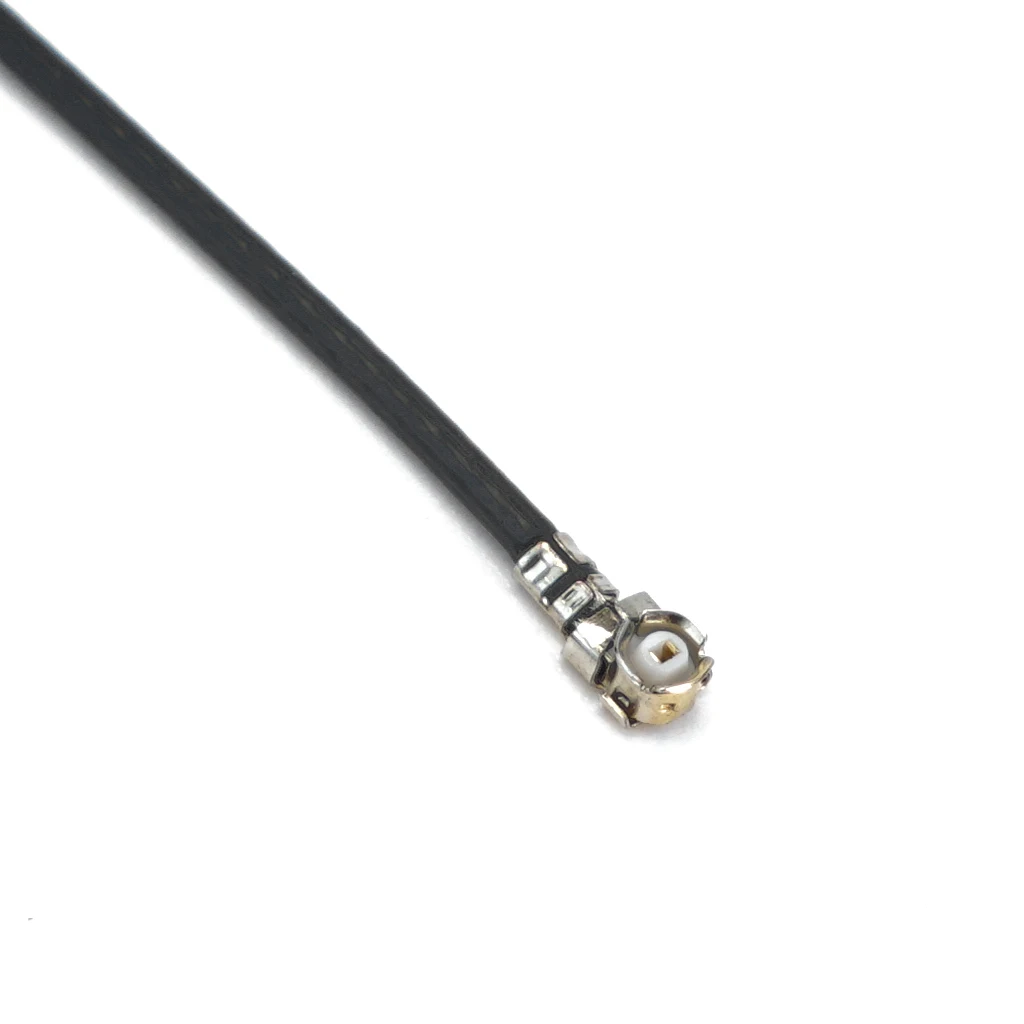

IPEX1 / SMA connector optional (customizable)

Cable length: 80-220mm customizable

Wide working temperature: -40℃ to 60℃

Power capacity up to 50W

Black shell, simple and durable

Technical Specifications

Frequency Range: 2400-2485MHz

Bandwidth: 85MHz

Gain: 2.5dBi

Polarization: Vertical Omnidirectional

VSWR: ≤1.5

Impedance: 50Ω

Power Capacity: 50W

Connector: IPEX1 / SMA (customizable)

Cable Length: 80-220mm (customizable)

Radiator Material: Copper

Working Temperature: -40~60℃

Storage Temperature: -20~40℃

Weight: 1.8g

Color: Black

Application Scenarios

FPV racing drones

Remote control transmitters & receivers

2.4G wireless transmission systems

RC model aircraft & cars

DIY 2.4G communication equipment

Package Included

1 × 2.4G T-Type Omnidirectional Antenna
