Package include:

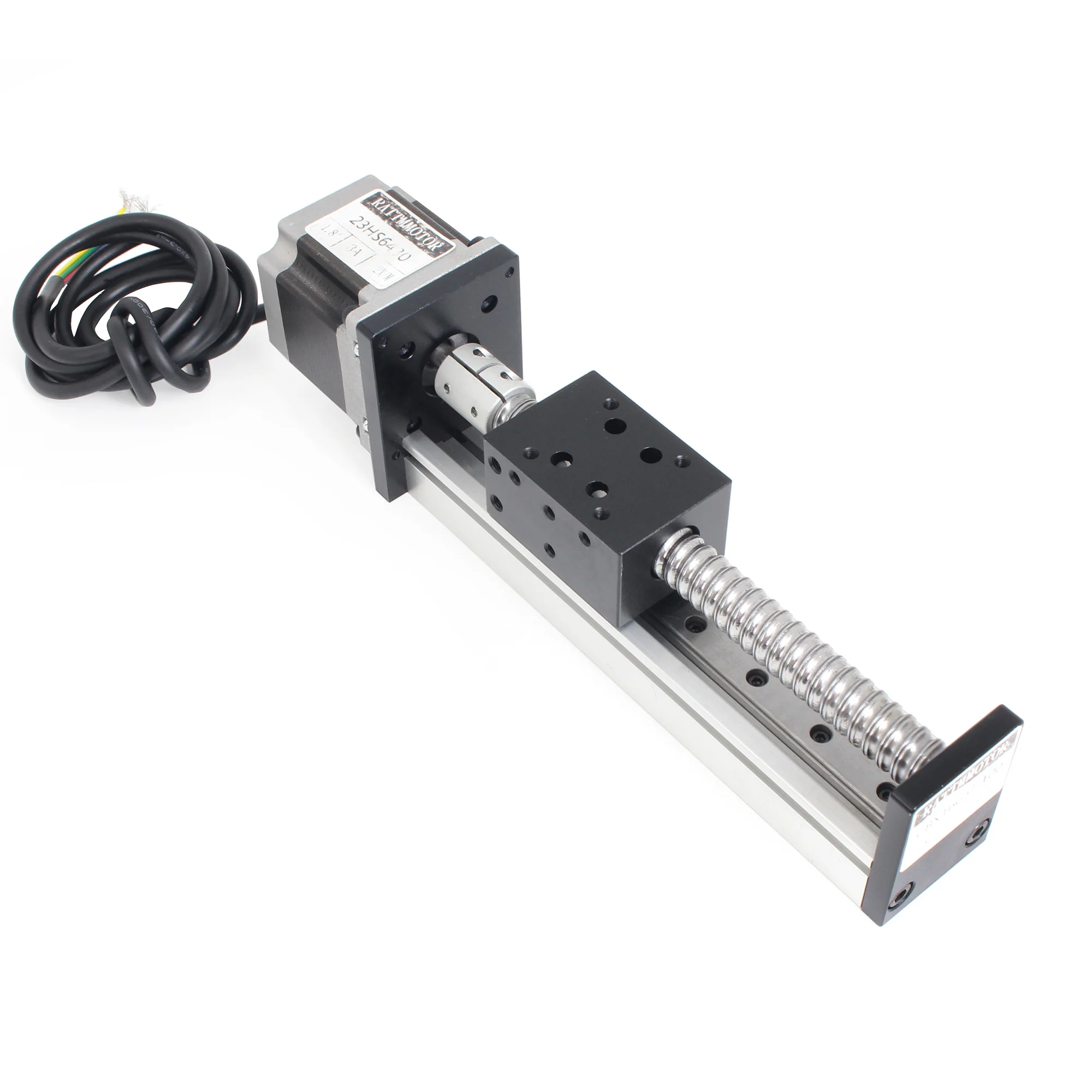

1 x CBX1605 100mm-500mm Ball Screw Slide Rail with Nema23 Stepper Motor
Stepper motor Parameter:
Name: RTM23HS6430
Step angle: 1.8 degree
Motor flange size: 57mm
Motor length: 56mm
Holding torque: 1.2N.m
Current: 3A
Resistance: 0.8 ohm
Inductance: 2.4 mH
Rotor Inertia: 440g.cm
Lead wire: 4pcs

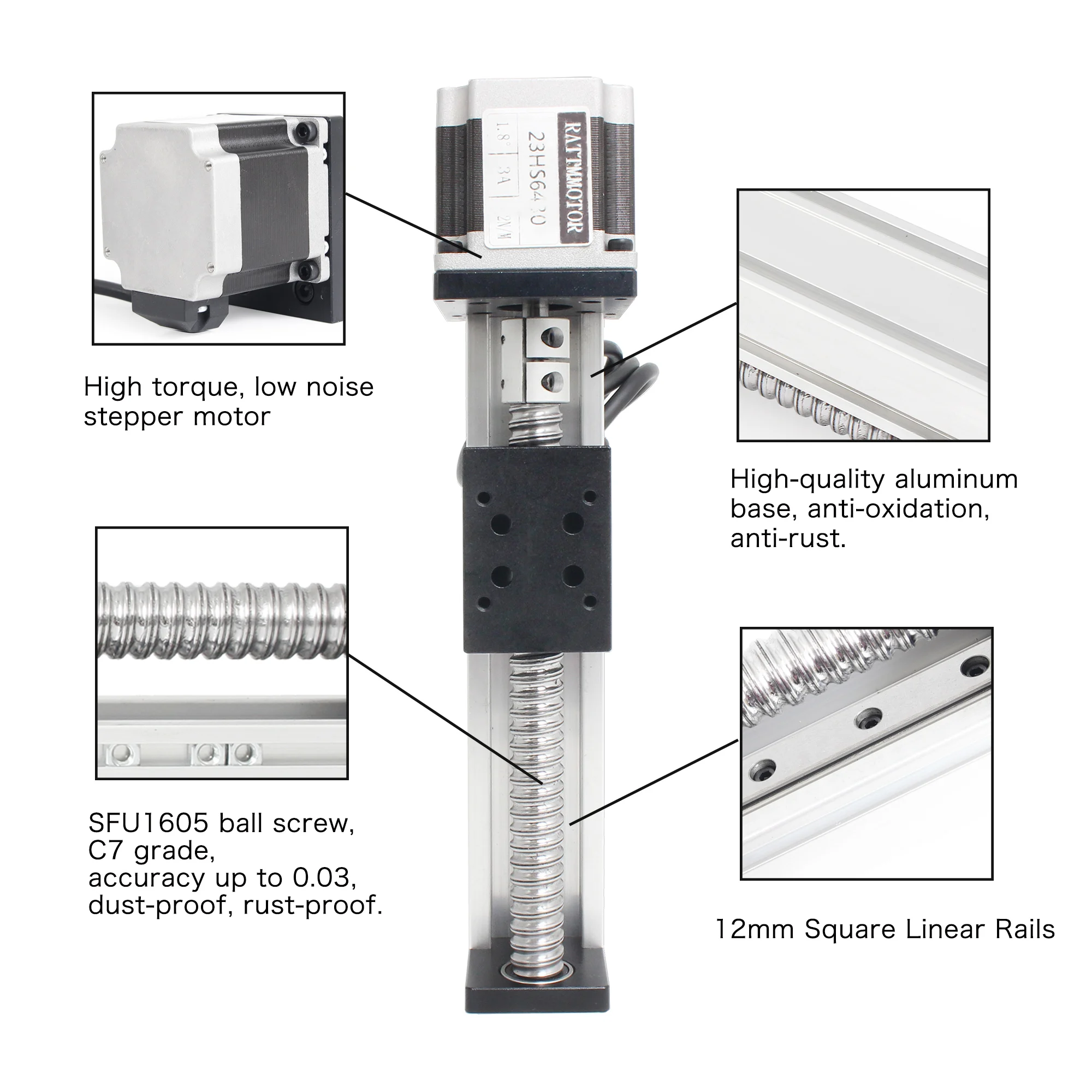

Linear Stage Actuator Parameter:
Series: CBX1605 100-500A

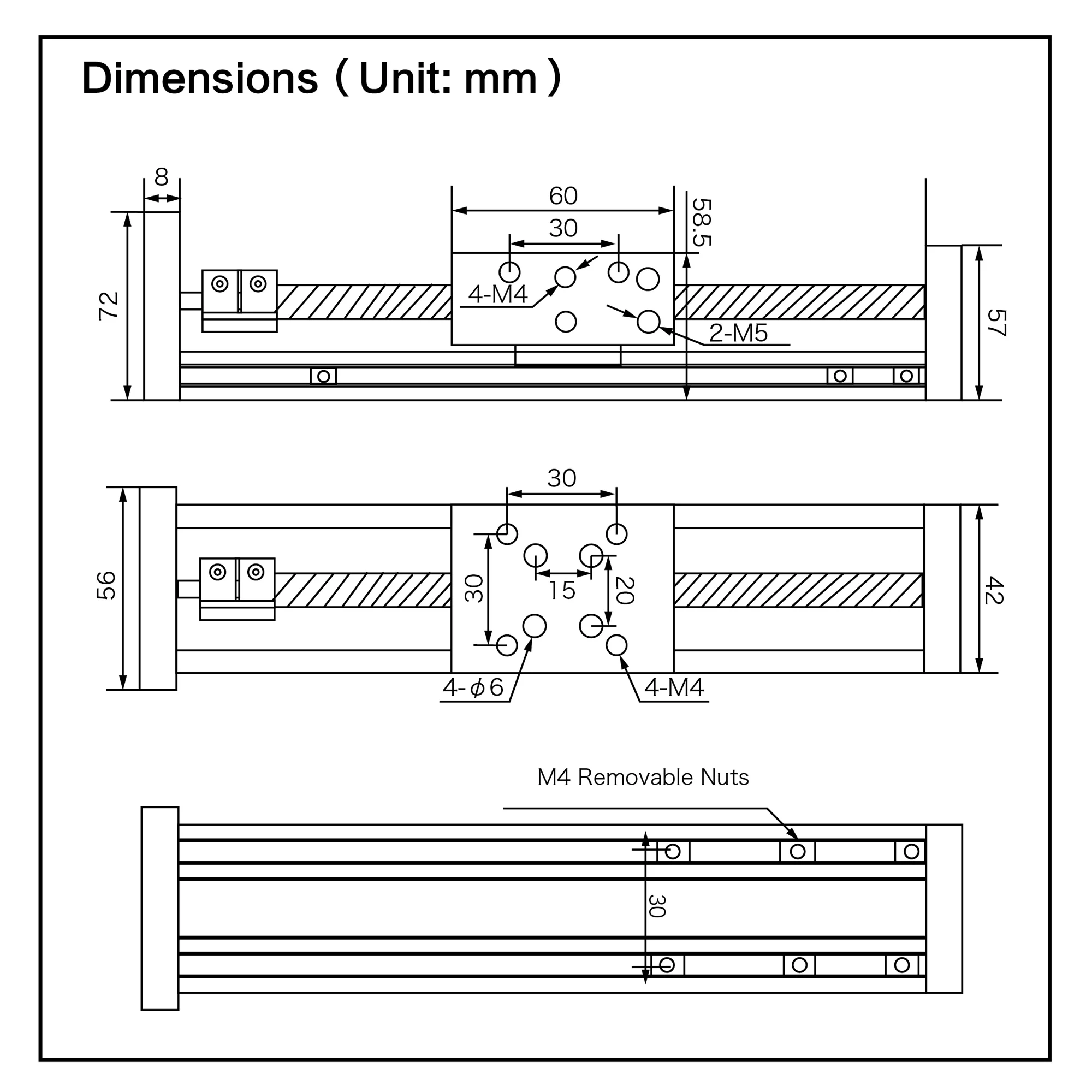

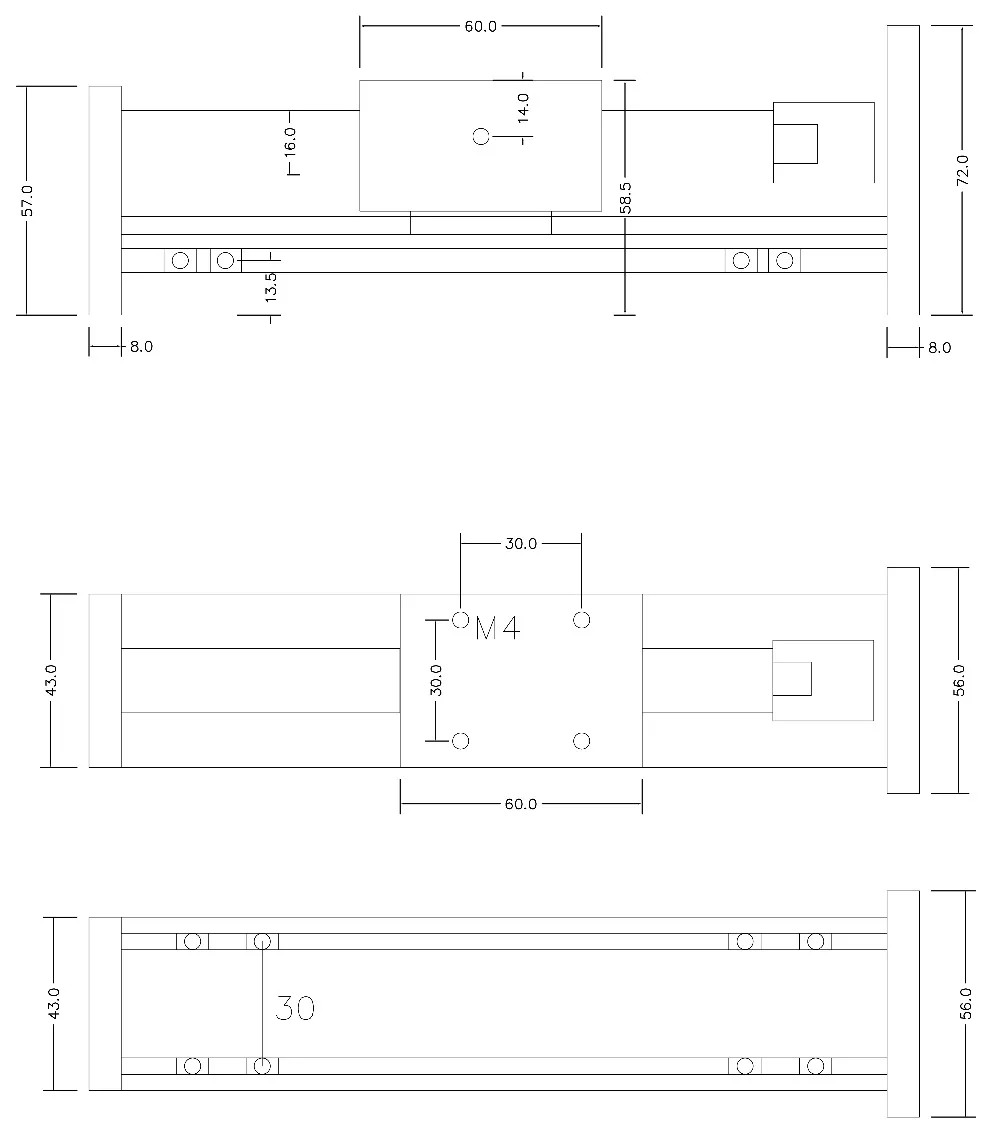

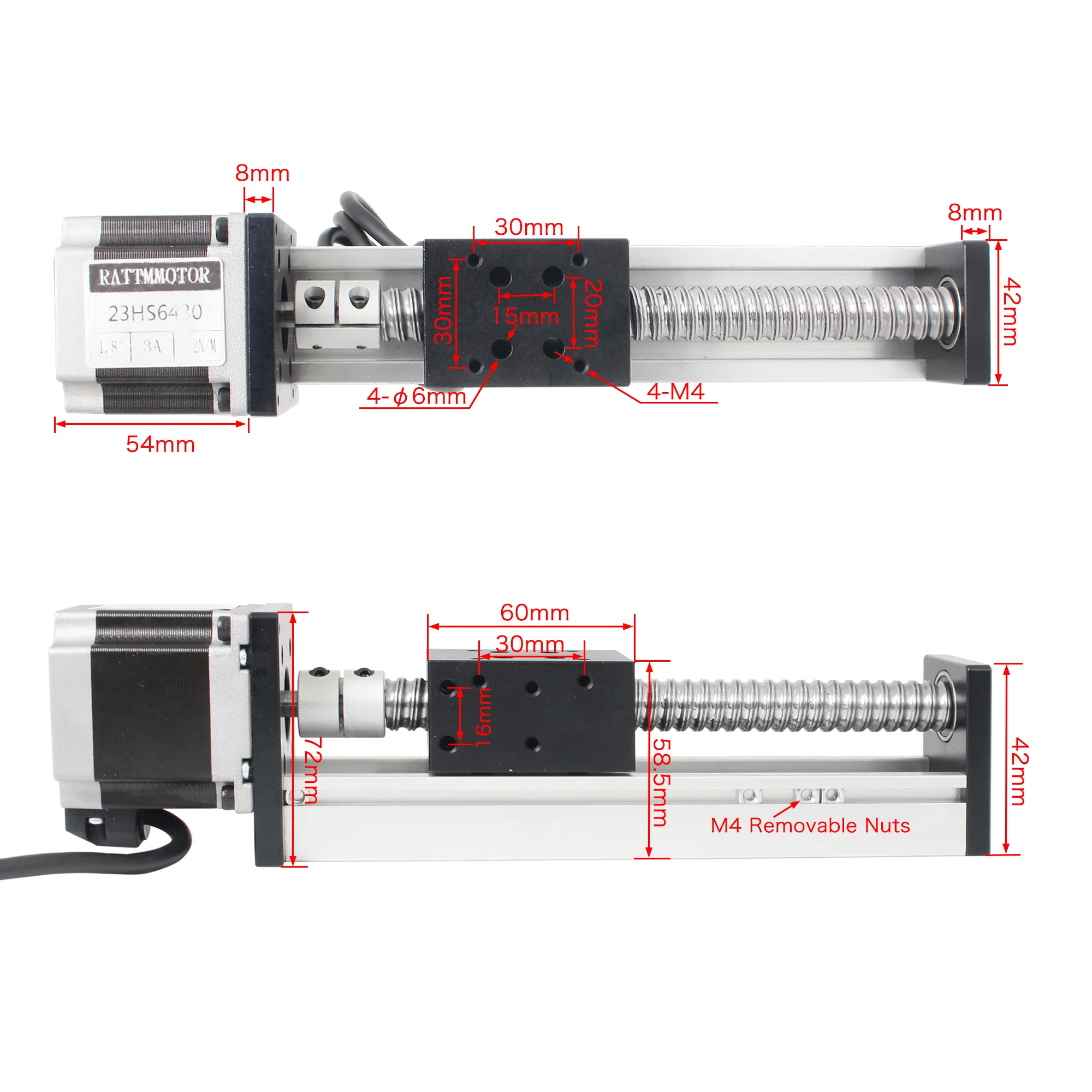

Profile Width: 40mm
Drive Type: CBX1605 Ballscrew
Screw precision grade:C7
Screw Pitch: 5mm
Linear Type: Square Linear Rails
Bearing Type: Single Square HGH Carriages
Motor Type: 2-Phase Nema23 High torque Stepper Motor
Effective Travel Length: 100-500mm
Accuracy: 0.03 mm / 0.001 inch
Max. Speed: 50 mm/s,2 inch/s
Horizontal load: 30Kgs / 66.2lbs
Vertical load: 10Kgs / 44lbs
Axial Load Capacity: 22Kgs / 44lbs
Stepper motor Parameter:
Name: RTM23HS6430
Step angle: 1.8 degree
Motor flange size: 57mm
Motor length: 56mm
Holding torque: 1.2N.m
Current: 3A
Resistance: 0.8 ohm
Inductance: 2.4 mH
Rotor Inertia: 440g.cm
Lead wire: 4pcs
Linear Stage Actuator Parameter:
Series: CBX1605 100-500A
Profile Width: 40mm
Drive Type: CBX1605 Ballscrew
Screw precision grade:C7
Screw Pitch: 5mm
Linear Type: Square Linear Rails
Bearing Type: Single Square HGH Carriages
Motor Type: 2-Phase Nema23 High torque Stepper Motor
Effective Travel Length: 100-500mm
Accuracy: 0.03 mm / 0.001 inch
Max. Speed: 50 mm/s,2 inch/s
Horizontal load: 30Kgs / 66.2lbs
Vertical load: 10Kgs / 44lbs
Axial Load Capacity: 22Kgs / 44lbs
How to use Linear Stage Actuator:
Feature:

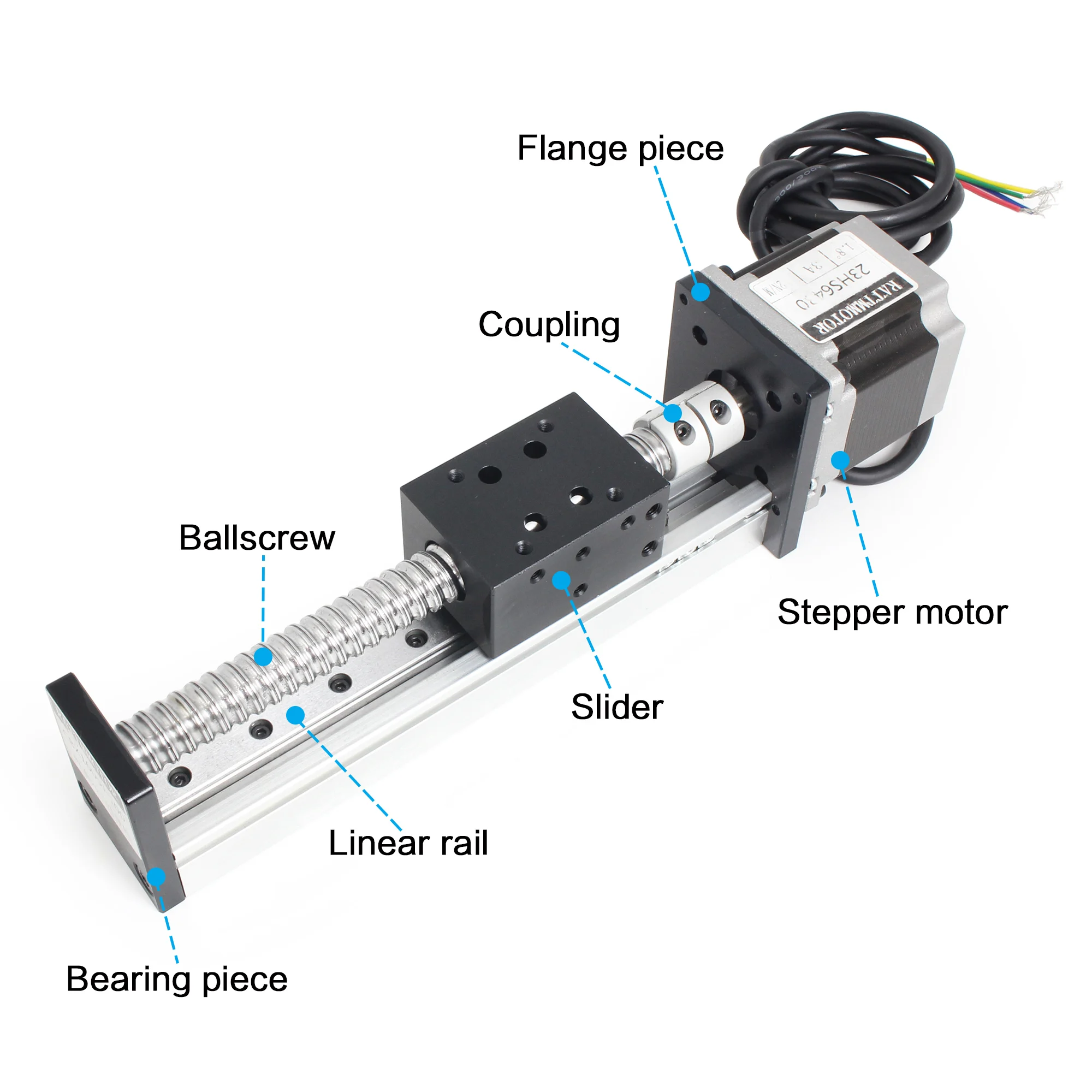

The ball screw consists of a screw, nut and ball.
The rotation movement into a linear motion, with a small frictional resistance.High precision, heavy load resistance.Low coefficient of friction, versatility.Durable and easy to use.Besides, we can also customize the travel length as your demand, contact us if any needs please.
How to use Linear Stage Actuator:
Feature:
The ball screw consists of a screw, nut and ball.
