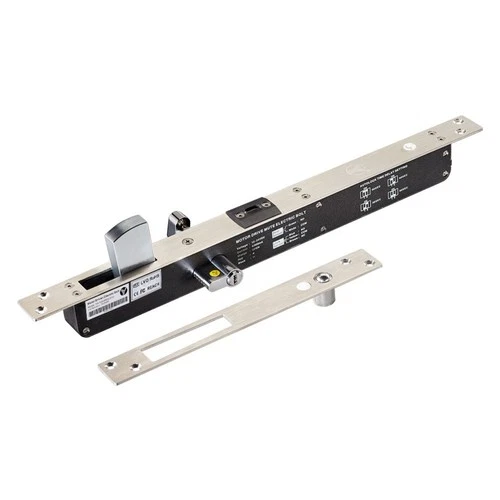

High Security Motor Driven Electric Lock
Model: YB-1200MD(LED)
Motor driven mute electric bolt,the bolt is controlled by motor drive to realize lock and unlock. The driving force of the motor is very strong,the bolt can be pushed out by the powerful thrust of the motor to align the door when the door is deformed or misaligned. The parts are made of lightweight materials, work more smoothly, less resistance, can achieve mute when lock and unlock.The PCB is equipped with an electronic protection device to realize the precise control of locking and unlocking. In addition,compared with the traditional electric bolt which uses electromagnet to lock, which is low power consumption, energy saving and environmental protection.
Features：
- Equipped with lock cylinder, which can realize the dual purpose of electric control in daily use and manual control in emergency
- The square bolt is made of solid thickened material, made by CNC lathe, with pry proof design, can withstand 2000KG impact force
- Powerful motor drive
- Door/Lock sensor output
- Installed on top of the door frame, it is rain proof
Product Parameter | Parameter Description |
Lock Body | 450L×30W×41.5H(mm) |
Voltage | 12-24VDC |
Current | ≤800mA |
Signal Output | Door Sensor (NO/COM)、Lock Sensor (NO/NC/COM) |
LED | Red shows locked ;Green shows unlocked |
Holding Force | 2000kg |
Waterproof Level | IP65 |
Applicable Temperature | -20℃~ +60℃ |
Applicable Humidity | 0~95% |
Autolock Time Delay | 0,3,6,9sec |
Suitable For | Wooden door , metal door , fireproof door |
Induction Distance | 8mm |
Weight | 2.35kg |
Certification | MA CE-EMC |
Package：
1x YB-1200MD(LED) Electric Lock
