1). Nema23 2N.m Set include
1 x 57HSE76N Closed loop Servo motor 2N.m 76mm Length
1 x HSS57 Closed loop Servo motor driver 6A DC24-50V
1 x 2 m Extension wire
2). Nema24 3N.m Set include
3). Nema34 4N.m Set include
4). Nema34 8N.m Set include
1 x 86HSE116 Closed loop Servo motor 8N.m 116mm Length
1 x HSS86 Closed loop Servo driver 8A AC24~70V or DC30~100V
1 x 3 m Extension wire
5). Nema34 12N.m Set include
1 x 86HSE154 Closed Loop Servo motor 12N.m 154mm Length
1 x HSS86 Closed Loop Servo motor driver 8A AC24~70V or DC30~100V
1 x 3 m Extension wires
6). Nema42 20N.m Set include
1 x 110HCE221 Closed Loop Servo motor 20N.m 220mm Length
1 x HSS2260 Closed Loop Servo motor driver 8A AC150~240V
1 x 3 m Extension wires
1 x 86HSE116 Closed loop Servo motor 8N.m 116mm Length
1 x HSS86 Closed loop Servo driver 8A AC24~70V or DC30~100V
1 x 3 m Extension wire
5). Nema34 12N.m Set include
1 x 86HSE154 Closed Loop Servo motor 12N.m 154mm Length
1 x HSS86 Closed Loop Servo motor driver 8A AC24~70V or DC30~100V
1 x 3 m Extension wires
6). Nema42 20N.m Set include
1 x 110HCE221 Closed Loop Servo motor 20N.m 220mm Length
1 x HSS2260 Closed Loop Servo motor driver 8A AC150~240V
1 x 3 m Extension wires
| Model | Flange | Torque | Voltage | Driver |
| 2Nm driver Kit | Nema23 | 2Nm(283.28oz.in) | AC24~50V | HSS57 |
| 3Nm driver Kit | Nema24 | 3Nm(424.83oz.in) | AC24~50V | HSS60 |
| 4Nm driver Kit | Nema34 | 4Nm(566.56oz.in) | AC24-70V/30-100VDC | HSS86 |
| 8Nm driver Kit | Nema34 | 8Nm(1132.90oz.in) | AC24-70V/30-100VDC | HSS86 |
| 12Nm driver Kit | Nema34 | 12Nm(1700oz.in) | AC24~70V/30~100VDC | HSS86 |
| 20Nm driver Kit | Nema34 | 20Nm(2880z.in) |
AC150-240V |
HSS2260 |
2. HSS57 2-Phase Hybrid Stepper Servo Driver
1.1 Overview
HSS57 is 2 phase nema 23 series hybrid stepper servo driver. It adopts new generation 32 bit DSP and vector control technology, which can avoid the stepper motor losing steps and ensure the accuracy of the motor. The torque reducing is much lower than open loop stepper motor when it is at higher speed. The high speed performance and torque are enhanced in a great extent. Meanwhile the current control is based on the load, that can reduce the motor temperature rising effectively, then can extend the using life of the motor. The build-in place in position and alarm output signal can help the upper monitor to monitor and control. The function of position ultra difference alarm can ensure the machine work safely. The closed loop system is an ideal improvement and a good replacement of open loop system, Besides that, it also have some function of AC servo motors, but price is just half of AC servo.
1.2 Features
1.2.1 Stepper motor closed loop system, never lose step.
1.2.2 Improve motor output torque and working speed.
1.2.3 Automatic current adjustment based on load, lower temperature rising.
1.2.4 Suitable for all mechanical load conditions (include low rigidity belt pulley and wheel), no need to adjust gain parameter.
1.2.5 Motor work smoothly and low vibration, high dynamic performance at acceleration and deceleration.
1.2.6 No vibration from high speed to zero speed
1.2.7 Drive nema 23 series 2N.m closed loop stepper motor.
1.2.8 Pulses response frequency can reach 200KHZ
1.2.9 16 kinds microsteps choice, highest 51200microsteps/rev.
1.2.10 Voltage range: DC24V~50V
1.2.11 Over-current, over-voltage and position ultra difference protection function.
2. Electrical, mechanical, environment Parameter
2.1 Electrical Parameter
|
Voltage range |
DC24~50V |
|
Peak current |
Peak |
|
Logic input
current |
7~20mA |
|
frequency |
0~200KHz |
|
Suitable motor |
57HSE2N |
|
Encoder lines |
1000 |
2.2 Environment Parameter
|
Cooling method |
Natural or
radiator |
|
|
Operating environment |
Operating
Occasions |
try to avoid
dust, oil, corrosion gas |
|
Operating
temprature |
0~ |
|
|
Operating
humidit |
40~90%RH |
|
|
virbration |
|
|
|
Storage
temperature |
|
|
|
Weight |
About |
|
2.3 Installation Dimension

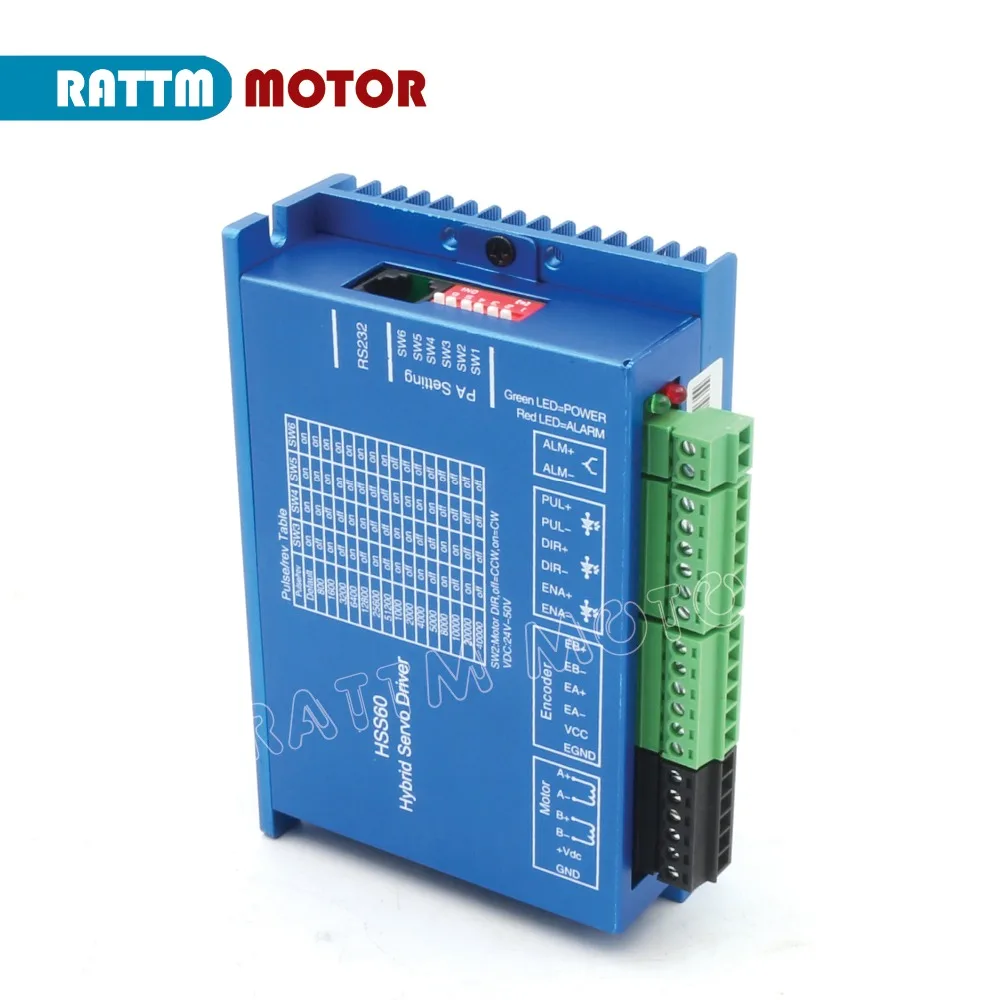

2. HSS60 2-Phase Hybrid Stepper Servo Driver
2. HSS60 2-Phase Hybrid Stepper Servo Driver
2.1) Overview
HSS60 is 2 phase nema 24 series hybrid stepper servo driver. It adopts new generation 32 bit DSP and vector control technology, which can avoid the stepper motor losing steps and ensure the accuracy of the motor. The torque reducing is much lower than open loop stepper motor when it is at higher speed. The high speed performance and torque are enhanced in a great extent. Meanwhile the current control is based on the load, that can reduce the motor temperature rising effectively, then can extend the using life of the motor. The build-in place in position and alarm output signal can help the upper monitor to monitor and control. The function of position ultra difference alarm can ensure the machine work safely. The closed loop system is an ideal improvement and a good replacement of open loop system, Besides that, it also have some function of AC servo motors, but price is just half of AC servo.
2.2) Features
2.2.1 Stepper motor closed loop system, never lose step.
2.2.2 Improve motor output torque and working speed.
2.2.3 Automatic current adjustment based on load, lower temperature rising.
2.2.4 Suitable for all mechanical load conditions (include low rigidity belt pulley and wheel), no need to adjust gain parameter.
2.2.5 Motor work smoothly and low vibration, high dynamic performance at acceleration and deceleration.
2.2.6 No vibration from high speed to zero speed.
2.2.7 Drive nema 24 series 3N.m closed loop stepper motor.
2.2.8 Pulses response frequency can reach 200KHZ.
2.2.9 16 kinds microsteps choice, highest 51200 microsteps/rev.
2.2.10 Voltage range: DC24V~50V.
2.2.11 Over-current, over-voltage and position ultra difference protection function.
2.3 ) Electrical Parameter
Voltage range
DC24~50V
Peak current
Peak 6.0A (current change according to load)
Logic input current
7~20mA
Frequency
0~200KHz
Suitable motor
60HSE3N
Encoder lines
1000
Insulation resistance
>=500MΩ
2.1) Overview
HSS60 is 2 phase nema 24 series hybrid stepper servo driver. It adopts new generation 32 bit DSP and vector control technology, which can avoid the stepper motor losing steps and ensure the accuracy of the motor. The torque reducing is much lower than open loop stepper motor when it is at higher speed. The high speed performance and torque are enhanced in a great extent. Meanwhile the current control is based on the load, that can reduce the motor temperature rising effectively, then can extend the using life of the motor. The build-in place in position and alarm output signal can help the upper monitor to monitor and control. The function of position ultra difference alarm can ensure the machine work safely. The closed loop system is an ideal improvement and a good replacement of open loop system, Besides that, it also have some function of AC servo motors, but price is just half of AC servo.
2.2) Features
2.2.1 Stepper motor closed loop system, never lose step.
2.2.2 Improve motor output torque and working speed.
2.2.3 Automatic current adjustment based on load, lower temperature rising.
2.2.4 Suitable for all mechanical load conditions (include low rigidity belt pulley and wheel), no need to adjust gain parameter.
2.2.5 Motor work smoothly and low vibration, high dynamic performance at acceleration and deceleration.
2.2.6 No vibration from high speed to zero speed.
2.2.7 Drive nema 24 series 3N.m closed loop stepper motor.
2.2.8 Pulses response frequency can reach 200KHZ.
2.2.9 16 kinds microsteps choice, highest 51200 microsteps/rev.
2.2.10 Voltage range: DC24V~50V.
2.2.11 Over-current, over-voltage and position ultra difference protection function.
2.3 ) Electrical Parameter
Voltage range | DC24~50V |
Peak current | Peak 6.0A (current change according to load) |
Logic input current | 7~20mA |
Frequency | 0~200KHz |
Suitable motor | 60HSE3N |
Encoder lines | 1000 |
Insulation resistance | >=500MΩ |
|
|
|
|---|---|---|
| 1.2.1 Stepper motor closed loop system, never lose step. 1.2.2 Improve motor output torque and working speed. 1.2.3 Automatic current adjustment based on load 1.2.4 Suitable for all mechanical load conditions (include low rigidity belt pulley and wheel), no need to adjust gain parameter. 1.2.5 Drive nema 34 series closed loop stepper motor. 1.2.6 Pulses response frequency can reach 200KHZ 1.2.7 16 kinds microsteps choice, highest 51200microsteps/rev. |
|

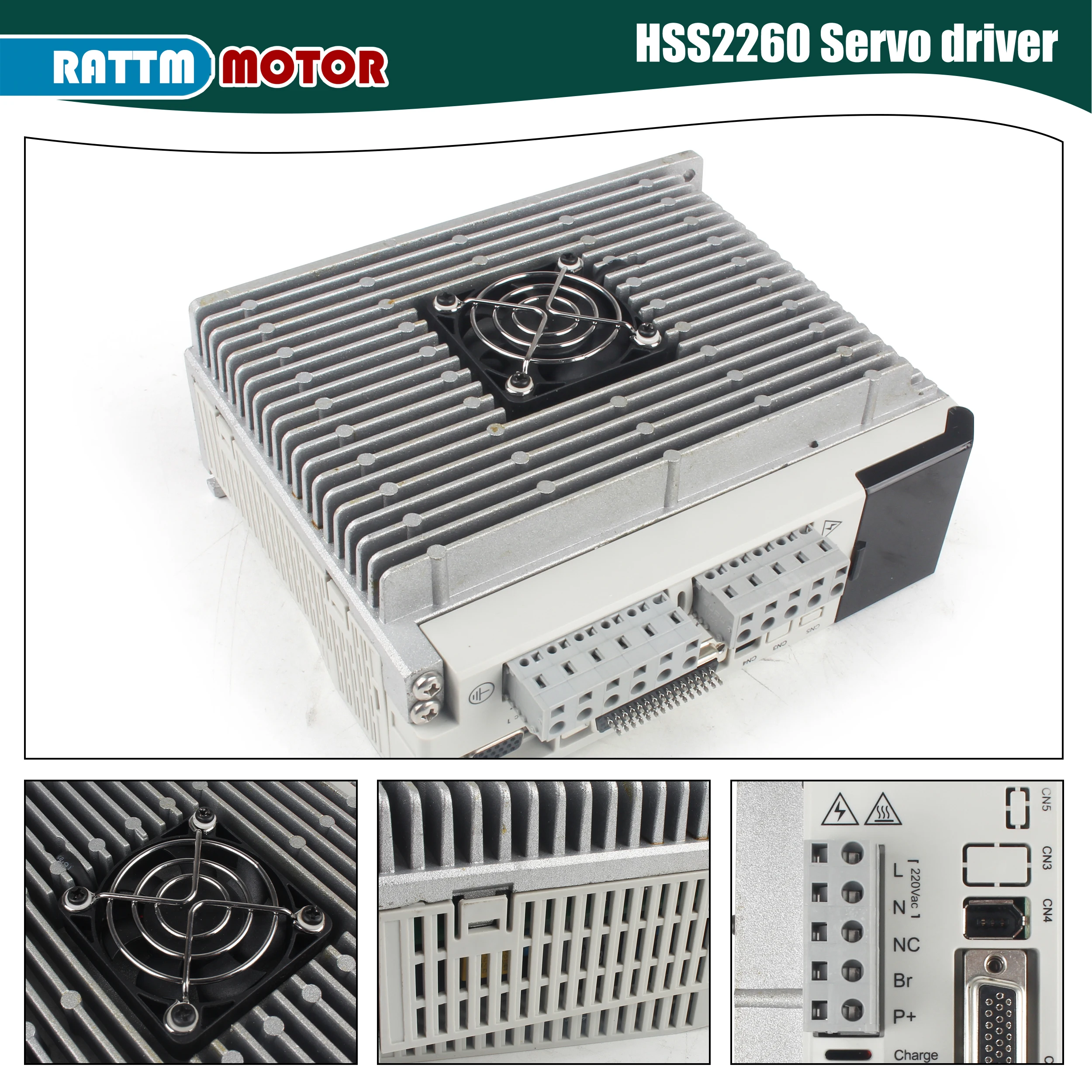

4. HSS2260 3-Phase Hybrid Stepper Servo Driver
32-bit DSP and vector closed-loop control technology.
Without losing step, high accuracy in position.
Improve the motor output torque and working speed.
Variable current control technology, restrain motor temperature rise.
Adapt to variety of mechanical load conditions(including low-rigidity pulleys), no need to adjust the gain parameter.
Smooth and reliable moving, low vibration, great improvement in accelerate and decelerate.
The ability of zero speed static without vibration.
Adapt to 3-phase 86(NEMA34) and 110(NEMA 42) hybrid servo motor.
Maximum step-pulse frequency 200KHZ.
Micro step 400-60000 pulse/rev.
Voltage range AC150-240V.
Over current, over voltage and over position protection.
Six digital tube display, easy to set parameters and monitor the motor running state.
Applications
Closed loop stepper system can be applied to all kinds small automatic equipment and instrument. Such as engraving machine, special industrial sewing machine, stripping machine, marking machine, cutting machine, laser phototypesetting, graph plotter, cnc machine, automatic assembly equipment and so on.
