AOOK Multifunction Work Table Milling Machine Compound Drilling Slide Table
LOCAL AUSSIE SELLER GREAT CUSTOMER SUPPORT MONEY BACK GUARANTEE
Product Information

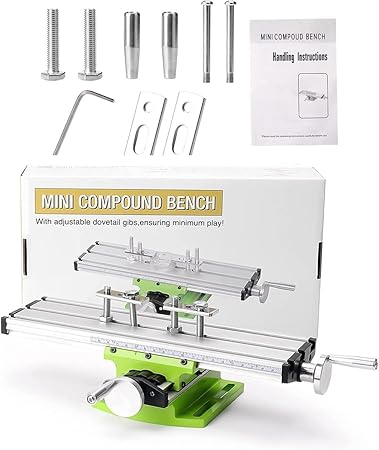

- ★Mini multifunctional working table 6300.The table is suitable for mini drill and drill bracket series. It can also be applied to other suitable machines.
- ★The work table is composed of several adjustable dovetail slot aluminum alloy composition, can guarantee the minimum space and ensure the accuracy.
- ★Table size: 310 × 90mm.Height : 80mm(including two working clamp),standard size is 15x8x6mm.
- ★Distance between grooves : 34mm
- ★Hand wheel with adjustable scale:A ring=1.25mm,A scale=0.05mm.
Get the most value for your money with Milling Working Table !
The miniature precision multifunction Milling Machine Bench drill Fixture worktable X Y-axis adjustment working table,
which can be applied to mini drill and drill bracket series or other suitable machines.
Specification:
T slot : have three t solts
Solt size: 15mmx8mmx6mm
X axis travel : 200mm
Y axis travel : 50mm
Distance between grooves : 34mm
Working table size : 310mmx90mm
Height : 80mm (including two working clamp)
Mounting hole distance : two holes 93mm away from the nearest is the middle is 98mm,the distance is 112mm
Hand wheel with adjustable scale:A ring=1.25mm,A scale=0.05mm.
Package include: 1 * 6300 Milling Working Table , 1* accessories box, 1* manual
Technical Details
| Manufacturer | AOOK |
|---|---|
| Part Number | AK6300 |
| Package Dimensions | 35.8 x 20 x 8.2 cm; 1.78 kg |
| Manufacturer reference | AK6300 |
| Batteries Required | No |
| Item Weight | 1.78 kg |
