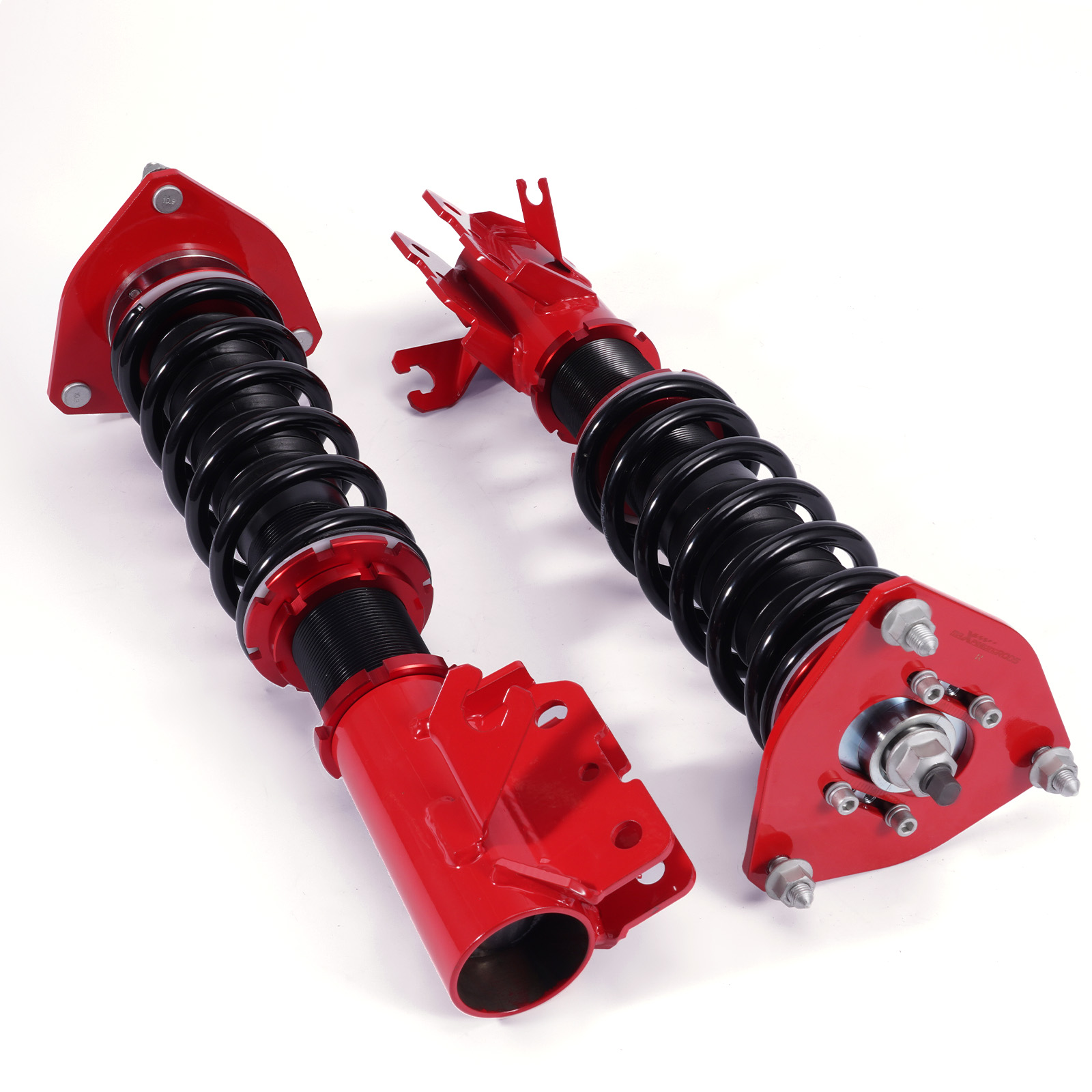

Coilovers Suspension Lowering Kit For Mitsubishi Mirage (CJ4A) 1997-01

55mm Large Diameter Damper Body

High Oil Capacity For Superior Heat Dissipation, Consistent Damping Performance, And Extended Service Life.

CNC Machined T6 6061 Aluminum Top Mount

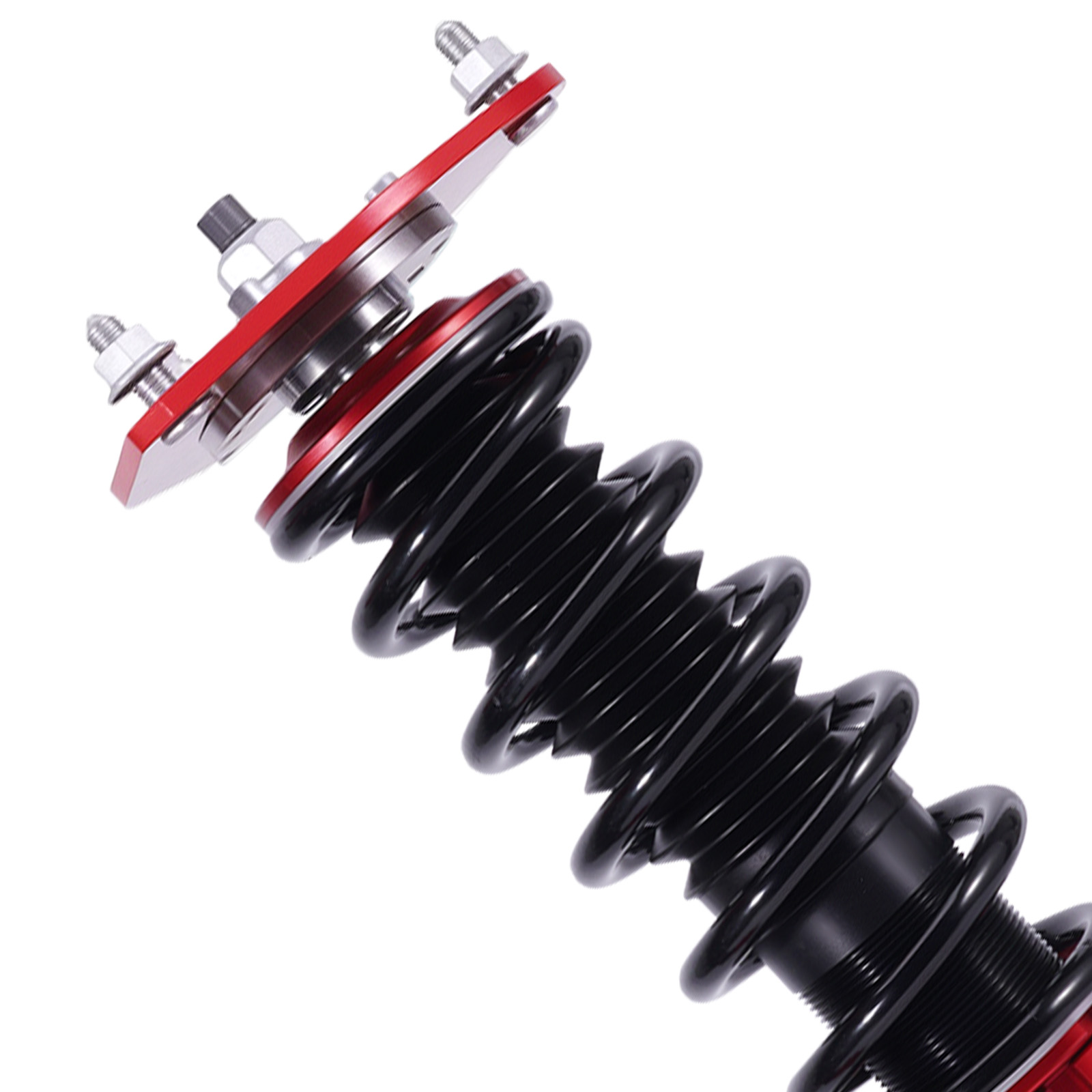

Precision Pillow Ball Upper Mounts With Smooth Bearings For Stable Steering Response.

High Rigidity 55CrSi Steel Cold-bent Coil Springs

720-Hour Salt Spray Tested — Exceptional Corrosion Resistance.

Drops From 1 to 3 Inch From Factory Ride Height

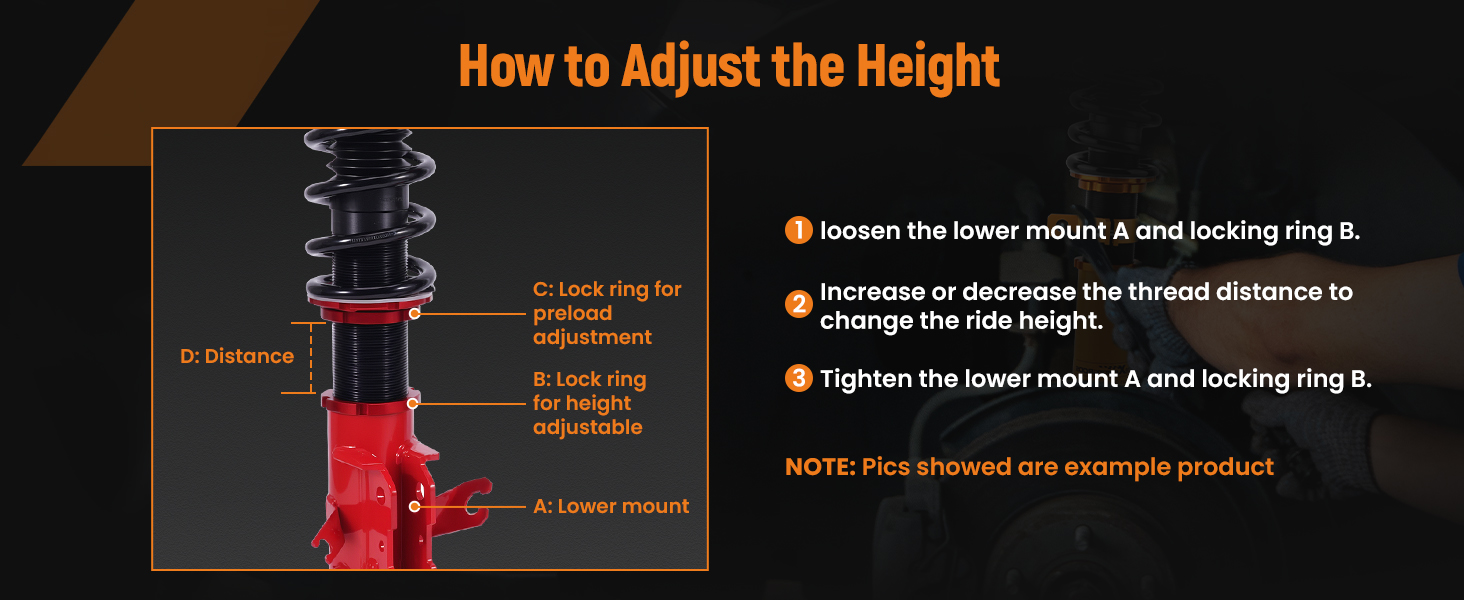

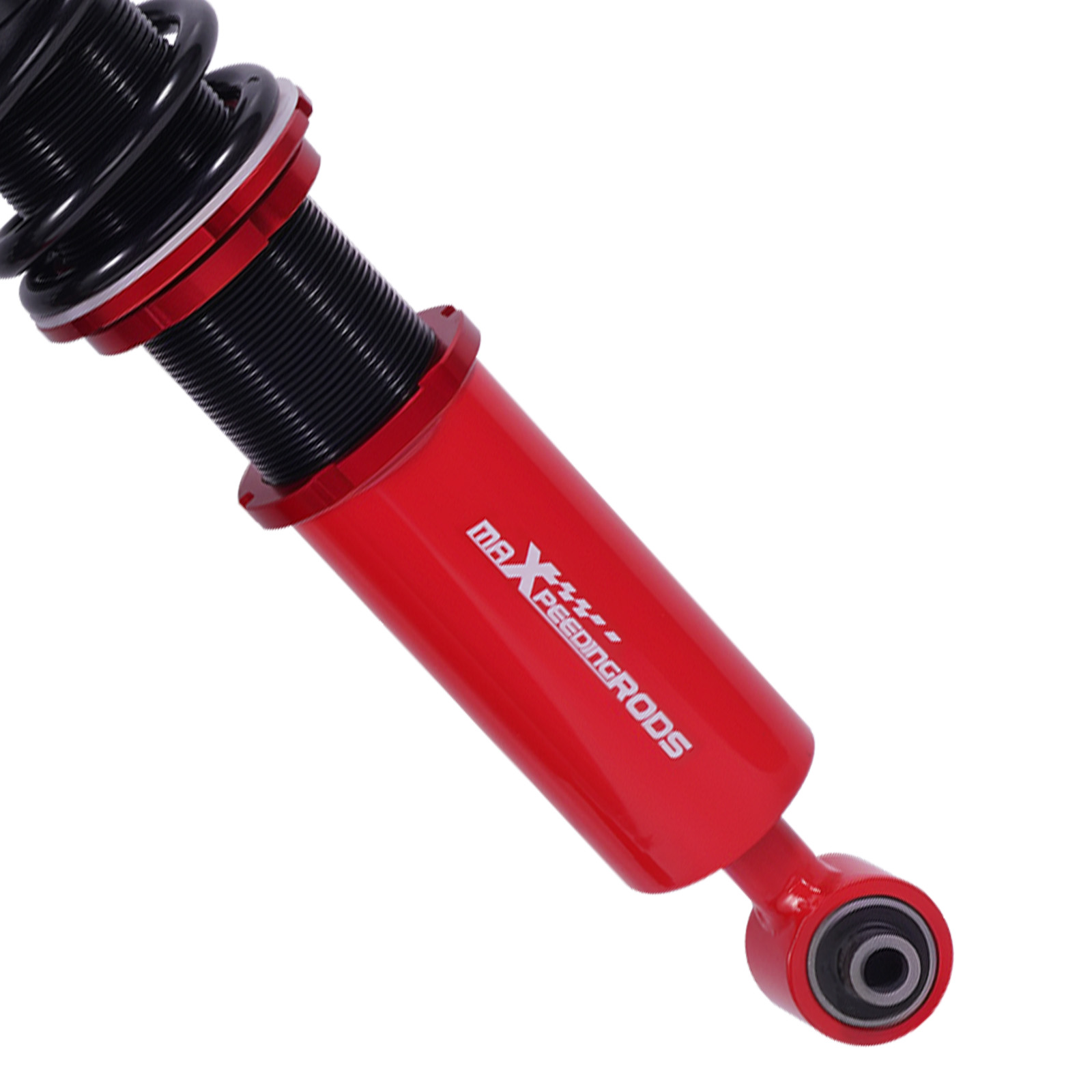

Full Threaded Absorber Tube Casing For Independent Height Adjustment.

Specifications

Height adjustable	Yes, Lowering 1-3 inch
Front Spring length	220 mm
Rear Spring length	200 mm
Front spring length	5 kg/mm (280 lbs/in)
Rear spring length	4 kg/mm (224 lbs/in)
Front spring inner diameter	70.5 mm
Rear spring inner diameter	62 mm
Front Damper Body Diameter	Φ55mm (2.17")
Rear Damper Body Diameter	Φ55mm (2.17")
Front Coilover Length	363 mm - 453 mm / 14.29" - 17.83"
Rear Coilover Length	445 mm - 525 mm / 17.51" - 20.66"
Package Including	2 Front + 2 Rear
Warranty	1 Year

MaXpeedingrods Brand Introduction

Founded in 2006, MaXpeedingrods is a trusted global brand specializing in a full range of high-performance automotive parts. With a strong focus on suspension and coilovers, we hold a leading market share online and are widely recognized by enthusiasts worldwide. All products are engineered for reliable performance, durability, and perfect fitment, serving daily driving, street tuning, and light track use.

Features

◆ Full-Length Threaded Body For True Ride Height Adjustment Without Sacrificing Suspension Travel.

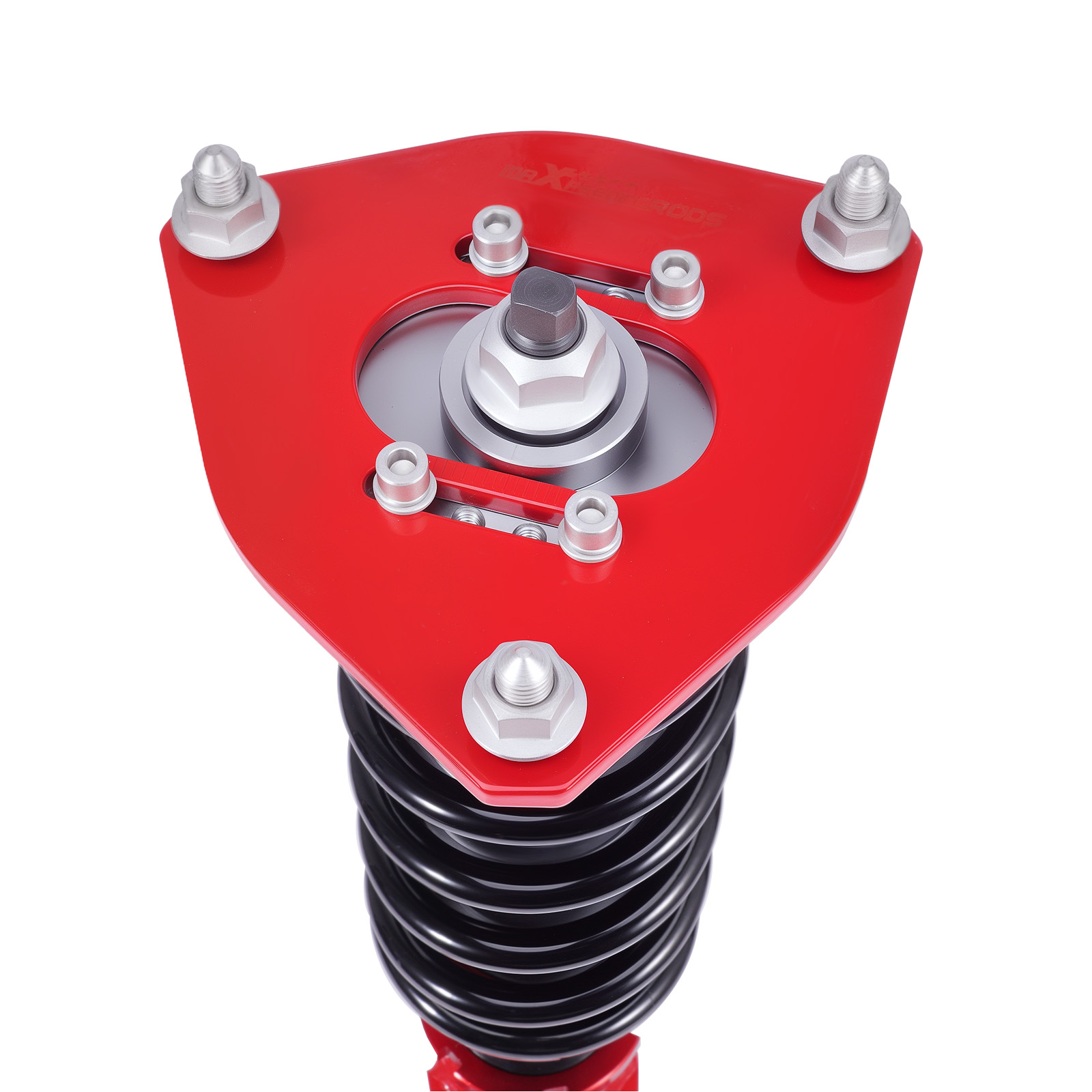

◆ Camber-Adjustable Pillow Ball Upper Mounts For Precise Alignment And Sharper Steering Response.
◆ Precision Pillow Ball Upper Mounts With Smooth Bearings For Stable Steering Response.
◆ Aluminum Upper Mounts with Hardened Rubber Bushings for Noise Reduction.
◆ Premium Cold-Coiled Springs Deliver Consistent Rate And Durable Performance.
◆ Street-Tuned Fixed Damping For Balanced Comfort And Improved Handling.
◆ Heavy-Duty Construction With Corrosion-Resistant Coating For Long-Lasting Durability.
◆ Direct Bolt-On Design, Vehicle-Specific Fit With All Necessary Hardware Included.
◆ Brand New Complete Kit with 1-Year Warranty

Applications

For Mitsubishi Mirage 1997-2001

Specifications

Front top mount: Pillow ball with camber plate
Rear top mount: Standard rubber
Damping adjustable: Not available
Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
Camber adjustable: Available
Spring rate Front: 5 kg/mm (280 lbs/in)
Spring rate Rear: 4 kg/mm (224 lbs/in)
Spring length Front: 220 mm
Spring length Rear: 200 mm
Front spring inner diameter: 70.5 mm
Rear spring inner diameter: 62 mm
Spring Preload advised: 7-10 mm
Damping rod diameter Front: Φ22 mm
Damping rod diameter Rear: Φ22 mm
Damping thread Front: M55×2 mm
Damping thread Rear: M55×2 mm
Twin -tube Diameter Front: 55 mm
Twin -tube Diameter Rear: 55 mm
Rod End Thread Front: M14×1.5 mm
Rod End Thread Rear: M14×1.5 mm
Coil-overs overall length Front: 363 mm - 453 mm / 14.29" - 17.83"
Coil-overs overall length Rear: 445 mm - 525 mm / 17.51" - 20.66"
Color: Red body with black spring
