Coilovers Suspension Kit For Kia Optima 2011 2012 2013 2014 2015 Shock Absorbers

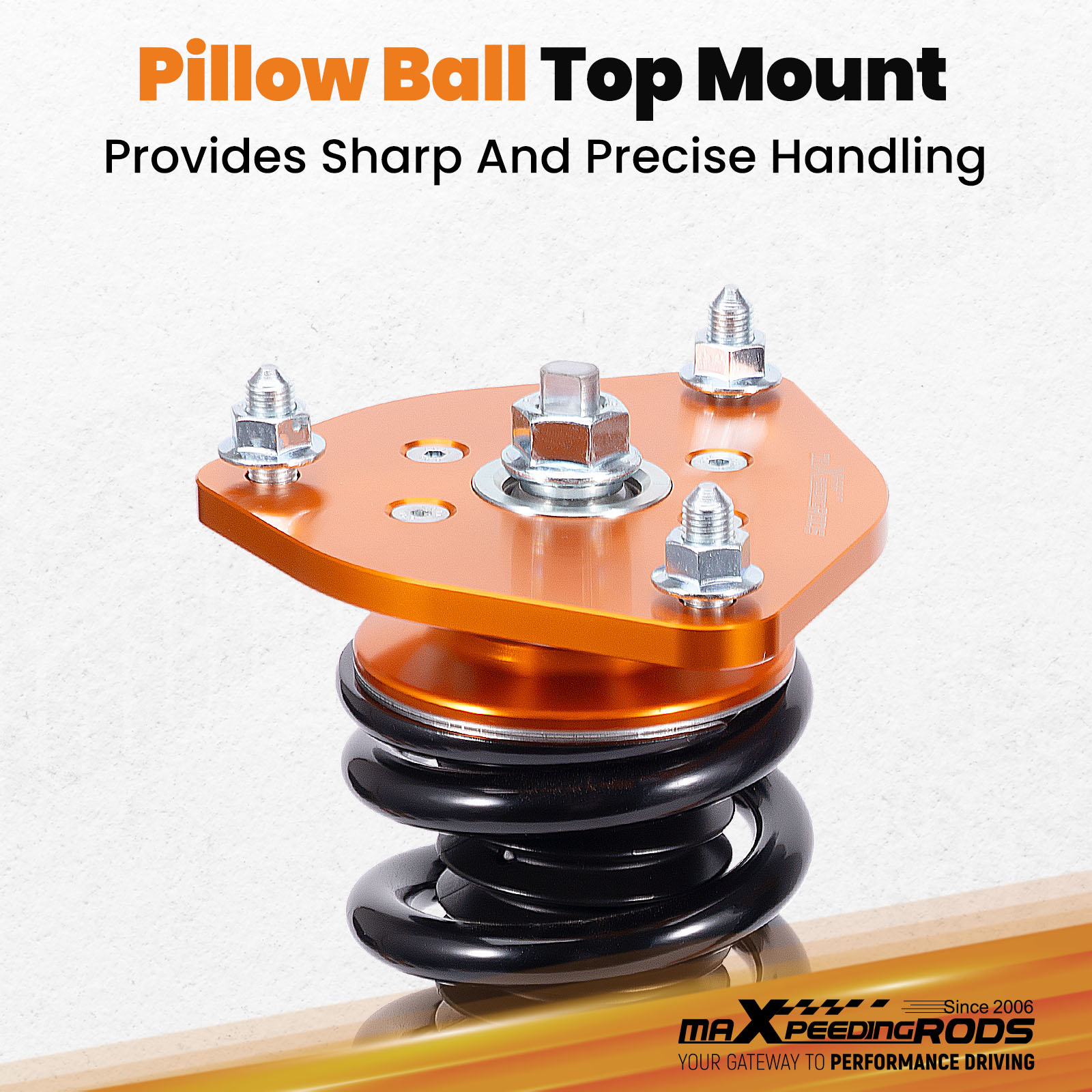

Aluminum Top Mounts with Pillow ball

Aluminum top mounts with Pillow ball provide bind free operation and precise feed-back to the driver.

Anodized Shock Body With Anti-Corrosion Coating

Manufactured From High Quality T-6061 Billet Aluminum With Anodized Finish For Superior Strength And Corrosion Protection.

Drops From 1 to 3 Inch From Factory Ride Height

Full Threaded Absorber Tube Casing For Independent Height Adjustment.

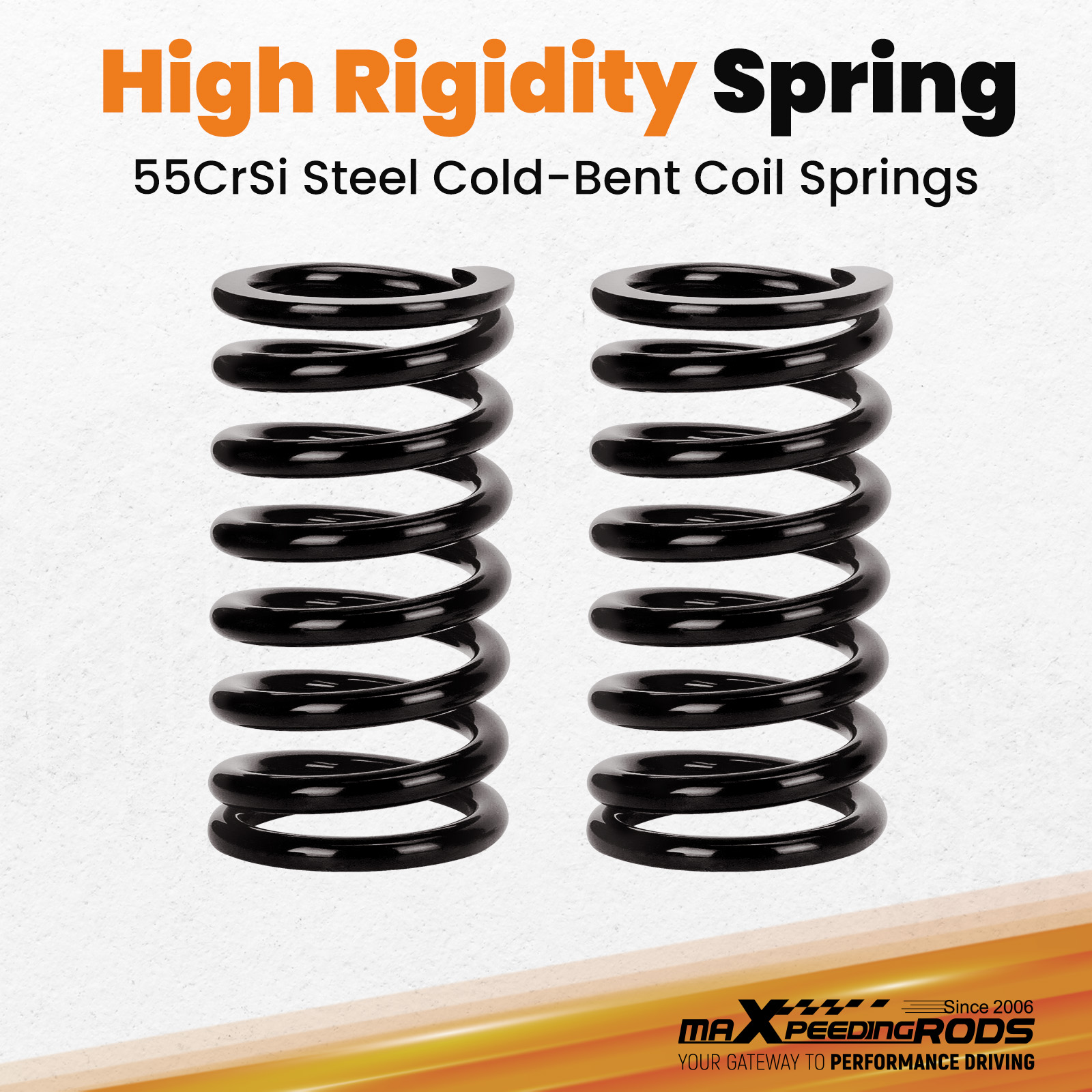

Durable Cold Wound Steel & Heat Treated Coils

High Rigidity 55CrSi Steel Cold-bent Coil Springs - Over 600k Continuously Stress Test With 0.04% Distortion Rate.

Specifications


Top mount material Aluminum
Height adjustable Yes, Lowering 1-3 inch
Front Spring length 190 mm
Rear Spring length 200 mm
Front spring length 9.0 kg/mm(504 lbs/in)
Rear spring length 7.5kg/mm (420 lbs/in)
Package Including 2 Front + 2 Rear
Warranty 1 Year

Features

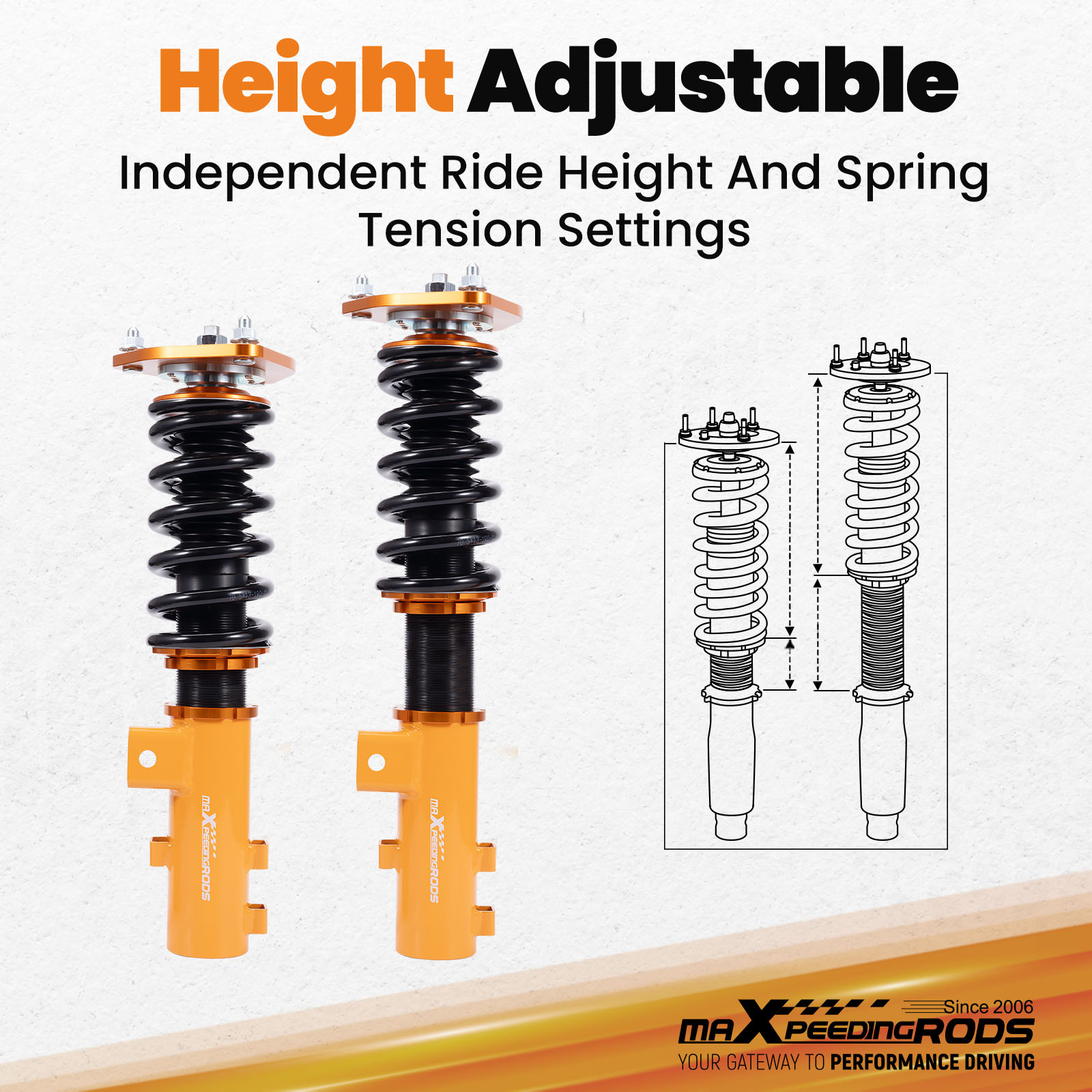

Ride Height Adjustable - Drops From 1 to 3 Inch From Factory Ride Height
Twin-Tube System for Comfortable Ride on Streets
Aluminum top mounts with Pillow ball provide bind free operation and precise feed-back to the driver
High Rigidity 55CrSi Steel Cold-bent Coil Springs

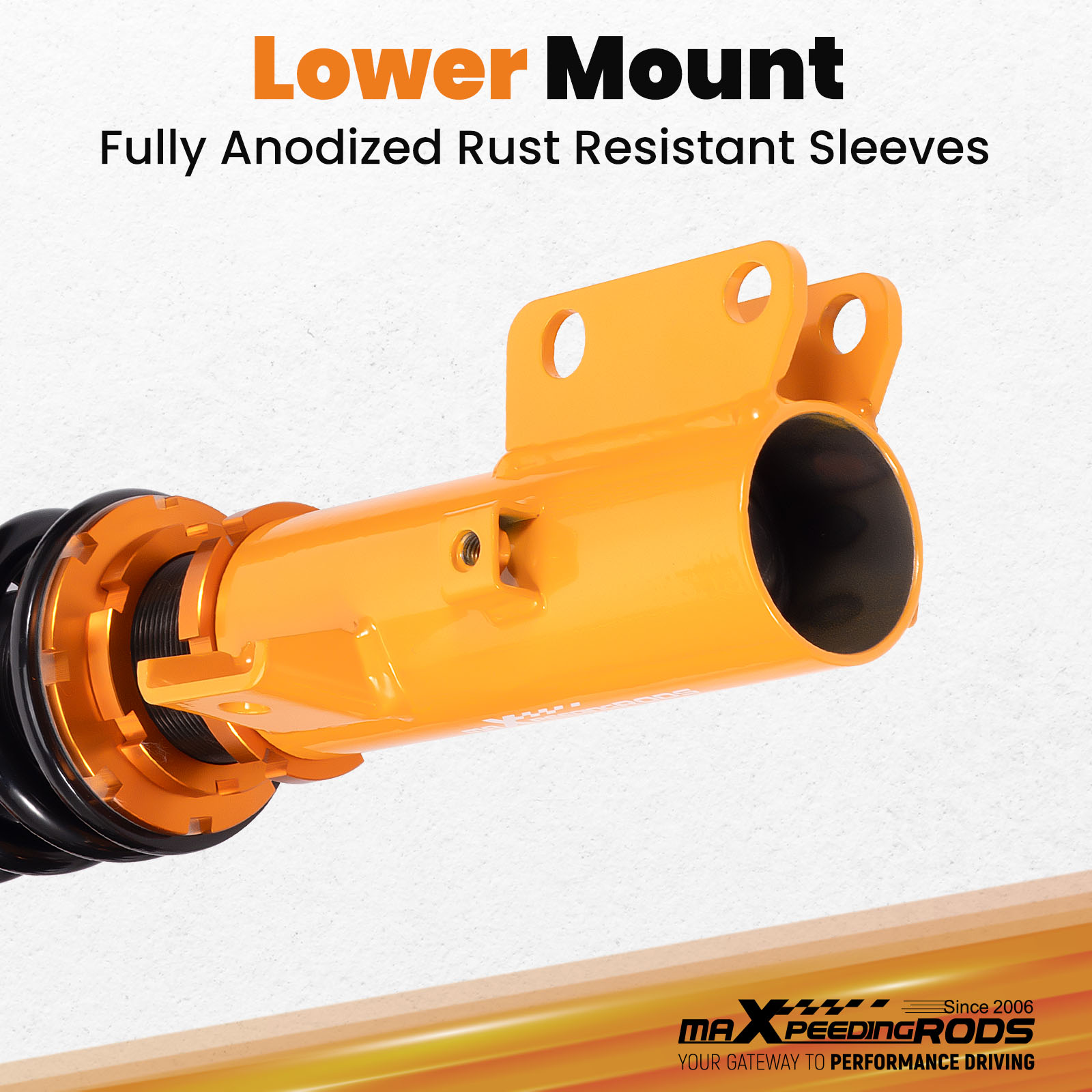

Weight Saving Aluminum Components And Carbon Steel Lower Mount Brackets
Anodized Shock Body With Anti-Corrosion Coating
Adjustment spanner wrenches and pictured hardware are included
Full 1 Year Limited Warranty From Date of Purchase


Fitment


For Kia Optima 2011 2012 2013 2014 2015
Note: New sway bar link is required for SX trim

Specification


- Damping adjustable: Not available
- Shock structure type: twin -tube
- Front top mount structure: Pillow ball
- Rear top mount structure: Standard rubber
- Camber adjustable: Not vailable
- Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
- Spring Rate Front: 9.0 kg/mm(504 lbs/in)
- Spring Rate Rear: 7.5kg/mm (420 lbs/in)
- Spring length Front: 190 mm
- Spring length Rear: 200 mm
- Spring Preload advised: 7-10 mm
- Color: Golden body with black spring


Package included


2x Front coil-overs
2x Rear coil-overs
2x C spanners


★ 30-day Money Back & 12-Month Replacement Guarantee. Please feel free to contact us if there is any question.

Height Adjustable Lowering Kit; Independent Ride Height And Spring Tension Settings; High Rigidity 55CrSi Steel Cold-bent Springs; Anodized Shock Body With Anti-Corrosion Coating; Top Pillow Ball Mount Provides More Precise Feel From Suspension And Steering; Full 1 Year Limited Warranty From Date Of Purchase.
