Features

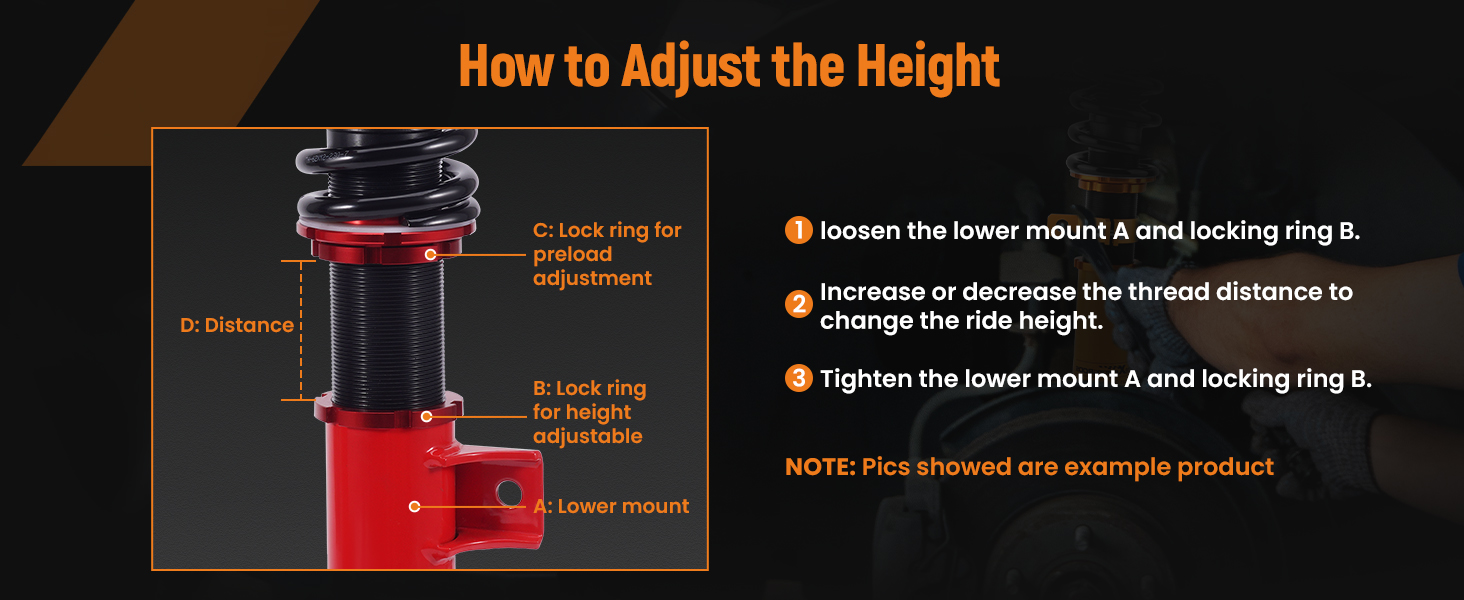

Ride Height Adjustable - Drops From 1 to 3 Inch From Factory Ride Height

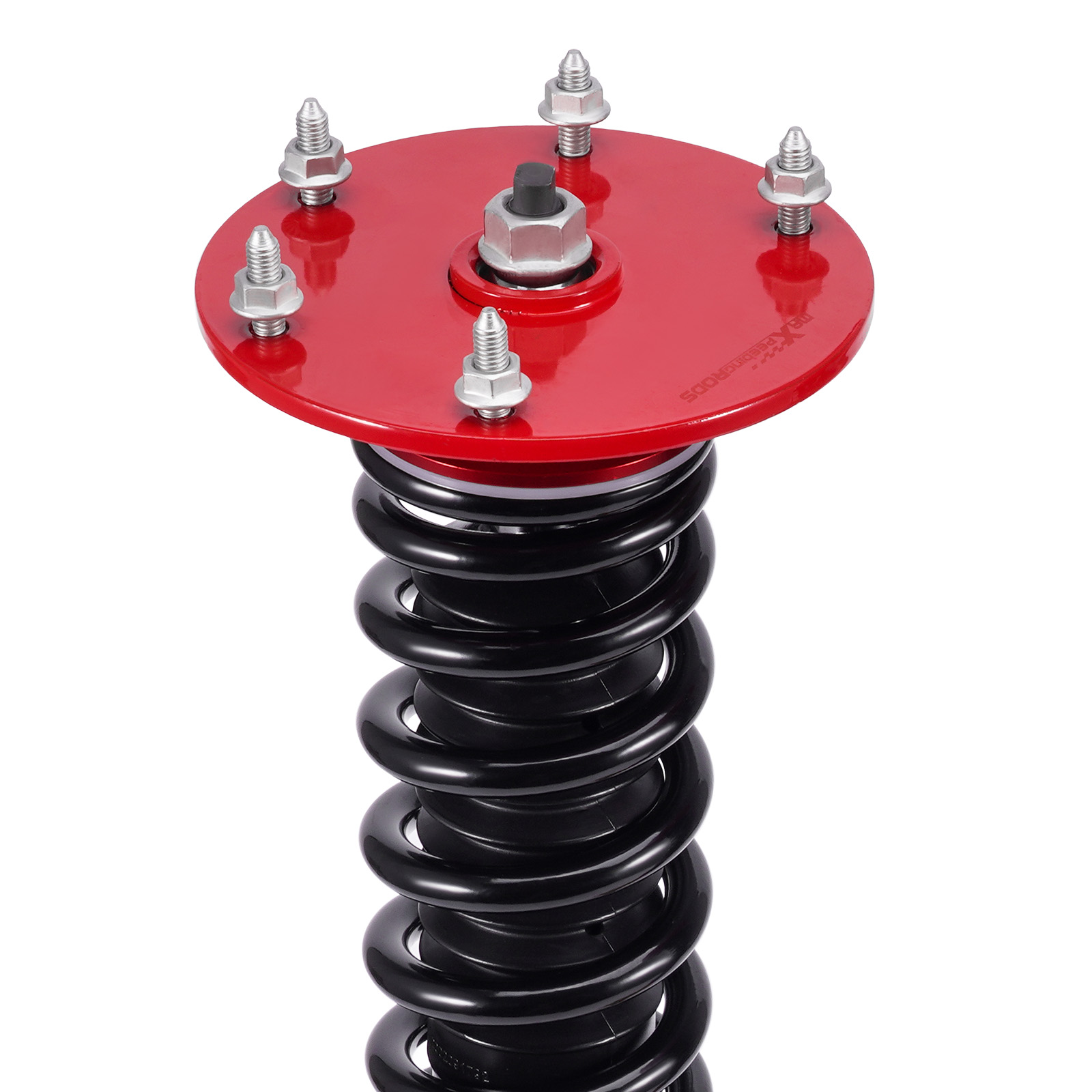

Aluminum top mounts with Pillow ball provide bind free operation and precise feed-back to the driver
High-precision Pillow Ball Top Mount with Premium-Grade Sealed Spherical Bearings.
High Rigidity 55CrSi Steel Cold-bent Coil Springs
Weight Saving Aluminum Components And Carbon Steel Lower Mount Brackets

Optimal Pre-Set Soft and Hard Settings - No Manual Damping Adjustment Required
Anodized Shock Body With Anti-Corrosion Coating
Adjustment spanner wrenches and pictured hardware are included
Full 1 Year Limited Warranty From Date of Purchase

Application

For HONDA CR-V FWD 2012-2016

Specification

- Front top mount structure: Pillow ball
- Rear top mount structure:Standard rubber
- Damping adjustable: Not available
- Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
- Spring Rate Front: 7 kg/mm (392 lbs/in)
- Spring Rate Rear: 12 kg/mm (672 in/lbs)

- Front Damper Body Diameter: Φ55mm (2.17")
- Rear Damper Body Diameter: Φ55mm (2.17")
- Front spring inner diameter: 62 mm
- Rear spring inner diameter: 62 mm
- Spring length Front: 230 mm
- Spring length Rear: 160 mm
- Spring Preload advised: 7-10 mm
- Color: Black body with blue spring

Package included

2x Front coil-overs
2x Rear coil-overs
2x C spanners
