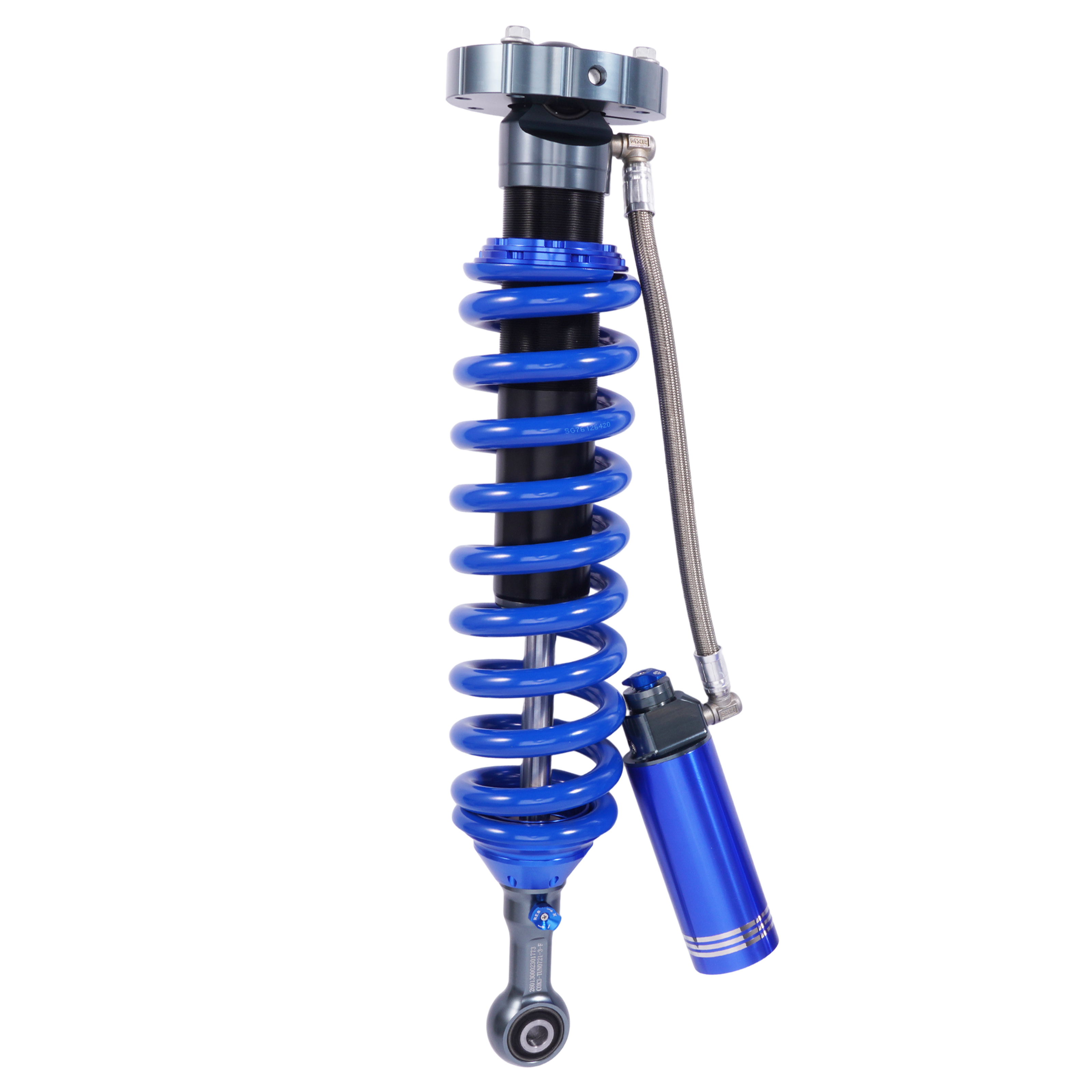

MaXpeedingrods X3 Series Remote-Reservoir Shocks

The upgraded system enhances the off-road capabilities of SUVs and pickup trucks through an innovative external nitrogen reservoir with oil-gas separation technology. The optimized design includes an expanded gas compression chamber for improved shock stroke efficiency, as well as an enlarged oil chamber that increases fluid capacity while enhancing heat dissipation and fade resistance. With precisely engineered dual compression/rebound damping adjustability, the system maintains vehicle stability across diverse terrains by dynamically adapting to both high-frequency vibrations and sustained impacts through advanced thermodynamic management.

Features

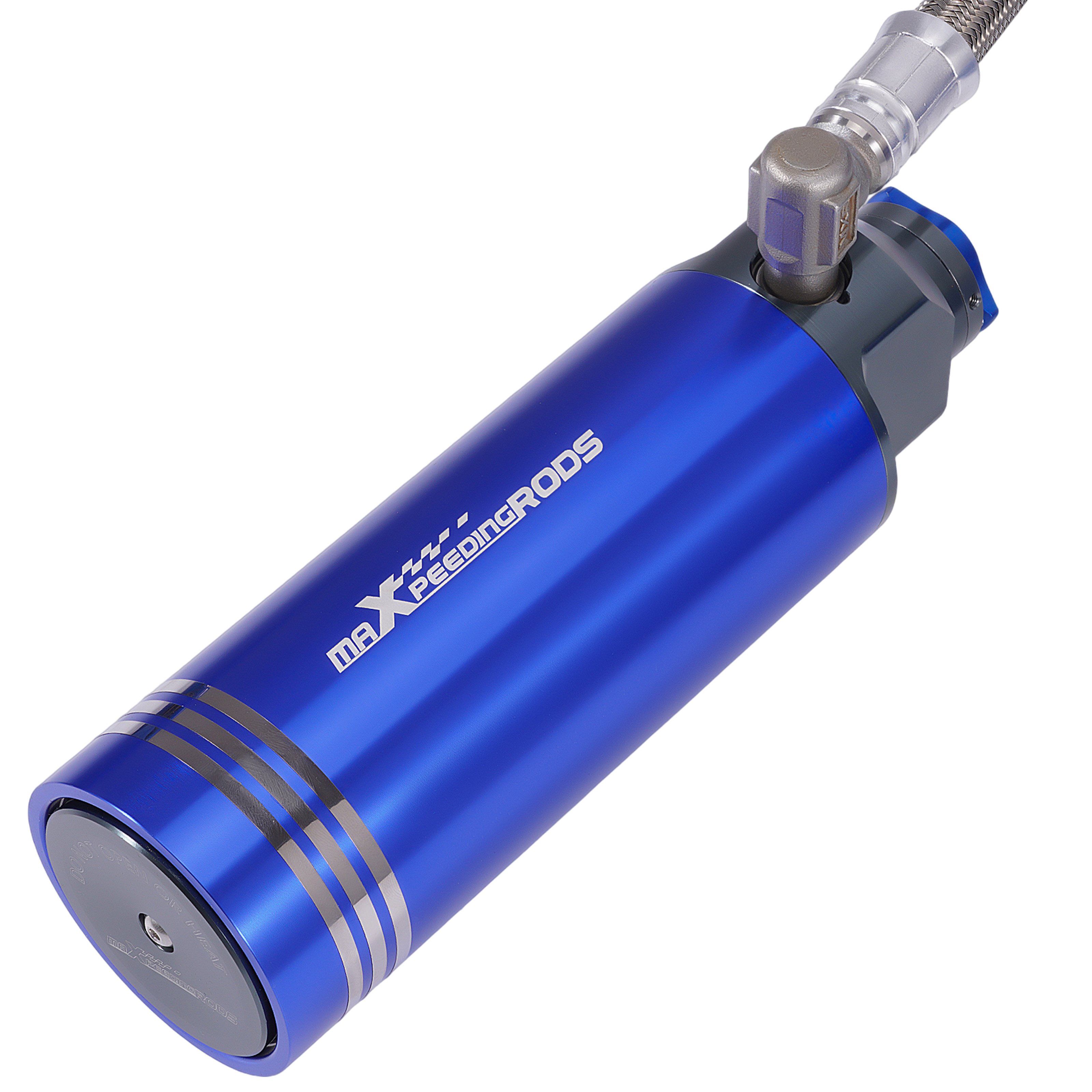

1. Enhanced Nitrogen Reservoir Design
 The expanded inner diameter of the nitrogen cylinder optimizes gas chamber volume and thermal dissipation surface area, ensuring stable damping performance under prolonged high-intensity operation.

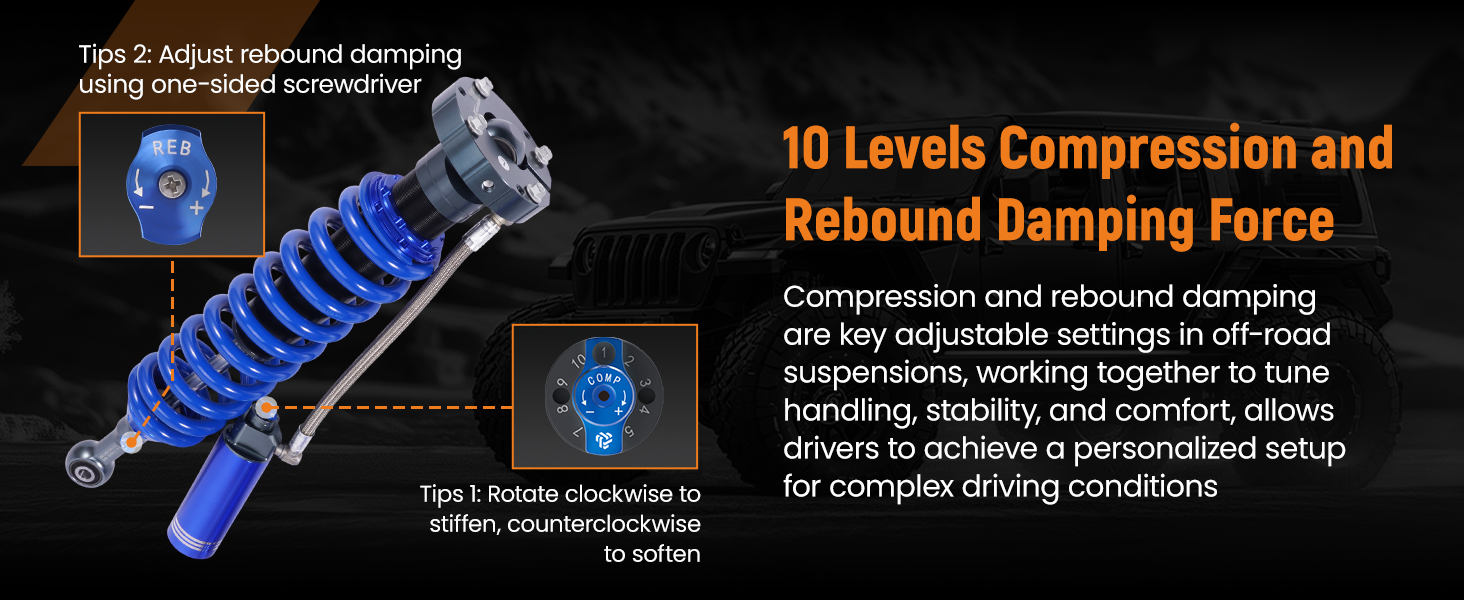

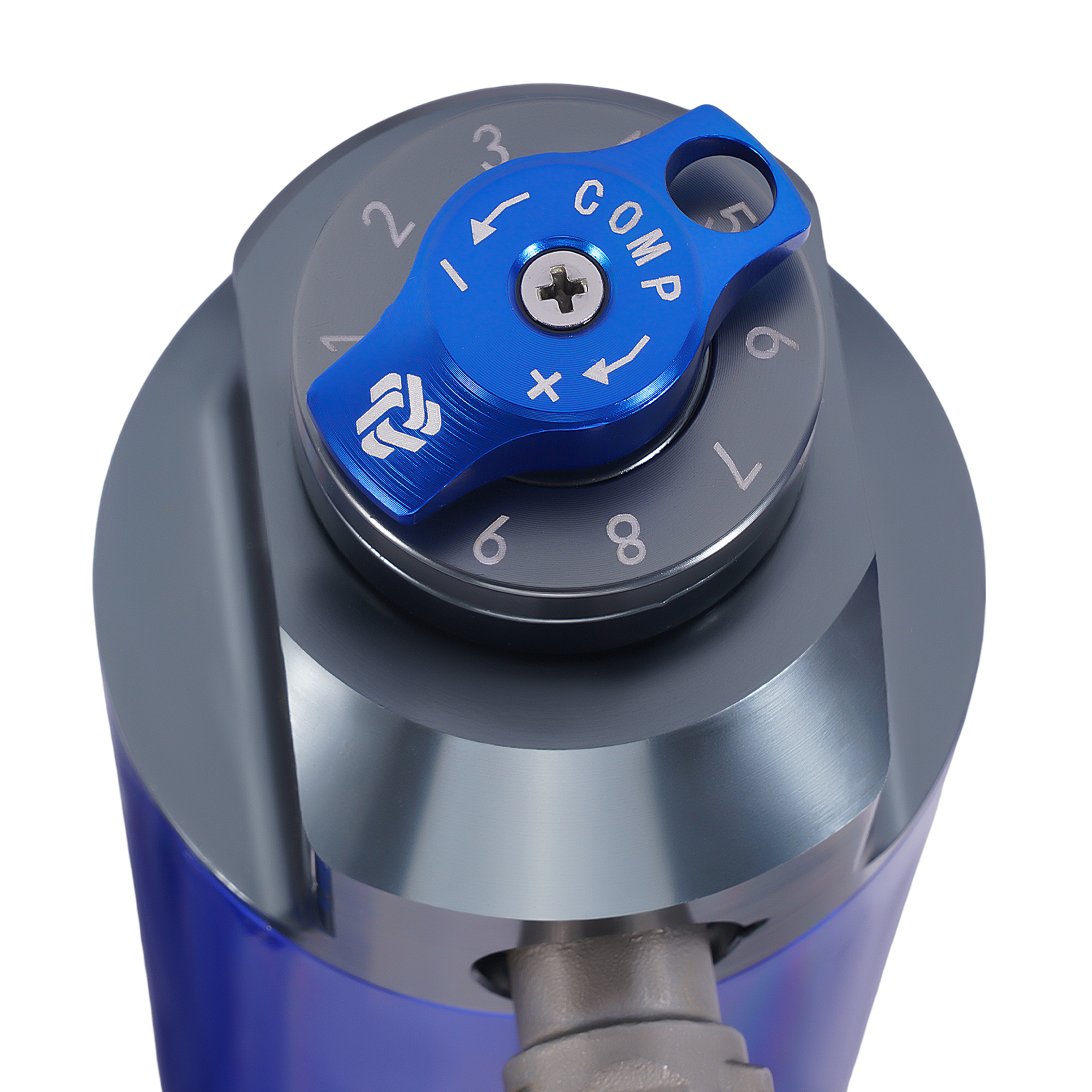

2. Rebound and Compression Damping Adjustment
 A precision-engineered 10-stage rebound and compression damping adjustment mechanism provides extended parameter adaptability, balancing terrain-specific stiffness control with ride comfort optimization.

3. Oversized Damping Architecture
 The enlarged inner diameter of the damping tube enhances fluid dynamics efficiency, while the reinforced rebound disc configuration improves vibration absorption capacity for superior impact management.

4. Advanced Surface Engineering
 High-frequency quenching and hard chrome plating processes on the piston rod surface deliver enhanced wear resistance. T6 heat-treated 6063 forged aluminum maintains structural integrity while achieving weight reduction.

Application

For Toyota Tundra 2007-2021

Specification

Height adjustable: rise 2-3 inches
Body Outer Diameter (mm)：65*285
Body Inner Diameter (mm):57*285
Body Material:45# steel
Top Mount:OEM
Bottom Mount:Eyelet
Compressed Length (mm):177
Extended Length (mm):177
Hose(mm):350
Reservoir Outer Dimensions:Φ65×160
Reservoir Inner Dimensions:Φ57×160
Reservoir Type:remote
Shaft Size (mm):306
Travel (mm): 177
Type:coilover shock

Package included

Front shocks*2
Instructions*1

★ 30-day Money Back & 24-Month Replacement Guarantee. Please feel free to contact us if there is any question.
