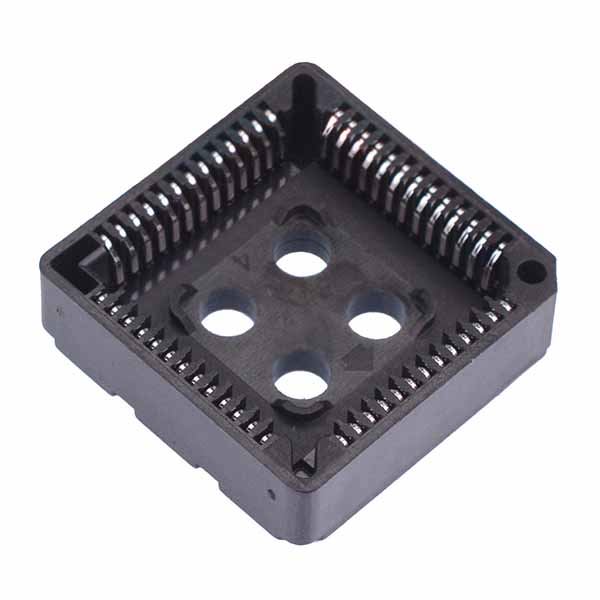

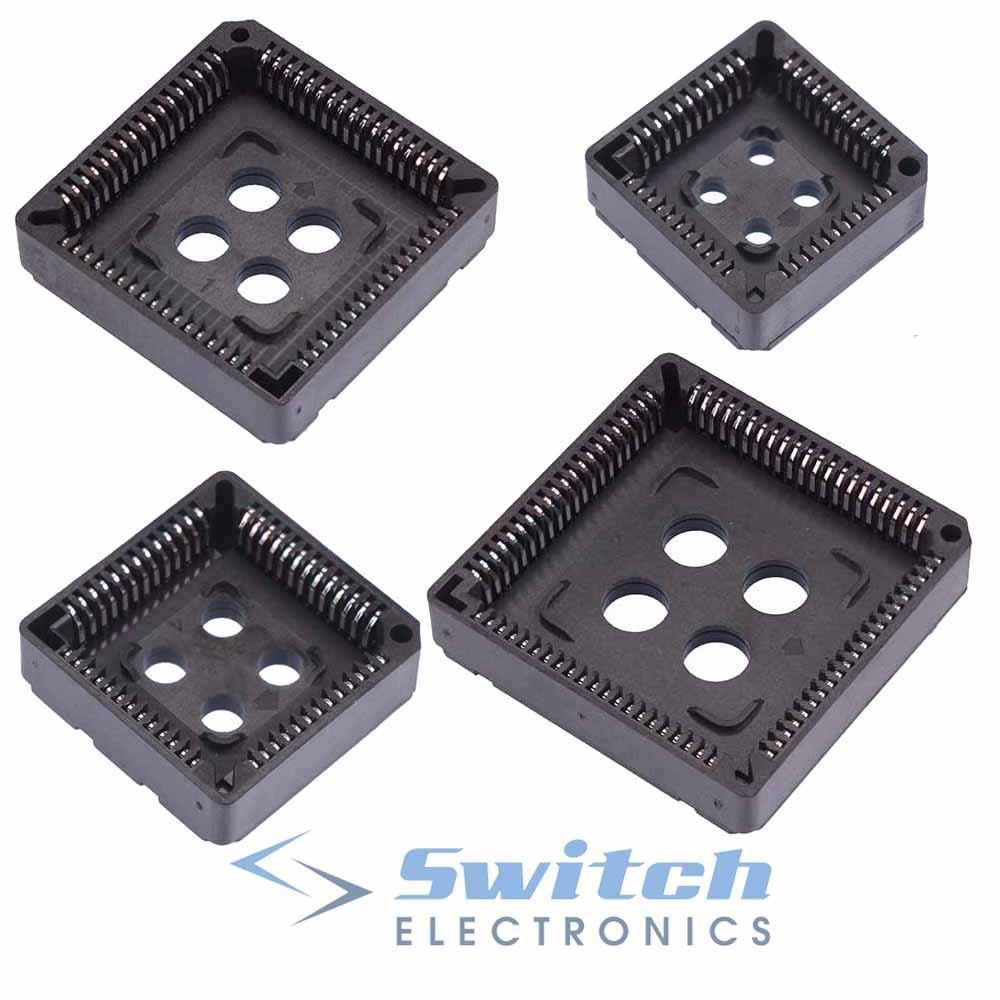

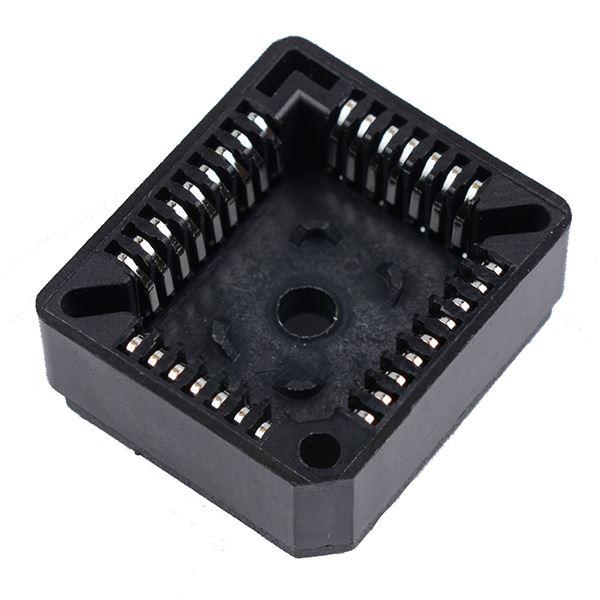

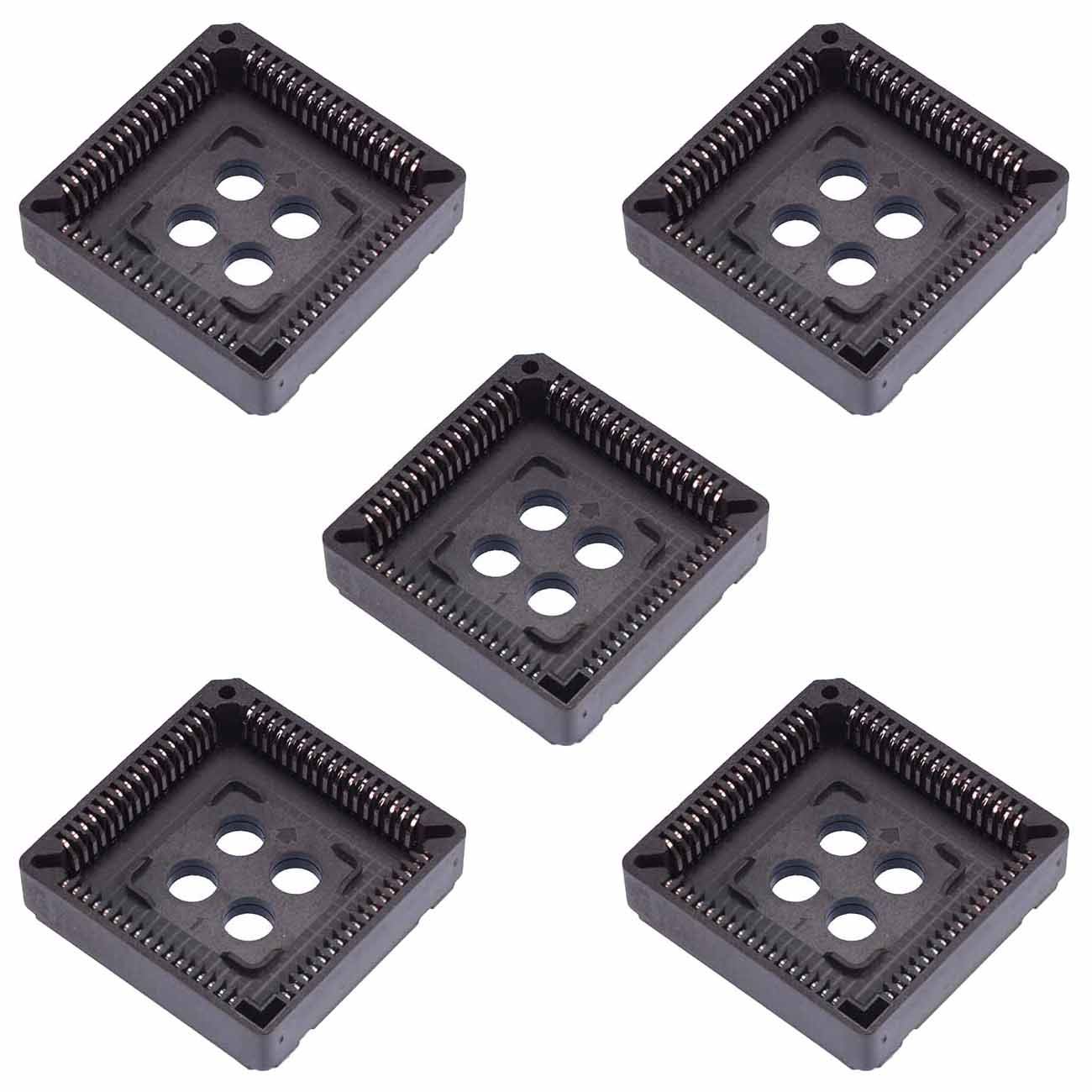

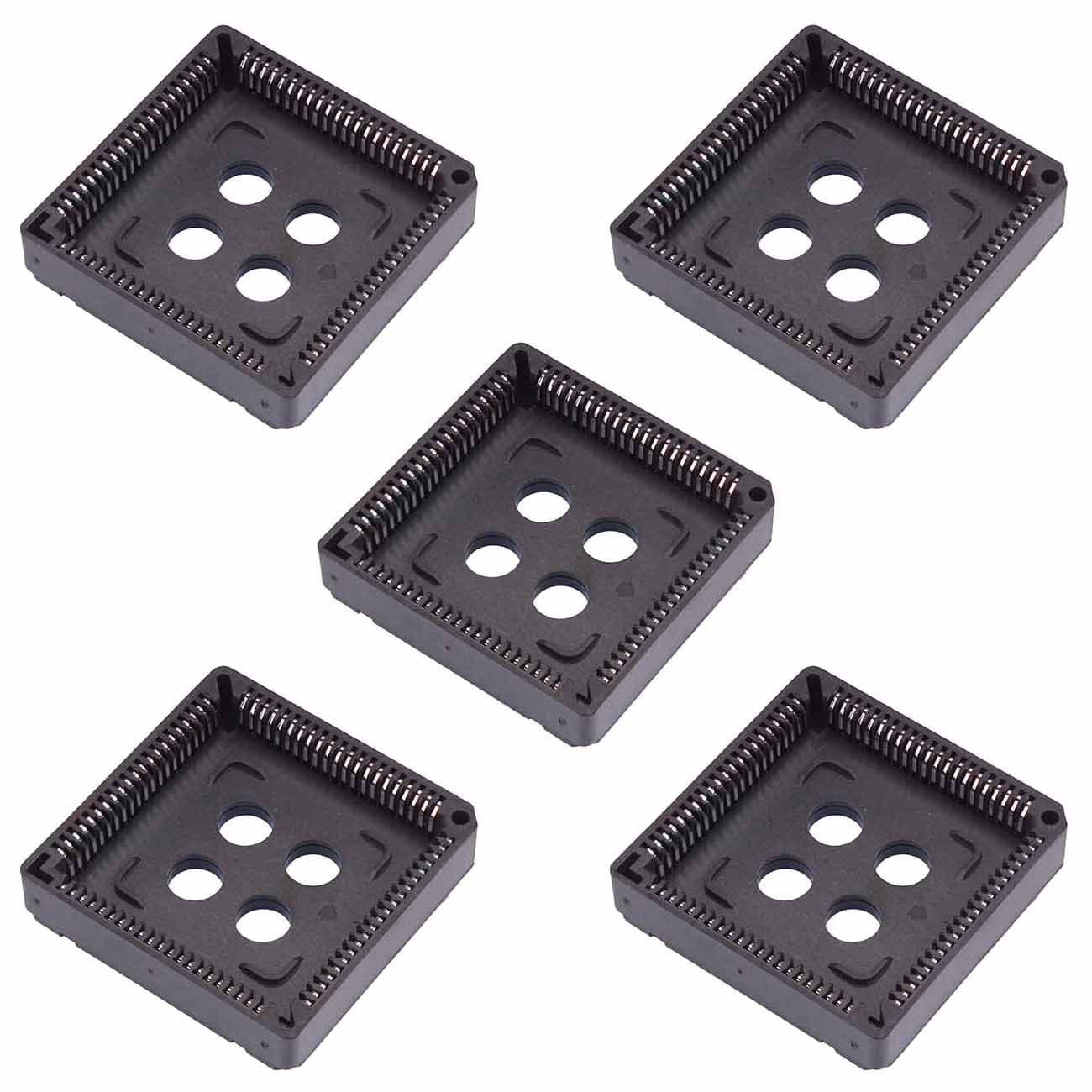

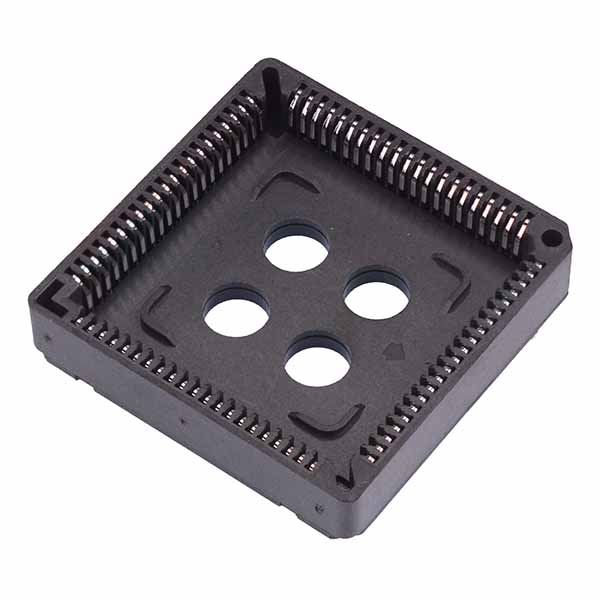

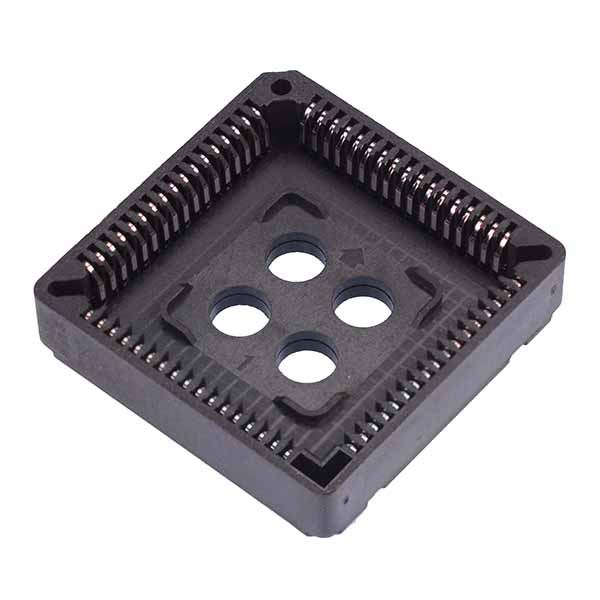

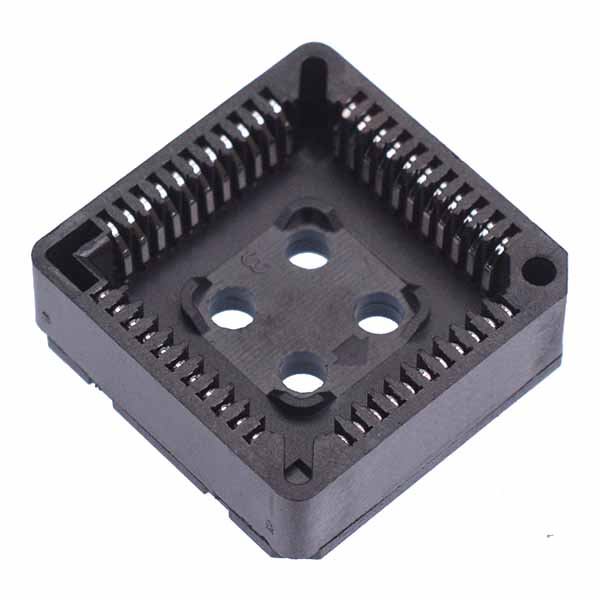

32 44 52 68 84 Way PLCC Socket Through Hole
£
3.19 - 10.69
PLCC sockets featuring 2.54mm pitch, suitable for through hole applications.
- Square package
- Provides a secure connection for ICs
- Phosphor bronze contacts
- 30% Glass filled PPS housing material
- Height above PCB: 8.20mm
- 32 pin dimensions: 18.04 x 20.60mm (Length x Width)
- 44 pin dimensions: 23.1 x 23.1mm (Length x Width)
- 52 pin dimensions: 25.7 x 25.7mm (Length x Width)
- 68 pin dimensions: 30.8 x 30.8mm (Length x Width)
- 84 pin dimensions: 35.95 x 35.95mm (Length x Width)
