Function:

CV Axles serve as the final link between the engine and the wheels, transferring power from the vehicle's transmission and differential to the wheels to drive the vehicle forward.And ensure the stability and safety of the car when turning or driving on uneven roads.

Application

For Hyundai Elantra L4 2.0L Automatic Front Left 2001-2006
For Hyundai Tiburon L4 2.0L Automatic Front Left 2003-2008
For Kia Spectra L4 2.0L Automatic Front Left 2004-2005
For Kia Spectra L4 2.0L Automatic Front Left with 25 Spline Inboard Joint 2006
For Kia Spectra5 L4 2.0L Automatic Front Left 2005-2006
Note: fit Automatic Transmission only, Not fit Manual Transmission

OE/Part number

66-3467,663467,NCV75518,495012C700,495012C710,495012D500,495012D501,495012D502,

495012D503,495012D510,495012D511,495012D512,495012D513,495012F300,495012F310,60-3467,603467

Specification

Condition:New
Type:CV Axle Assembly
Color：Black
Placement on Vehicle：Front Left
ABS Ring Tooth Count:44 Teeth
ABS Ring Included: Yes
Spindle Nut Thread Size: M22*1.5
Surface Finish:Black Coating
Output Shaft Connection Style:Splined
Input Shaft Connection Style:Splined
Output Shaft Spline Count:25 Teeth
Input Shaft Spline Count:25 Teeth
Compressed Length(IN):25.51 in (Left )

Package included

       1Pcs CV Axle Assemblies (Front Left)

Feature

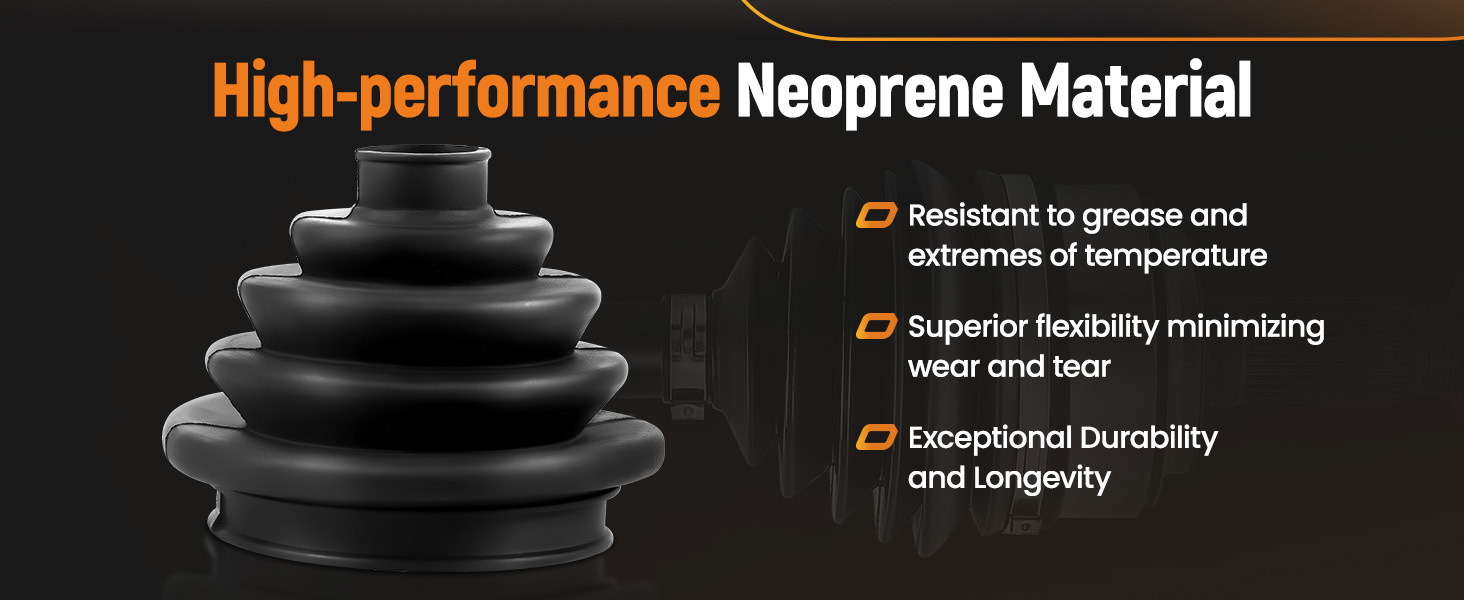

1.Unparalleled Performance:precision Machining,professional heat-treating,high-performance Neoprene Material can resist to grease and extremes of temperature and superior flexibility minimizing wear and tear.It realizes excellent durability and longevity．

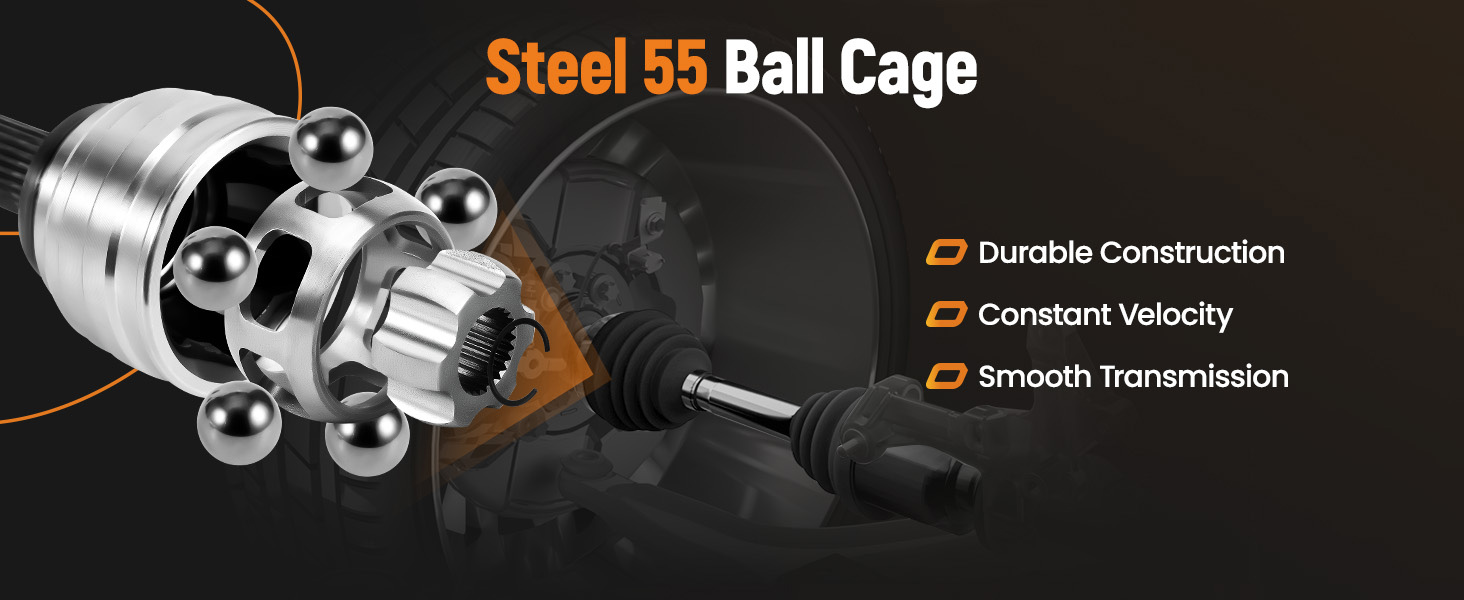

2.Durable structural design：Steel 55 Ball Cage,Constant Velocity,Smooth Transmission.

3.Safe and Pleasing Experience: CV Joint Axle improve stability and comfort for driving.

4.Direct Replacement:Complete set CV alxe assembly easy to install.

5.Superior Package Design：With good cushioning and isolation performance, effectively protect products from damage, environmentally friendly and recyclable.

Note

*Please confirm your vehicle condition and OE number before placing an order!
*Please note that this is an after-sales part, not an original part.
*We suggest that you seek professional installation to avoid unnecessary trouble.
*If you have any questions, please contact us.
