Slimline SAS: Compact and space-saving design.

Mini SAS HD: High density mini SAS connector.

36PIN to 38P: Reliable data transfer connection.

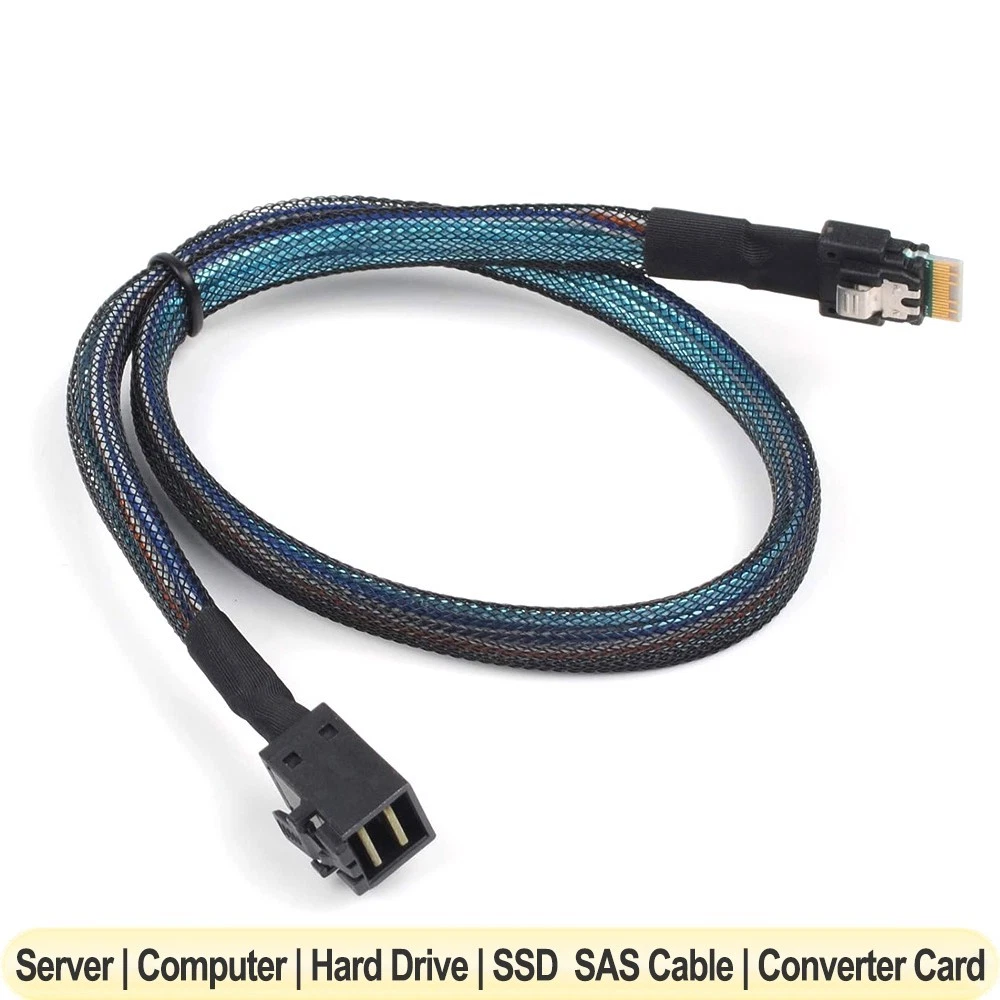

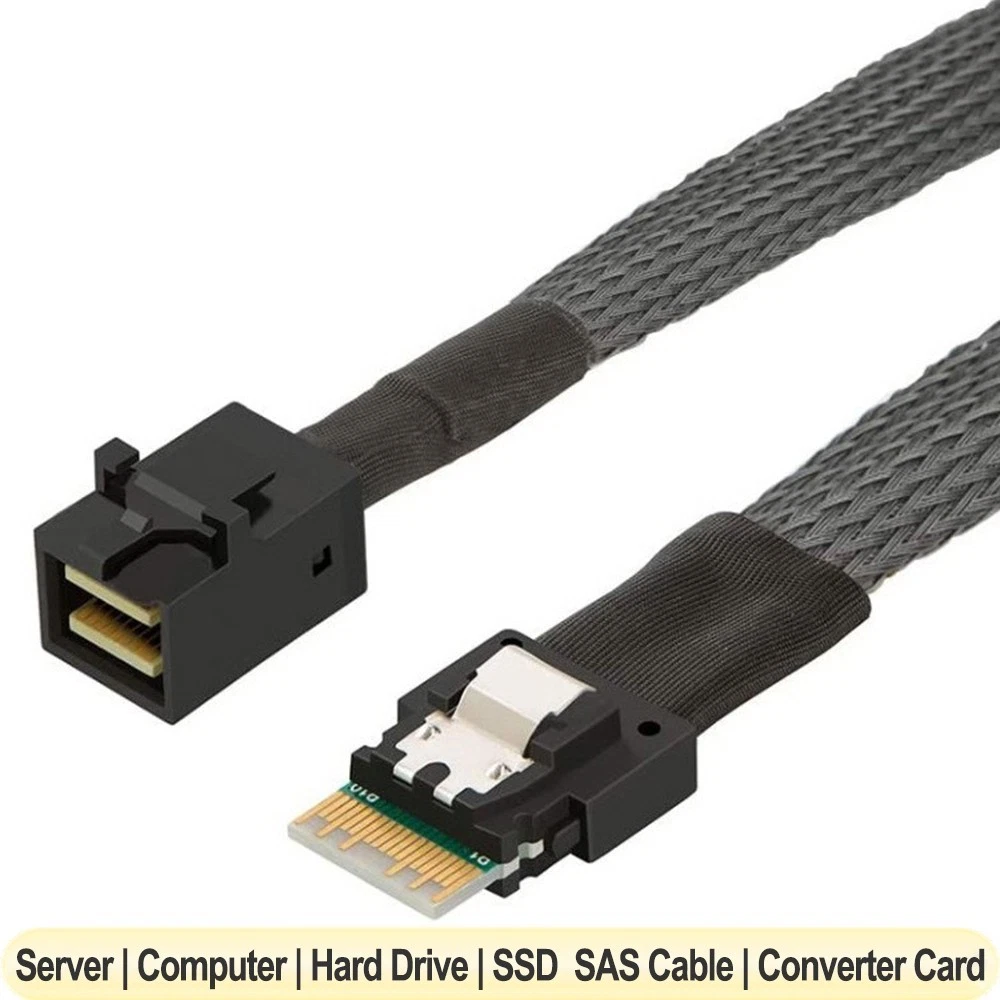

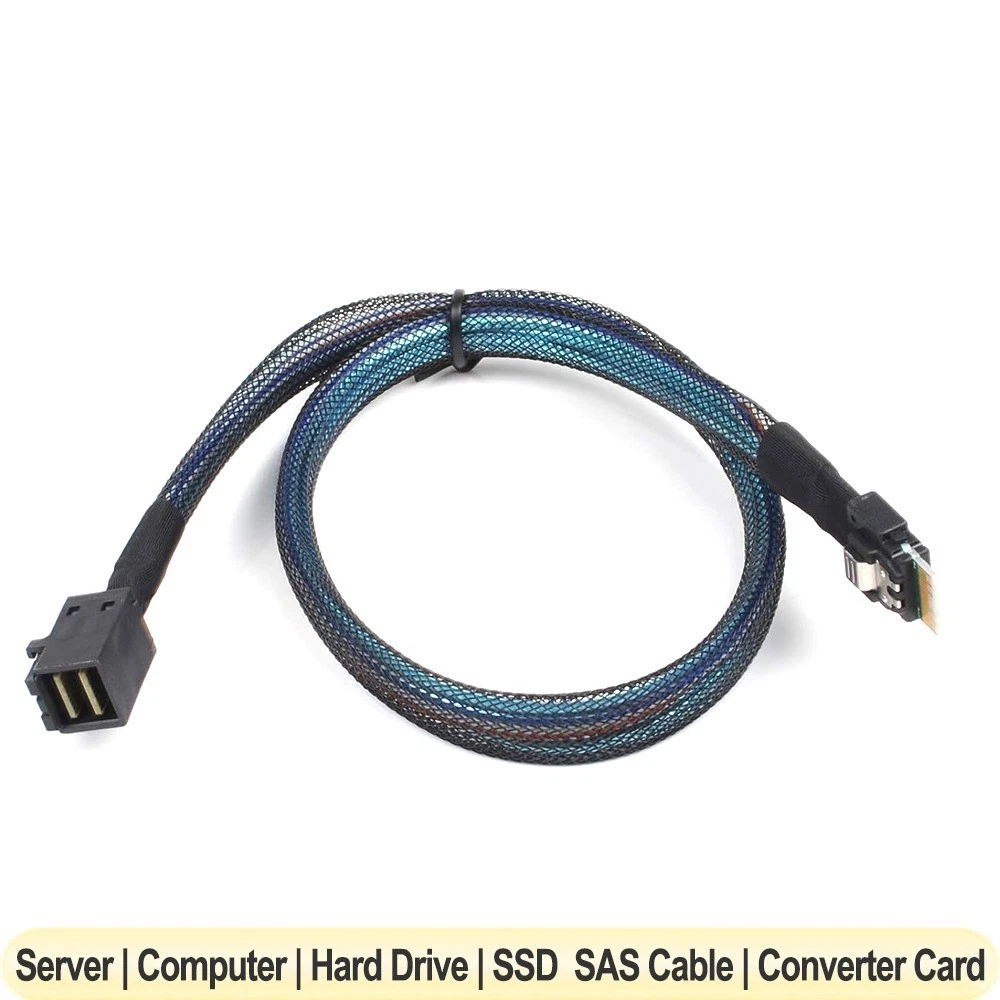

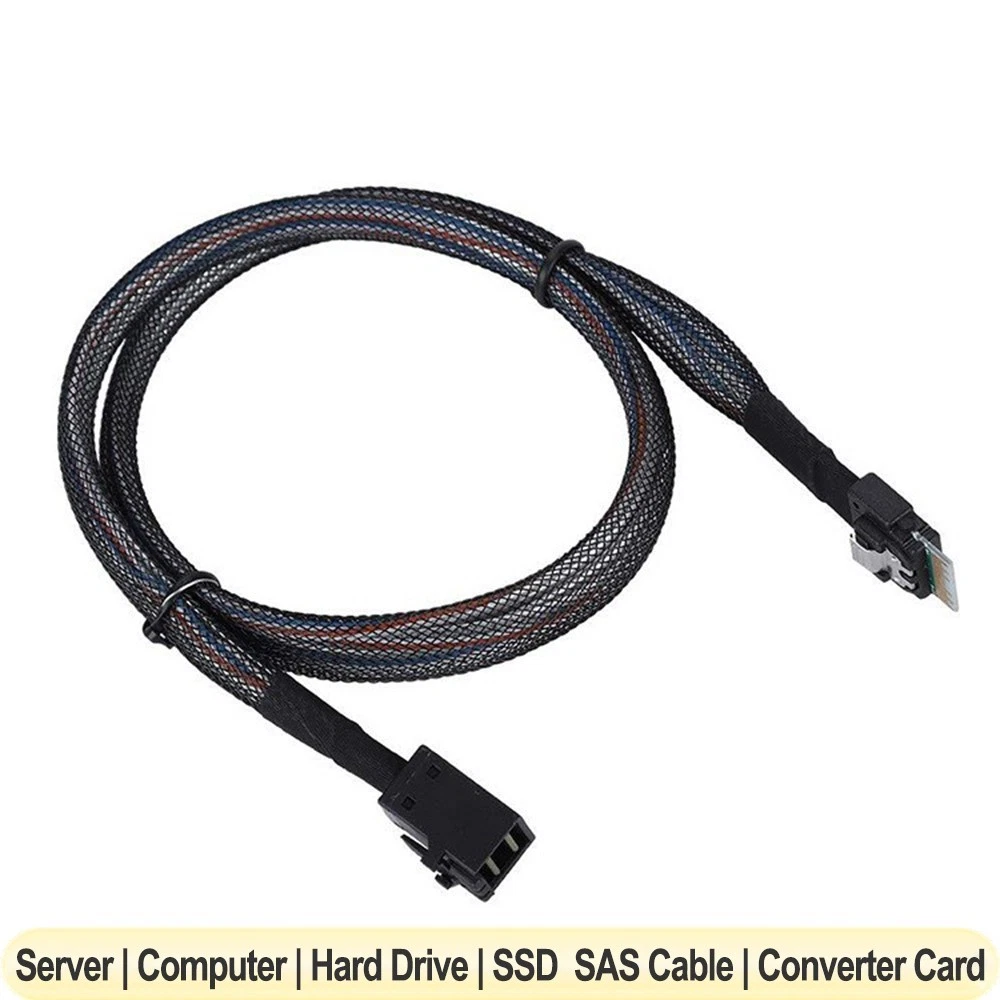

SFF-8643 to SFF-8654: Converts between 36pin and 38pin connectors.

Series: Mini SAS

Wire Size: 30AWG/32AWG. Tinned Copper, OD: 0. 9*2.3,MM

Lock to Mating Part: With Latch

Plating: Au 30u' min over Ni 100u' min

Environmental Compliance: ROHS

Flammability: Cable Horizontal flame, PCB 94V-0, PBT 94V-0



Applications:

1. RAID (Redundant Array of Independent Disks )

2. Workstations

3. Rack-mount server

4. Servers

5. Storage rack



Signal Integrity

1. Mated Connector Impedance: 85 ohm±15%.

2. Cable Absolute Impedance: 85 ohm±10%.

3. Cable Pair Matching: ±5 ohm.

4. Common Mode Impedance: 25 to 40 ohms.

5. Insertion loss: -6dB maximum up to 4.5Ghz.

6. Crosstalk: -26 dB up to 24Ghz.

Mating Force and Unmating Force Condition: EIA 364-13. Insert and extract at a speed of 25mm/minute.

Mating Force: 55 N maximum for Mini SAS.

Unmating Force: 49 N maximum for Mini SAS.

Contact Current Rating: 0.5Amperes maximum per pin when mated.

Voltage Rating: 30VAC per contact when mated or unmated.

Contact Resistance: 30mohm max. initial, 15mohm maximum after stress test.

Dielectric Withstanding Voltage: 500 VAC for 1 minute no breakdown.



Packing List: 2 x SAS SFF-8654 4I to SFF-8643 4i
