100 Ohm Cable: Ensures signal integrity and reliability.

Flexible Design: Easy to install in tight spaces.

RAID Support: Enhances storage performance and redundancy.

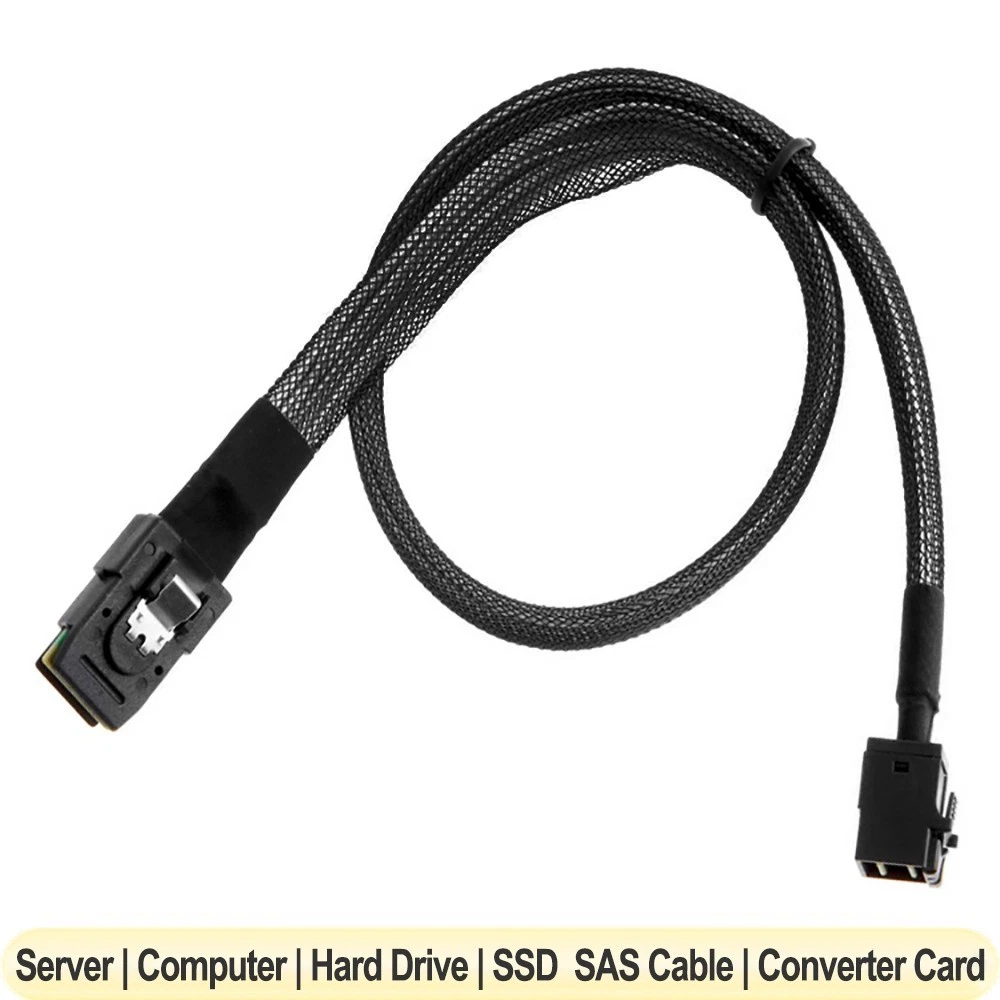

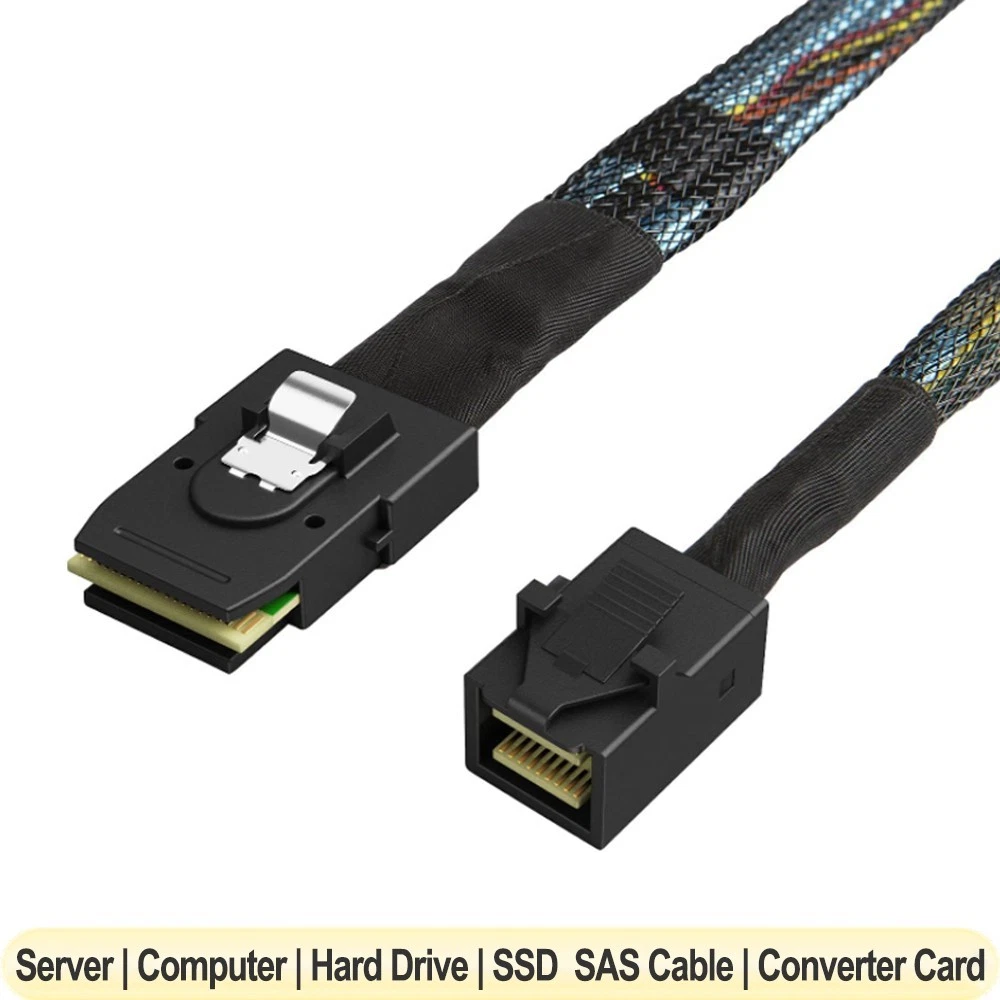

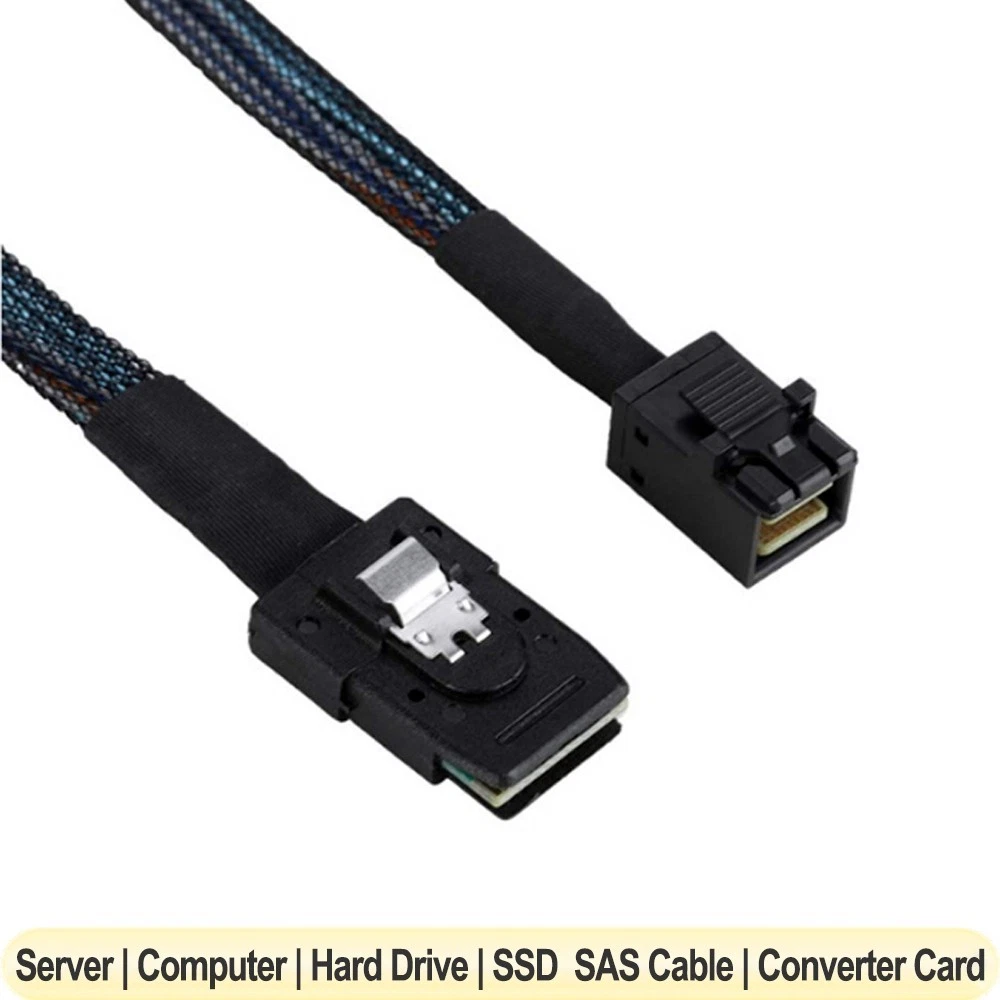

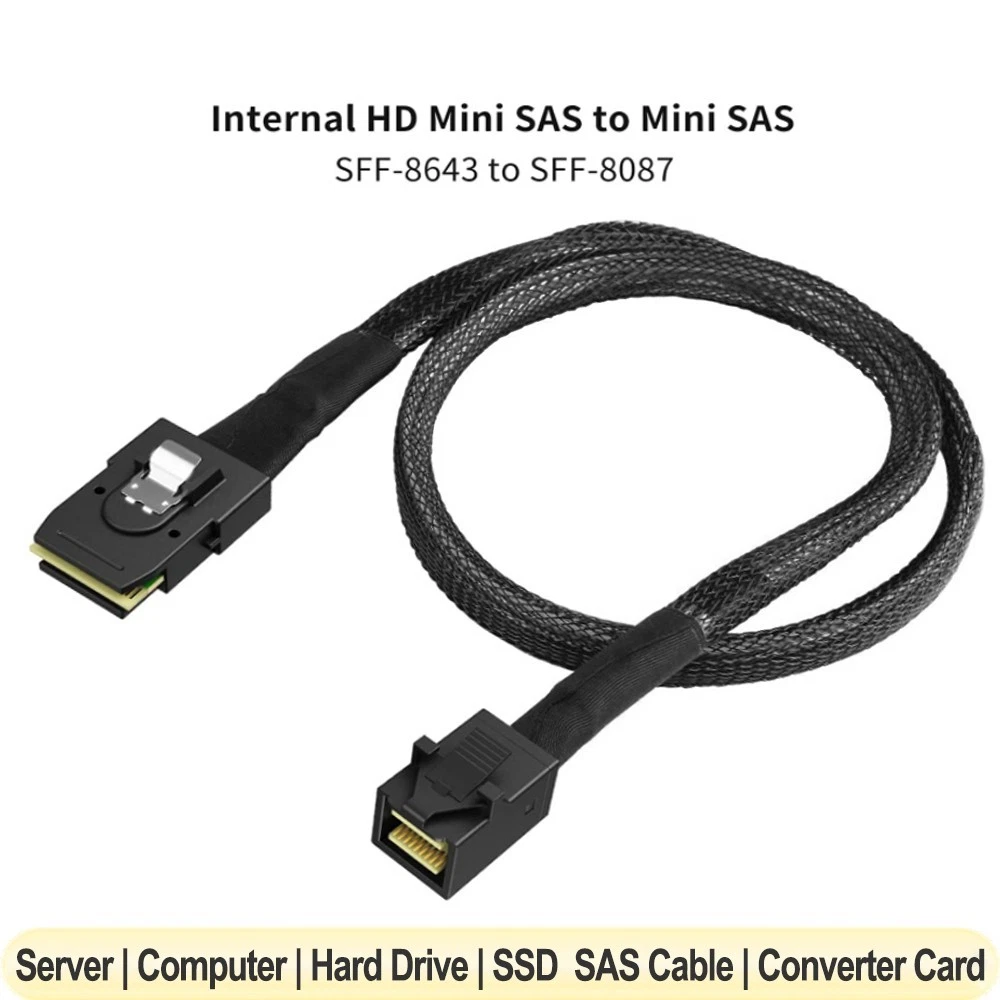

SFF-8643 to SFF-8087: Compatible with SAS 8643 and 8087 ports.

Mini SAS HD: Supports high-speed data transfer.

Series: Mini SAS

Cable Length: 0.5M /1M

Wire Size: 30AWG, Tinned Copper, OD: 0. 9*2.3,MM

Lock to Mating Part: With Latch

Plating: Au 30u' min over Ni 100u' min

Color: Cable white, Over mold Black

Environmental Compliance: ROHS

Flammability: Cable Horizontal flame, PCB 94V-0, PBT 94V-0



Applications:

1. RAID (Redundant Array of Independent Disks )

2. Workstations

3. Rack-mount server

4. Servers

5. Storage rack



Signal Integrity

1. Mated Connector Impedance: 100 ohm±15%

2. Cable Absolute Impedance: 100 ohm±10%

3. Cable Pair Matching: ±5 ohm

4. Common Mode Impedance: 25 to 40 ohms

5. Insertion loss: -6dB maximum up to 4.5Ghz;

6. Crosstalk: -26 dB up to 6Ghz;

Transmission rate 12Gbps.

Mating Force and Unmating Force Condition: EIA 364-13. Insert and extract at a speed of 25mm/minute.

Mating Force: 55 N maximum for Mini SAS.

Unmating Force: 49 N maximum for Mini SAS.

Contact Current Rating: 0.5Amperes maximum per pin when mated.

Voltage Rating: 30VAC per contact when mated or unmated.

Contact Resistance: 30mohm max. initial, 15mohm maximum after stress test.

Dielectric Withstanding Voltage: 500 VAC for 1 minute no breakdown.



Packing List: 2 Packs SAS SFF-8643 4I to SFF-8087
