smus

Coilovers Shock Springs Kit For LEXUS LS430 2001-2006 Adj. Height



Aluminum Upper Mounts

Aluminum Upper Mounts with Hardened Rubber Bushings for Noise Reduction.

Anodized Shock Body With Anti-Corrosion Coating

Manufactured From High Quality T-6061 Billet Aluminum With Anodized Finish For Superior Strength And Corrosion Protection.

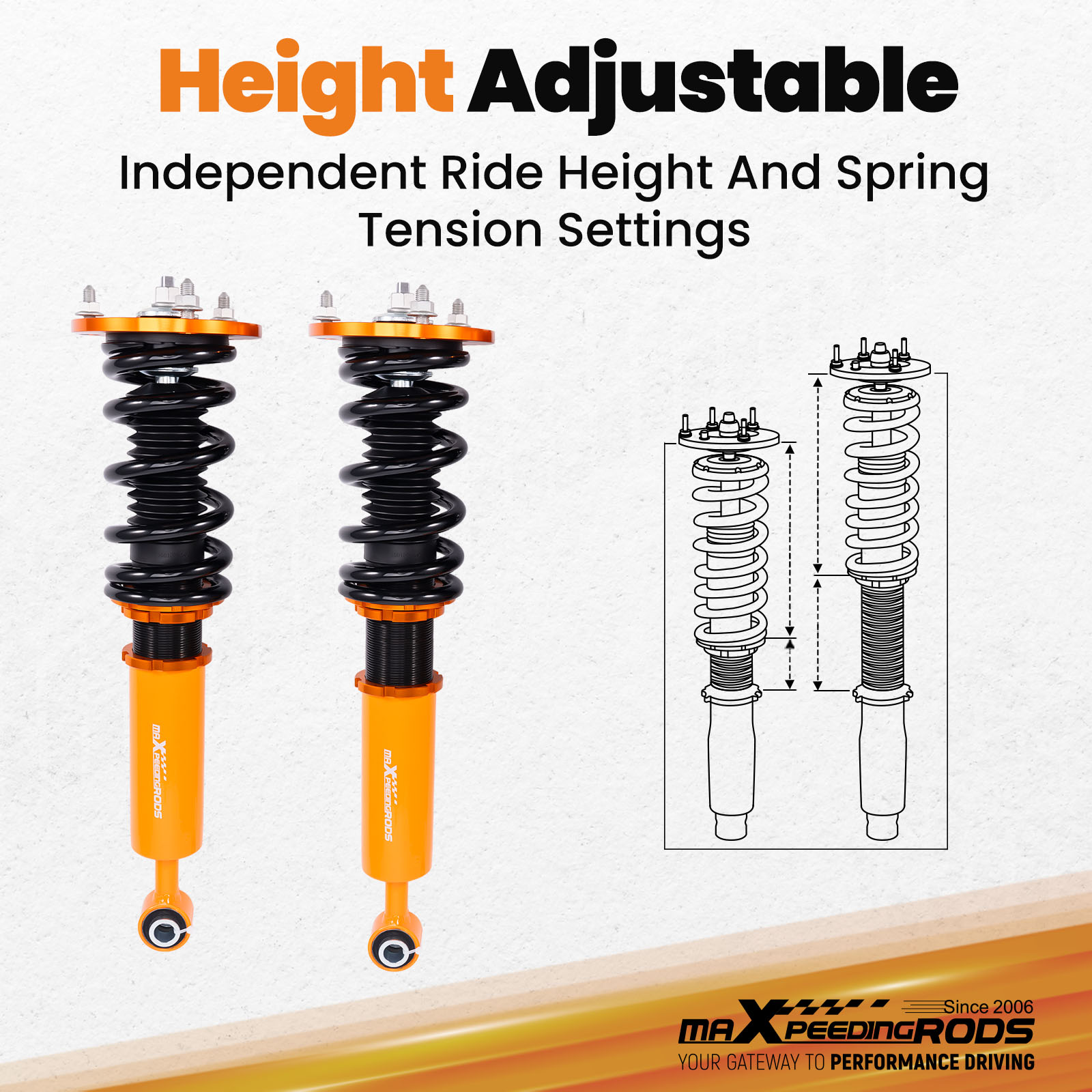

Drops From 1 to 3 Inch From Factory Ride Height

Full Threaded Absorber Tube Casing For Independent Height Adjustment.

Durable Cold Wound Steel & Heat Treated Coils

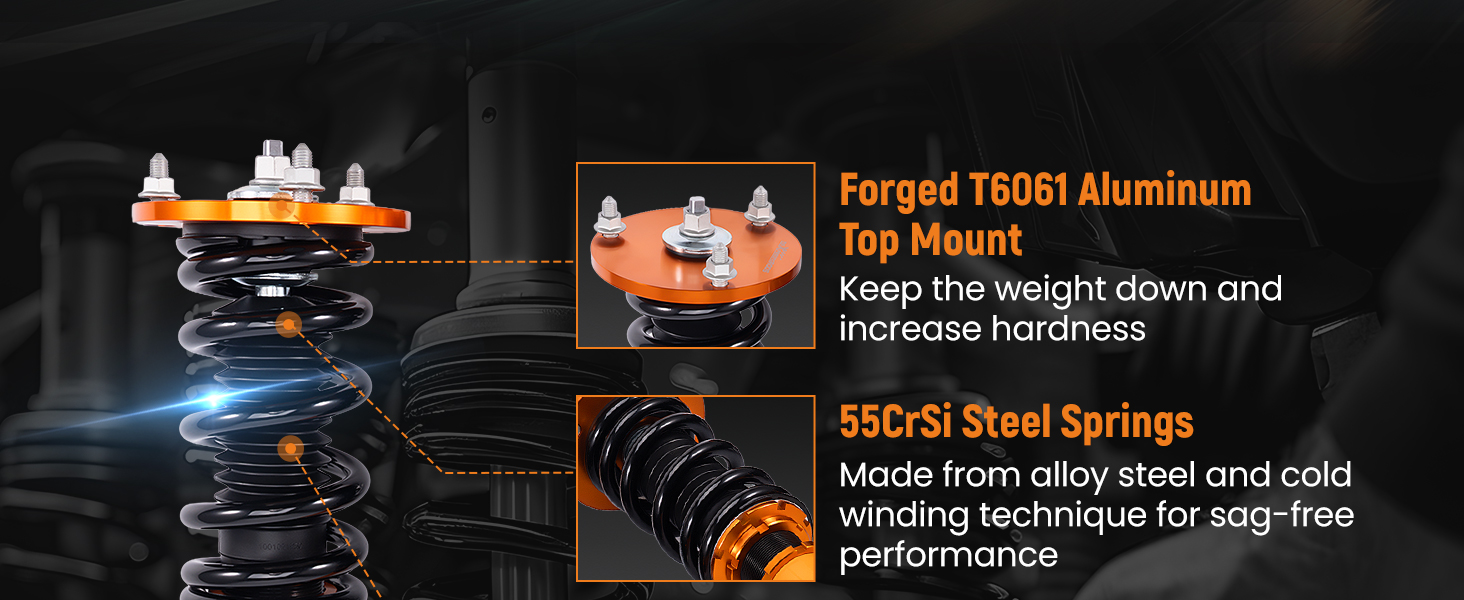

High Rigidity 55CrSi Steel Cold-bent Coil Springs - Over 600k Continuously Stress Test With 0.04% Distortion Rate.

Specifications


Top Mount Material Aluminum
Adjustable height Yes, Lowering 1-3 inch
Front Spring length 190 mm
Rear Spring length 190 mm
Front spring length 12 kg/mm (672 lbs/in)
Rear spring length 12 kg/mm (672 lbs/in)
Front spring inner diameter 70.5 mm
Rear spring inner diameter 70.5 mm
Package Including 2 Front + 2 Rear
Warranty 1 Year

Feature


100% Brand New, Never Used or Installed

Twin-Cylinder Design - Allows Sufficient Stroke Within The Shock Absorber.

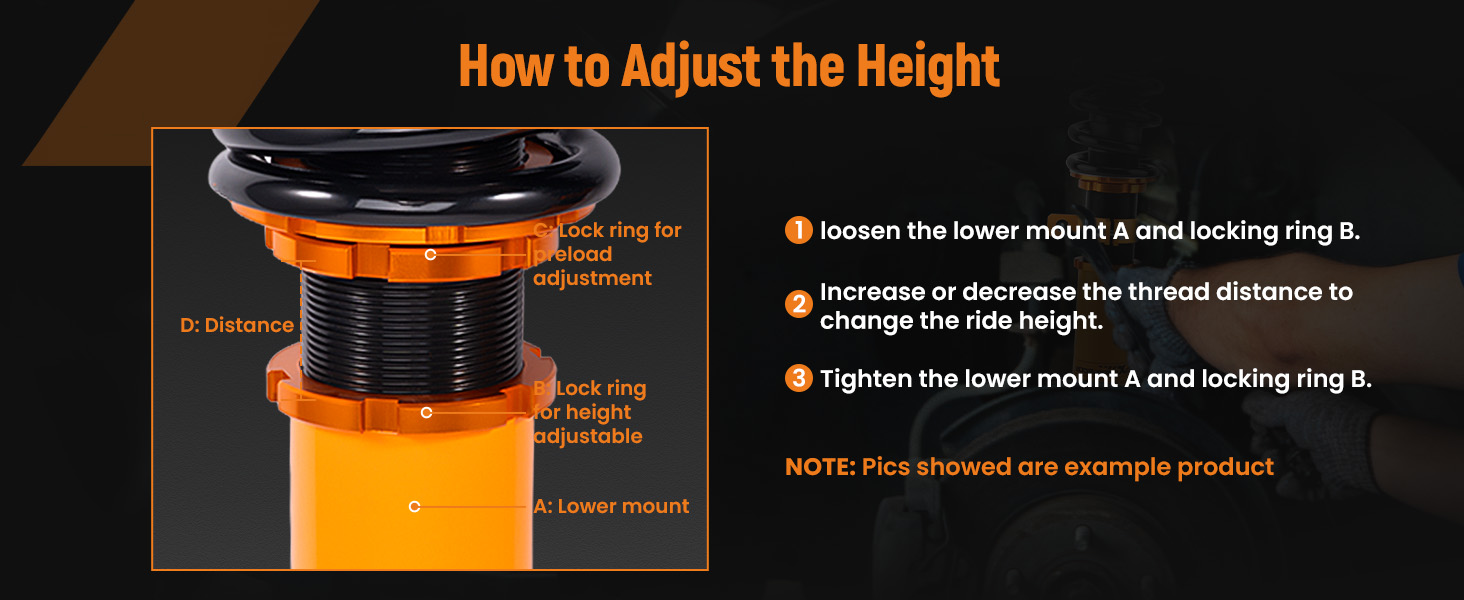

Full Length Adjustment - Lowers The Car Without Ruining Spring Tension

Independent Spring Tension - Custom Stiffness Without Change Ride Height

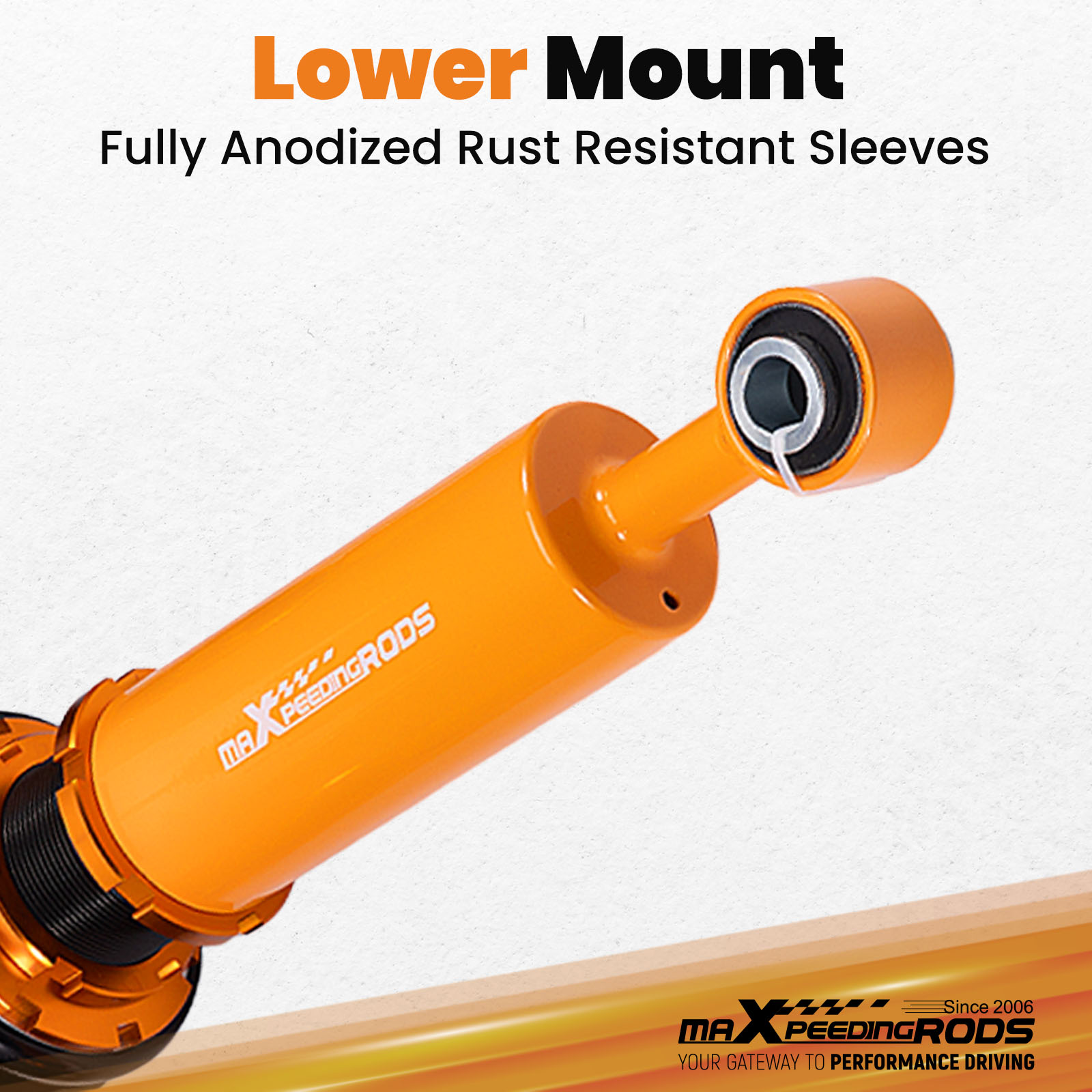

Fully Anodized Rust Resistant Sleeves.

High Rigidity

Full Year Limited Warranty From Date of Purchase


Applications



FOR TOYOTA CELSIOR 2000.08-2006.05 JPN UCF30

FOR LEXUS LS430 2001-2006 USA UCF30


Specifications

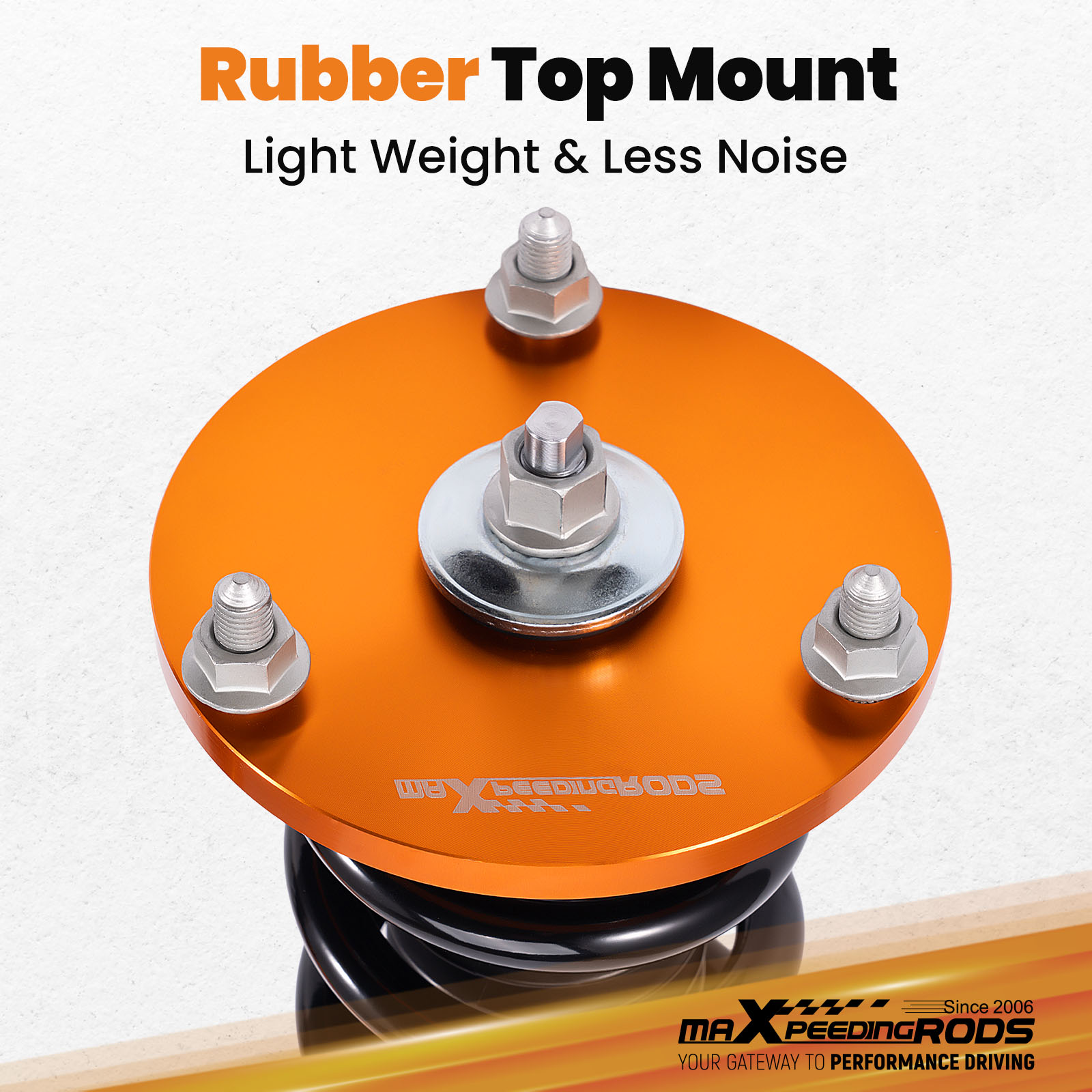

- Top mount: Front and rear rubber
- Damping adjustable: Not available
- Camber adjustable: Not available
- Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
- Spring rate Front: 12 kg/mm (672 lbs/in)
- Spring rate Rear: 12 kg/mm (672 lbs/in)
- Front spring inner diameter: 70.5 mm
- Rear spring inner diameter: 70.5 mm
- Spring length Front: 190 mm
- Spring length Rear: 190 mm
- Spring Preload advised: 7-10 mm
- Color: Golden body with black spring


Package included


2x Front coil-overs
2x Rear coil-overs
2x C spanners


★ 30-day Money Back & 12-Month Replacement Guarantee. Please feel free to contact us if there is any question.

Height Adjustable Lowering Kit; Independent Ride Height And Spring Tension Settings; High Rigidity 55CrSi Steel Cold-bent Springs; Anodized Shock Body With Anti-Corrosion Coating; Full 1 Year Limited Warranty From Date Of Purchase.
