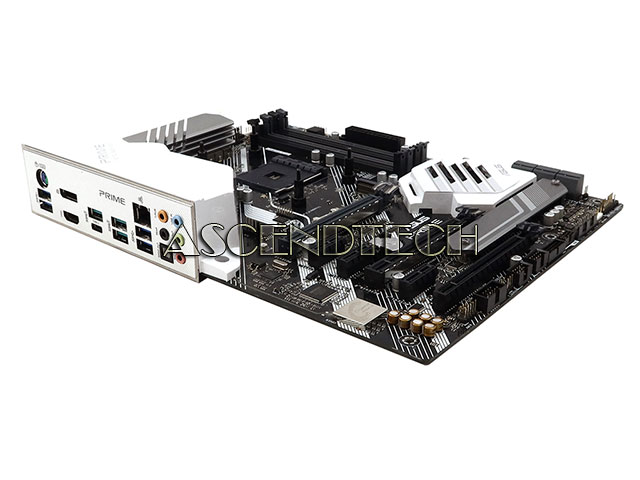

Asus PRIME X570-PRO AMD Chipset X570
Socket AM4 DDR4 SATA 3 6.0Gb/s USB-C HDMI
DisplayPort ATX Desktop Motherboard
MB11B0-A07

Please note, this motherboard comes with I/O Shield only! No
cables or any other accessories!

Asus PRIME X570-PRO AMD Chipset X570 Socket AM4 DDR4 SATA 3 6.0Gb/s USB-C HDMI DisplayPort ATX Desktop Motherboard MB11B0-A07.

Model: PRIME X570-PRO

Part Number: MB11B0-A07

Compatible Part Numbers: MB11B0-A1V

Chipset: AMD X570

Socket: AMD AM4

Compatible/Supported CPU: AMD Ryzen 5000/5000 G/4000 G/3000/3000 G/2000/2000 G Series Desktop Processors

Max Supported Memory: 128GB

Number of Memory Slots: 4

Memory Type: DDR4 SDRAM

Storage Interface: SATA 3 6.0Gb/s

RAID Support: 0, 1, 10

Network/Communications: Intel I211-AT

Audio: Realtek S1220A

Connectors: 2x Aura RGB Strip Headers, 1x Addressable Gen 2 header(s), 2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s), 1x SPI TPM header, 1x COM port(s) connector(s), 1x CPU Fan connector(s) (1 x 4 -pin), 1x CPU OPT Fan connector(s) (1 x 4 -pin), 3x Chassis Fan connector(s) (3 x 4 -pin), 1x PCH_FAN (1 x 4 -pin), 1x AIO_PUMP connector (1 x 4 -pin), 1x 24-pin EATX Power connector(s), 1x 8-pin ATX 12V Power connector(s), 1x 4-pin ATX 12V Power connector(s), 1x Front panel audio connector(s) (AAFP), 1x System panel(s), 1x Power-on button(s), 1x Clear CMOS jumper(s), 1x Node Connector(s), 1x Water Pump header (4-pin), 1x T_Sensor Connector, 1x USB 3.2 Gen 2 (up to 10Gbps) connector, 1x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports

Input/Output Ports: 1x PS/2 keyboard/mouse combo port(s), 1x DisplayPort, 1x HDMI, 1x LAN (RJ45) port(s), 1x Optical S/PDIF out, 5x Audio jack(s), 4x USB 3.2 Gen 1 (up to 5Gbps) ports Type-A, 3x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A), 1x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-C)

Expansion Slots: 2x PCIe 4.0 x16 (x16 or dual x8), 1x PCIe 3.0 x16 (x8 mode), 2x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE mode), 3x PCIe 4.0 x1, 6x SATA 6Gb/s port(s)

Form Factor: ATX

Type: Desktop Motherboard

Supported Operating System: Windows 10 64-bit

Additional Specifications:

Graphics
Integrated Graphics in AMD Ryzen 5000 G-Series/ 4000 G-Series/ 3000 G-Series/ 2000 G-Series Desktop Processors
Multi-VGA output support : HDMI/DisplayPort ports
Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60Hz
Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60Hz

Multi-GPU Support
AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 2000 Series Desktop Processors
Supports NVIDIA 2-Way SLI Technology
Supports AMD 3-Way CrossFireX Technology
AMD Ryzen 3000 G-Series/ 2000 G-Series Desktop Processors
Supports AMD 2-Way CrossFireX Technology

BIOS
256 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen,F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information

Special Features
5-Way Optimization by Dual Intelligent Processors 5
5-Way Optimization tuning key perfectly consolidates TPU Insight, EPU Guidance, DIGI+ VRM, Fan Expert 4, and Turbo App
DIGI+ VRM: Digital power design with Dr. MOS
EPU Guidance
TPU Insight
Fan Xpert4
Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control
Turbo App: system performance tuning, network priority, and audio scene configuration for selected applications.
ASUS 5X Protection III :
ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
ASUS Overvoltage Protection: World-class circuit-protecting power design
ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
ASUS DIGI+ VRM - Digital power design with Dr. MOS
ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
ASUS ESD Guards - Enhanced ESD protection
ASUS SafeSlot - Protect your graphics card Investment
ASUS OptiMem:
Improved DDR4 Stability
AURA :
Aura Lighting Control
Aura RGB Strip Headers
Addressable Gen 2 Header
ASUS Exclusive Features :
AI Suite 3
Ai Charger
Turbo LAN
Armoury Crate
Pre-mounted I/O Shield
ASUS Quiet Thermal Solution :
Stylish Design: MOS Heat-sink with dual thermal pads design, PCH Fan, PCH and M.2 Heatsink
ASUS Fan Xpert 4
ASUS EZ DIY :
ASUS CrashFree BIOS 3
ASUS EZ Flash 3
ASUS UEFI BIOS EZ Mode
ASUS Q-Design :
ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
ASUS Q-Slot
ASUS Q-DIMM
ASUS Q-Connector
