Features

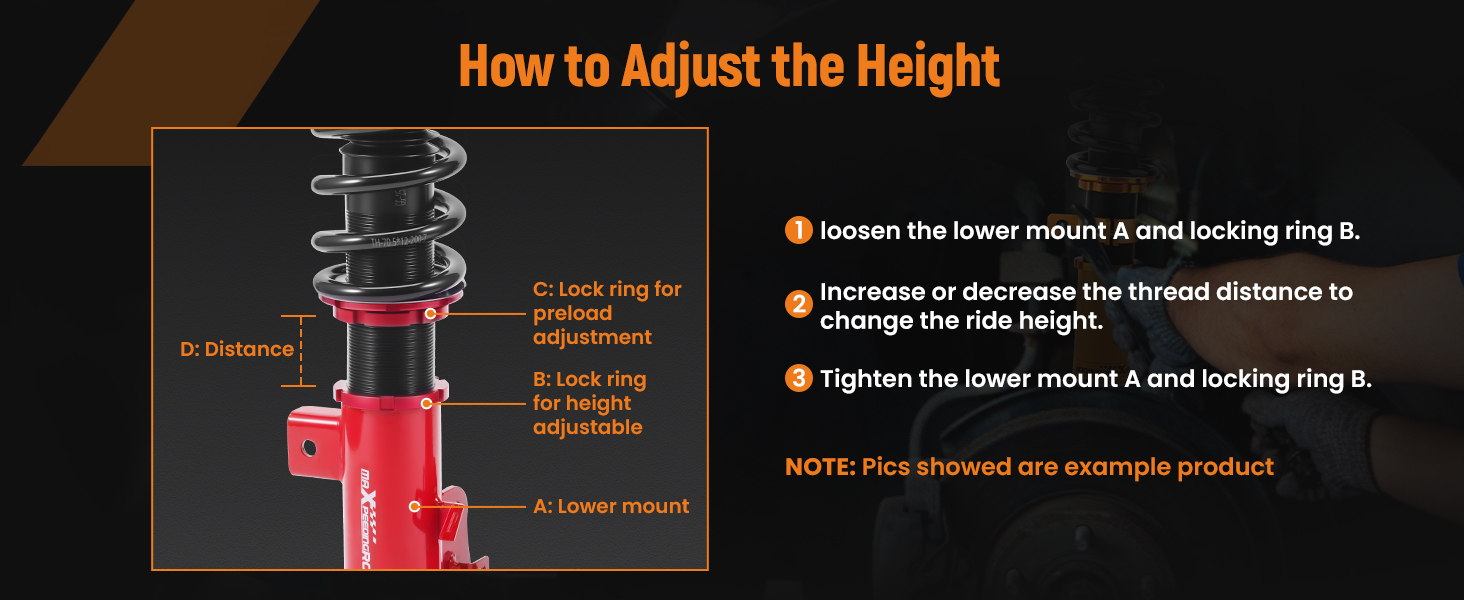

- Independent ride height adjustable: Easily adjust the height of your ride! This coilover also allows for height and preload adjustments. This means you can reach optimal suspension tuning while maintaining a stable, comfortable ride at all times.

- Full Length Adjustable Type: Allows ride height adjustment without affecting suspension stroke, maintaining comfort while customizing height.

- 24 Levels Damping Force Adjustable: Provides an extensive range of adjustability, making it easy to customize for various purposes and achieve desired ride comfort.

- 55mm Large Diameter Damper Body: Features high oil capacity for superior heat dissipation, consistent damping performance, and extended service life under demanding conditions.

- High Durability Bearing and Thrust Seat: Utilizes top-quality components for durability and noise reduction, ensuring long-lasting performance and silent operation.

- Reinforced Rubber Bushing Upper Mount: Specifically designed for each vehicle, enhances silence and comfort. Adjustable camber angle for certain strut mechanism suspension cars.

- 55CrSi Steel Cold-bent Spring: Features extreme lightweight and high durability with world-class tensile strength, reducing metal fatigue and enhancing performance.

- Balanced Comfort & Performance: Strikes a harmonious blend between sporty handling dynamics and daily drivability.

Fitment

For HONDA CIVIC 2012-2015 (FG3) USA 2 door coupe excluding Si model
For HONDA CIVIC 2012-2015 (FB2) USA 4 door sedan excluding Si model

Specifications

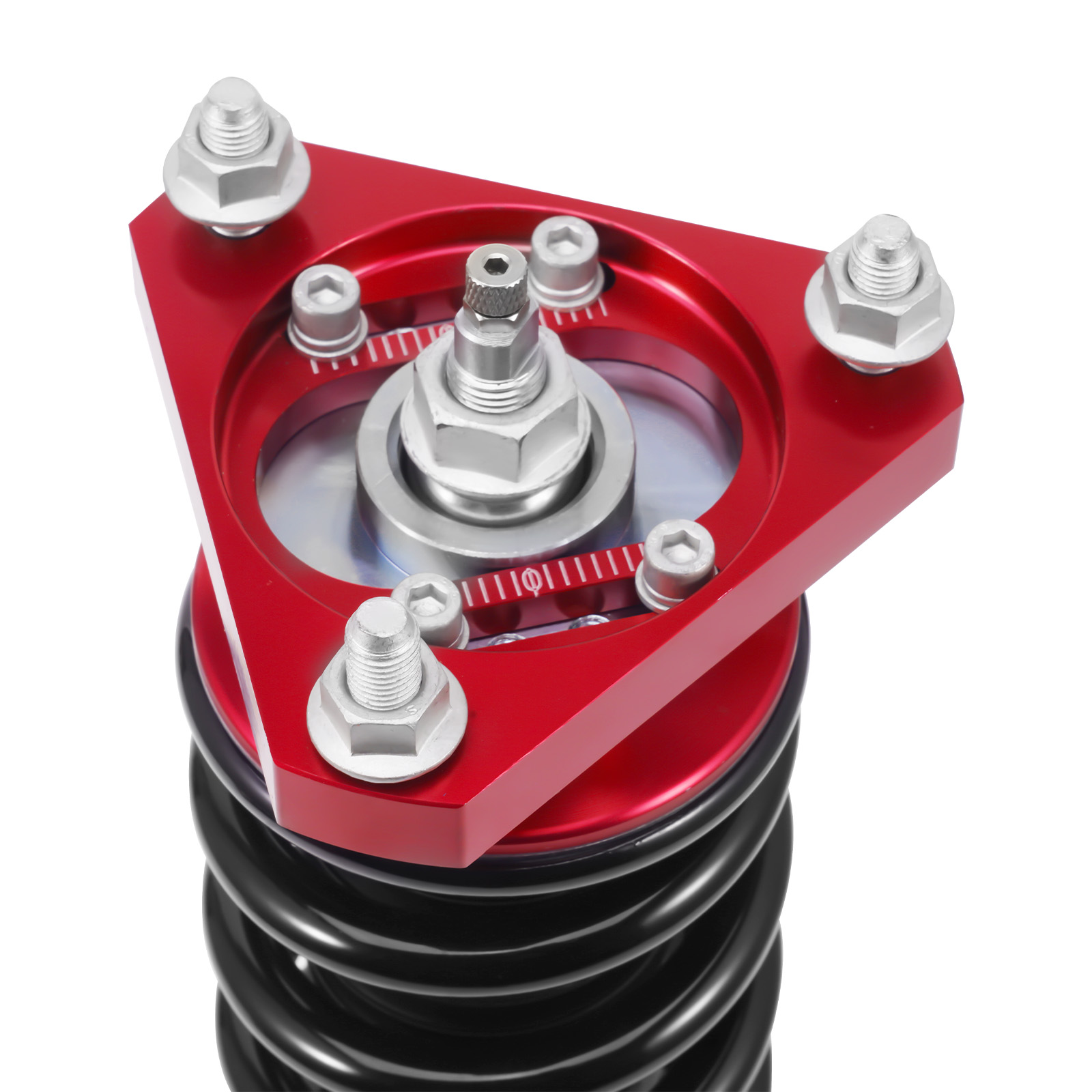

- Front top mount: Pillow ball with camber plate

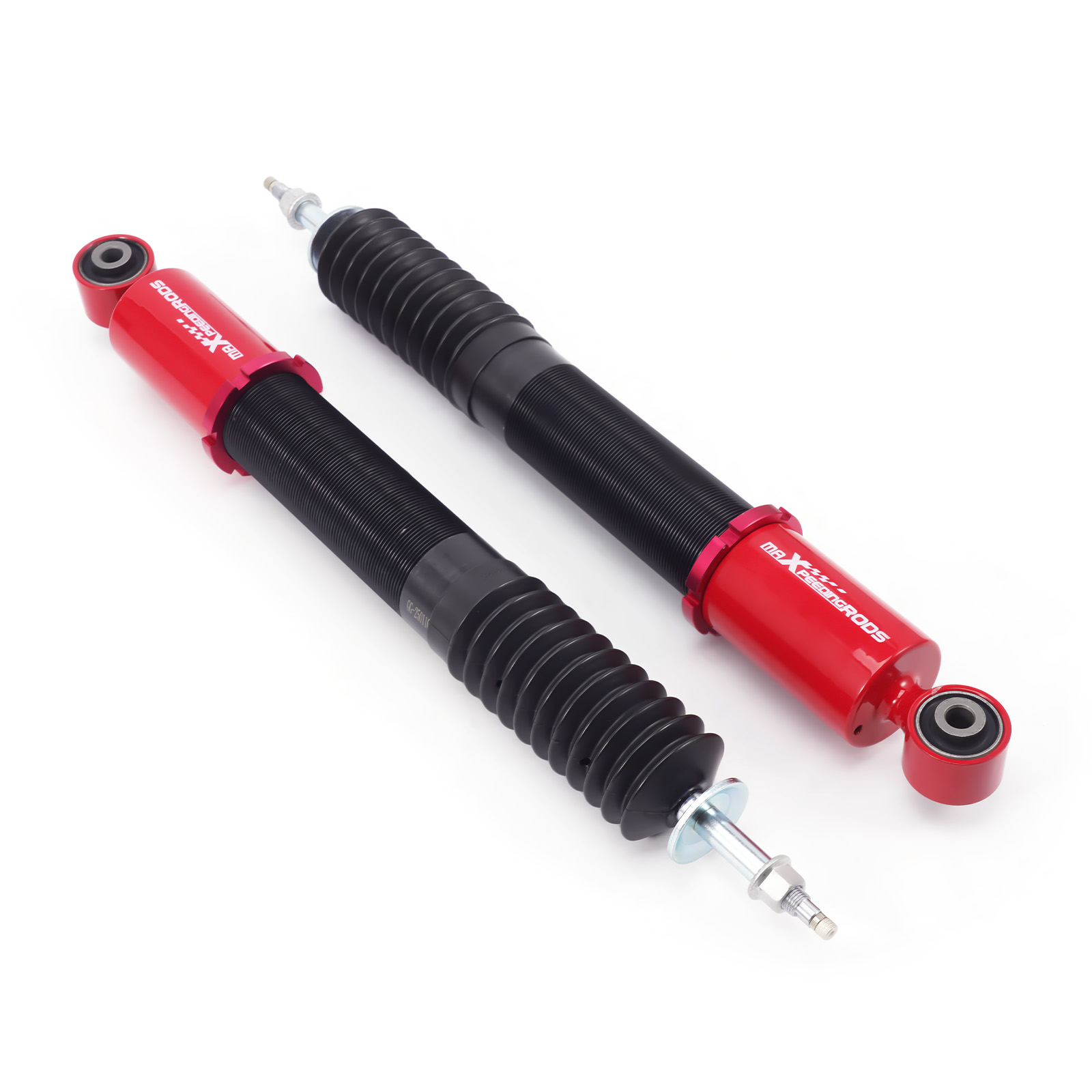

- Rear top mount: OE top mounts required
- Damping adjustable: Available, 24 levels of rebound damping force
- Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
- Camber adjustable: Available
- Spring Rate Front: 7 kg/mm (392 lbs/in)
- Spring Rate Rear: 7 kg/mm (392 lbs/in)

- Front Damper Body Diameter: Φ55mm (2.17")
- Rear Damper Body Diameter: Φ55mm (2.17")
- Front spring inner diameter: 70.5 mm
- Rear spring inner diameter: 63 mm
- Spring length Front: 200 mm
- Spring length Rear: 160 mm
- Shock type: Twin tube
- Spring Preload advised: 7-10 mm
- Color: Red body with black spring

Package Included

2x Front coil-overs
2x Rear coil-overs

1x Pair Sway bar as shown in the picture
2 x C spanners
1x Allen wrench

★ 30-day Money Back & 12-Month Replacement Guarantee. Please feel free to contact us if there is any question.
