4 Axis USB Mach3 Motion Control Card CNC Interface Breakout Board 2000KHz MKX-IV

From CN via fast shipment within one days handling time send out for you


Package include

1 x MKX-IV 4Axis CNC USB Mach3 Motion Control card
1 x USB Cable
1 x CD
1 x English Manual

Note MKX-IV Series: Mk3-IV: 3-axis; Mk4-IV: 4-axis: Mk6-IV: 6-axis


Products Description

This is the latest generation 4 axis motion control card, which is the fourth generation calling MK4-IV. The maximum step-pulse frequency is 2000KHz ( The last generation MKX-III is 400KHz). Now MKX-IV Series stronger, more stable and better performance.

1. Features:
1) Support all versions of Mach3 (can't work with Mach4)
2.) Work under Windows 32-bit operating system (not including Mac OS)
3) USB jack does not need to install the driver, plug and play under all versions of Windows.
4) Full support USB hot-swappable, USB connection status monitoring at any time. Under Mach3 working state, USB cable unplugs and then plugs in, but also the normal connection.
5) Supports Up 6-axis
6) Maximum step-pulse frequency is 2000KHz, can connect servo driver/stepper driver.
7) Indicator light indicates various working status, such as USB connection, Mach3 connection and so on.Operation, various status at a glance
8) 16 input IO,8 output IO
9) All IO port fully isolated, strong anti-interference, stable performance.
10) Dual-Processors, ARM+FPGA, More processing power
11) Support spindle speed PWM output; support spindle pulse and direction output; support spindle speed output from 0 to 10V analog voltage.
12) Support XHC series of wireless electronic mach3 MPG, such as WHB04 MPG.
13) With an aluminum shell, effectively shielding interference, stable and reliable performance.

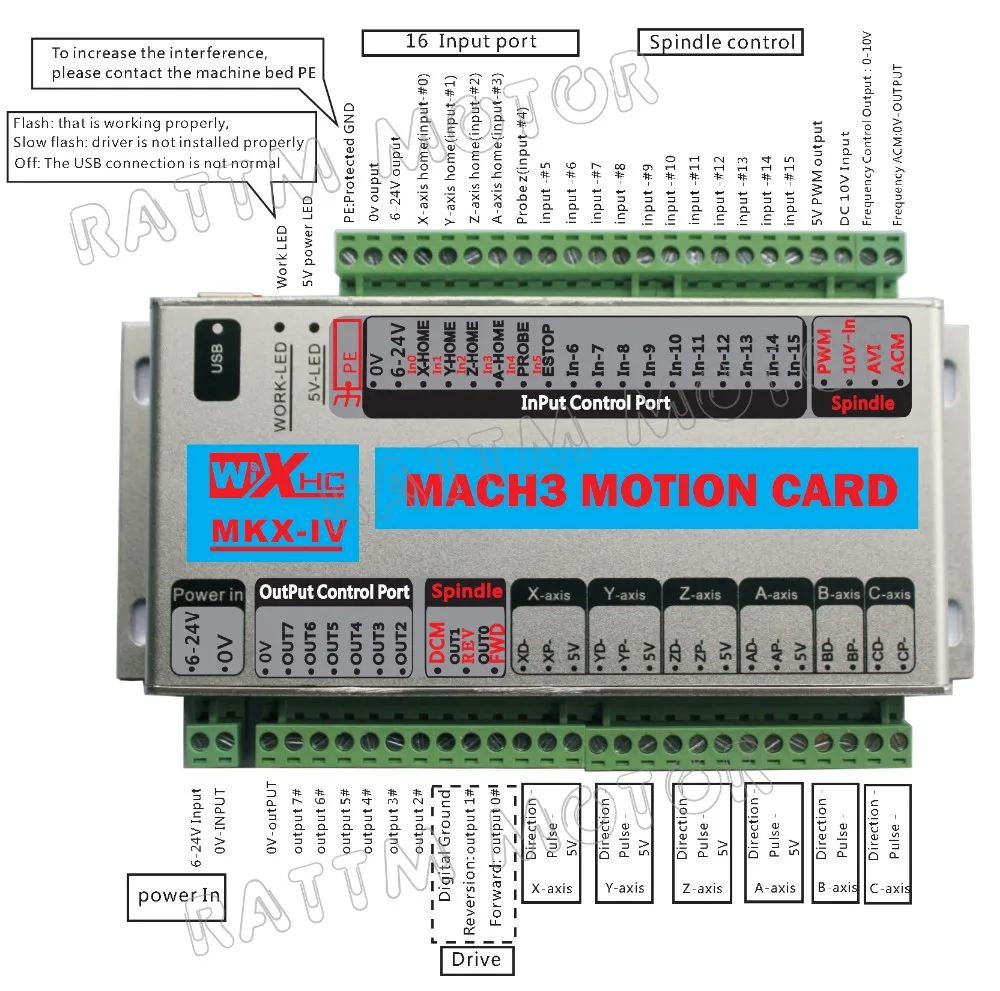

2.Signal Description
0.2

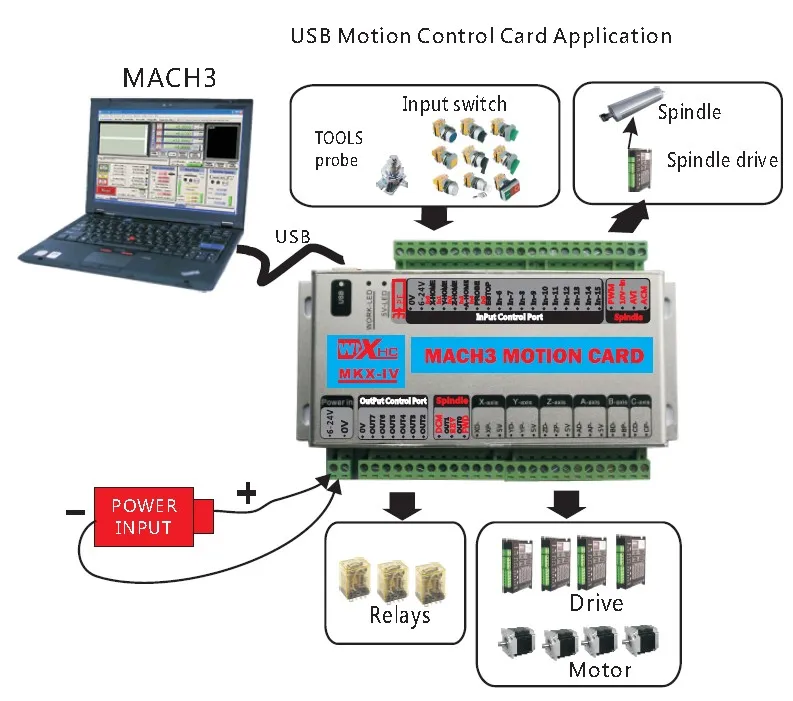

3.Application Connection Diagram

0.3

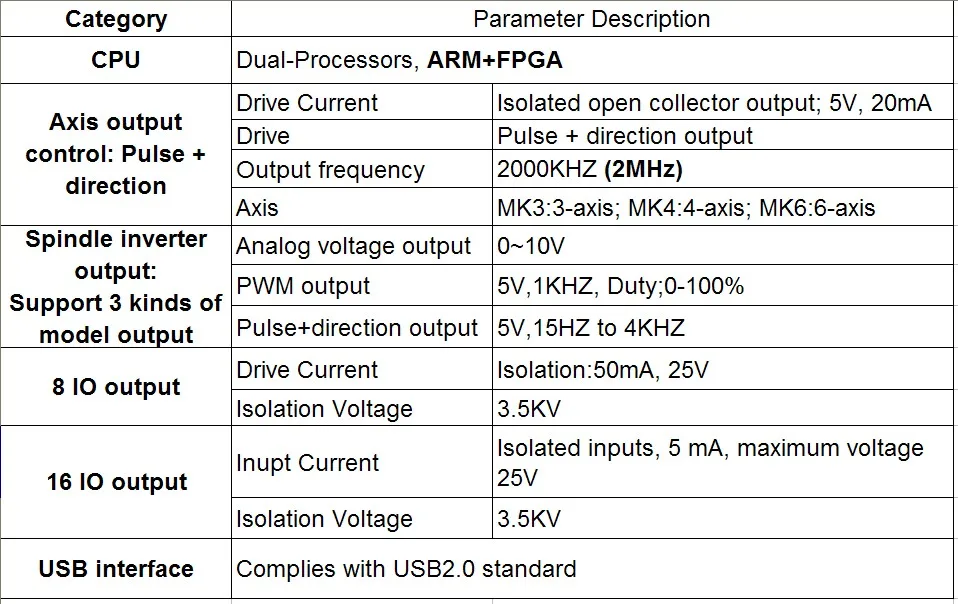

4.Electrical Characteristics

0.4

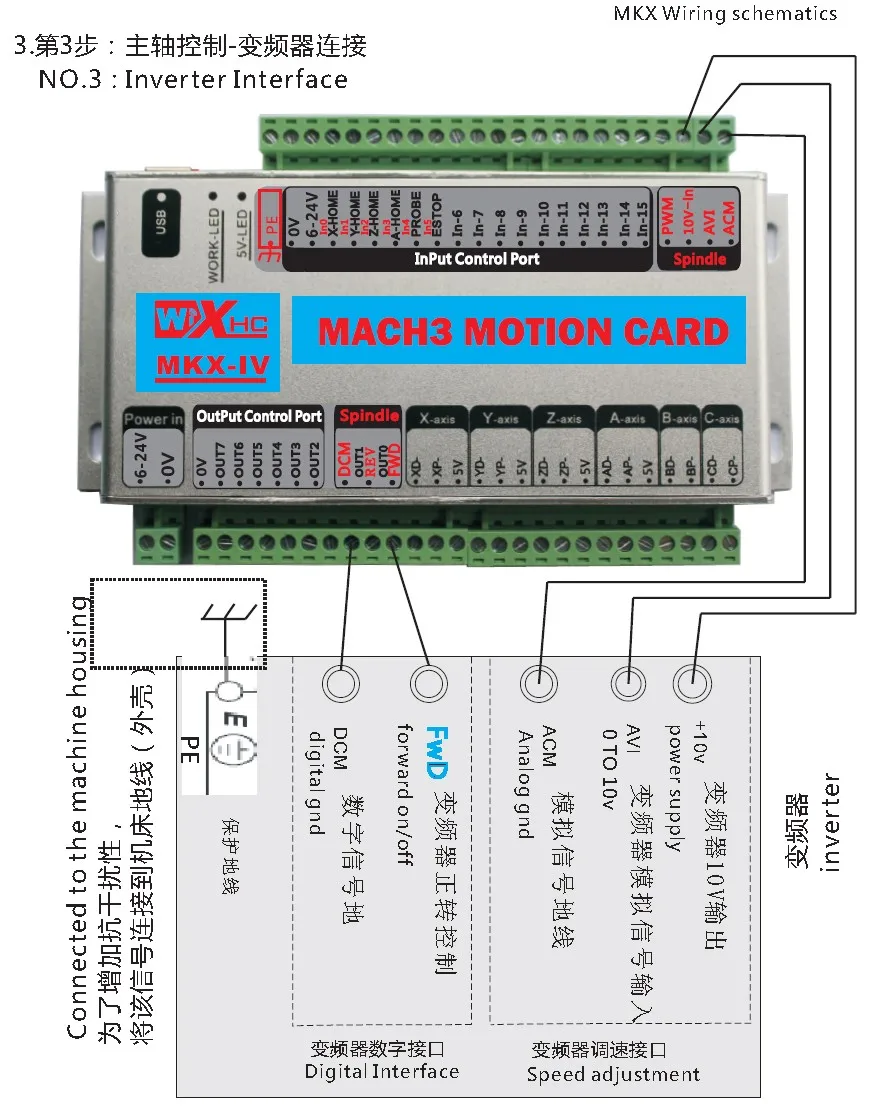

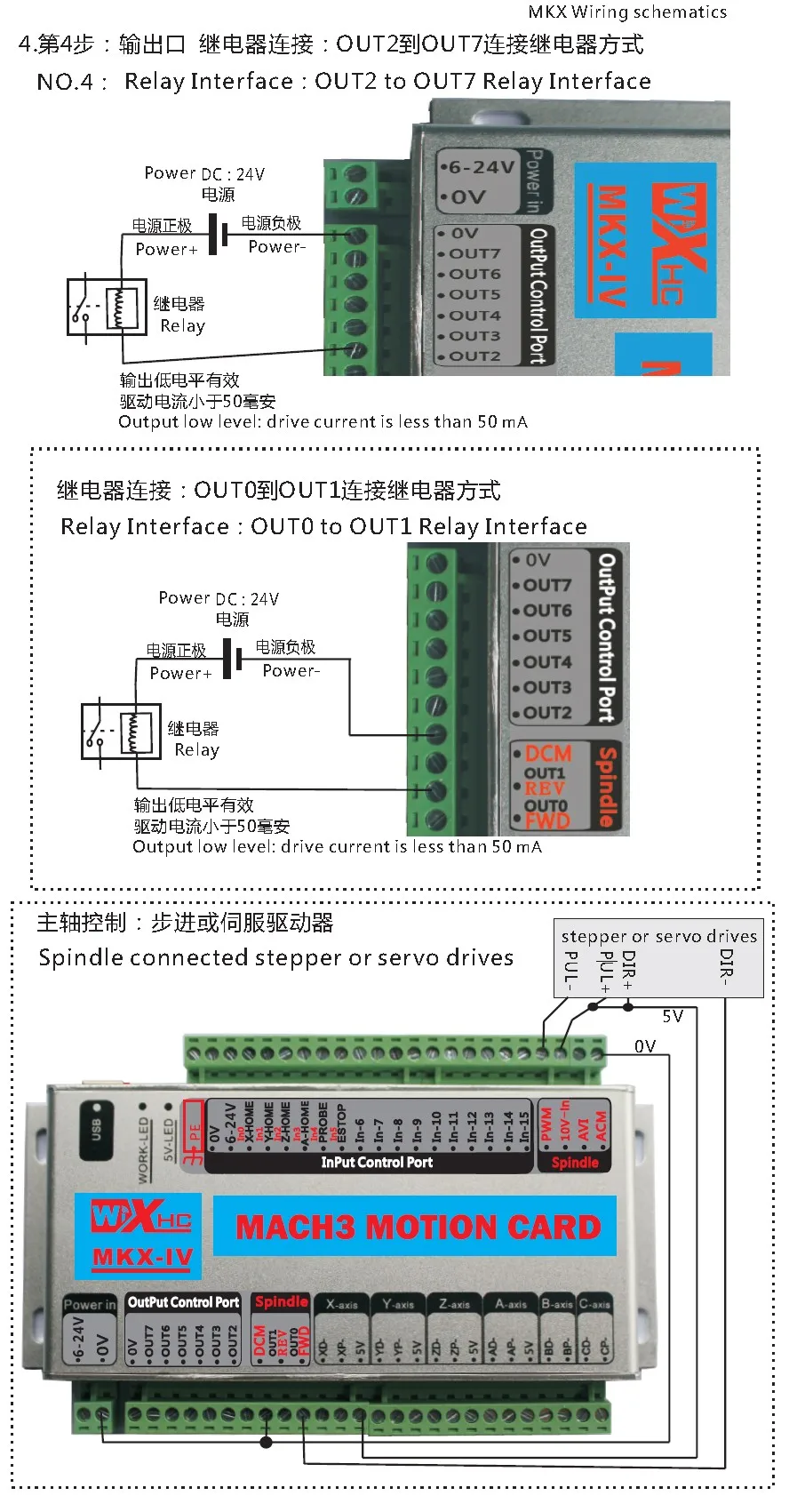

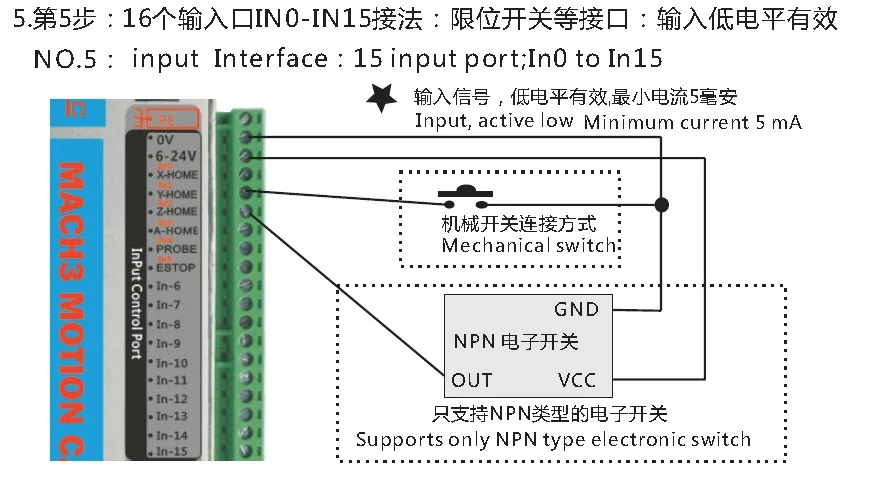

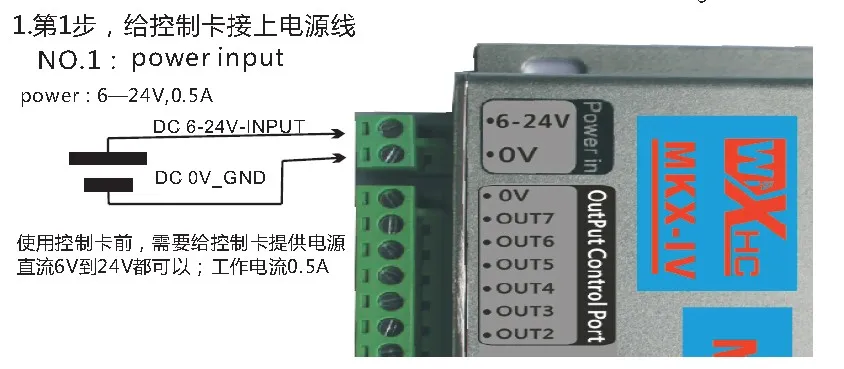

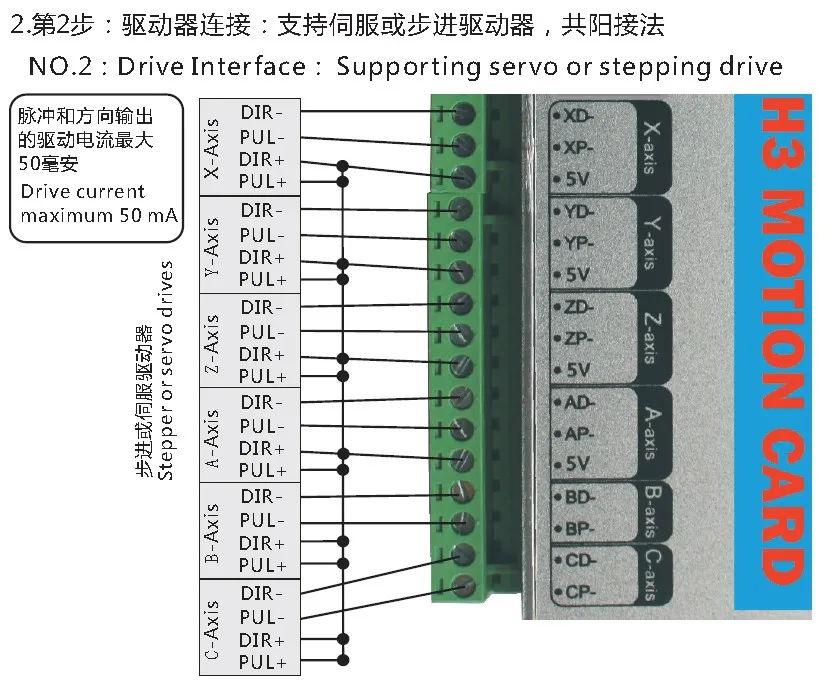

5. Operation steps

0.50.60.70.8

0.9

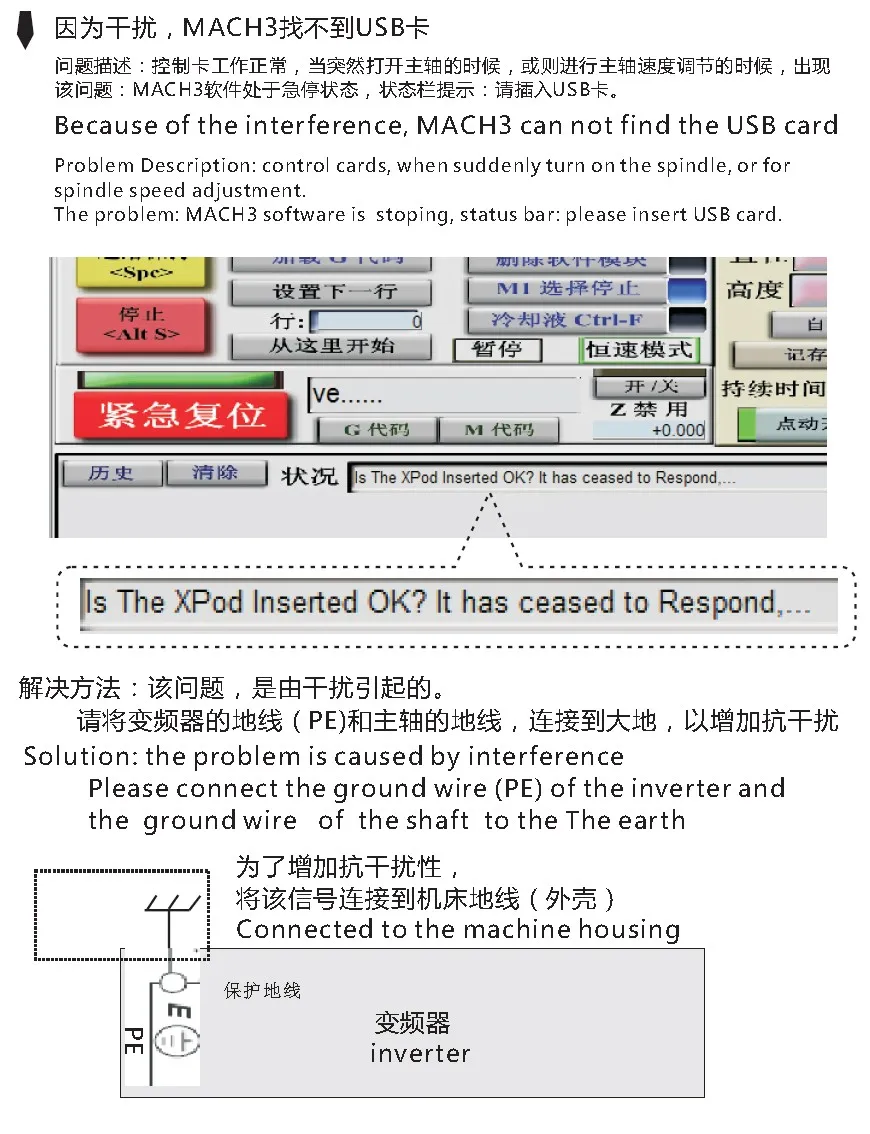

6. Common problem

0.10
