Application

For Toyota Corolla 1.8L 2009-2018
For Toyota Matrix 1.8L 2009-2012
For Toyota Matrix 1.8L 2013 Before 10/2012
For Toyota Matrix 1.8L 2007-2008  FWD with 5 Speed Manual Trans
For Toyota Matrix 1.8L 2003-2006 Base XR Model FWD Manual Trans
For Pontiac Vibe 1.8L 2003 - 2006 FWD(Front Wheel Drive) Base Model Manual Trans
For Pontiac Vibe 1.8L 2007 - 2008 Manual Transmission
For Pontiac Vibe 1.8L 2009 - 2010

Note-1: For Vibe 2007-2008 fit Manual Trans.
Note-2: For Vibe 2003-2006 fit FWD(Front Wheel Drive) Base Model Manual Trans.
Note-3: For Matrix 2013 fit Before 10/2012
Note-4: For Matrix 2007-2008 fit FWD with 5 Speed Manual Trans.
Note-5: For Matrix 2003-2006 fit  Base XR Model FWD Manual Trans.


OE/Part number

66-5224,TO-8308A,TO-8233,665224,TO8308A,TO8233,

19183737,19204706,19204984,4341001130,4341001131

Specification

Condition:New
Type:CV Axle Assembly
Color：Black
Compatible Type：FWD
Placement on Vehicle：Front Right
Compressed Length (IN): 36.02 in / 915 mm
ABS Ring Tooth Count:48
Axle Nut Hex Size：1.18 in / 30 mm
Axle Nut Thread Size：M22x1.5
Axle Nut Socket Size：32
Shaft Material：40CR
Surface Finish：Black Coating
Outboard Splines: 26 Teeth
Inboard Splines: 20 Teeth

Package included

1xAxle Assemblies(Front Right)

Feature

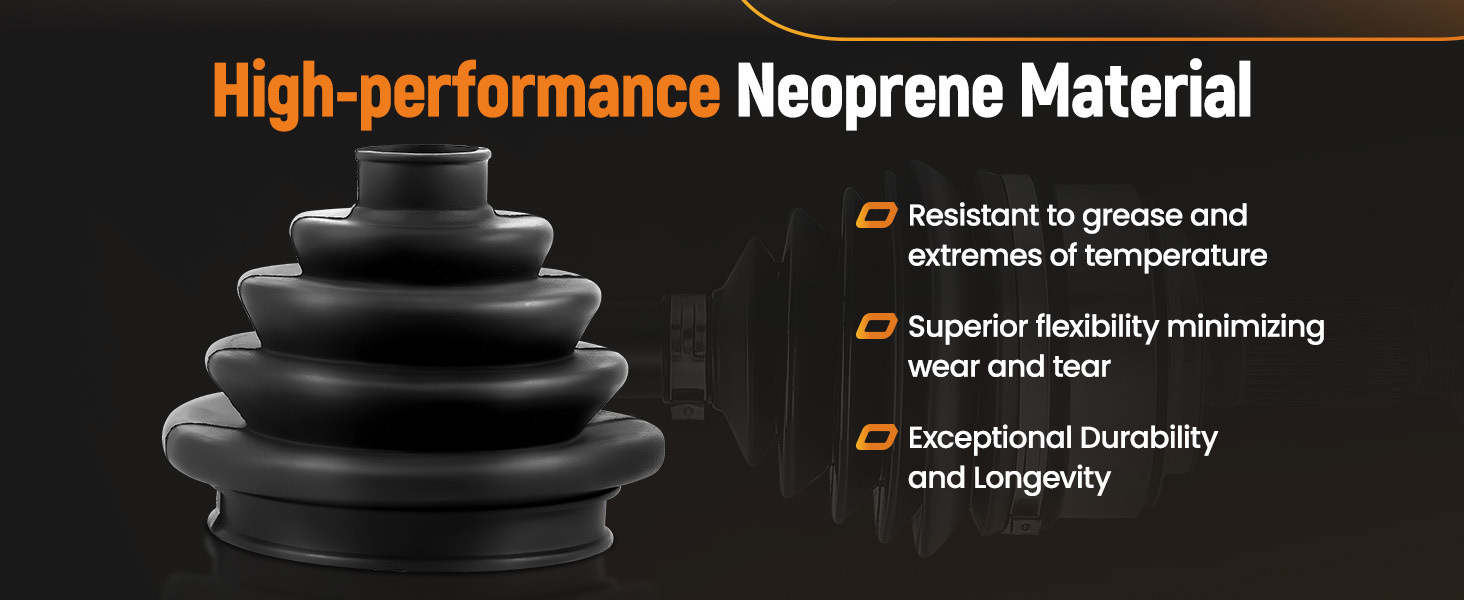

1.Unparalleled Performance:precision Machining,professional heat-treating,high-performance Neoprene Material can resist to grease and extremes of temperature and superior flexibility minimizing wear and tear.It realizes excellent durability and longevity．

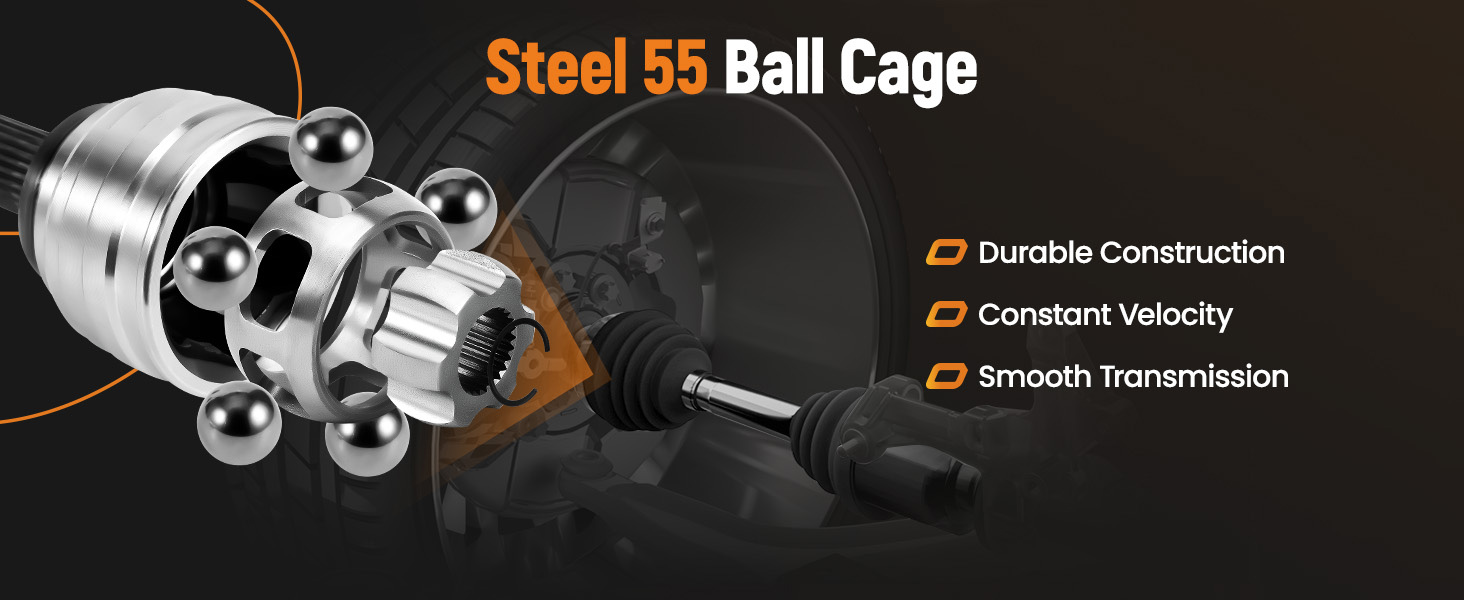

2.Durable structural design：Steel 55 Ball Cage,Constant Velocity,Smooth Transmission.

3.Safe and Pleasing Experience: CV Joint Axle improve stability and comfort for driving.

4.Direct Replacement:Complete set CV alxe assembly easy to install.

5.Superior Package Design：With good cushioning and isolation performance, effectively protect products from damage, environmentally friendly and recyclable.

Note

*Please confirm your vehicle condition and OE number before placing an order!
*Please note that this is an after-sales part, not an original part.
*We suggest that you seek professional installation to avoid unnecessary trouble.
*If you have any questions, please contact us.
