• Description:
  • The UCF pillow block mounted bearing series has four bolt holes, and a set screw lock is designed for mounting onto bearing surfaces parallel to the shaft axis, such as conveyor belts.
  • This ready-to-mount unit has solid base cast iron housing, chrome steel bearings, and is designed for efficient operation at a wide range of speeds.
  • This one-piece pillow block housing allows for a stationary outer ring and rotating inner ring.
  • Insert bearing maintains the separation between moving parts to reduce rotational friction, and to support radial and axial loads.
  • Design: UCF flanged series has four-bolt mounting with set screw locking.

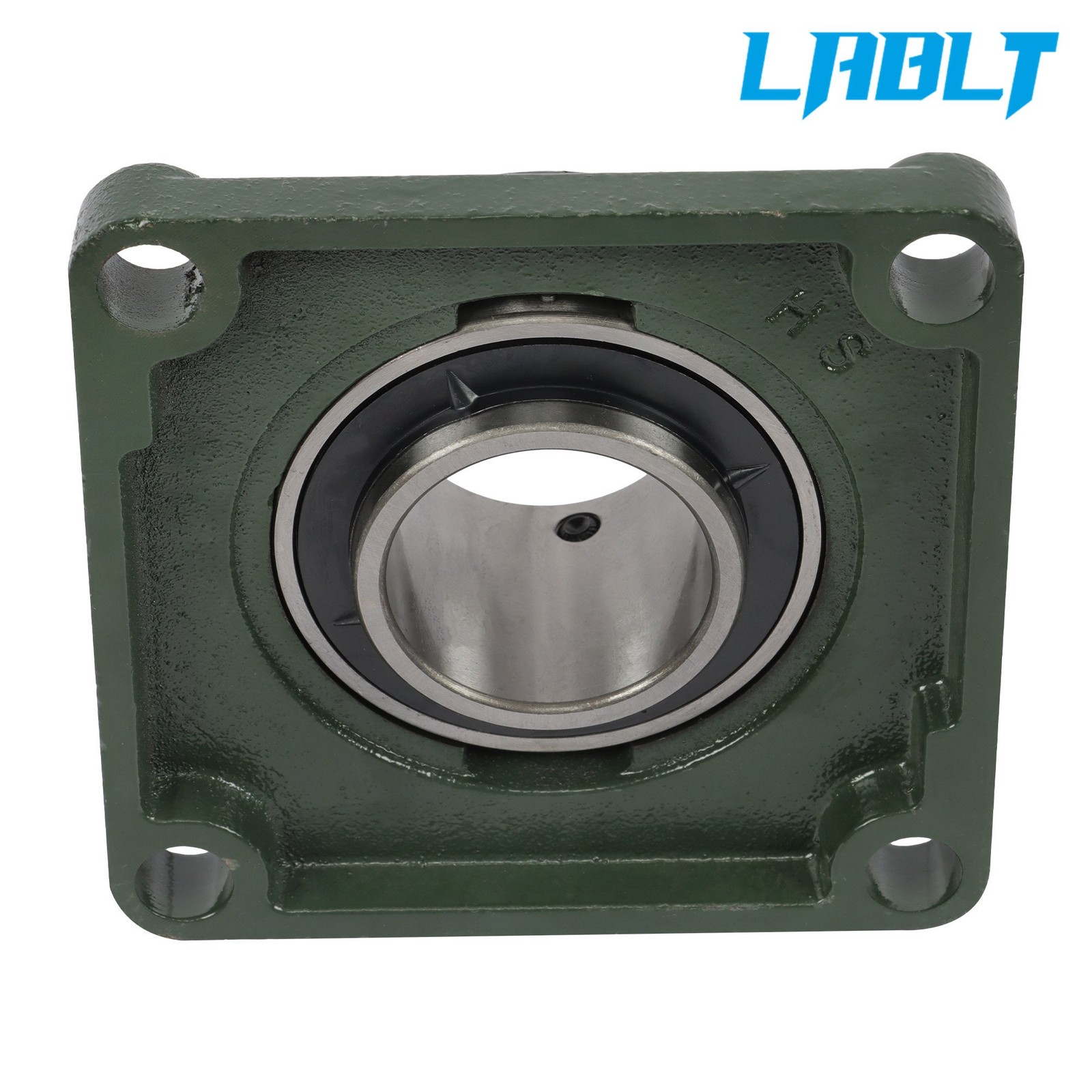

    • LABLT 4× UCF212-39 2-7/16" Bore Pillow Block Flange Bearing 4 Bolt Solid Base

    Description:

    The UCF pillow block mounted bearing series has four bolt holes, and a set screw lock is designed for mounting onto bearing surfaces parallel to the shaft axis, such as conveyor belts.

    This ready-to-mount unit has solid base cast iron housing, chrome steel bearings, and is designed for efficient operation at a wide range of speeds.

    This one-piece pillow block housing allows for a stationary outer ring and rotating inner ring.

    Insert bearing maintains the separation between moving parts to reduce rotational friction, and to support radial and axial loads.

    Design: UCF flanged series has four-bolt mounting with set screw locking.

    Self-Aligning Feature: These bearings use wide inner ring ball bearings with self-aligning spherical outside diameters that compensate for shaft misalignment.

    Pre-lubricated: Bearings come pre-lubricated and ready for immediate installation. A grease fitting is supplied for re-lubrication.

    Material: Made to last, our mounted bearings consist of chrome steel ball bearings for higher resistance and durability.

    Style: 4 Bolts

    Material: Cast Iron

    Bore Size: 2-7/16 Inch

    Static Load Rating: 32.8 kN/7373 lbs

    Dynamic Load Rating: 36.8 kN/8273 lbs

    Max RPM: 2300

    Quantity Per order: 4 Pieces



    Application for:

    UCF pillow blocks are suitable for a variety of applications such as agricultural equipment, conveyor systems, industrial machinery, food processing and much more.


    Package Includes:

    4× UCF212-39 Pillow Block Flange Bearing 2-7/16" Bore 4 Bolt Solid Base

    About LABLT:
    LABLT has rich experience in the production, sales and after-sales service of Industrial parts. For many years, we have been committed to providing professional and personalized services to enhance the shopping experience of buyers. If you need any parts, please come to LABLT to buy them. We look forward to cooperating with you!









    Item Specifics
    Country of Origin United States
    Brand LABLT
    MPN OM387513OC
    Material Cast Iron
    Bore Size 2-7/16 Inch
    Style 4 Bolts
    Static Load Rating 32.8 kN/7373 lbs
    Dynamic Load Rating 36.8 kN/8273 lbs
    Max RPM 2300
    Quantity Per order 4 Pieces
    Type Bearing Unit
    Warranty 1 Year
