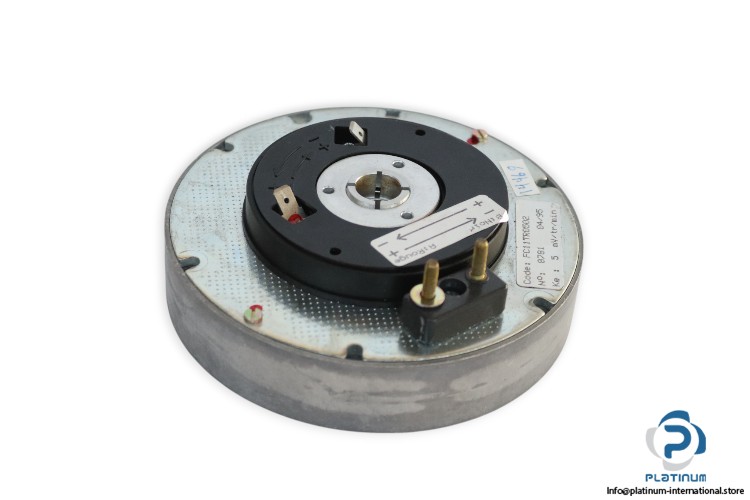

HUBNER GT 7.08L/420 TACHOGENERATOR

Manufacture: Hubner
Type: Tachogenerator
Model: GT 7.08L/420
Part No.: 02620

Off-load Voltage U₀: 20 mV/rpm
Maximum Operating speed: 9000 rpm
Armature resistance: 230 Ω
Armature inductance: 80 mH
Size (flange): ø85 mm
Torque: 1.5 Ncm
Material Housing: stainless steel / plastic
Shaft Material : stainless steel
Connection: Screw terminal connector Cable 0.6 m
Performance: 30 W (speed >3000 rpm)
Open-circuit voltage: 10 ... 60 mV per rpm
Protection Class: IP55
Operating Temperature: -30 … 130°C
