Video Display：
Specifications:
Model: ZQ02024
Color: black
Material: sheet metal + aluminum + plastic
Material: Aluminum alloy, sheet metal structure/plastic housing
Input voltage: AC100-240V 50-60Hz
Rated power: 150W
Control protocol: 433MHZ wireless
Effective control distance: 25m
Light source: 1PCS white LED + 12PCS 5050RGBW four and a LED lamp beads
Angle of light: 11°
Color temperature: 8000-9000K
Display color index: Ra ≥ 75
Lamp output luminous flux: 320-350lm
Illuminance: 155Lux*5m
LED average life: 50000H
Strobe: 1-25HZ
Color plate: 7+1 color plate
Fixed gobo disk: 6+1
X-axis: 540 ° precision 0.45 ° / step, fine-tuning precision 0.014 °
Y-axis: 205°accuracy 0.6.3°/step, fine-tuning accuracy 0.039°.
Operation mode: self-propelled, sound control, master-slave, DMX
Control channel: 10/12CH
Protocol: Standard DMX512 protocol
Data Connection: Three-core XLR input/output
Display: 4-digit digital display
Protection grade: IP20
Effect dimming: 0-100%
Working environment: -20℃-40℃
Features:
1. Large rotating angle, X axis rotates 540° pan, Y axis 205° tilt, DJ moving head stage light beam covers lots of the ground with adjustable speed and brightness color/pattern changing, dimming, flashing, creates stunning visual effects.
2. Flexible control modes, self-propelled/DMX 512/master-slave/sound activated for different need, suitable for large place with shocked effects. DMX control with 10/12CH for professional lighting engineer to programme marvelous eye-catching strobe effect.
3. Exquisite workmanship, ensures low power consumption and allow fast, smooth and accurate movements.
4. Mini gobo moving head light, compact structure, good output effect, with a variety of patterns, easy to install, easy to carry, light mobile weight, high projection accuracy, good effect.
5. Perfect for clubs, DJ shows, TV theaters, TV studios, rentals, discos, family gatherings, banquet halls, bands, etc.

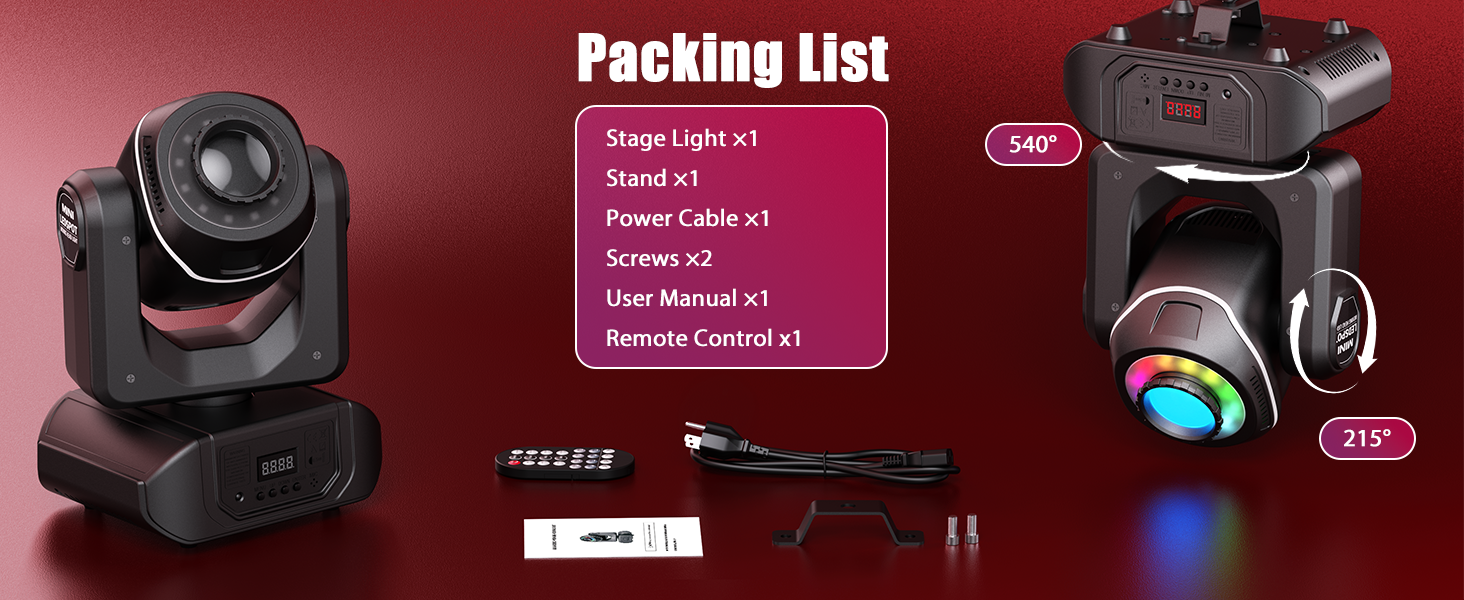

Packing List:
1. Stage light *1
2. Stand *1
3. Power cord *1
4. Screws *2
5. Instruction manual *1
