Features:
1. New appearance design, 3.5-inch large screen, 256x192 ultra-clear infrared resolution.
2. 720P resolution, making the finer and clearer.
3. Athermalized fixed- lens, more accurate focusing.
4. Upgrade to 8G built-in large-capacity storage, which can store more than 20,000 pictures.
5. Type-C port, 2600mAh large capacity .
6. Support the hot , cold , center and zone .
7. Support Outline ,Overlay ,Picture in picture, Thermal,Visible.
8. It has the function of replaying video, 25Hz frequency make the operate and smooth.
Specifications:
Resolution: 256 x 192
Infrared spectral bandwidth: 8~14um
Frame rate: 25HZ
NETD: 70mk@25℃
HFOV: 55.6°
Lens: Athermalized Fixed Lens
Temperature measurement range: Low: -20~150℃, high: 120~400℃
Measurement Accuracy: +/-2℃ or +/-2% of reading
Temperature measurement: Support the highest point, the lowest point, the in the whole screen and the regional
Color palettes: Iron, Hottest, Black hot, White hot, High contrast, Green hot, Rainbow, Lava pattern
Visible Resolution: 720P
Visible feld angle: 55°X83°
Display Size: 3.5 inches
Mode: Overlay , Outline , Picture-in-Picture, Thermal, Visible.
Language: Chinese (Simplified), Chinese (Traditional) , English, French , German , Spanish, Dutch, Japanese, Korean, Arabic
Port: USB Type-C (support charging and data transmission)
Battery: 2600mah Li-ion Battery
Working time : 4 hours if the battery if fully charged
Working temperature: -10℃ ~ + 60℃
Storage temperature: -40℃ ~ + 85℃
Storage Capacity: 8G built-in memory
Storage photo Format: JPG
Storage Video Format: MP4
Material: ABS
Item Size: 222 * 97 * 90 mm / 8.74 * 3.82 * 3.54 inch
Item Weight: 333g / 11.75o
Pacakge include:
Pacakge include:

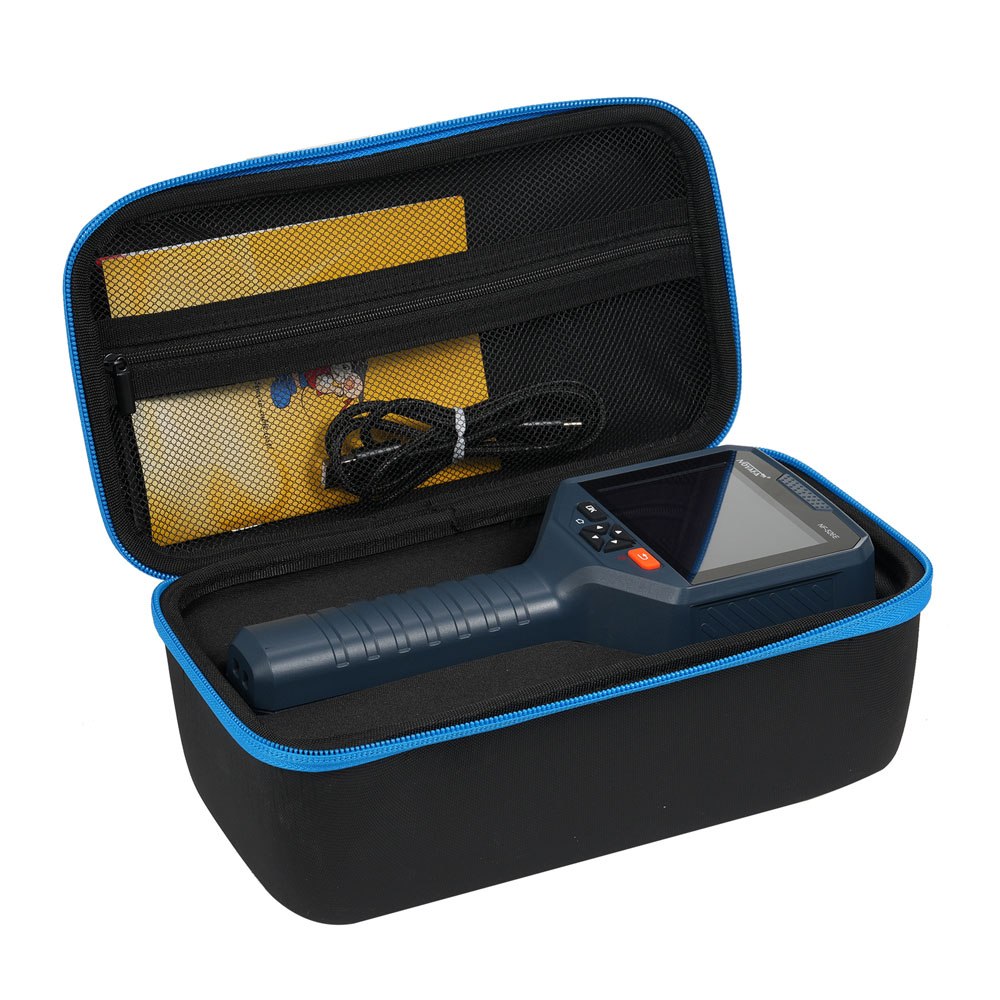

1 x Thermal Imaging Camera
1 x Type-C data cable
1 x Cloth bag
1 x User manual
1 x Certificate card
1 x Color box
