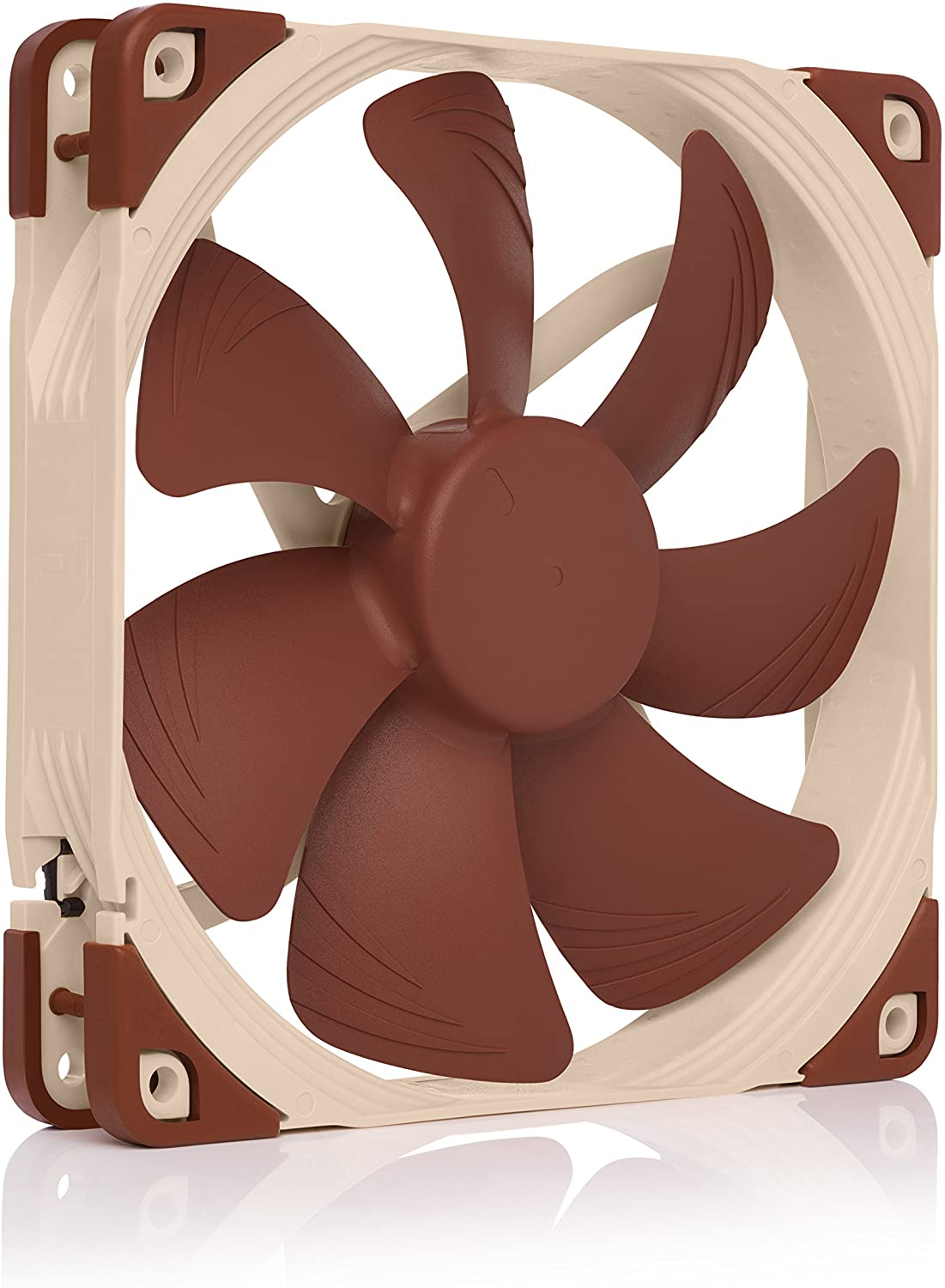

NF-A14 PWM, Premium Quiet Fan, 4-Pin (140Mm, Brown)
Description
| Item model number | NF-A14 PWM |
| Global Trade Identification Number | 00842431014337, 04716123314981, 08510052851694 |
| Power Connector Type | 4-Pin |
| Cooling Method | Air |
| Number of Items | 1 |
| Noise Level | 24.6 Decibels |
| Series | NF-A14 PWM |
| Wattage | 1.56 |
| Material | Fibre-glass reinforced PBT |
| Color | Brown |
| Compatible Devices | Desktop |
| Item Weight | 7 ounces |
| Product Dimensions | 5.51"L x 5.51"W x 0.98"H |
| Voltage | 12 Volts |
| Maximum Rotational Speed | 1500 RPM |
| Air Flow Capacity | 140.2 Cubic Meters Per Hour |
| Is Discontinued By Manufacturer | No |
| Item Dimensions LxWxH | 8.5 x 1.5 x 6 inches |
- Premium quiet fan, 140x140x25 mm, 12V, 4-pin PWM, max. 1500 RPM, max. 24.6 dB(A), >150,000 h MTTF
- Award-winning 140x25mm A-series fan with Flow Acceleration Channels and Advanced Acoustic Optimisation frame for superior quiet cooling performance
- Square frame design is ideal for water cooling radiators (AIO or DIY), PC cases and other chassis (intake & exhaust), cabinet ventilation, etc.
- 4-pin PWM version for automatic speed control via 4-pin PWM fan headers, broad 300-1500rpm speed range (1200rpm max. with supplied Low-Noise Adaptor)
- Includes anti-vibration mounts, fan screws, Low-Noise Adaptor, extension cable and y-cable for running two PWM fans on the same header
Product description
The NF-A14 is a premium quality quiet 140mm fan with a square frame that complies with Noctua’s AAO(Advanced Acoustic Optimisation) standard. Its square shape and 140mm mounting holes (124.5mm spacing) make it ideal for use on watercooling radiators or as an upgrade for 140mm case fans. Featuring sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A14 further improves the renowned quiet cooling performance of the award-winning NF-P14. The PWM version sports Noctua’s custom designed NE-FD1 IC for fully automatic speed control via 4-pin fan headers and comes with a Low-Noise-Adaptor to reduce the maximum speed during PWM control from 1500rpm to 1200rpm. Its performance-oriented 1500rpm top speed and comprehensive speed control options make the NF-A14 PWM an elite choice for users who strive to strike a perfect balance between excellent cooling capacity and superb quietness of operation, be it on watercooling radiators, on heatsinks or in case ventilation.
Square 140mm frame
The NF-A14's square 140mm frame with 140mm mounting holes (124.5mm spacing) makes it a premium grade for common 140mm case fans and perfect for use on 140mm water cooling radiators, where its square shape will ensure full coverage and best pressure performance.
Flow Acceleration Channels
The NF-A14 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise.
SSO2 Bearing
The NF-A14 features the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.
Integrated anti-vibration pads
Integrated anti-vibration pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard screws and other mounting systems.
Scope of delivery
- NA-RC7 Low-Noise Adaptor (L.N.A)
- NA-YC1 4-pin PWM y-cable
- NA-EC1 30cm extension cable
- 4x NA-AV1 anti-vibration mounts
- Fan screws
AAO frame
Noctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency.
