Introduction:

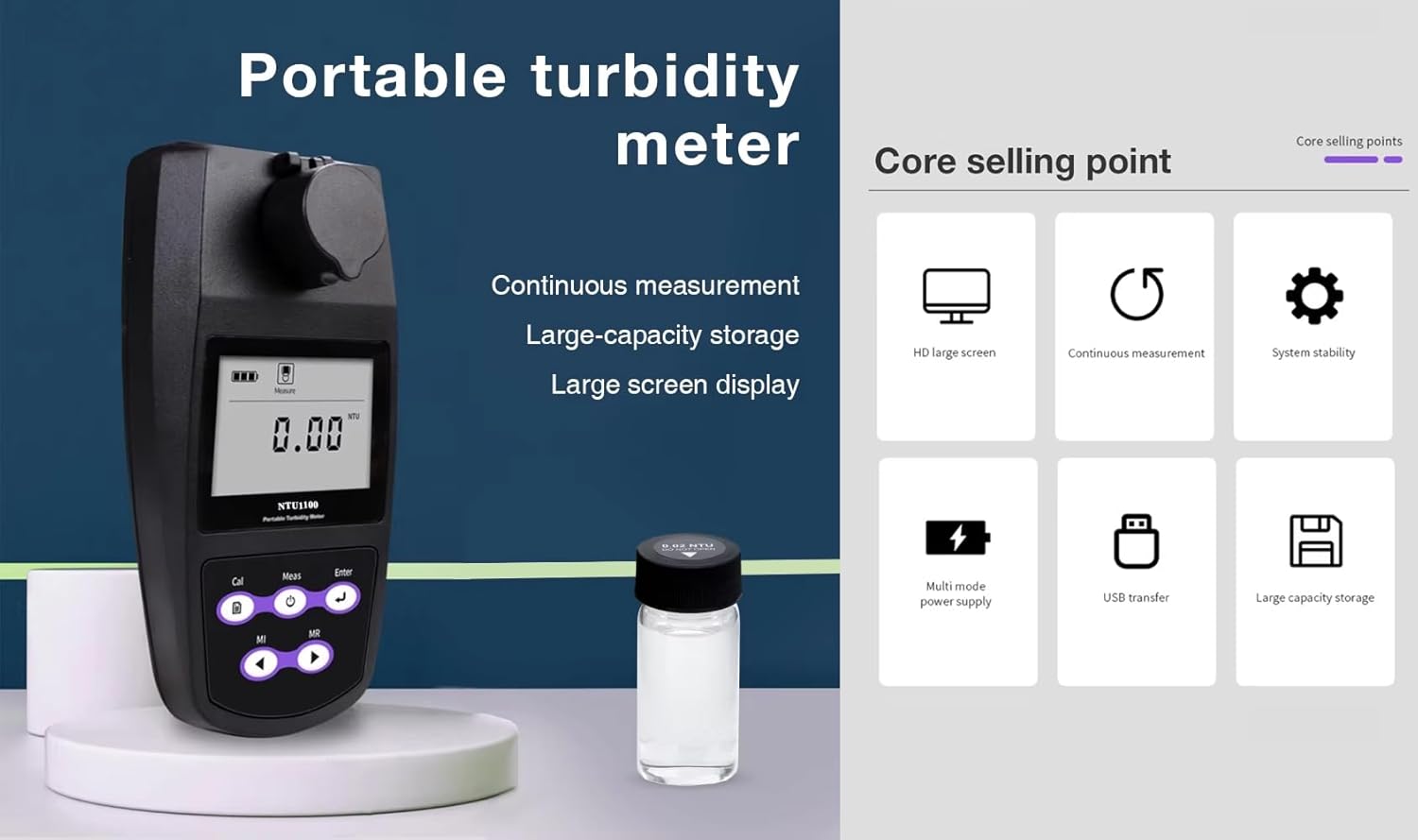

High performance portable turbidity meter, 2 to 5 points calibration, selectable 4 turbidity units. The meter is suitable for process control and field use.

Unpacking Before unpacking, ensure that the current work environment meet following conditions.

Relative humidity is less than 80%

Ambient temperature is greater than 0C and less than 60C

No potential electromagnetic and ambient light interference

Operating Principles

 portable turbidimeter operates on the nephelometric principle of turbidity measurement and is designed to meet the criteria specified in ISO 7027.

The following figure shows basic optical system of the meter. It includes a light source and a detector to monitor the light scattered at 90 degree with respect to the incident beam.

Specifications

Measurement Method :ISO 7027 nephelometric method (90°)

Measurement Range : 0~1100 NTU/FNU, 0~275 EBC, 0~9999 ASBC

Resolution : 0.01 (0~100 NTU), 0.1 (100~999 NTU), 1 (999~1100 NTU)

Accuracy :± 2% (0~500 NTU) ± 3% (501~1100 NTU)

Calibration Standards : :0.02 10.00 200 500 1000 NTU

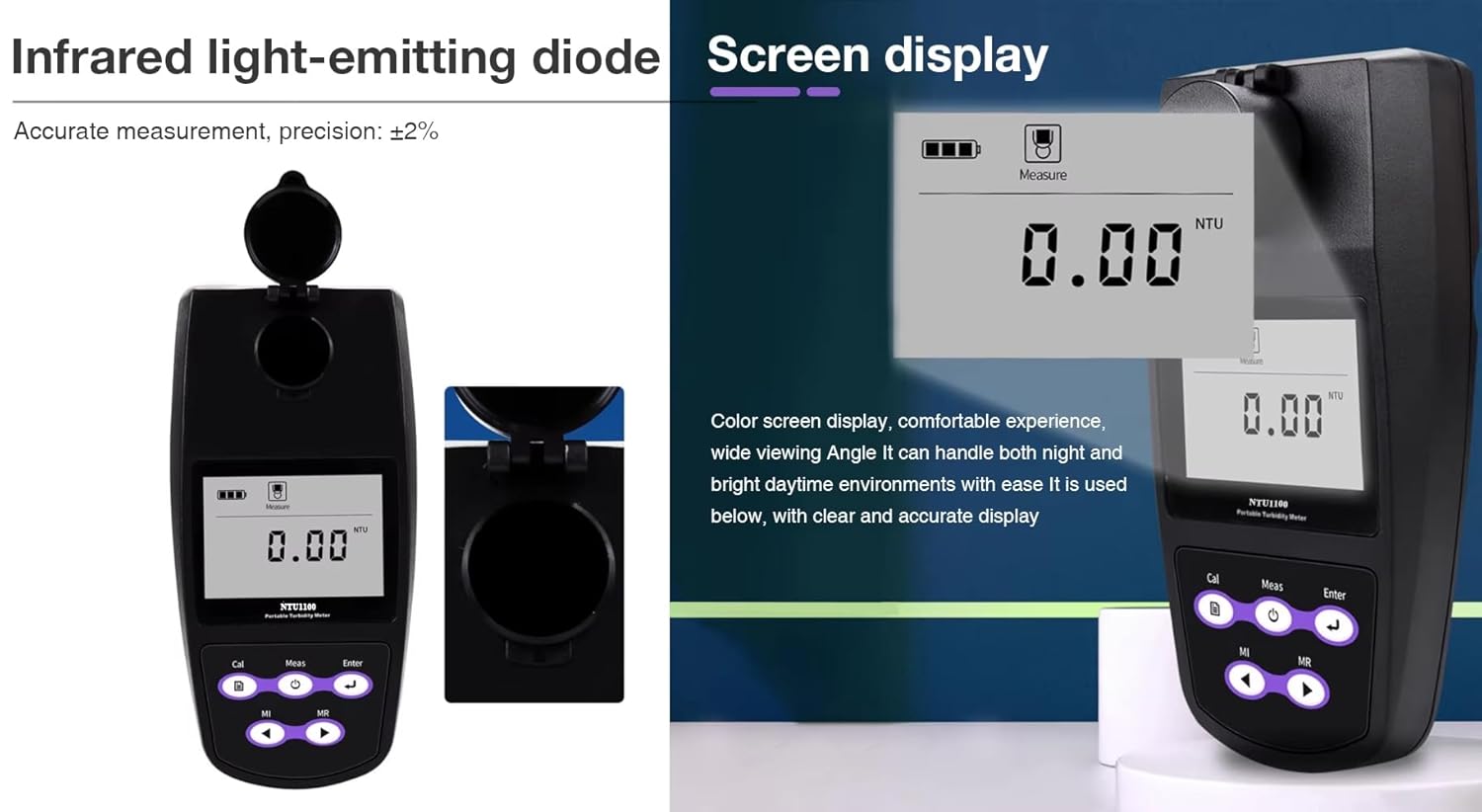

Light Source :Infrared-emitting diode (850 nm wavelengt)

Detector :Silicon :Photodiode

Stray Light : <0.02 NTU

Sample Vials : 60(H)× 25(Dia)mm

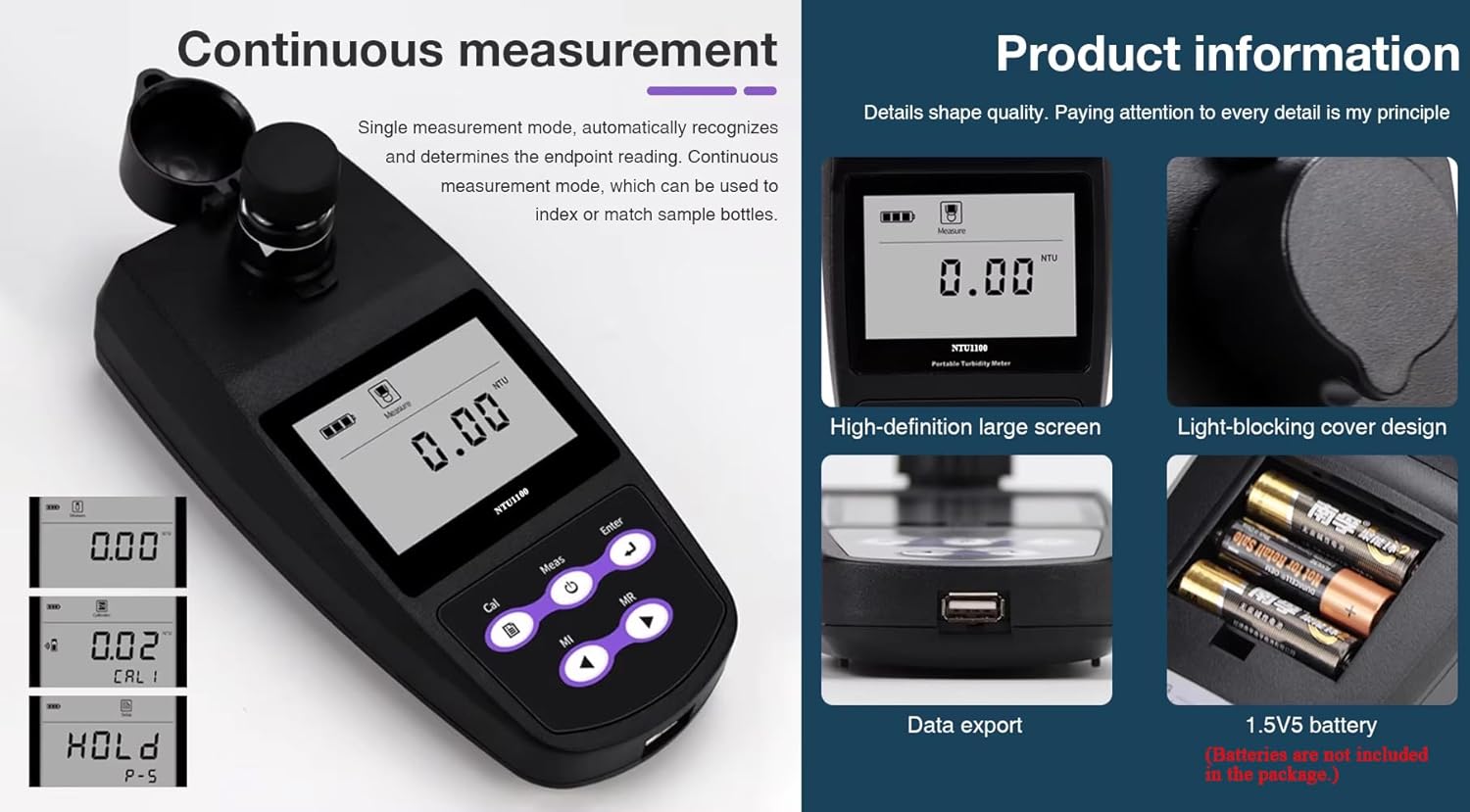

Measurement Modes:Single or Continuous measurement

Power Off :Manual or Automatic (15 minutes after last key pressed)

Reset Function:Yes

Memory :Stores up to 100 data sets

Output USB Communication Interface

Operating Temperature : 0~60°C

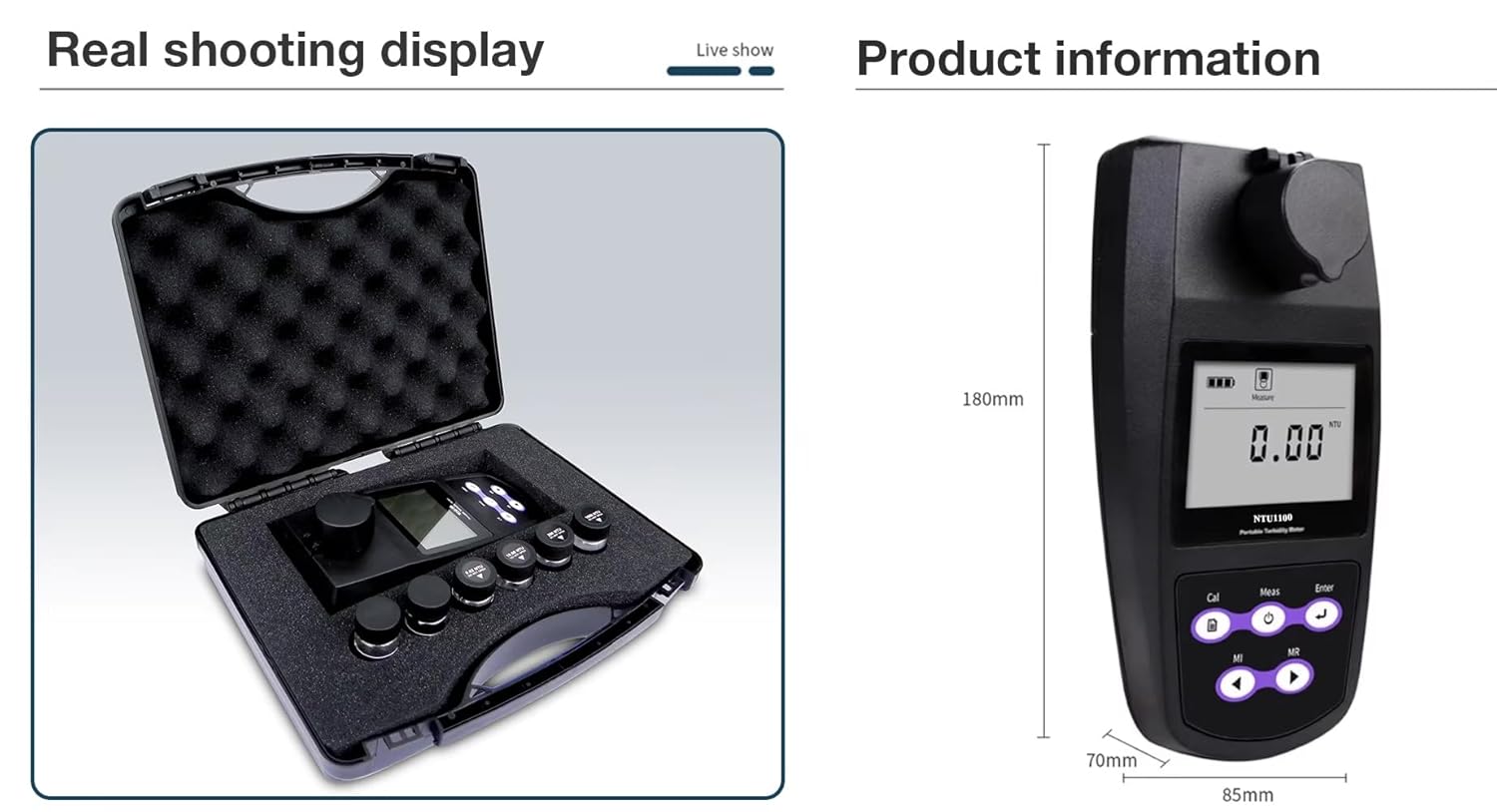

Power Requirements : 1× 9V battery(battery not included) Dimensions :180(L)× 85(W)× 70(H)mm Weight :300g
