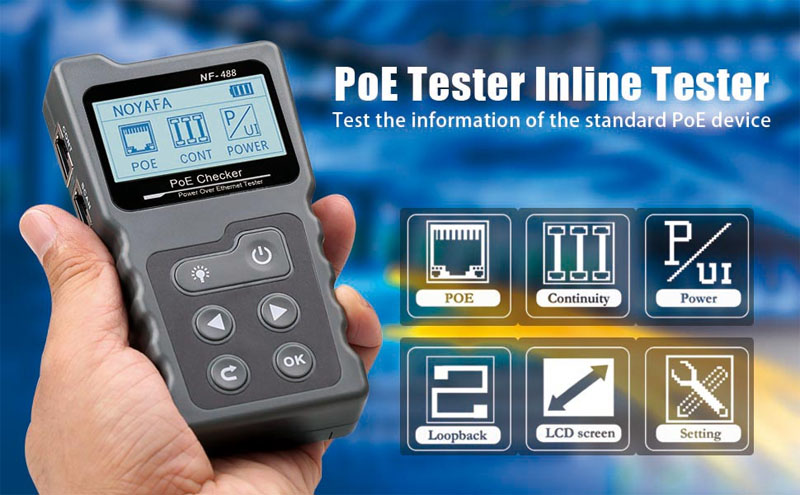

PoE Tester Inline Tester Power Over Ethernet Voltage Current Tester Test for POE Testing

Network Cable Continuity Checking, DC Power & Switch Loop-Back Test PoE Detector by NOYAFA

Cable Continuity Detector : PoE Checker

Item Specifics:

Is_customized : Yes

Brand Name : Noyafa

Model Number : NF-488

Place of Origin : Shenzhen.China

Port :   RJ45,POE

POE test :  Check the POE(power over ethernet) switch  standard af/at

Power : 3*AAA Battery(Not include)

 Product features

• 💐 POE Testing via Switch : Test the information of the standard PoE device, such as af\at standard, power supply voltage, power supply polarity and mode.

•


• 💐 POE Power Testing : Identify the supply voltage, power supply polarity and mode of non-standard PoE devices.

•


• 💐 Cable Continuity Testing : Check the short circuit, crossover and open circuit status in the network cable.

•


• 💐 Power Testing : Test the current, voltage and power consumed by DC appliances.

•


• 💐 Loopback Testing : The loop-back test function of the switch.

•


•


Main Functions

·  Test the information of the standard PoE device, such as af\at  standard, power supply voltage, power supply polarity, and crossover  mode.

· Identify the supply voltage, power supply polarity, and crossover mode of non-standard PoE devices.

· Check the short circuit, crossover and open circuit status in the network cable with the far end.

· Test the power consumed by DC appliances.

. The loop-back test function of the switch.

Technical indexes:

NF-488 Transmitter specification
Indictor	LCD 128x64 mm, with back light
Continulity function	Cable types	CAT5,CAT6
	Check UTP/STP cable	YES
	Cable short indicate	YES
	Max testing range	600m
	Wire mapping	Emitter +Remote
		Emitter + switch/routor
PoE function	Test range	DC5-60V POE switch
	Standard identify	802.3af/at ( standard/non-standard)
	Test range power	0-18W
	Output interface	YES
Power function	Voltage test range	DC0-60V
	Current test range	0-3A
	power test range	0-180W
Input voltage protection	DC48V 5mA
Max working current	≤80mA
Loopback	Compatible with 10M ,100M,1000M switch
Power supply	3*AAA Battery(Not include)
NF-488 Remote Specification
Ports	RJ45
Function	Wire mapping for network cable
Input voltage protection	DC48V 5mA

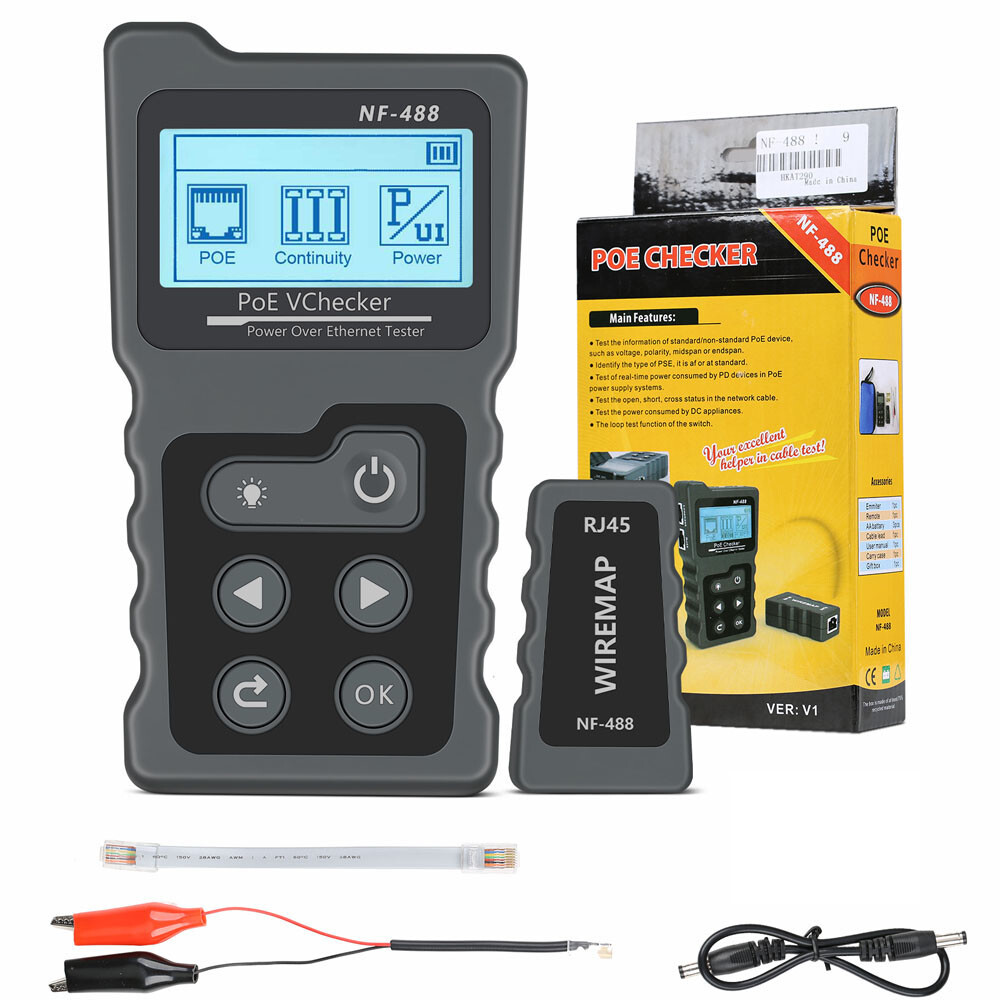

Package List:

1 X Emitter(Not include battery)

1 X Remote Unit

1 X RJ45 Network Cable Adaptor

1 X Carry Bag
