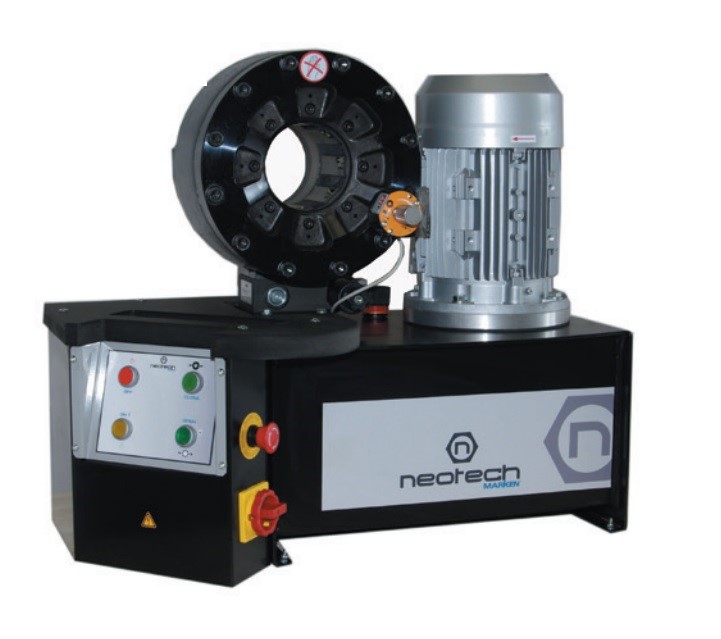

Flowfit Electric Hose Crimping Machine, Max. Hose Size 2" (DN50-32)

FREE UK SHIPPING

100% SATISFACTION GUARANTEED

Flowfit Electric Hose Crimping Machine, Max. Hose Size 2" (DN50-32)

FF40/200T - Electric Hose Crimping Machine, Max 2" (DN50-32)



NO DIE INCLUDED



Compact, Precise, Simple and easy to use hose crimping machine.

Simple and economy hose crimping machine with high precision, large opening and perfect geometry results.

Crimp force 200 tons, Universal hose crimper. Radial movement of dies, Head protected by foam inserts. Professional ergonomic.



Product Features

  • Interlock and R15 Assemblies Up To 1 1/4" (Dn32)
  • Ergonomic Working Space
  • Ideal for Long Drop Elbows
  • Easy Greasing System



Technical Specification

Indicative Hose Capacity

2-SN: 2" [DN50; -32]

4-SP: 1 1/2" [DN38, -24]

R13/R15/lnterlock: 1 1/4" [DN32; -20] Max. size for assembly with 2 x 90?? elbows: max. 3/4" [DN 19]

Motor/Electrics

3 KW -230/400V 3-PH

3 KW - 230V 1-PH (20A)

2 KW (12V DC) FF30-DC

2 kW-12 VDC [NK30-DC12]

Radial Press Force

270 Tons

Opening

?� Die + 38mm [Press Path + 14mm]

Opening without Dies

118mm

Master Die Shoe Length

100mm

Dimensions

Width: 800mm

Depth: 440mm

Height: 700mm

Net Weight (with full oil tank, w/o dies)

180 KG

Packing

Wooden crate conforms to ISPM15 Crate

size: 110x78x110cms

Gross weight [with 5 sets of dies]: 230 kgs

Noise Level

< 70 dB[A] with standard hydraulic mounting



Suitable Dies Available Separately



PART NO.

DIE SIZE ?�

HOSE SIZE

FF40-DIE-06

6

*BY MAN

FF40-DIE-08

8

*BY MAN

FF40-DIE-10

10

*BY MAN

FF40-DIE-12

12

*BY MAN

FF40-DIE-15

15

*BY MAN

FF40-DIE-18

18

**1/4"

FF40-DIE-21

21

**3/8"

FF40-DIE-24

24

**1/2"

FF40-DIE-27

27

**5/8"

FF40-DIE-30

30

**3/4"

FF40-DIE-33

33

*BY MAN

FF40-DIE-36

36

*BY MAN

FF40-DIE-39

39

**1"

FF40-DIE-42

42

*BY MAN

FF40-DIE-45

45

*BY MAN

FF40-DIE-48

48

*BY MAN

FF40-DIE-51

51

**1 1/4"

FF40-DIE-54

54

*BY MAN

FF40-DIE-57

57

**1 1/2"

FF40-DIE-62

62

*BY MAN

FF40-DIE-66

66

**2"

FF40-DIE-70

70

*BY MAN



**The hose sizes stating hose size in table above are for

use with Flowfits Vincke Hydraulic Hose!

*BY MAN = By Manufacturer, Hose size determined by hose manufacturers crimping data- Please check with YOUR hose supplier
