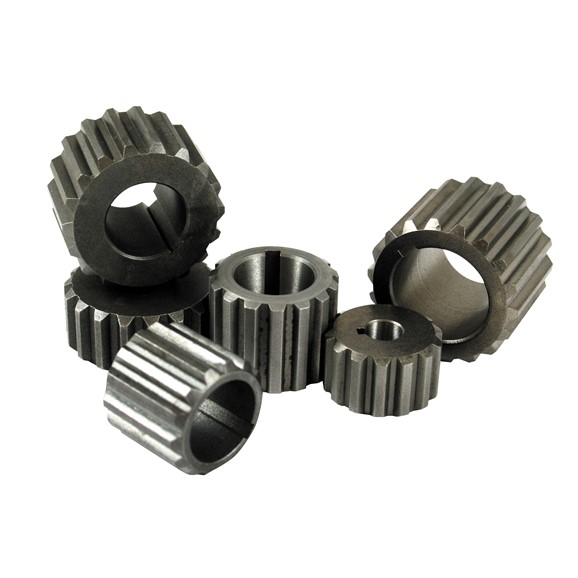

23 Tooth Splined Coupling, 1:8 Taper Pump Connection for Group 3 Pump 01-10019, 4mm Keyway

Please Check PDF that Splined Coupling Dimensions are suitable for required use.

Splined half couplings, bars and couplings and chain couplings are made of heat-treated steel UNI 16 CrNi4/P6

Half Couplings marked with (*) are made of hardened and tempered steel UNI 38 NiCrMo4/Fb and subjected to nitriding with mechanical resistance R=95 to 105 Kg/mm2

Can be used with;

Mechanical Clutch, 40KW, Group 3 - 26-30300

PTO Gear Box Pump, Group 3, 37KW CAST - 9760?

PTO Gear Box, Group 3, 20KW ALU - 34-70001-5

Other Keyways Available

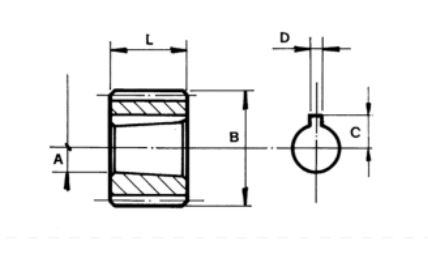

 Code  Pump Type  Pump Assembly Profile din  No. of teeth  A  B  C  D  L
 10019  3  4/3  48 X 44  23  18,7  47,5  12,5  4  26
