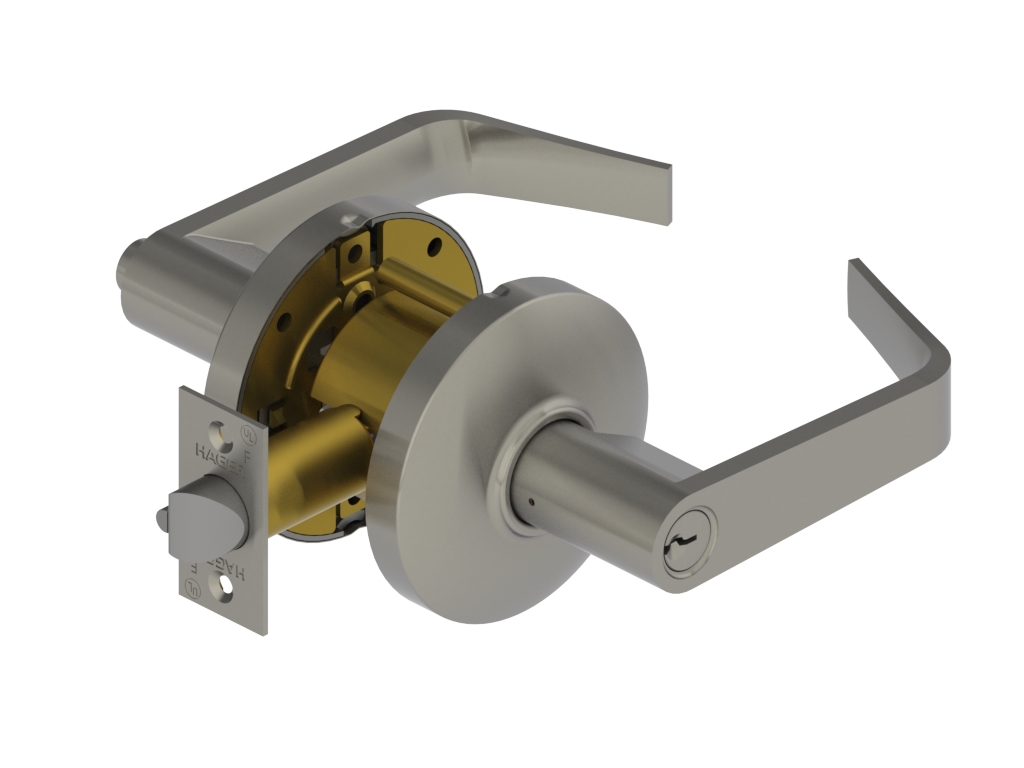

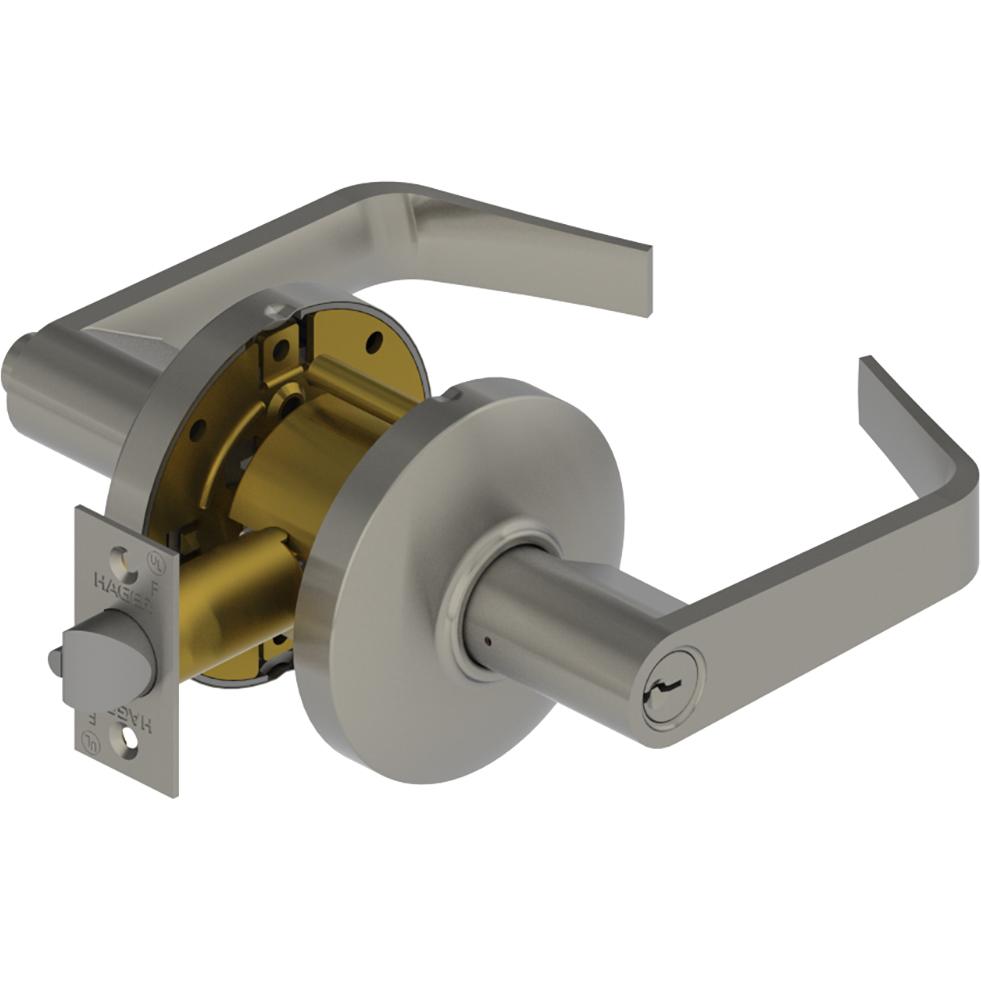

Hager 000091 3553 2-3/4" SC US26D WTN SCC KD ASA Withnell Grade 2 Cylindrical Entry - Satin Chrome
FEATURES
DESCRIPTION
Applications:
Standard Duty Commercial
Certifications:
- ADA Compliant ANSI A117.1 Accessibility Code
- UL/cUL Listed for all functions up to 3 hours "A" label single doors
- UL10C Positive Pressure Rated
- BHMA Certified ANSI A156.2, Series 4000, Grade 2
- ANSI A250.13 Severe Windstorm Compliant (Levers
Finishes:
- US3, US4, US10B, US26, US26D and BLK
- Anti-Microbial coating (US26D finish only)
Functions:
Entry (F109)
Notes:
- No exposed mounting screws
- Non-handed
Options:
- Lead Lining
- Tactile Warning
- Split Finish
Warranty:
Lifetime
Latchbolt Type:
- 1/2" (13 mm) throw, stainless steel
- 1-1/8" x 2-1/4" (29 mm x 57 mm) faceplate for 2-3/4" (70 mm) backset
- 1" x 2-1/4" (25 mm x 57 mm) faceplate for 2-3/8" (60 mm) backset
- Deadlocking latchbolt prevents manipulation when door is closed
Cylinders/Cores:
- Keyed Different - standard
- Cylinder drilled 6 pin, Keyed 5 pin - standard
- Other Keying options, including 6 pin keyed, available from factory
- Zero bit cylinders will be 6 pin keyed
- SFIC uncombinated or combinated, brass 6 pin or 7 pin cores sold separately
SPECS
| Projection | 2.6563 |
| Finish | Satin Chrome |
| Grade | ANSI/BHMA Grade 2 |
| Lever Length | 4.5313 |
| Backset | 2-3/4 Inch |
| Keyway | SC4 6-Pin Pin & Tumbler |
| Function | Keyed Entry |
| Door Thickness | 1-3/8" - 2" (35 mm - 51 mm) |
| Strike | ANSI, 1-1/4 Inch x 4-7/8 Inch, 1-1/4 Inch Lip, Square Corner |
| Bore Size | 2.1250 |
| Cylinder Type | Conventional Cylinder |
| Finish Description | Satin Chrome |
| Strike Number | 3935 |
| Lever Style | WTN-Withnell |
| Keyblank Grouping | HAGR-SCHL-C-6-1 |
| Rose/Escutcheon Trim | Round Rose |
| Keying Charges | CCAM |
| Product Material | Zinc |
| Product Type | Cylindrical Lock |
| Series | 3500 Series |
| Warranty | Lifetime |
| Rose Diameter | 3-11/32" (85 mm) |
| Design | Withnell |
| Application | Standard Duty Commercial |
| Color Code | 626/US26D |
| Handle Type | Lever |
| Latch Throw | 1/2 Inch |
| ANSI Function | F82 |
| Latch Number | 3948 |
| Latch Type | Deadlocking |
| Strike Type | ASA Strike |
| ADA Compliant | YES |
| Finish Family | Satin Chrome |
| Included Components | (2) Operating Keys |
| Strike Size | 1-1/4" x 4-7/8" |
| Cylinder Material | Brass |
| Door Cross Bore | 2.125 Inch |
| Standards | ANSI/BHMA A156.2; UL/cUL Listed; ANSI A250.13 Severe Windstorm Component; Miami-Dade County Florida NOA# 17-1226.23; UL10C; UL10B |
| Cylinder Type Used | Conventional |
| Function Description | Push button locking. Deadlocking latch bolt by knobs/levers except when outside knob/lever is locked by button inside or in face (edge). Inside knob/lever always free. |
| Front Size | 1-1/8" x 2-1/4" |
| Function Family | Entry/Entrance/Office |
| Latch bolt size | 3/4 Inch |
| Strike Lip | 1-5/16 Inch |
| Product Projection | 2-21/32 Inch |
| Trim Material | Cast Zinc (Lever) |
| Manufacturer Parent | Hager Companies |
| Lever Length-Inches | 4.5313 Inch |
| Latch Corner | Square and Round |
| Knob/Lever Size | 4-17/32 Inch |
| Latch Bolt Material | Stainless Steel |
| Box Dimensions (L x W x H) | 3.75x4x8.25 |
| Lever Style Family | Straight Return Lever |
| Sub-Series | CL_Cylindrical_Locks_Hager_5 |
| Strikes |
|
| Notes |
|
| Backsets |
|
| LEVER / CYLINDER PINNING | WITHNELL LEVER |
| FINISHES - LOCKS | US26D - SATIN CHROMIUM |
| KEY CONTROL - LOCKS | NOT APPLICABLE |
| Exposed Trim | Wrought brass, Bronze, and Stainless steel |
| MISC. KEYING - LOCKS | NOT APPLICABLE |
| Lever Options | Archer, August and Withnell |
| BACKSET in. - LOCKS | 2-3/4 |
| LATCH OPTIONS / CAMS / TAILPIECES | STANDARD |
| KEYWAY - LOCKS | SCHLAGE C |
| MISC. - LOCKS | NOT APPLICABLE |
| Lock Chassis | Heavy gauge steel, zinc dichromated for corrosion resistance. Thru-posts are removable. Failure to install thru-posts and screws voids BHMA certification, UL rating, and warranty |
| STRIKES - LOCKS | ASA STRIKE - STANDARD 1-5/16in. LIP |
| KEYING - LOCKS | KEYED DIFFERENT |
| HANDING / MISC. - LOCKS | NOT APPLICABLE |
| Collection | Withnell |
| Package Height | 4" |
| Package Length | 8.5" |
| Package Width | 7.5" |
| Item Weight | 4.2 lbs |
| Features | Concealed Screws, Removable Bolts, Free Wheeling, Zinc Chassis |
| Load Capacity | None |
