Description

Welcome to our store:

 beestudio 2016


Tips: If you need Large quantity, please contact us, we can wholesales.


Feature:



1. Programmable / LED display, easy to use.

2. Can save your setting, we you power up next time, it will run your previous setting.

3. Wide Time Range

4. Can turn off the LED display and save power.

5. Widely use in Car / Motor Control/ LED lamp/ Valve and industry...



Usage:



When it connect to power supply, the timer will run,

turn on the switch, countdown the turn off time,

time run out, turn off the switch, countdown the turn on time

time run out, turn on the switch, countdown the turn off time

....

Infinite cycle and repeat this.




Set the turn on time
Click K1, the first digital tube flash, click K2 can change the number;
Click K1, the second digital tube flash, click K2 can change the number;
Click K1, the third digital tube flash, click K2 can change the number;






Then set the turn off time
Click K1, the first digital tube flash, click K2 can change the number;
Click K1, the second digital tube flash, click K2 can change the number;
Click K1, the third digital tube flash, click K2 can change the number;

Then set the time
click K2 to move the digit, select time range.



Long time press K2 can turn off/on the LED display.




Parameter:



1: size: 65mm*36mm*18mm

2: Relay Capacity: DC 30V 10A AC 220V10A

3: Standby current: 20mA Action current: 50mA

4: service life: more than 100 thousand times the working temperature: -40~85'C

5: the output optocoupler isolation, enhanced anti-jamming power, stability, industrial grade circuit board.

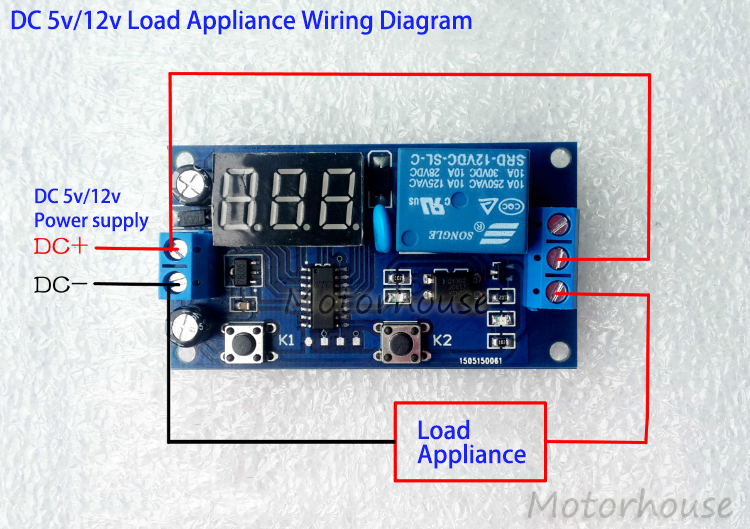

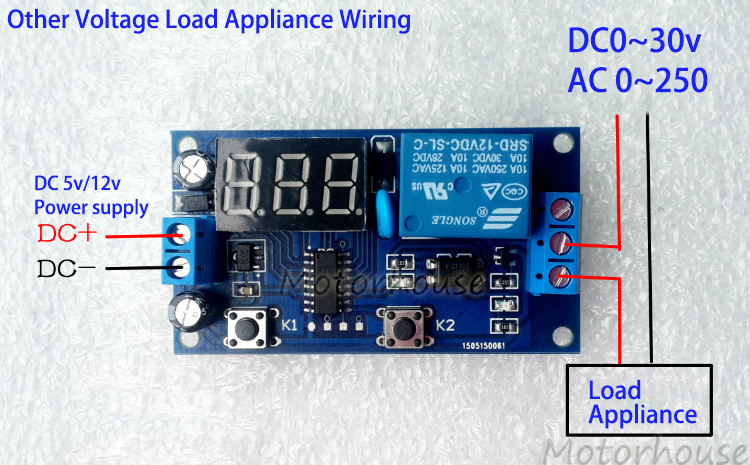

Wiring reference:







Package Include:


DC 5v or DC 12v Delay timer Switch
