Specifications:


1W

1W high-power Infra-red
Wavelength :940nm
Forward Voltage:1.2-1.7v
Forward Current: 350mA
Lens Color : Water Clear
Viewing Angle: 120-125degree

3W

3W high-power Infra-red
Wavelength :940nm
Forward Voltage:1.4-2.6v
Forward Current: 700mA
Lens Color : Water Clear
Viewing Angle: 120-140°

4W
 high-power Infra-red
Wavelength :940nm
Forward Voltage:1.4-2.6v
Forward Current: 700mA
Lens Color : Water Clear
Viewing Angle: 120-140°

5W 4CHIP

5W high-power Infra-red
Wavelength :940nm
Forward Voltage:1.8-2.4v
Forward Current: 1000mA
Lens Color : Water Clear
Viewing Angle: 120-140°

10W

10W high-power Infra-red
Wavelength :940nm
Forward Voltage:4.5-5v
Forward Current: 1000mA
Lens Color : Water Clear
Viewing Angle: 120-140°

20W

20W high-power Infra-red
Wavelength :940nm
Forward Voltage:14-16v
Forward Current: 1050mA
Lens Color : Water Clear
Viewing Angle: 120-140°

50W

50W high-power Infra-red
Wavelength :940nm
Forward Voltage:14-16v
Forward Current: 1750mA
Lens Color : Water Clear
Viewing Angle: 120-140°

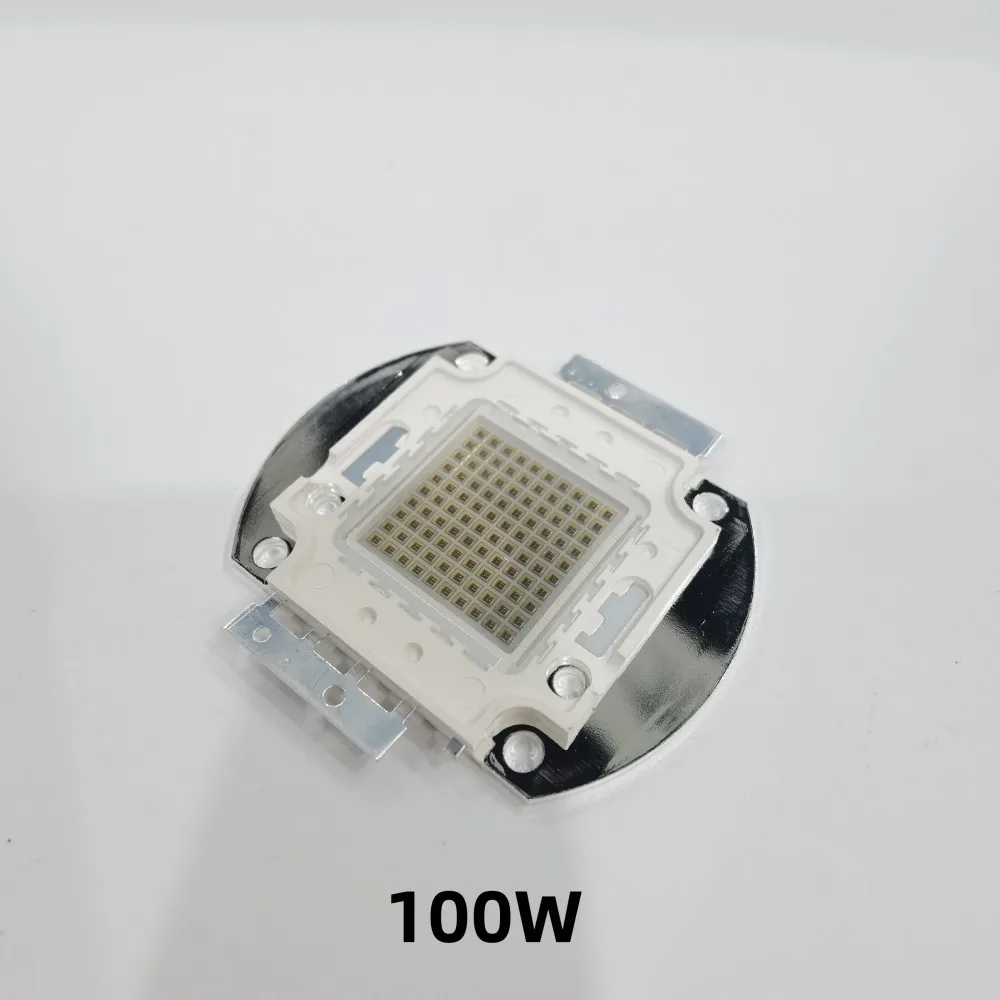

100W

100W high-power Infra-red
Wavelength :940nm
Forward Voltage:14-16v
Forward Current: 3500mA
Lens Color : Water Clear
Viewing Angle: 120-140°

Package Include:

led chip
