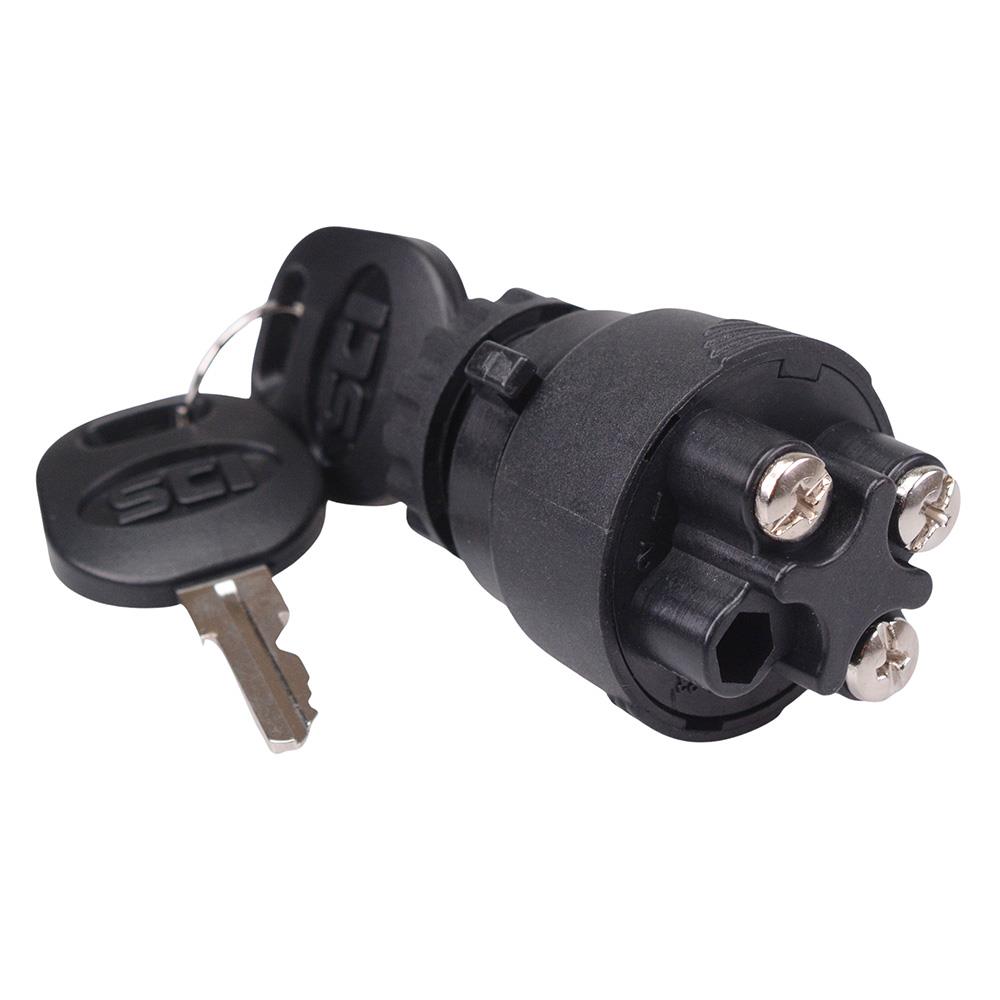

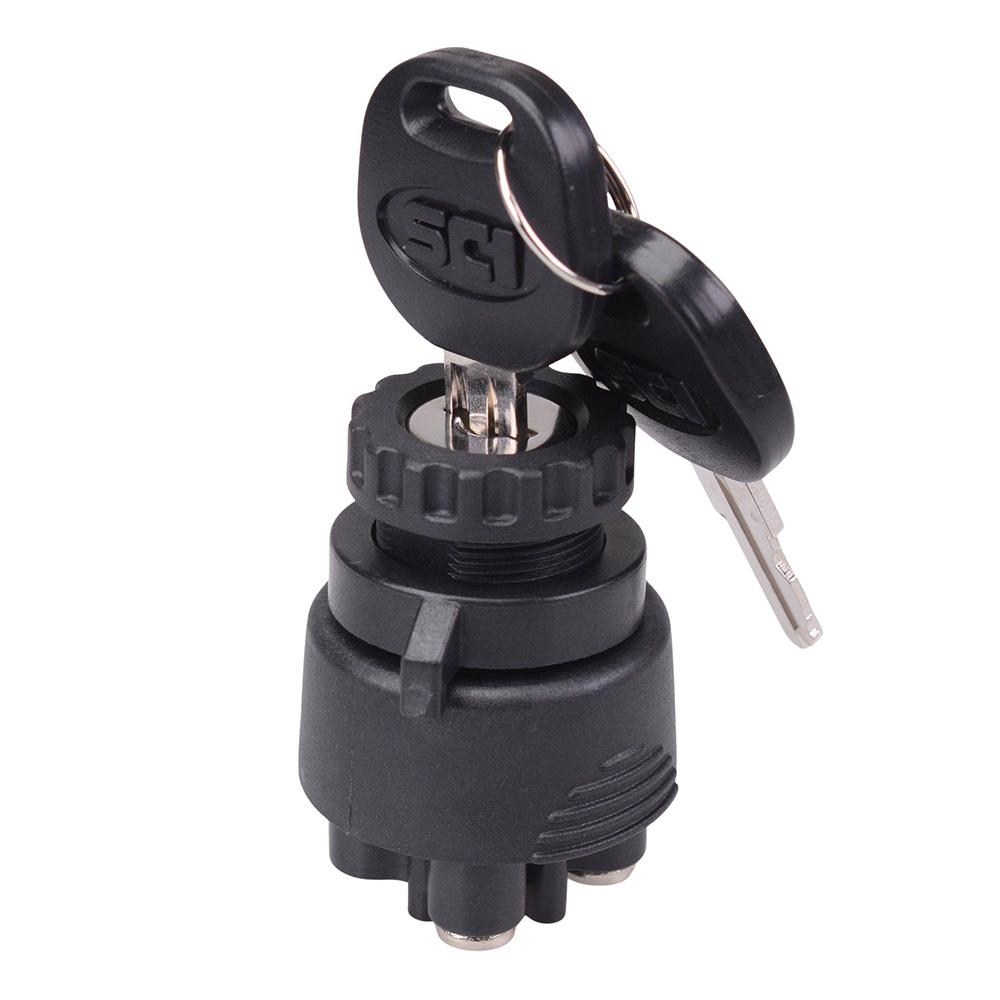

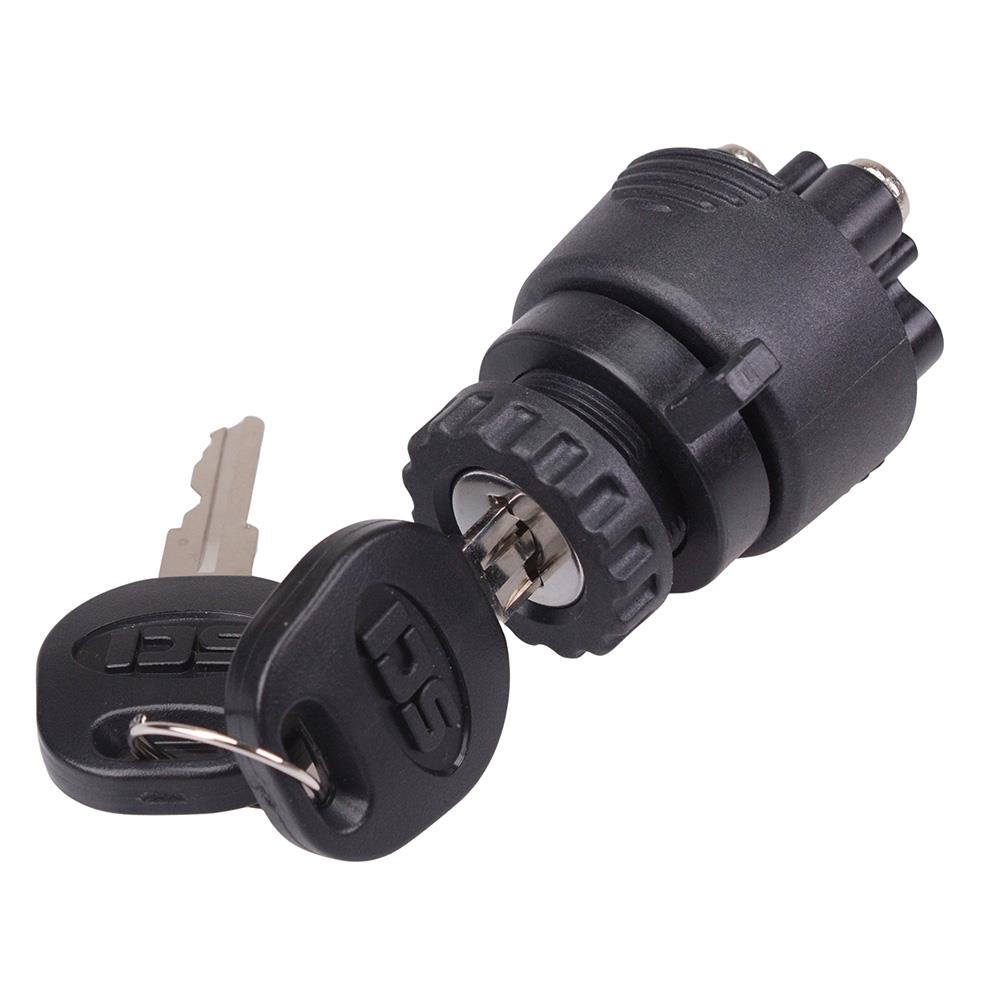

Off-On Automotive 22mm Key Switch 15A 12V K3-33A1-07

The K3-33A1-07 is an Off-On key switch featuring a black frame with a rugged yet reliable construction. The switch requires a 22mm panel cut-out and features a 15A current rating. The high current rating makes the switch suitable for a wide range of 12V automotive applications.

Off-On operation

Rating: 15A 12VDC

Panel cut-out: 22mm

Panel thickness: 5.5mm max

Terminals: M4 screw

Includes 2 keys

Dimensions: 51 x 37mm (height x diameter)
