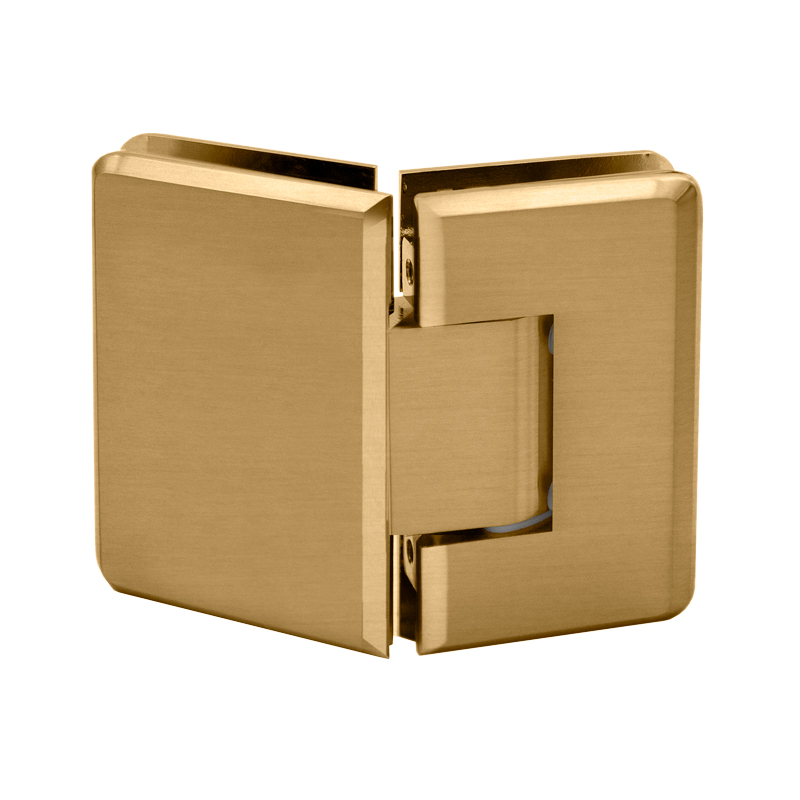

FHC Preston Series 135 Degree Hinge, Brass Material, Satin Brass Finish PRESA135SB FHC Preston Series 135 Degree Hinge, Brass Material, Satin Brass Finish
FEATURES
- Brass material construction with a Satin Brass finish for appearance.
- Designed for 135 Degree adjustable glass-to-glass mounting applications.
- Accommodates Glass Thickness from 3/8" to 1/2" Monolithic Tempered Glass.
- Features Self-Centering within 15 Degree of Closed Position for alignment.
- Maximum Door Weight capacity is 80 lbs with two hinges or 120 lbs with three.
- Includes Hinge, Glazing Gaskets, Hex Head Screws, and Fabrication Template.
- Overall Height measures 3-1/2", Hinge Width Door Side (Bottom) is 2-3/16".
DESCRIPTION
This FHC Preston Series hinge is constructed from Brass material with a Satin Brass finish, suitable for Residential Bath and Commercial Hotel Applications requiring Glass To Glass Mounting. The hinge has a Beveled profile and requires a Cutout Required: Yes. It features a dual degree pivot pin, factory set at 90 degrees, with a secondary field-adjustable setting allowing an additional 5 degrees of closing for positive positioning against a jamb or seal. It is designed for Monolithic Tempered Glass only. For 3/8" glass, the approximate weight is 5 lb; for 1/2" glass, the approximate weight is 6.4 lb. The hinge offers Self-Centering within 15 Degree of Closed Position. Maximum Door Weight capacity is 80 lbs with 2 hinges or 120 lbs with 3 hinges. Maximum Door Width is 28" with 2 hinges or 32" with 3 hinges. Key dimensions include an Overall Height of 3-1/2", Hinge Width Sidelite (Bottom) of 2-9/16", Hinge Width Door Side (Bottom) of 2-3/16", and Hinge Width Sidelite (Top) of 2-3/32". Included Items are the Hinge, Glazing Gaskets, Hex Head Screws, Crosshead Head Cover Plate Screws, and Fabrication Template. Care involves wiping dry daily with a soft damp cloth and mild liquid cleaner, then rinsing with warm water.
SPECS
| Finish | Satin Brass |
| Mounting Type | Glass To Glass |
| Material | Brass |
| Glass Thickness | 3/8" To 1/2" (10mm To 12mm) |
| Overall Height | 3-1/2" (89mm) |
| Closing Type | Self-Centering Within 15 Degree of Closed Position |
| Glass Type | Monolithic tempered glass |
| Profile | Beveled |
| Adjustable | Yes |
| Self-Centering | Yes |
| Maximum Door Weight - 3 Hinges | 32" (813mm) |
| Maximum Door Width - 2 Hinges | 28" (711mm) |
| Cutout Required | Yes |
| Hinge Angle | 135 Degree |
| Hinge Width Sidelite (Bottom) | 2-9/16" (65mm) |
| Hinge Width Sidelite (Top) | 2-3/32" (53mm) |
| Maximum Door Weight with 2 Hinges | 80 lbs |
| Maximum Door Weight with 3 Hinges | 120 lbs |
| Hinge Door Width Side (Bottom) | 2-3/16" (56mm) |
