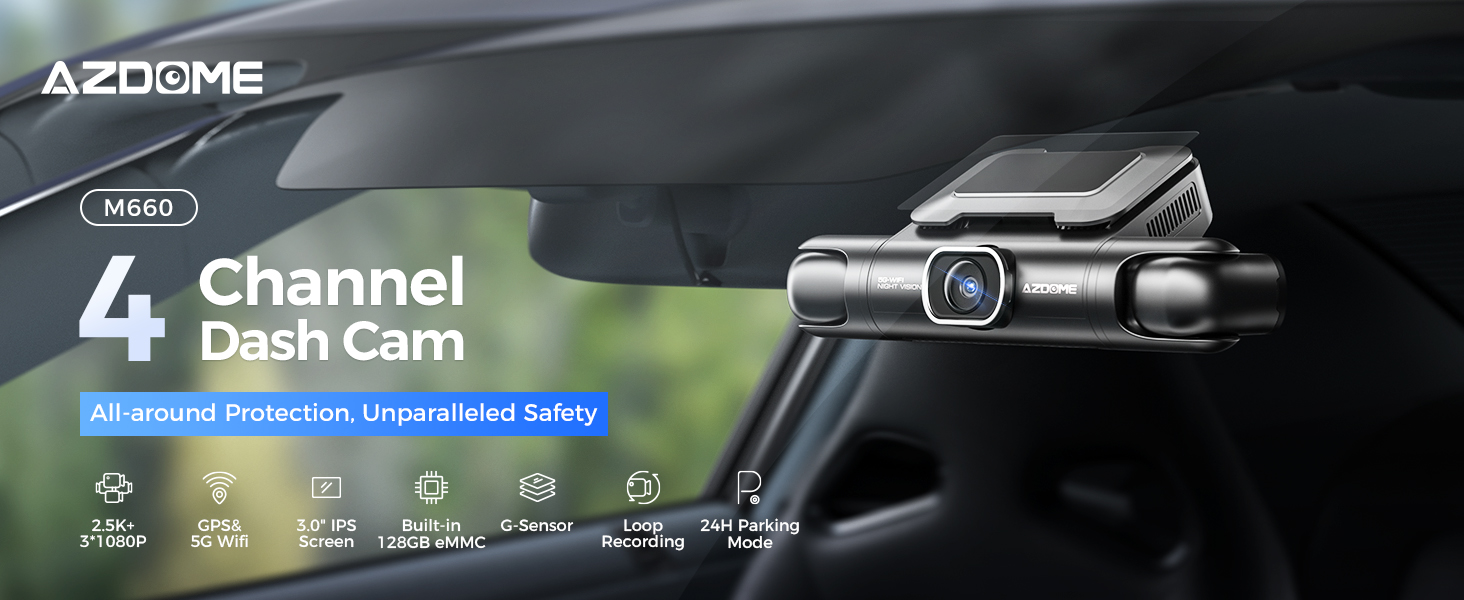

AZDOME 4-CH Dash Cam 360° Front+Left+Right+Rear Cameras with 128GB eMMC, 2K+1K+1K+1K Dashcam 5G WiFi GPS Dash Camera for Cars, IR Night Vision, Smart Voice Control, 24H Parking Mode, Fatigue Driving Reminder and Rear Cam Mirror, M660
About this item

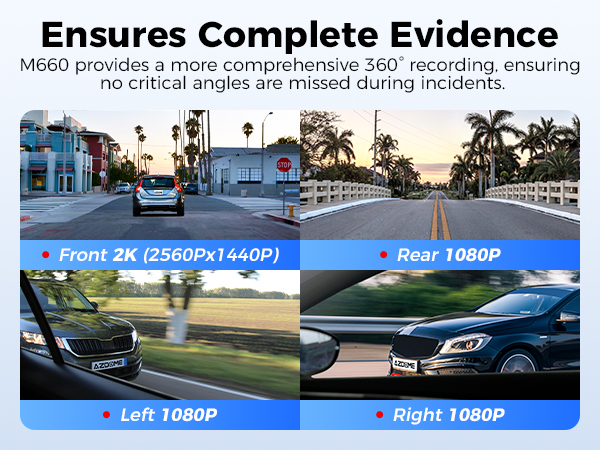

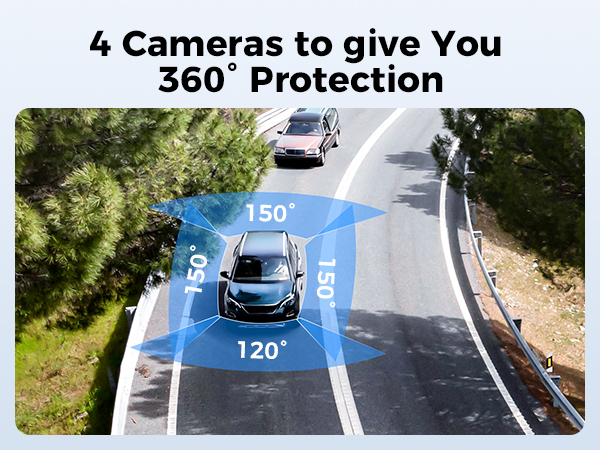

【360°Comprehensive Coverage】
AZDOME M660 dash cam features 4 channel recording that provides complete 360° coverage, eliminating any blind spots for driver. With a front dash cam of 2K and additional channels at 1K, every angle is captured in stunning detail.
1 CH:4K;
2 CH:4K+1K;
3 CH:4K+1K+1K;
4 CH:2K+1K+1K+1K

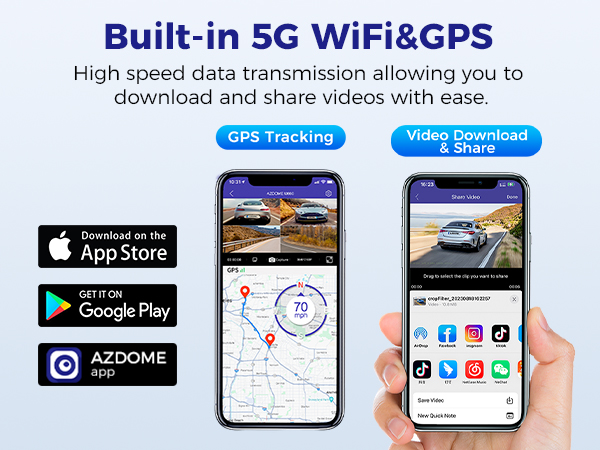

【5G WiFi High-Speed Access and GPS】
Experience download speeds up to 4 times faster than 2.4G WiFi with M660 4 channel dash cam, enabling users to download an 800MB video in just 13 seconds. Instantly access any content they need and share beautiful moments from their journeys directly to social media through the AZDOME APP. Enjoy seamless sharing of users' adventures! The GPS accurately records your vehicle's position (latitude and longitude), driving speed and route, giving you a comprehensive overview of your journey that you can easily access from your smartphone or computer.
【4 Adjustable Lenses】
Customize recording angles by adjusting the direction of the lenses. M660 360 dash cam captures clear footage from the front, rear, and both sides of the driver’s vehicle. AZDOME dash camera provides complete evidence for incidents like vandalism, theft, parking scrapes, and insurance fraud, ensuring the driver is covered in any situation.

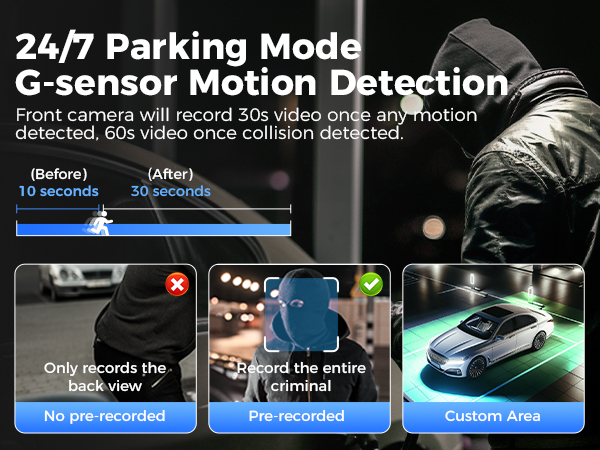

【24h Parking Monitoring】
The AZDOME M660 dashcam offers 3 parking modes:
1. Collision detection parking mode, G-sensor can detect the collision and lock the video.
2. Time-Lapse parking mode, the dash cam can record continuously for 24 hours.
3. Motion detection parking mode, car camera can detect motion and start recording automatically.
(To avoid fire, our product does not install a large capacity battery, so if you want it to work for you when the car is parked, you need to install a hard wiring kit. If you need it, you can buy it from this link: https://www.ebay.com/itm/256487986659 or https://www.ebay.com/itm/256004133341 ).
【Super Night Vision】
M660 left and right cabin cameras each feature 6 built-in IR LEDs, improving nighttime video quality and ensuring clear capture of all recording details in low-light conditions.

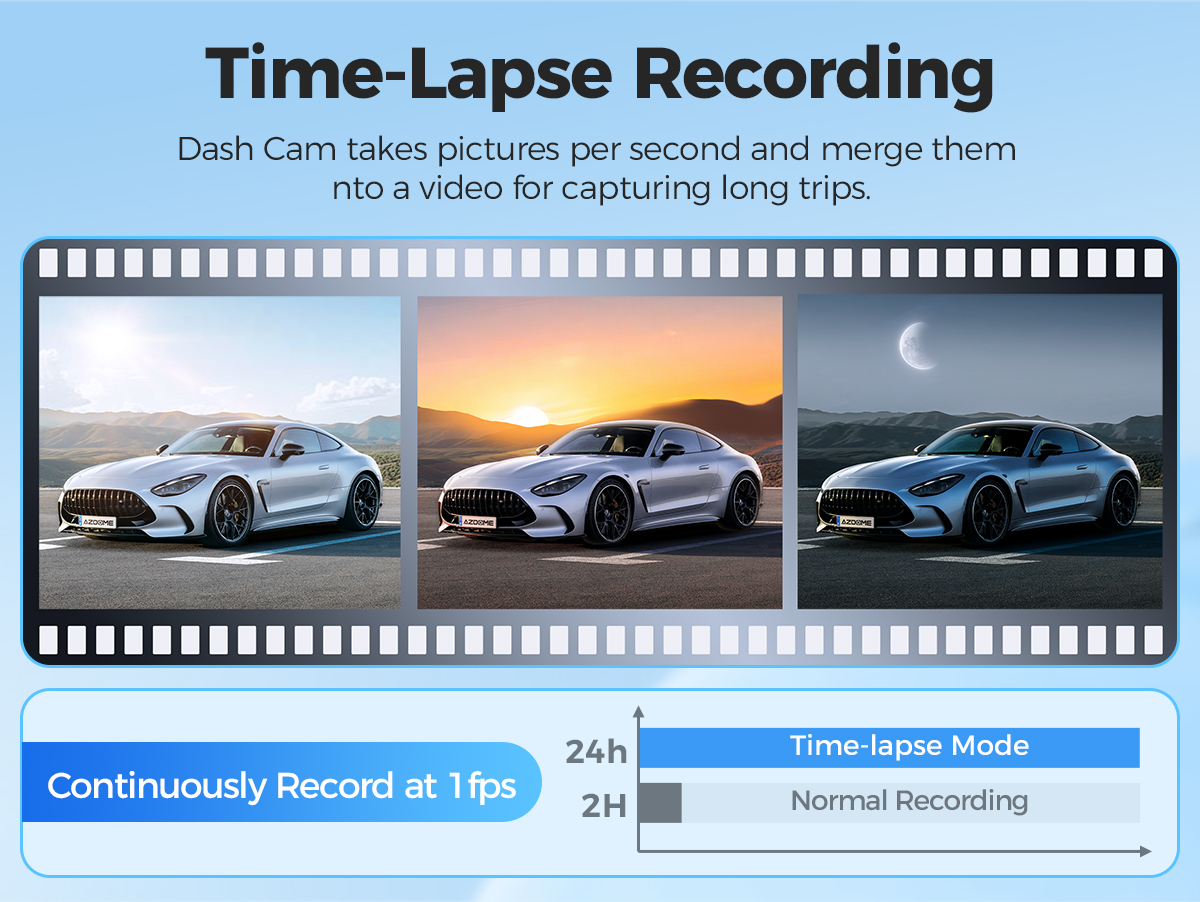

【Time-lapse Recording】
When you turn OFF the car's engine and turn the key to the lock position. Then the camera will STOP the continuous video recording and it will go into the timelapse 1fps recording mode automatically. Time-Lapse Video allows you to capture specific images per second at a much lower rate. So when you combine and play those images at the normal rate, everything seems to be moving faster in time lapse.

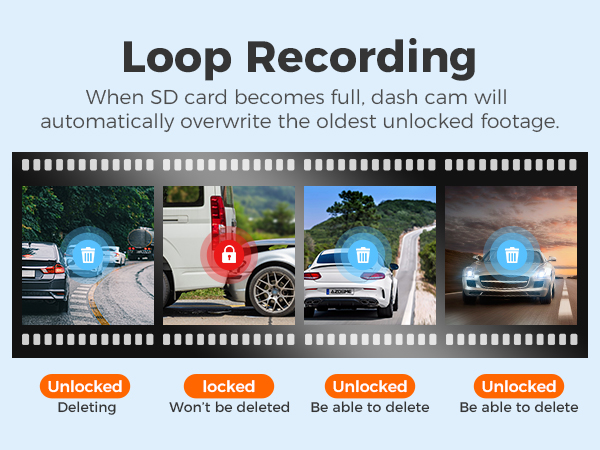

【Loop Recording-1 Minutes(Default)/2 Minutes/3 Minutes】
Loop recording has the functions of continuous recording, space saving and convenient management. You can choose the recording period according to your needs（1/2/3min）. By continuously overwriting old recordings, loop recording can effectively use the storage space and reduce the waste of memory card capacity. Loop recording ensures that the dash cam continuously records and saves the latest driving footage without the need to manually clean up the storage space or replace the memory card.

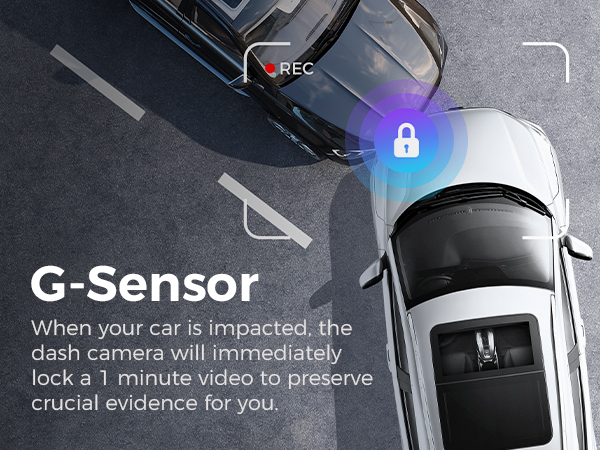

【G-Sensor】
The sensor used by Dashcam is a 3 -axis impact gravity acceleration meter used to detect the physical and gravity effects of the camera. Once the G-sensor is triggered, the current video file will be locked as an emergency file to ensure that it will not be deleted by the recording function.
【Smart Voice Control】
With the voice command functionality of the M660 dashboard camera, users can operate the dash cam hands-free. This camera for cars enhances safety by allowing drivers to focus on the road while still being able to control the device.
【Fatigue Remind-Off(Default)/ 1/2/4 Hours】
When dashcam working for 1/2/4 hours, a sound will be made to remind you to be awake. This function aims to warn you to take a break to ensure driving safety. Please note that continuous driving may cause fatigue for a long time, so it is recommended to stop and rest at the appropriate time to maintain alertness and safety.
【Built-in 128GB eMMC】
Compared to other dash cams, AZDOME M660 built-in128GB storage makes the dash cam easier to use and long-lasting, featuring a 10 x Lifespan of SD Cards, and with high reading and writing speed. NO SD CARD ERROR problem anymore.
【Built in Super Capacitor】
Built to survive extreme weather conditions from -4°F (-20°C) ~ 158°F (70°C) to meet the needs of extremely hot or extremely cold areas. Providing a longer life-span than lithiumion battery dash cams in the market so that nothing can stop you from exploring your next destination.
Specifications
| Model | M660 | Number of Cameras | MP4 |
| Hersteller | AZDOME | Video Resolution | 1 CH:4K; 2 CH:4K+1K; 3 CH:4K+1K+1K; 4 CH:2K+1K+1K+1K |
| Number of Cameras | 4 (Front+Left+Right+Rear) | Type： | AZDOME M660 360 Dash Cam |
| Screen Size | 3.0" IPS | Wi-Fi | Built-in 5GHz/ 2.4GHz Wi-F |
| Aperture | F=1.8 | Memory card | 128GB (Built-in 128GB eMMC Storage) |
| G-Sensor | Support | Warranty | 1 Year |
| Product Dimensions | 8 x 2.5 x 7 inches | Item Weight | 2.64 pounds |
| Language | English/Français/Español/Português/Deutsch/Italiano/简体中⽂.etc | Battery pack | Super Capacitor |
| Wide angle lens | 360° | Working temperature | -20°C to 70°C |
| Picture format | JPG | Storage temperature | -30~75℃ |
Warm Tips
✨ Battery is mainly used to save files in emergency. Please always connect Dash Cam to external power while it is in use.
✨ The 128GB eMMC (Embedded Multi Media Card) is built in the AZDOME dash cam for storage.No need to purchase additional SD card.
✨ If no activity is detected within 1 minute, the device will enter screen saver mode. Pressing any button will reactivate the screen. You can disable this function by turning off the backlight setting.
✨ Please do not activate motion detection function while driving (this function is only suitable for use when parking. If this function is activated during normal driving, it will interfere with the normal recording of the recorder and may cause the device to turn on or off automatically.
✨ At AZDOME, our goal is to continue working hard to provide you with innovative hardware & software for the camera to give you that personalized experience. We offer updates for camera firmware, software, iOS & Android app improvements regularly for FREE.
✨ This dash camera for cars is backed by full 1-YEAR WARRANTY. You can text us for (Faster Response) or Email our customer service and we will answer all your questions and resolve any issues quickly. If you are having any doubts, it comes with a FULL REFUND within 30 DAYS.

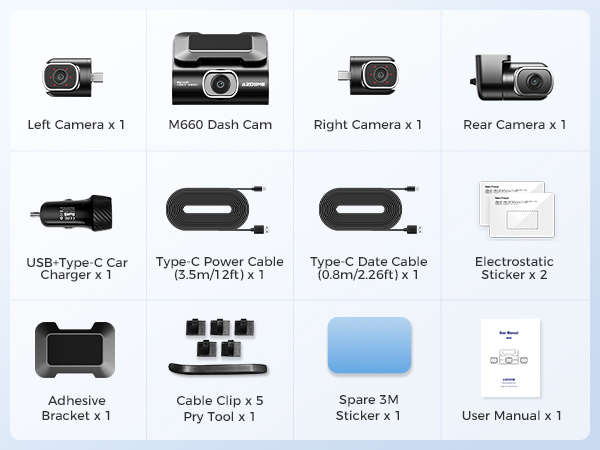

M660 Standard Packaging List
M660 Dash Cam
Left Camera x1
Right Camera x1
Rear Camera x1
USB+Type-C Car Charger x1
Type-C Power Cable (3.5M/12ft) x1
Type-C Date Cable (0.8M/2.62 ft) x1
Adhesive Bracket x1
Sprae 3M Sticker x1
Electrostatic Sticker x2
Cable Clips x5
Pry Tool x1
User Manual x1

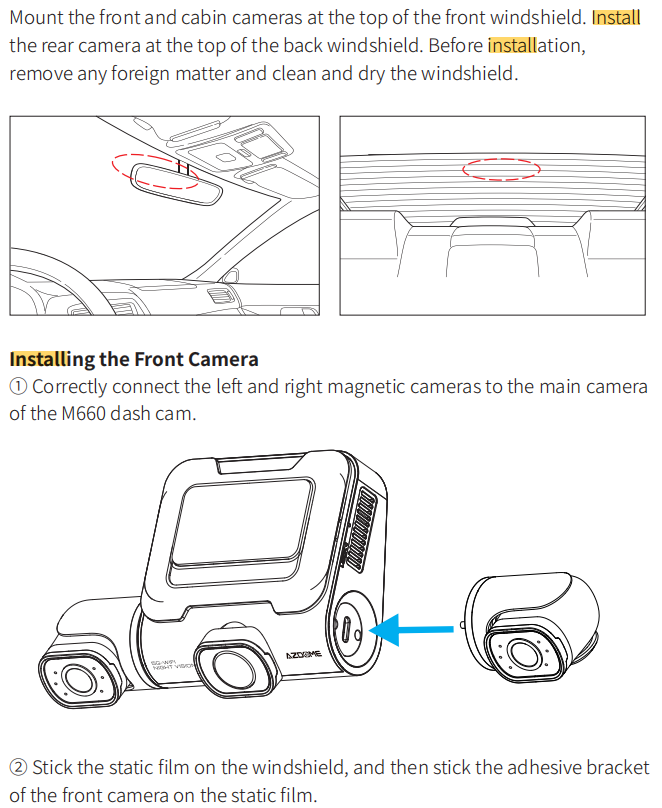

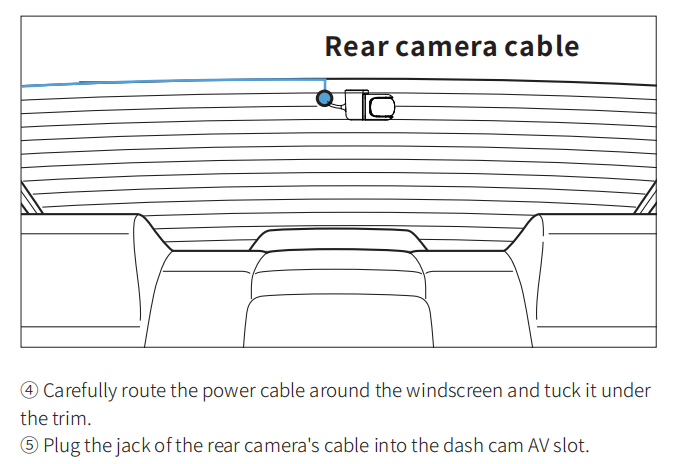

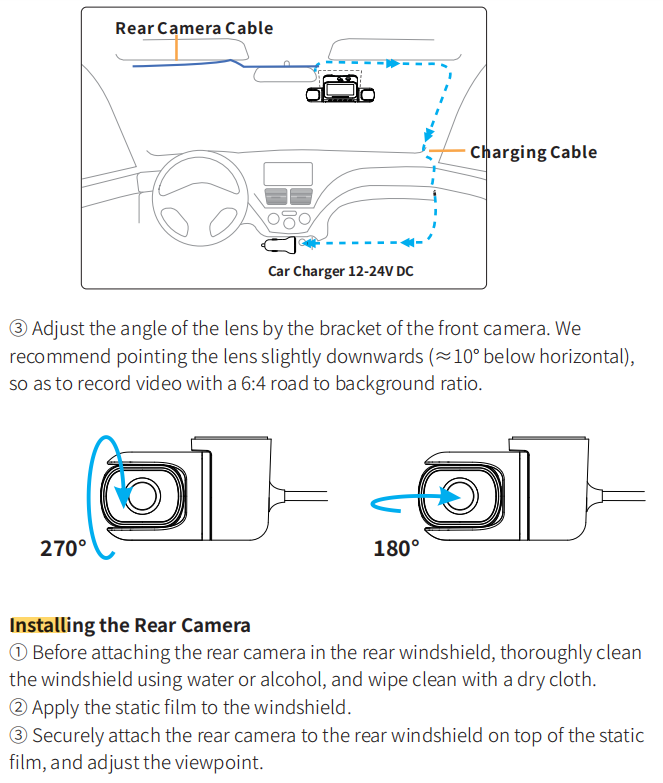

Easy to install
You can install it yourself according to the instructions in the manual without hiring a professional, which can save you installation costs.

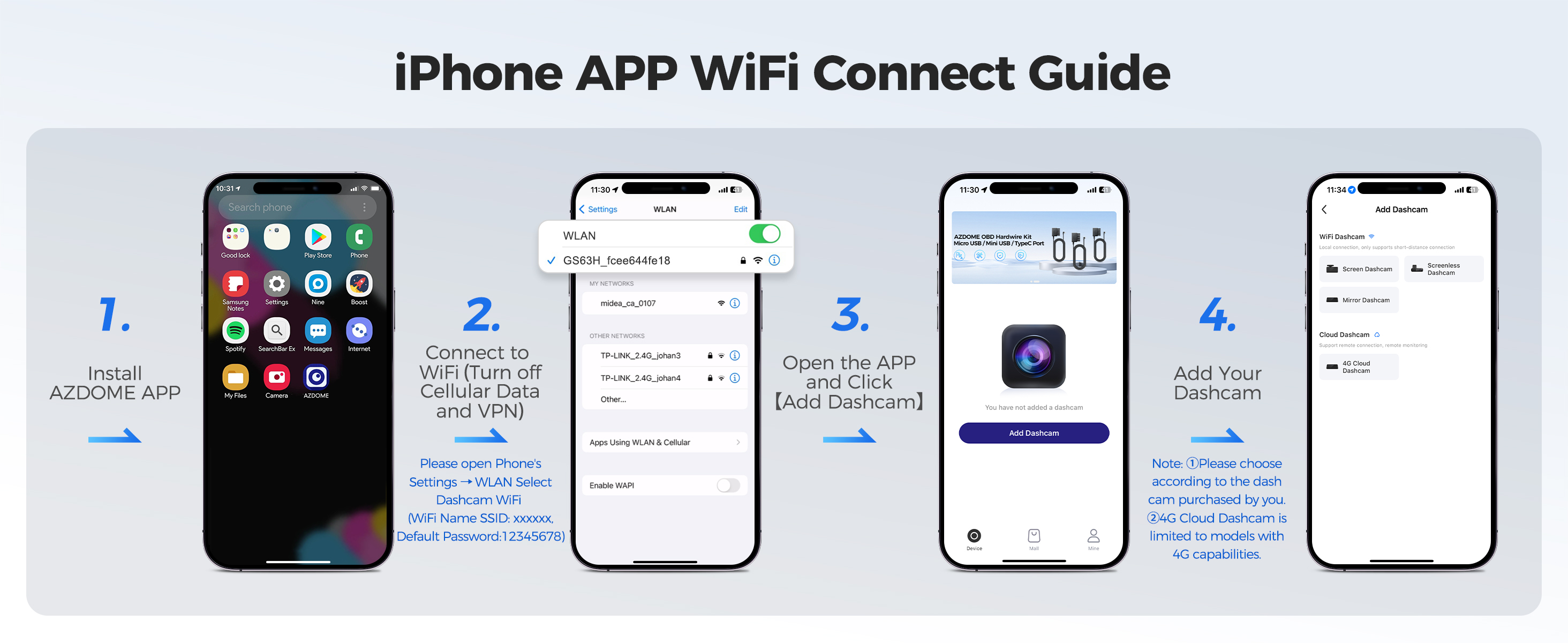

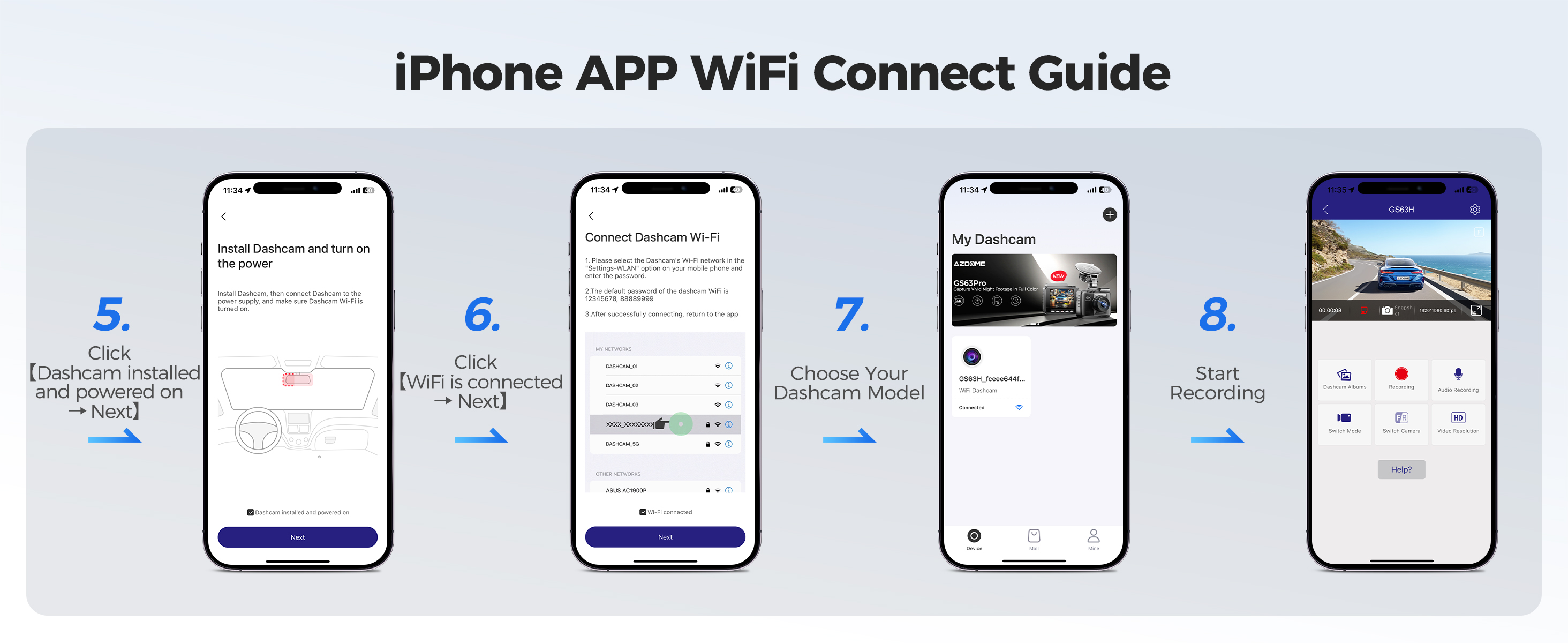

How to connect to WiFi？
The content of the following two pictures and videos can help you to connect the WIFI of the car recorder, if there are more questions about this step, please contact customer service, thank you!
Customer questions & answers
Q1: What is a WiFi Feature?
A: The WiFi feature has been designed so you can pair your dash camera wirelessly with your smartphone and access your recording instantly from the dash cam. Here you can view, download and share your videos easily with your friends and family. Just like how you would connect your Bluetooth speaker to your smartphone for wireless music play, the same way dash cameras use WiFi signal (instead of a Bluetooth) to pair your smartphone with AZDOME M660.
Q2: Can I watch the videos around my car remotely?
A: NO.AZDOME M660 dash cam is NOT made to broadcast footage over the cloud or internet. It is NOT a cloud or an IP camera and it is NOT meant to do that. You can get live video and footage on AZDOME dash cam's APP as long as you stay within the 10FT range from the dashcam.
Q3: What is the WiFi Range?
A: The WiFi signal range is about 10FT when there are NO obstructions in the middle. Please NOTE that just like your home WiFi network, you don't have WiFi signal outside your home, the same way, WiFi range is 10FT from this small device.
Q4: Camera turns ON/ OFF automatically?
A: To ensure optimal performance, please use our car charger and confirm that the output current reaches 5V/3A. Additionally, make sure to correctly connect both the cabin camera and rear camera for improved stability. Note that if different cameras are detected, the dashcam will automatically reboot once to maintain consistency.
Q5: It does not support micro SD card?
A: The 128GB eMMC (Embedded Multi Media Card) is built in the AZDOME dash cam for storage. It does not require a micro SD card.
Q6: Camera gets HOT?
A: It is normal for your camera to run slightly hot. Due to video being recorded at high speed, the dash cam may be hot during using. (No more than 158°F/70°C).
Q7: No power to my Dash Cam but it works upon my computer?
A: The cigarette power cable is not working. Inspect the fuse in the Car Power Cable plug. If the fuse is found to be blown, inspect the power cable for damage which may have caused the fuse to blow.
Q8: The sound is not synchronised with video during playback?
A: The Codecs upon your PC may not be compatible or the latest standard. Download the latest AZDOME GPS Player from www.azdomes.com> Support>Downloads.
Q9: Video Files cannot be played on my computer?
A: The video files from the Dash Cam are in MP4 format and may not be compatible with your PC if suitable playback software is not installed.
Q10: Video has no sound?
A: Ensure that ‘Record Audio’setting is turned ON. Press once the UP Button while the video is recording, and it will Mute the built-in microphone. Ensure that ‘Timelapse Record’setting is turned OFF within the Menu.
Q11: I can not delete files on my Dash Cam?
A: Check to see if these filesare‘locked’. If so please follow instructions to ‘un-lock’.
