Description

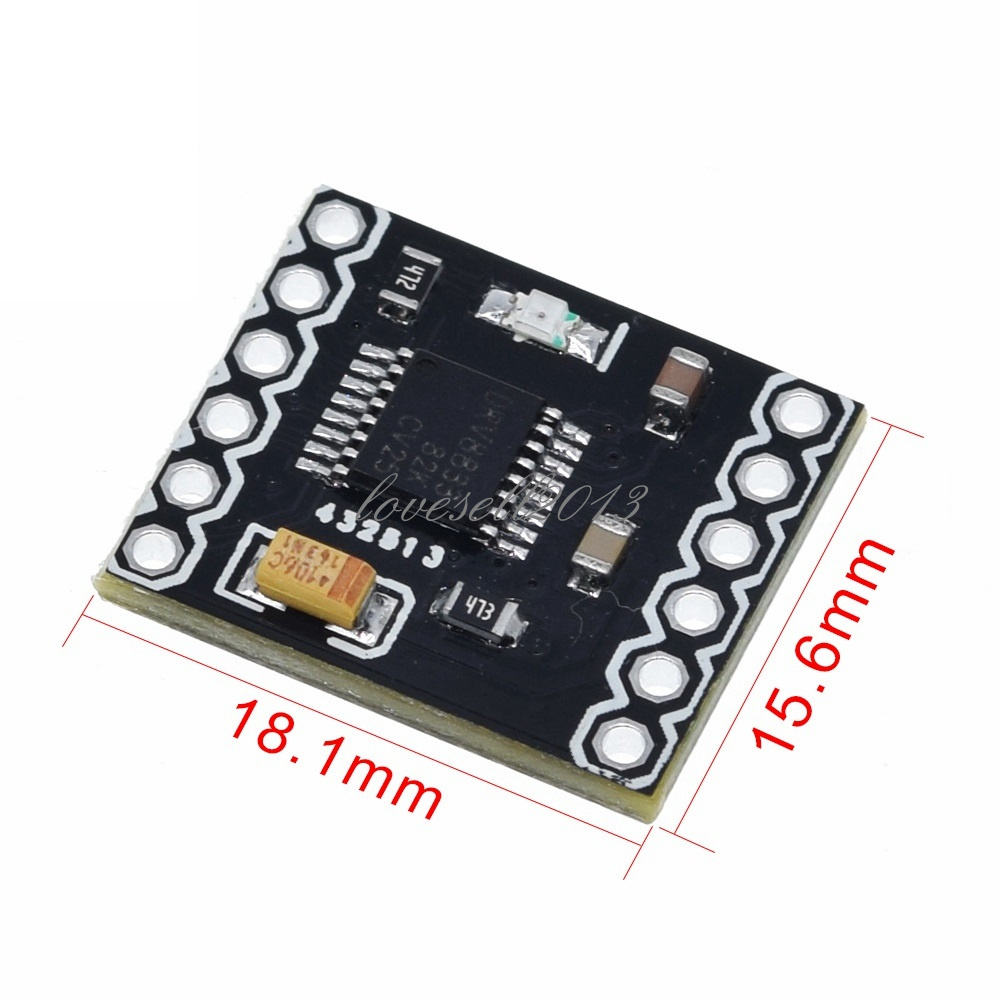

Board Size: 18.5 * 16mm
Input voltage: 3--10V
Single H-bridge output current: 1.5A, can drive two DC gear motors.
Built-in over-current protection, short circuit protection, undervoltage lockout and overtemperature protection. With a low-power sleep mode.
Applicaion: can drive 1.5A or less DC motor and 4-wire stepper motors
Board Size: 18.5 * 16mm
Input voltage: 3--10V
Single H-bridge output current: 1.5A, can drive two DC gear motors.
Built-in over-current protection, short circuit protection, undervoltage lockout and overtemperature protection. With a low-power sleep mode.
Applicaion: can drive 1.5A or less DC motor and 4-wire stepper motors

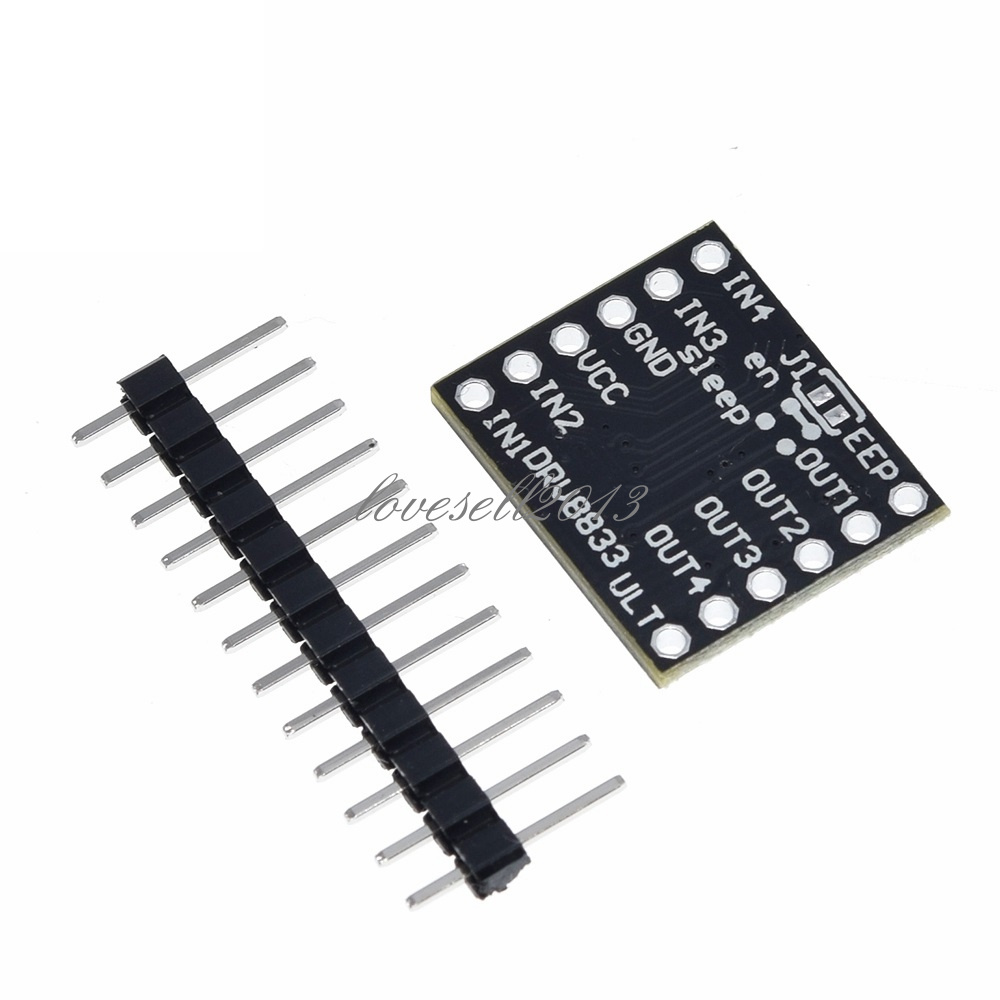

Pinout:
ULT: low sleep mode (need to disconnect the rear of the module J2 shorted solder joints)
OUT1,0UT2 :1 channel H-bridge, the corresponding control IN1, IN2.
OUT3,0UT4 is a second road H-bridge, the corresponding control IN3, IN4.
EEP to protect the output, not the default.
VCC :the input voltage 3 to 10V
GND: Ground.
Package includes:

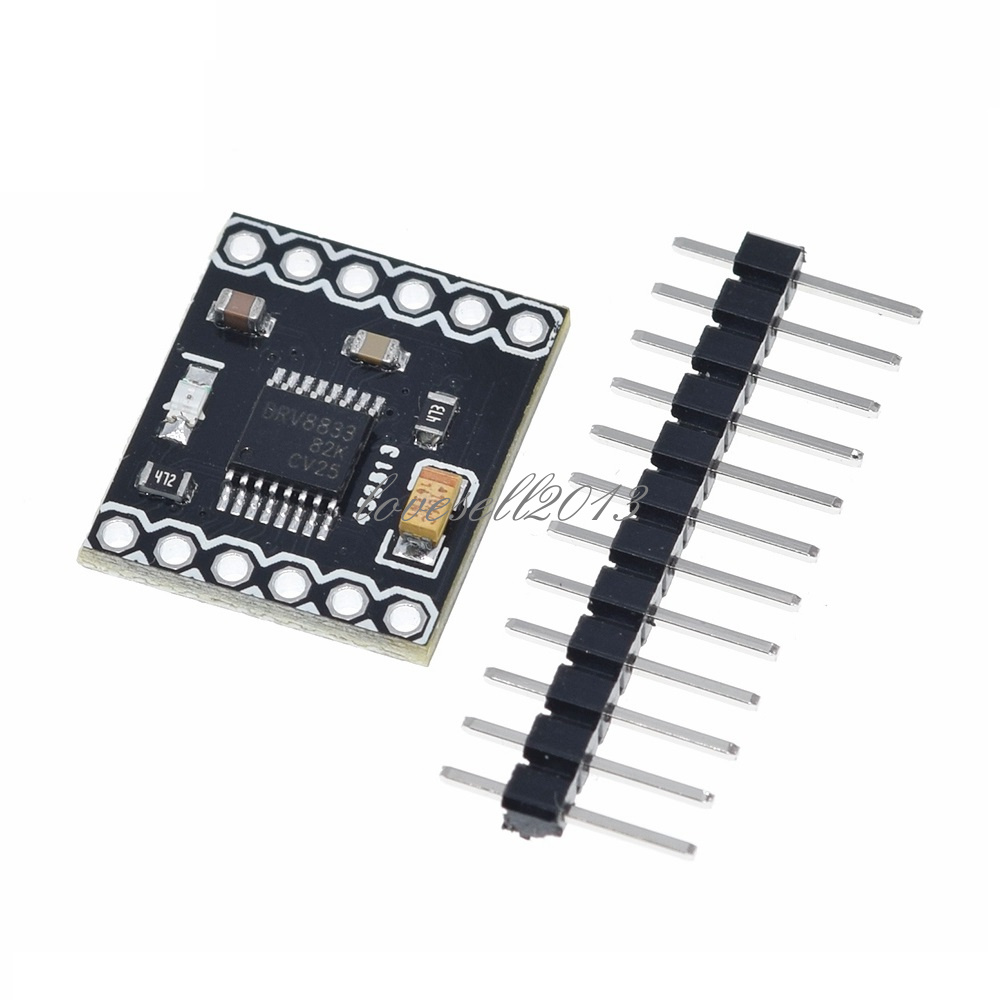

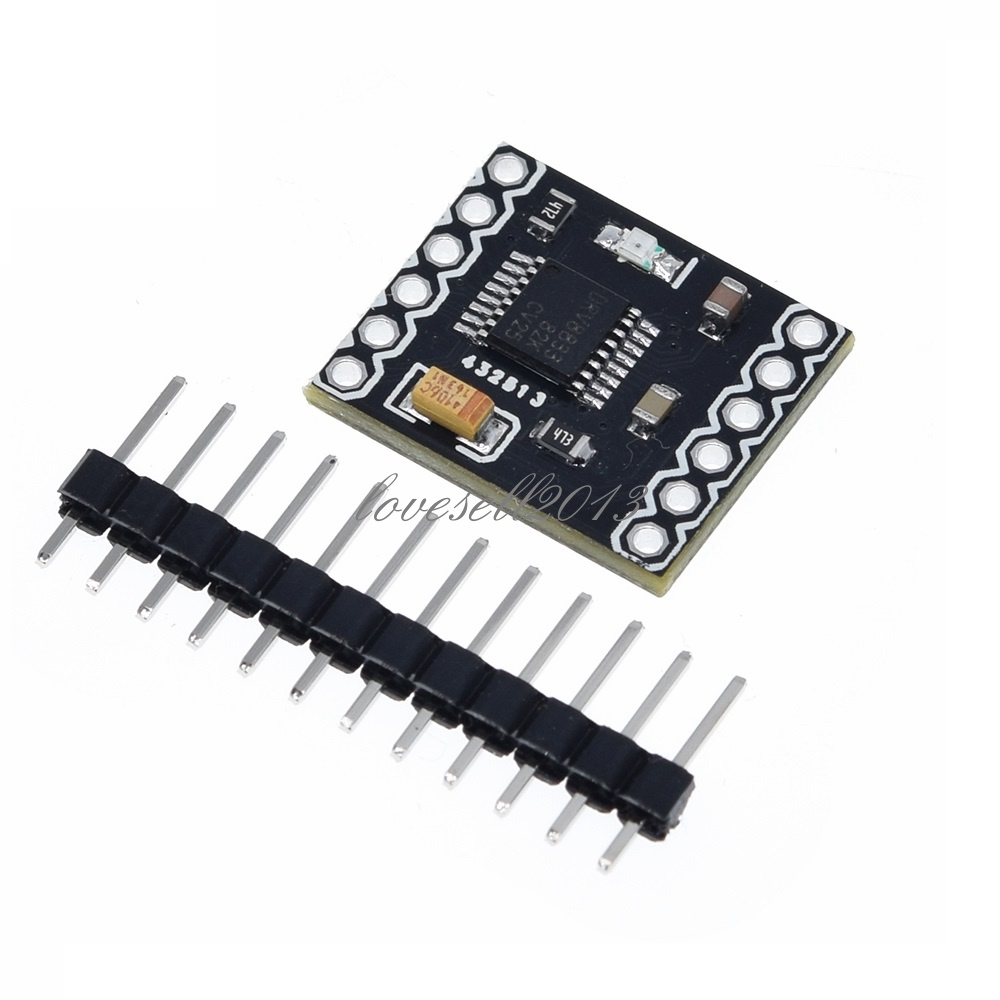

1PCS DRV8833 2 Channel DC Motor Driver Module for Arduino NEW
ULT: low sleep mode (need to disconnect the rear of the module J2 shorted solder joints)
OUT1,0UT2 :1 channel H-bridge, the corresponding control IN1, IN2.
OUT3,0UT4 is a second road H-bridge, the corresponding control IN3, IN4.
EEP to protect the output, not the default.
VCC :the input voltage 3 to 10V
GND: Ground.
Package includes:
1PCS DRV8833 2 Channel DC Motor Driver Module for Arduino NEW
