Description:

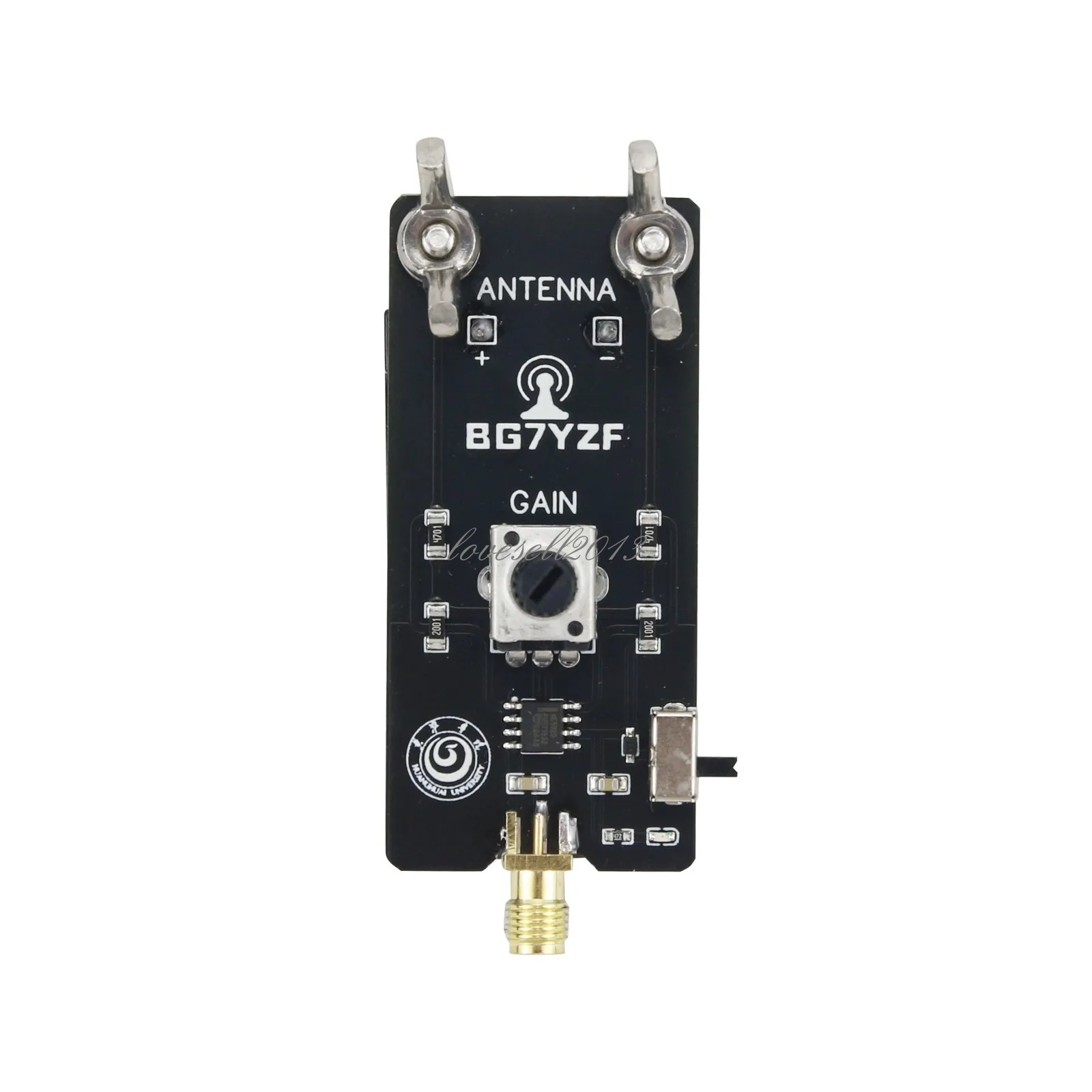

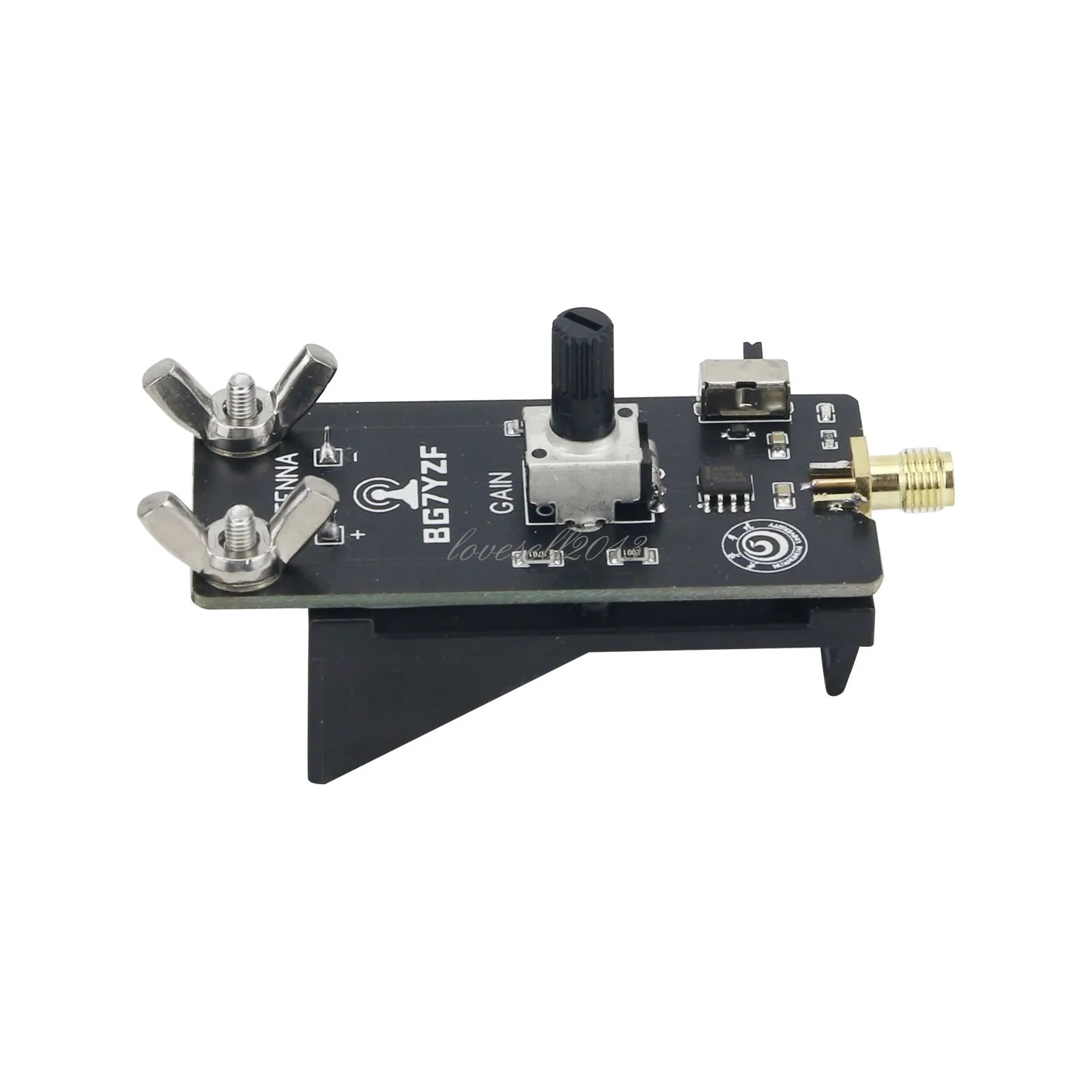

This is an entry-level portable active small loop antenna. It adopts the mainstream NE592 chip solution in the industry, with small size and powerful performance. It is suitable for all kinds of radios and SDR receivers, and convenient to set up antennas indoors and outdoors.

Specifications:
- Amplifier chip: NE592
- Working voltage: 6-10V
- Working current: 14-16mA
- Ring diameter: 30-40cm/11.8-15.7"

Recommended Receiving Band:
- MW: 526.5kHz-1606.5kHz
- Shortwave: 3-30MHz
- FM: 87-108MHz
- Aviation: 116-136MHz

Package Included:

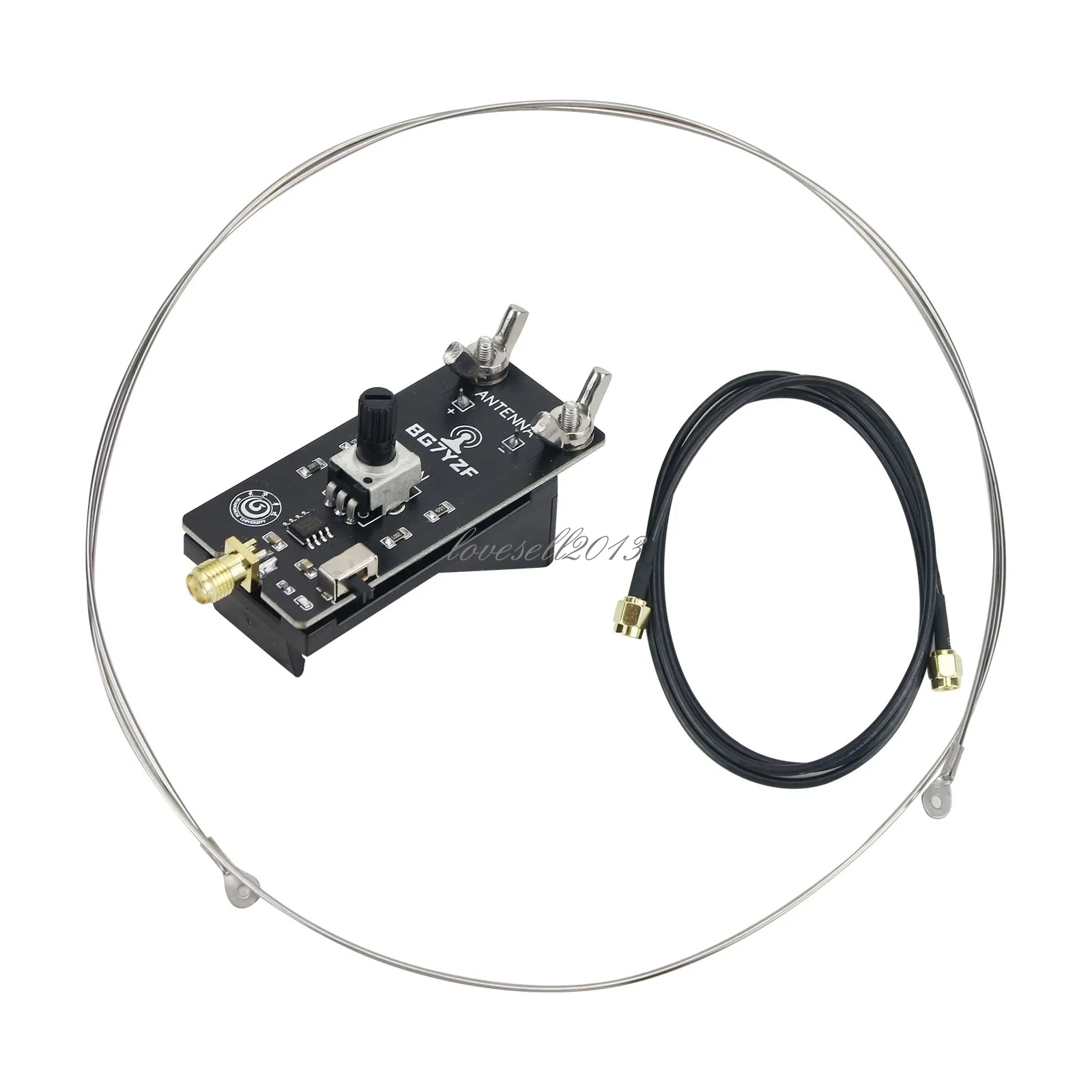

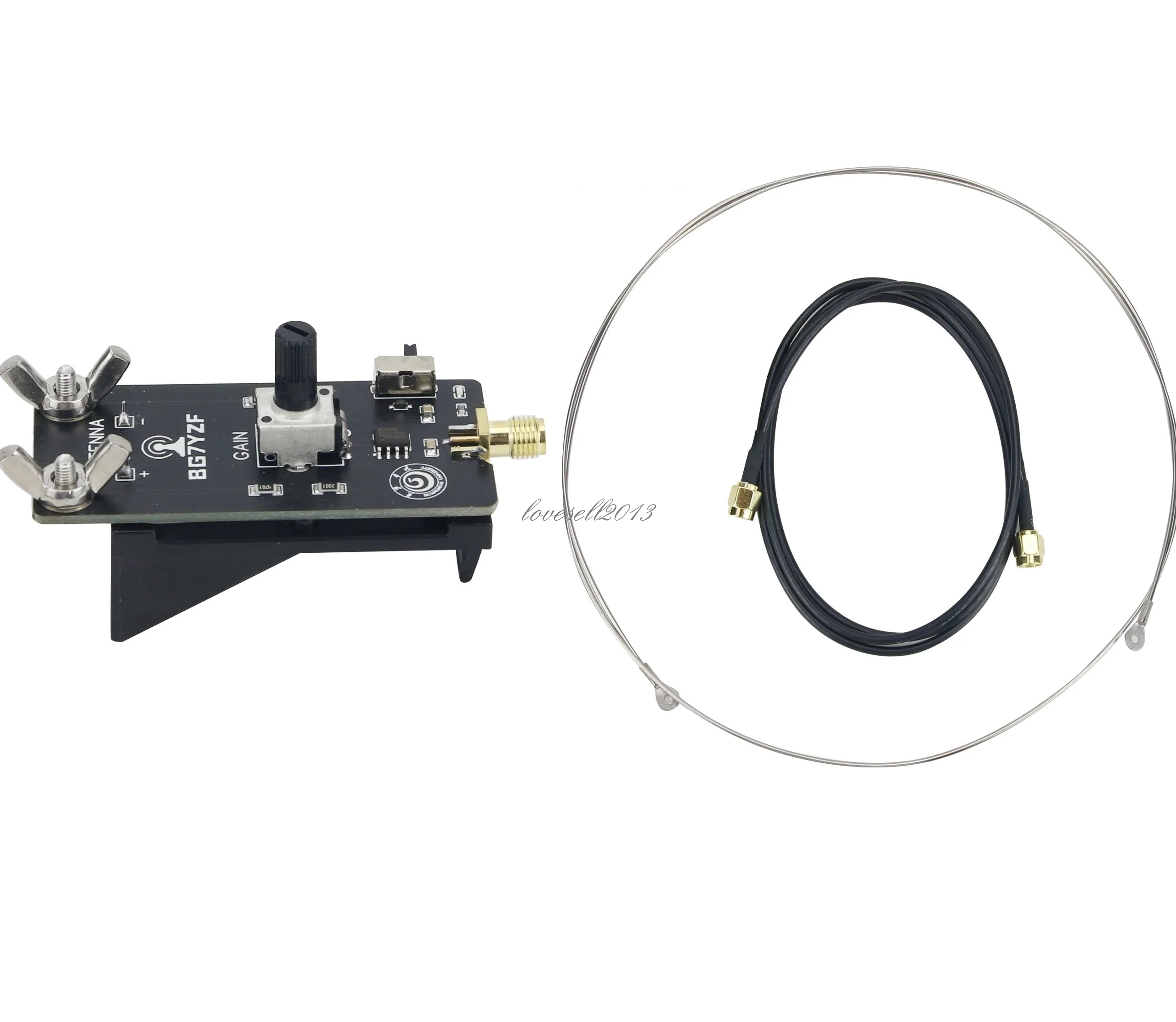

- 1 x Ring
- 1 x 1M/3.3FT Feeder
- 1 x Battery Holder

Note:
- Battery is not included. 6F22 9V battery is recommended.

Attention:
Basements, steel structure houses, lively streets, factories, workshops, etc. are places with poor electromagnetic environment. Places near electrical appliances such as switching power supplies, routers, induction cookers, and electric vehicle chargers are also places with poor electromagnetic environments. When you are going to put up the antenna, the above environment should be avoided as much as possible. On the contrary, the environment such as high-rise windows, roofs, and open fields are for radio reception activities.
