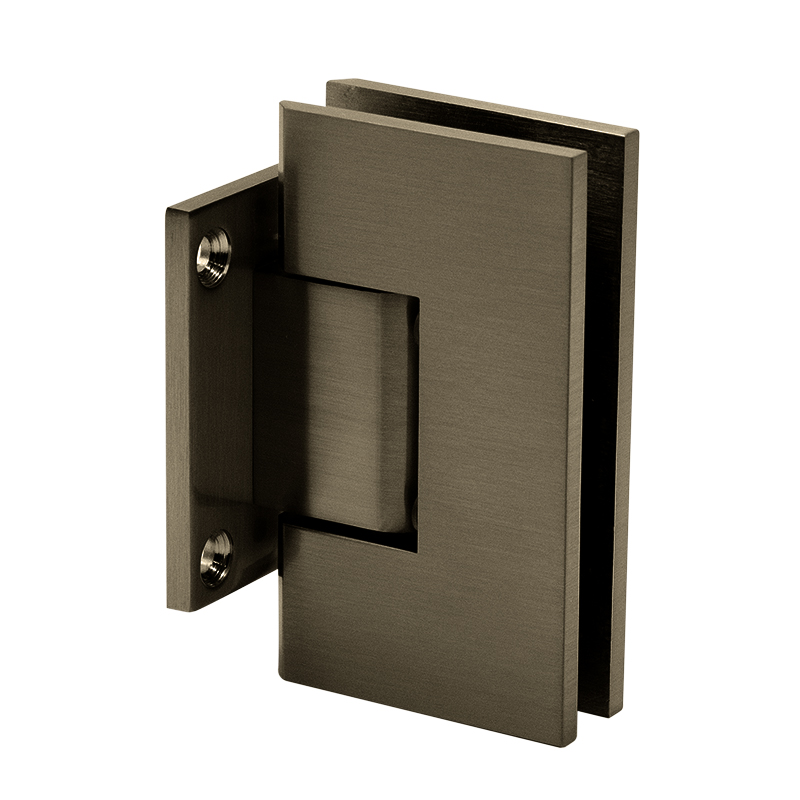

FHC Venice Series Hinge, Brass Material, Short Back Plate, Brushed Bronze Finish VENS2BBRZ FHC Venice Series Hinge, Brass Material, Short Back Plate, Brushed Bronze Finish
FEATURES
- Constructed from Brass material for structural components.
- Features a Brushed Bronze finish for aesthetic appeal.
- Designed for glass thickness ranging from 3/8" to 1/2".
- Self-Centering Closing Type within 15 Degree of Closed Position.
- Supports a Maximum Door Weight of 110 lbs using 2 hinges.
- Overall Hinge Height measures 3-15/16" and Backplate Height is 2-3/4".
- Includes hinge, gaskets, mounting screws, and fabrication template.
DESCRIPTION
This FHC Venice Series Wall Mount Hinge features a Short Back Plate design and is constructed from Brass material. It is suitable for shower doors in Residential Bath and Commercial Hotel Applications. The hinge requires Tempered Safety Glass and accommodates glass thickness from 3/8" to 1/2" (10 to 12mm). The design incorporates a Dual Degree Pivot Pin, factory set to 90 degrees for normal door closing. The Closing Type ensures the door is Self-Centering Within 15 Degree of Closed Position. Two hinges support a Maximum Door Weight of 110 lbs; three hinges support up to 140 lbs Critical dimensions include an Overall Hinge Height of 3-15/16" (100mm), a Backplate Width of 2-1/8" (54mm), and a Backplate Height of 2-3/4" (70mm). The Glass Gap is 7/16" (11mm), and the Hinge Width is 2-5/16" (59mm). Included components are the hinge, glazing gaskets, wall mounting screws, hex head/cross-head cover plate screws, and a fabrication template. This component is presented in a Brushed Bronze finish.
SPECS
| Finish | Brushed Bronze |
| Material | Brass |
| Hinge Width | 2-5/16" (59mm) |
| Glass Thickness | 3/8" to 1/2" (10 to 12mm) |
| Back Plate | Short Back Plate |
| Closing Type | Self-Centering Within 15 Degree of Closed Position |
| Maximum Door Width | 36" (914mm) |
| Backplate Height | 2-3/4" (70mm) |
| Backplate Width | 2-1/8" (54mm) |
| Overall Hinge Height | 3-15/16" (100mm) |
| Factory Pivot Pin Setting | 90 Degrees for Normal Door Closing Applications |
| Glass Gap | 7/16" (11mm) |
| Glass Type Required | Tempered Safety Glass |
| Maximum Door Weight with 2 Hinges | 110 lbs |
| Maximum Door Weight with 3 Hinges | 140 lbs |
| Pivot Pin | Dual Degree |
| Mounting Type | Wall Mounted |
| Construction | Solid Brass |
| Maximum Door Weight | 2 Hinges/110 lb, 3 Hinges/140 lb |
| Product Height | 3-15/16" |
| Product Width | 2-5/16" |
| Profile | Square |
| Plate Type | Short Back Plate |
| Color/Finish | Brushed Bronze |
| Product Type | Wall Mount Hinge |
| Door Material | 6654 |
| Compare To | V1E074BBRZ HMGTWVB |
| Glass Specifications | Tempered Glass Only |
| Air Freight | Ships Air |
