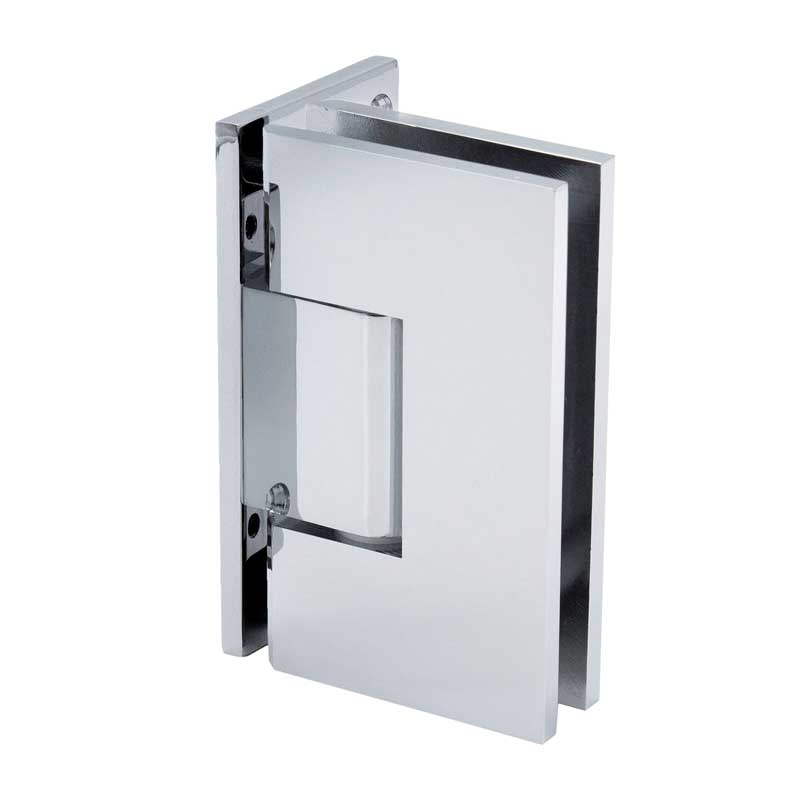

FHC Venice Adjustable Hinge, Brass Material, Polished Chrome Finish VENA05CH FHC Venice Adjustable Hinge, Brass Material, Polished Chrome Finish
FEATURES
- Material is Brass with Stainless Steel Back Plate and polished chrome finish
- Adjustability allows for an additional 5 Degree Close in the field.
- Hinge is Self-Centering within 15 Degree of the Closed Position.
- Accommodates Glass Thickness from 3/8" to 1/2" Tempered Safety Glass.
- Maximum Door Weight capacity is 110 lbs using two hinges.
- Maximum Door Width supported by this hinge setup is 36".

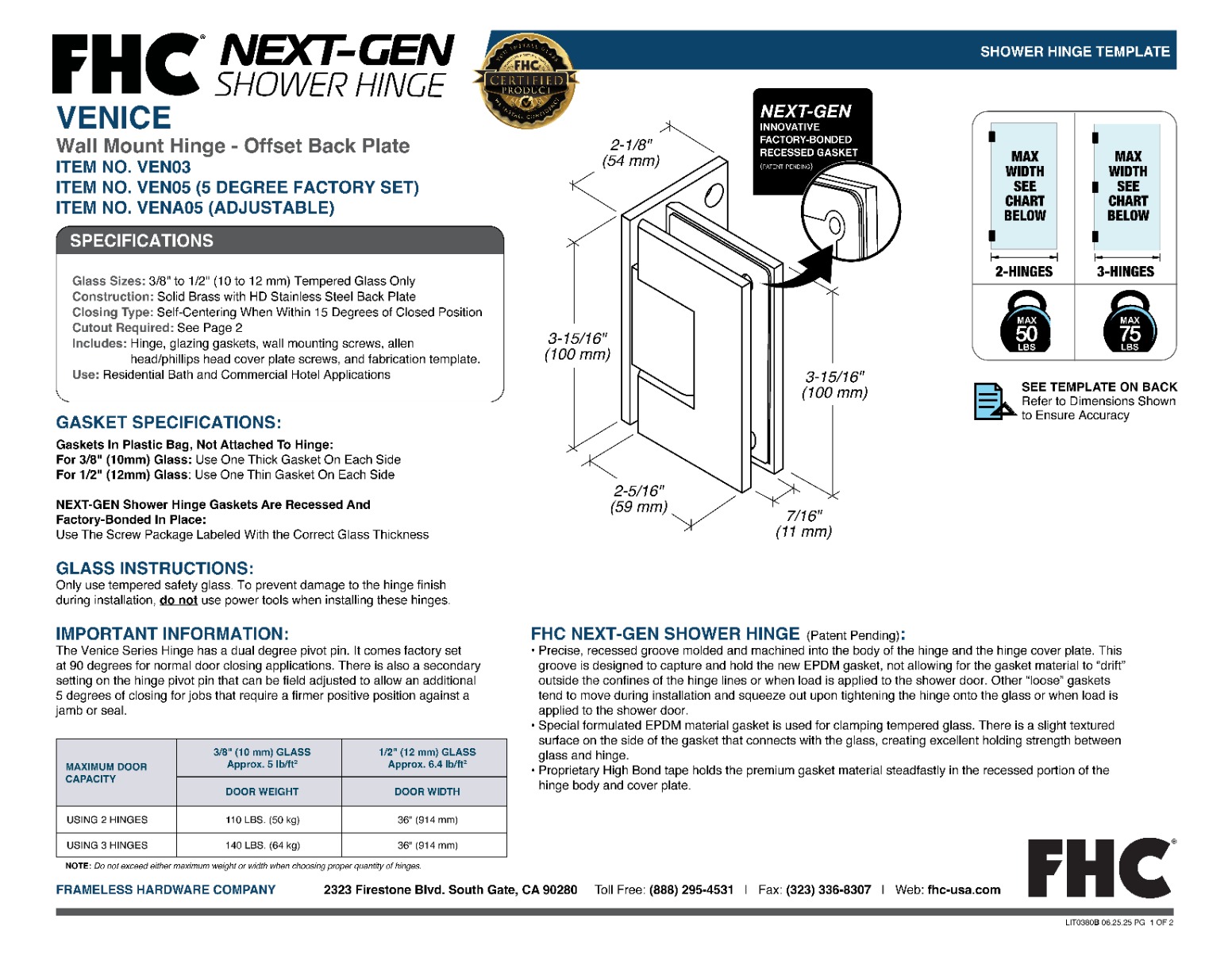

- Includes glazing gaskets, wall mounting screws, and fabrication template.
DESCRIPTION
This FHC Venice Adjustable Square Wall Mount Hinge is for mounting shower doors in residential bath and commercial hotel applications. It features an Offset Back Plate Style and is constructed from Brass with a Stainless Steel Back Plate material. The hinge allows Field Adjustable settings, providing an additional 5 Degree Close adjustment. The Closing Type is Self-Centering within 15 Degree of the Closed Position. This unit is compatible with Glass Thickness from 3/8" to 1/2" (10 to 12mm), requiring Tempered Safety Glass. A Cutout is Required for installation. The maximum door capacity is 110 lbs when using two hinges, supporting a Maximum Door Width of 36". The Back Plate dimensions are 3-15/16" Height and 2-1/8" Width. The Hinge measures 3-15/16" Height and 2-5/16" Width, with a Glass Gap of 7/16". The Glass-to-wall Clearance is Standard 1/4". For 3/8" glass, use one thick gasket on each side, for 1/2" glass, use one thin gasket on each side. This hardware has a Polished Chrome finish. Maintenance requires drying daily with a soft cloth and using only mild liquid cleaner.
SPECS
| Finish | Polished Chrome |
| Mounting Type | Wall Mount |
| Material | Brass with Stainless Steel Back Plate |
| Hinge Width | 2-5/16" (59mm) |
| Glass Thickness | 3/8" to 1/2" (10 to 12mm) |
| Closing Type | Self-Centering Within 15 Degree of Closed Position |
| Maximum Door Width | 36" (914mm) |
| Back Plate Height | 3-15/16" (100mm) |
| Back Plate Width | 2-1/8" (54mm) |
| Glass To Wall Clearance | Standard 1/4" (6mm) |
| Overall Hinge Height | 3-15/16" (100mm) |
| Back Plate Style | Offset |
| Cutout Required | Yes |
| Glass Gap | 7/16" (11mm) |
| Glass Type Required | Tempered Safety Glass |
| Maximum Door Weight with 2 Hinges | 110 lbs |
| Maximum Door Weight with 3 Hinges | 140 lbs |
