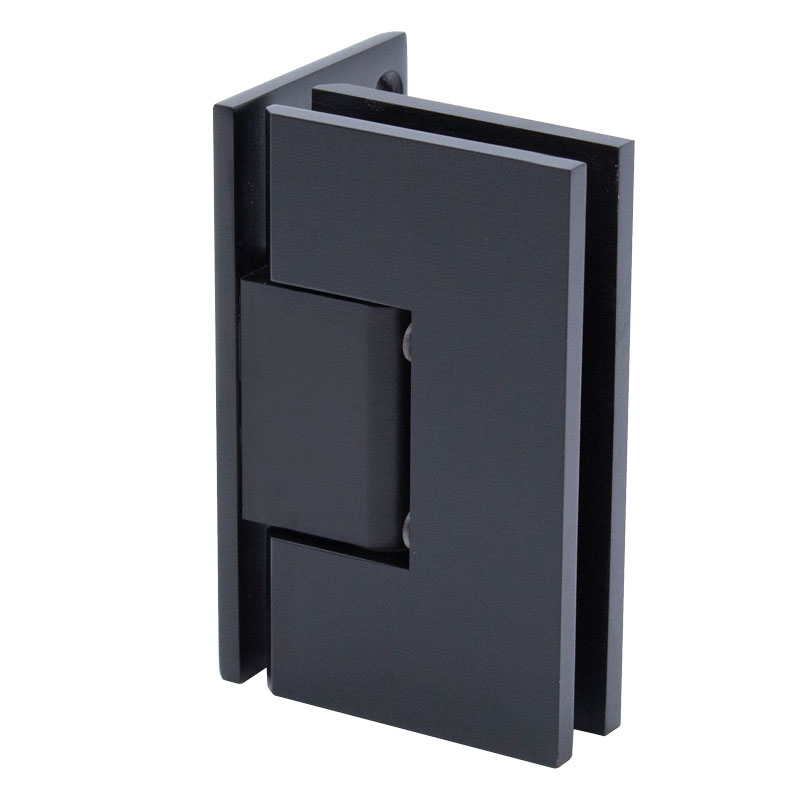

FHC Venice Square Hinge, Brass Material, Oil Rubbed Bronze Finish, Wall Mount VEN050RB FHC Venice Square Hinge, Brass Material, Oil Rubbed Bronze Finish, Wall Mount

FEATURES

  • Wall Mount Offset Back Plate Hinge featuring a 5 Degree Factory Setting.
  • Material is Brass with a Stainless Steel Back Plate and oil rubbed bronze finish
  • Designed for Tempered Safety Glass requiring 3/8" to 1/2" glass thickness.
  • Hinge features Self-Centering within 15 Degree of the Closed Position.
  • Supports Maximum Door Weight of 110 lbs (2 Hinges) or 140 lbs (3 Hinges).
  • Back Plate dimensions include 3-15/16" Height and 2-1/8" Width overall.
  • Includes necessary glazing gaskets and wall mounting screws for setup.

DESCRIPTION

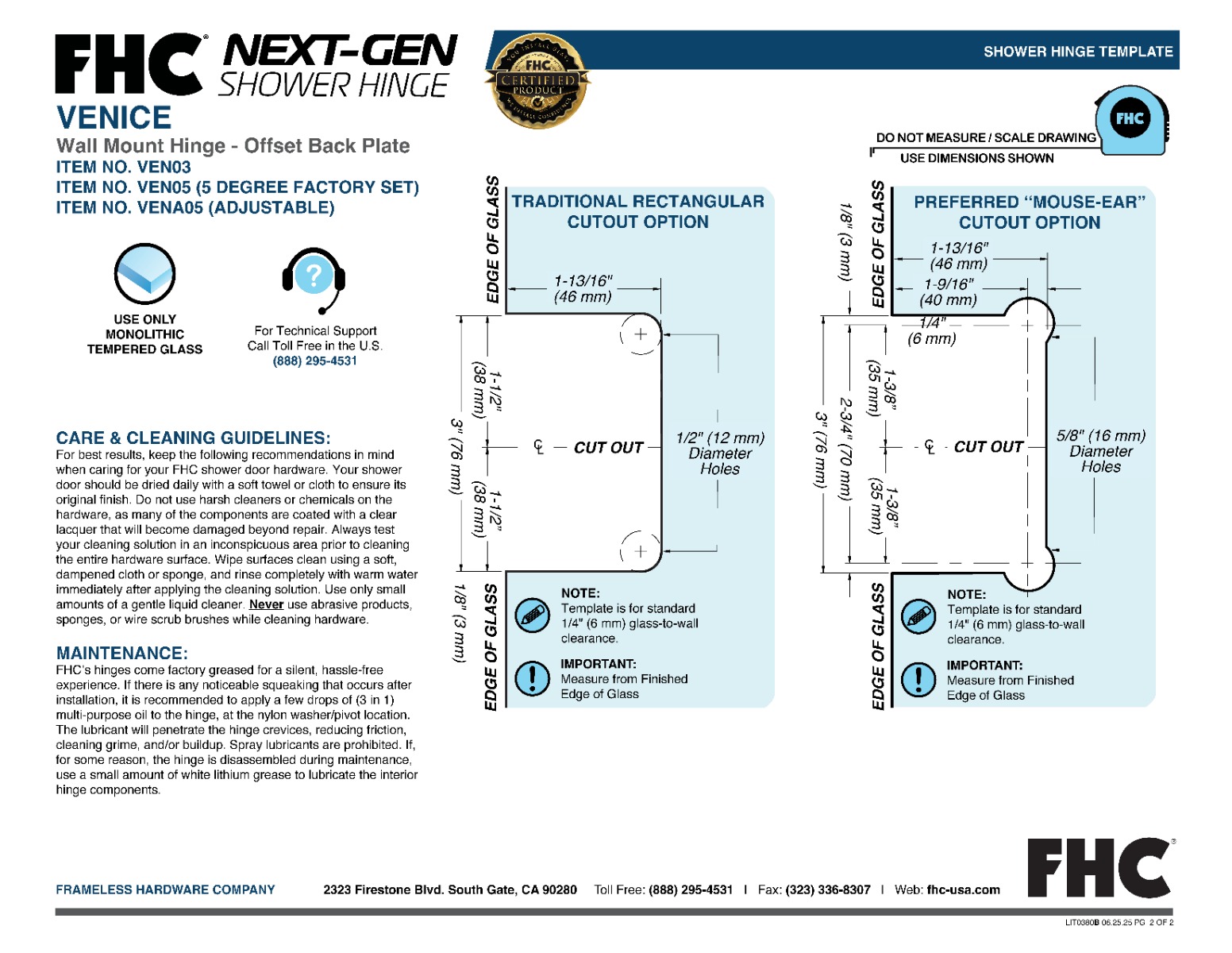

This FHC Venice Square Wall Mount Hinge is for securing shower doors in Residential Bath and Commercial Hotel Applications. It has an Offset Back Plate Style and a Factory Setting of 5 Degree. The hinge is constructed from Brass material with a Stainless Steel Back Plate. It is suitable for Tempered Safety Glass requiring a thickness between 3/8" to 1/2". For 3/8" glass, use One Thick Gasket On Each Side; for 1/2" glass, use One Thin Gasket On Each Side. The mechanism is Self-Centering Within 15 Degree of Closed Position. The maximum door width supported is 36" (914mm). Maximum Door Weight (2 Hinges) is 110 lbs, and Maximum Door Weight (3 Hinges) is 140 lbs The Back Plate Height is 3-15/16" (100mm) and Back Plate Width is 2-1/8" (54mm). Hinge Width is 2-5/16" (59mm) and Hinge Height is 3-15/16" (100mm), with a Glass Gap of 7/16" (11mm). This unit requires a Cutout Required. Included components are glazing gaskets, wall mounting screws, cross head cover plate screws, and a fabrication template. The unit features a Square Profile Design and the Oil Rubbed Bronze finish. To maintain the finish, dry hardware daily with a soft cloth and use only mild liquid cleaner, rinsing thoroughly with warm water.

SPECS

FinishOil Rubbed Bronze
Mounting TypeWall Mount
MaterialBrass with Stainless Steel Back Plate
Hinge Width2-5/16" (59mm)
Glass Thickness3/8" to 1/2" (10 to 12mm)
Closing TypeSelf-Centering Within 15 Degree of Closed Position
Maximum Door Width36" (914mm)
Back Plate Height3-15/16" (100mm)
Back Plate Width2-1/8" (54mm)
Overall Hinge Height3-15/16" (100mm)
Back Plate StyleOffset
Cutout RequiredYes
Factory Setting5 Degree
Glass Gap7/16" (11mm)
Glass Type RequiredTempered Safety Glass
Maximum Door Weight with 2 Hinges110 lbs
Maximum Door Weight with 3 Hinges140 lbs
Profile DesignSquare
