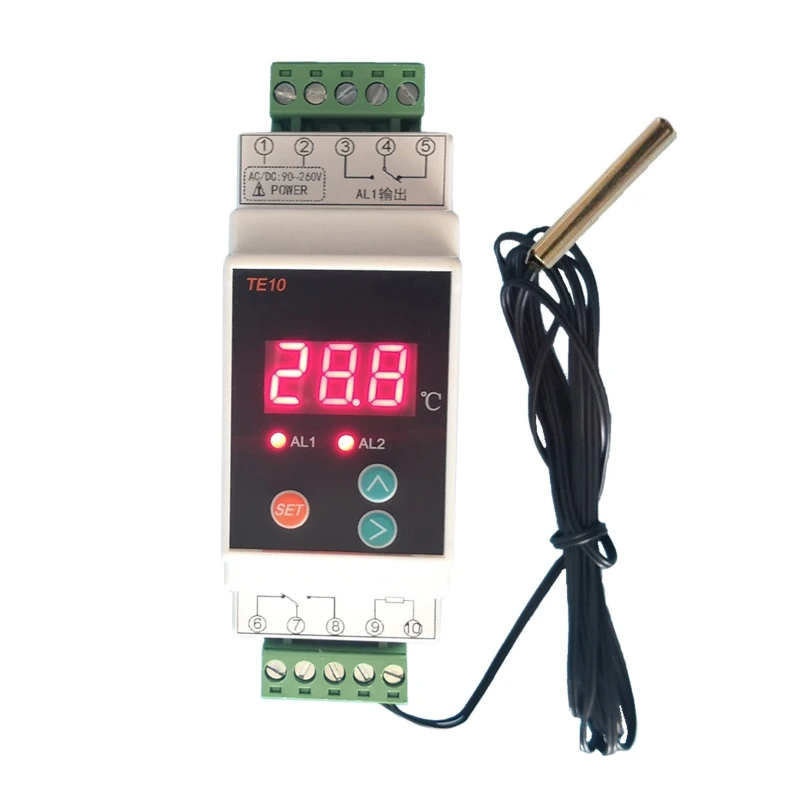

-40~110℃ Din Thermostat with sensor High/Low Temperature 2 Alarm Relay NO NC COMMON Output 7A/250VAC AC90~260V


OOTDTY



Features:

-Strong anti-interference ability, stable performance, simple circuit and high precision; the outer shell adopts a guide rail casing, which is easy to install and beautiful in appearance.

-And has the function of adjustment and digital filtering,

-Standard 2 relay output function, contact capacity 7A/250VAC.



Specifications:

Power supply: working voltage AC90~260V; power consumption is less than 2W (other power supplies can be customized)

Measuring accuracy: 0.5%FS±1 Measuring range -40~110℃

Display character height: 0.36 inches high brightness red LED (other colors can be customized)

Use environment: -10~60℃ (relative humidity below 80%)

Dimensions: 110*36 *60 (mm)

Sensor Length: 1.5m



Package included:

1* Din Rail Thermostat

1* Sensor



-------

Code Table:

TY1: Relay 1 output alarm type

0: Upper limit alarm, temperature ≥ AL1, the relay is closed, ≤ (AL1-HY1), the relay is off.

1: Lower limit alarm, temperature ≤ AL1, the relay is closed, ≥ (AL1+HY1), the relay is off.

2: Upper and lower limit alarm. Temperature ≥ AL1, the relay is closed, ≤ HY1, the relay is closed.



AL1: Relay 1 action value

-40.0~130.0



HY1: Relay 1 return difference

-40.0~130.0
