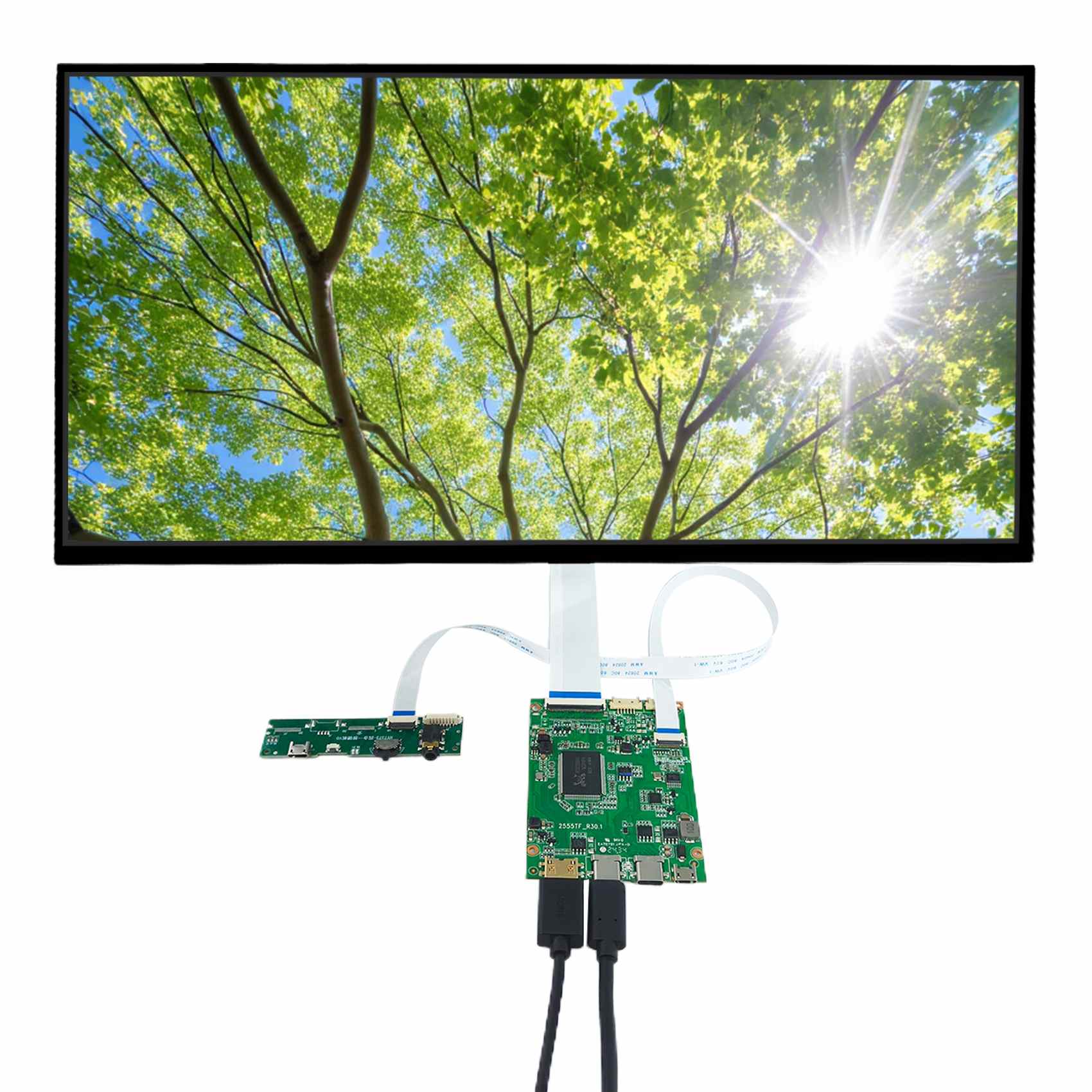

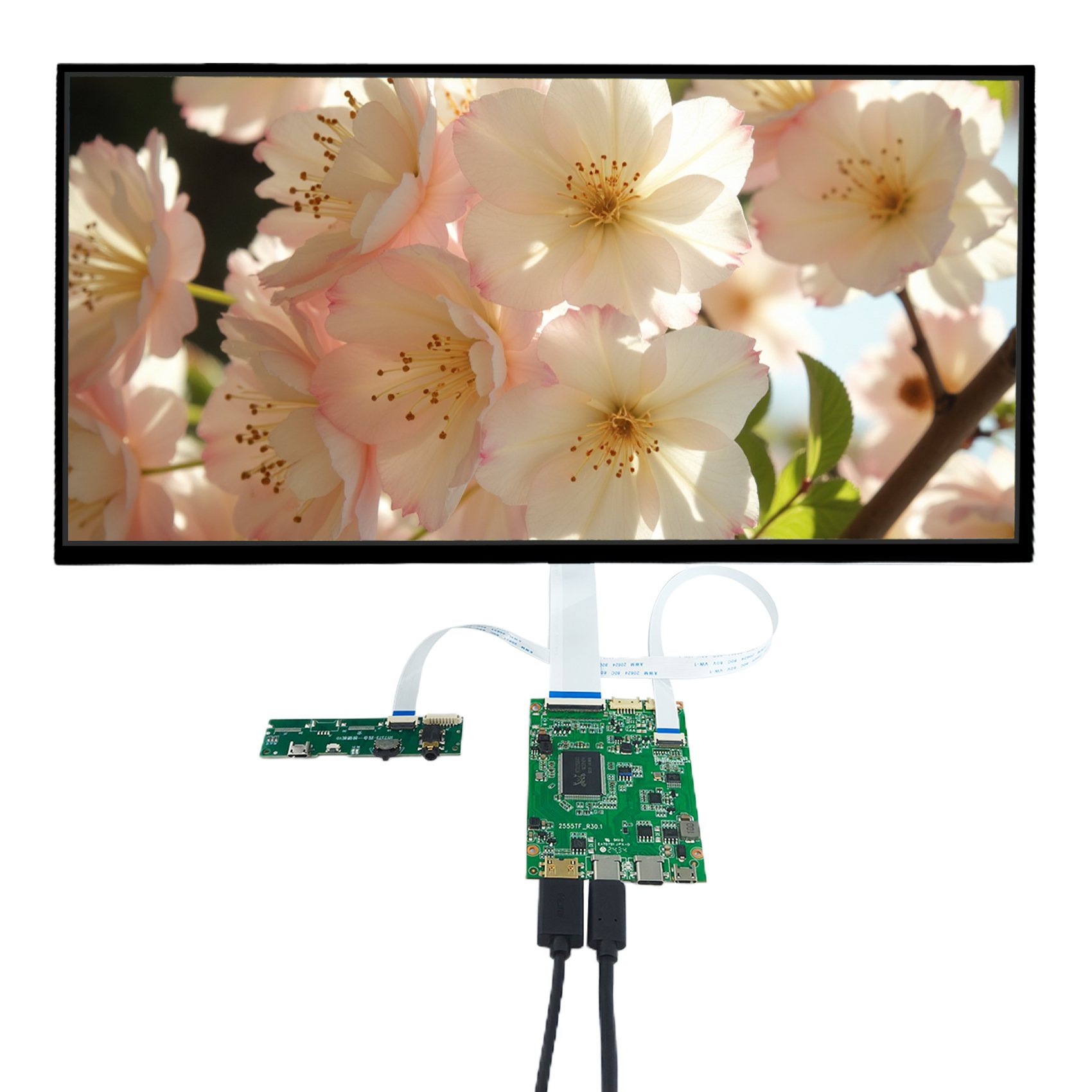

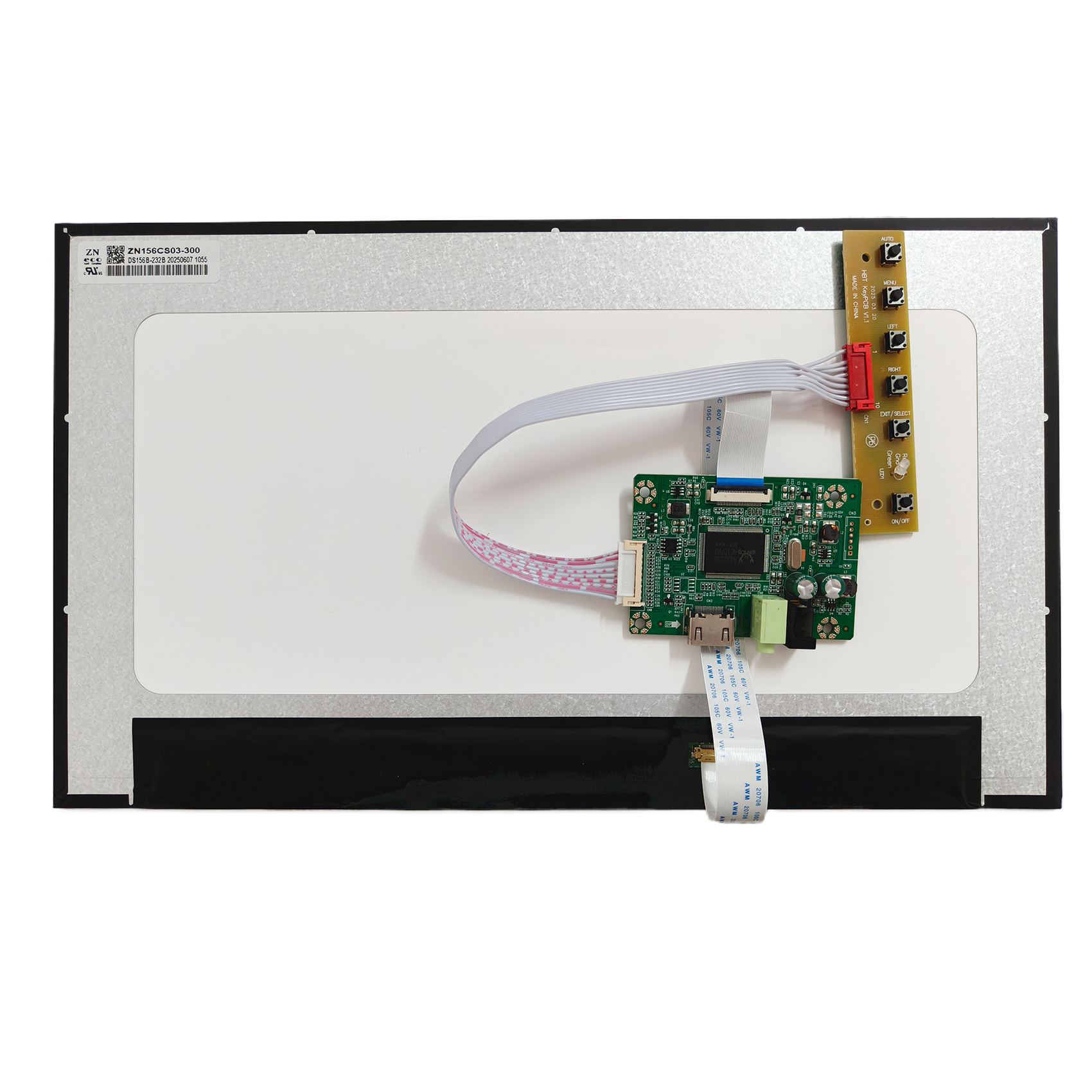

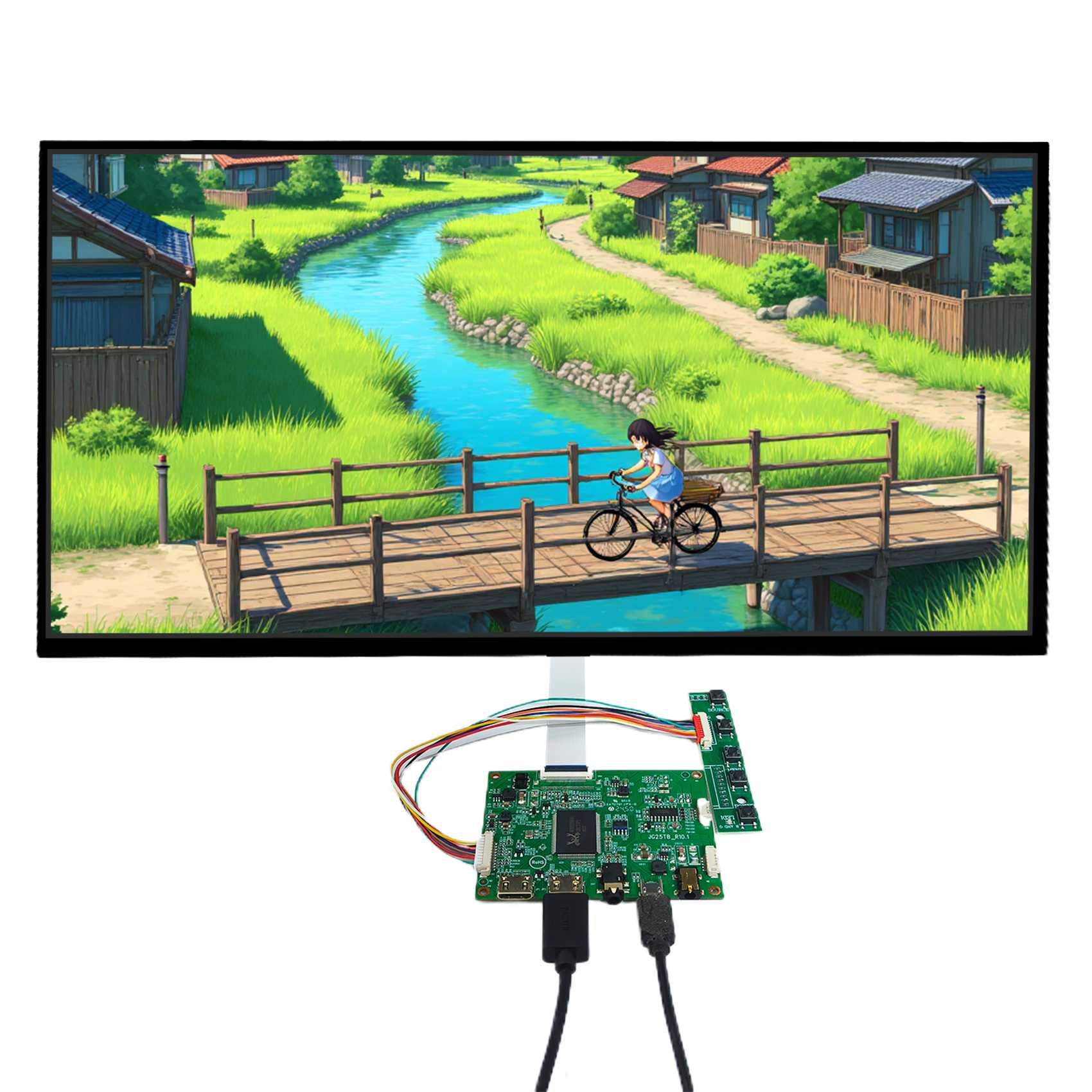

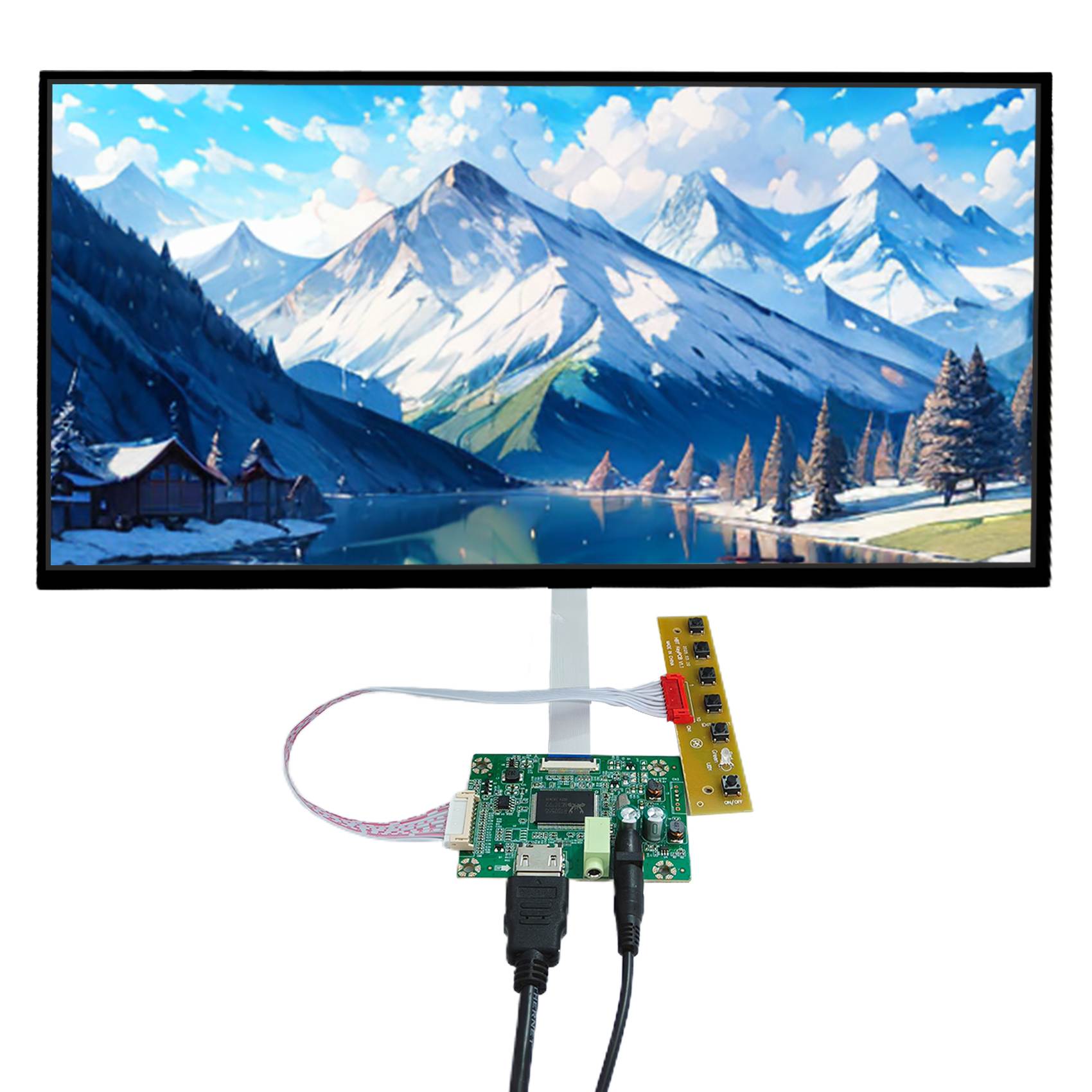

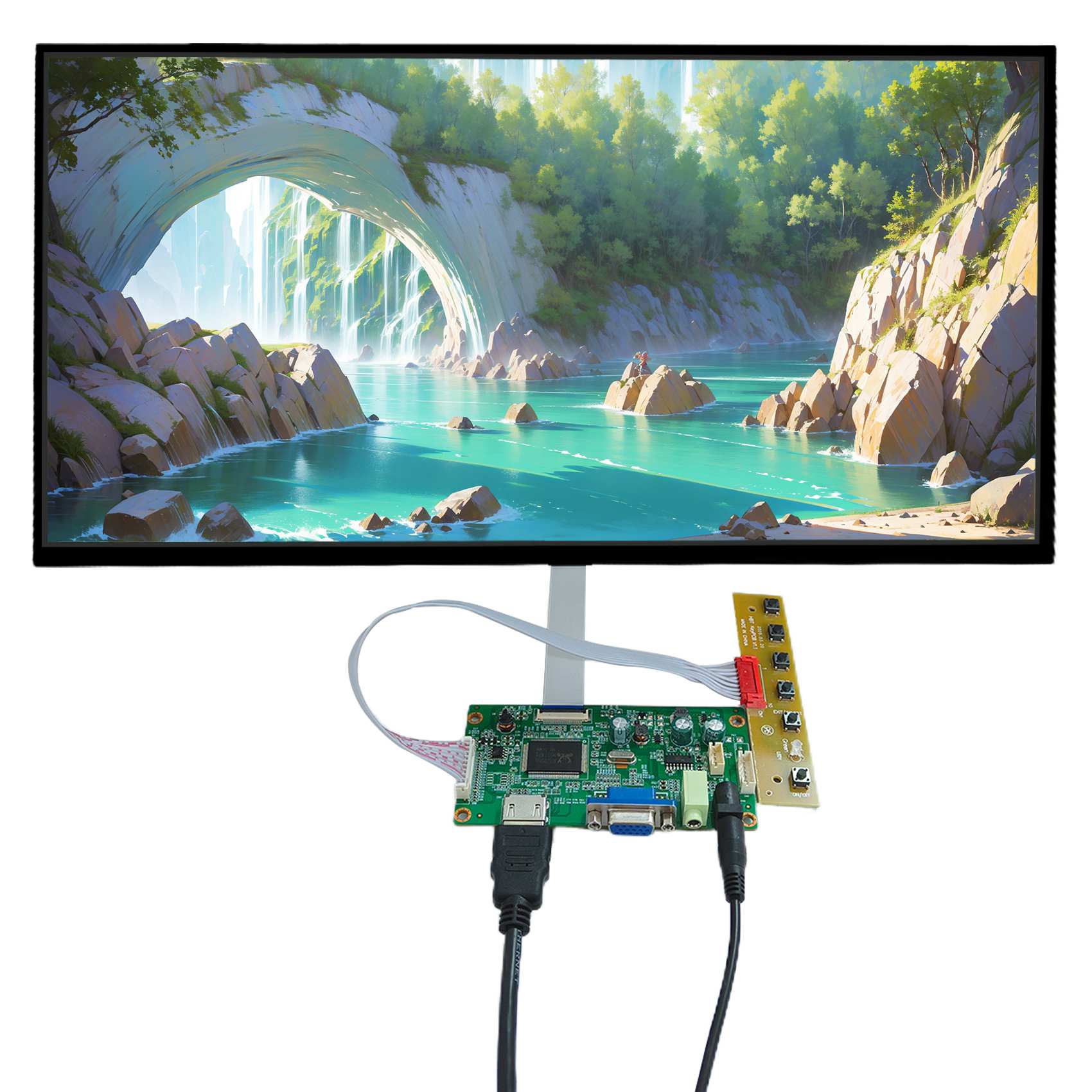

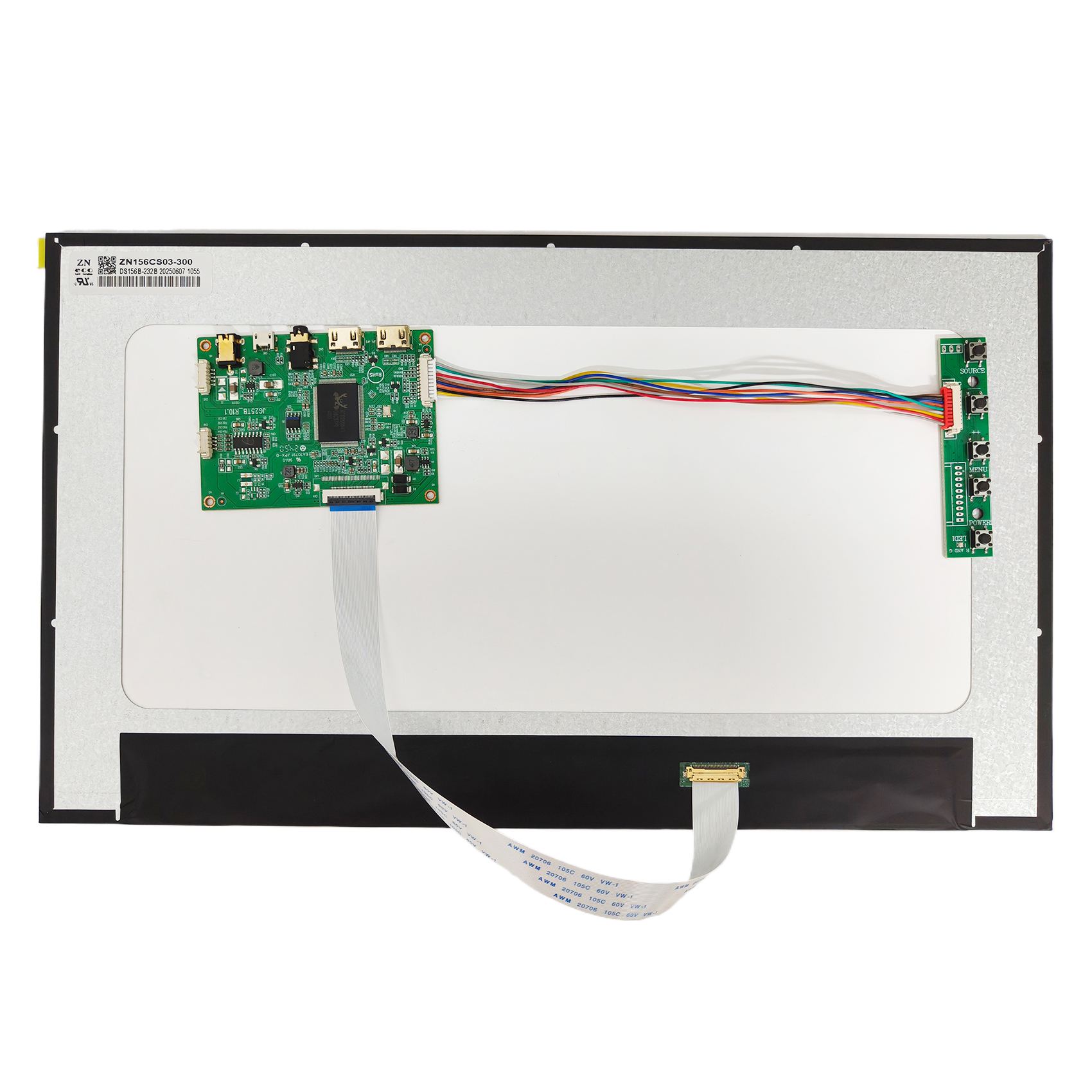

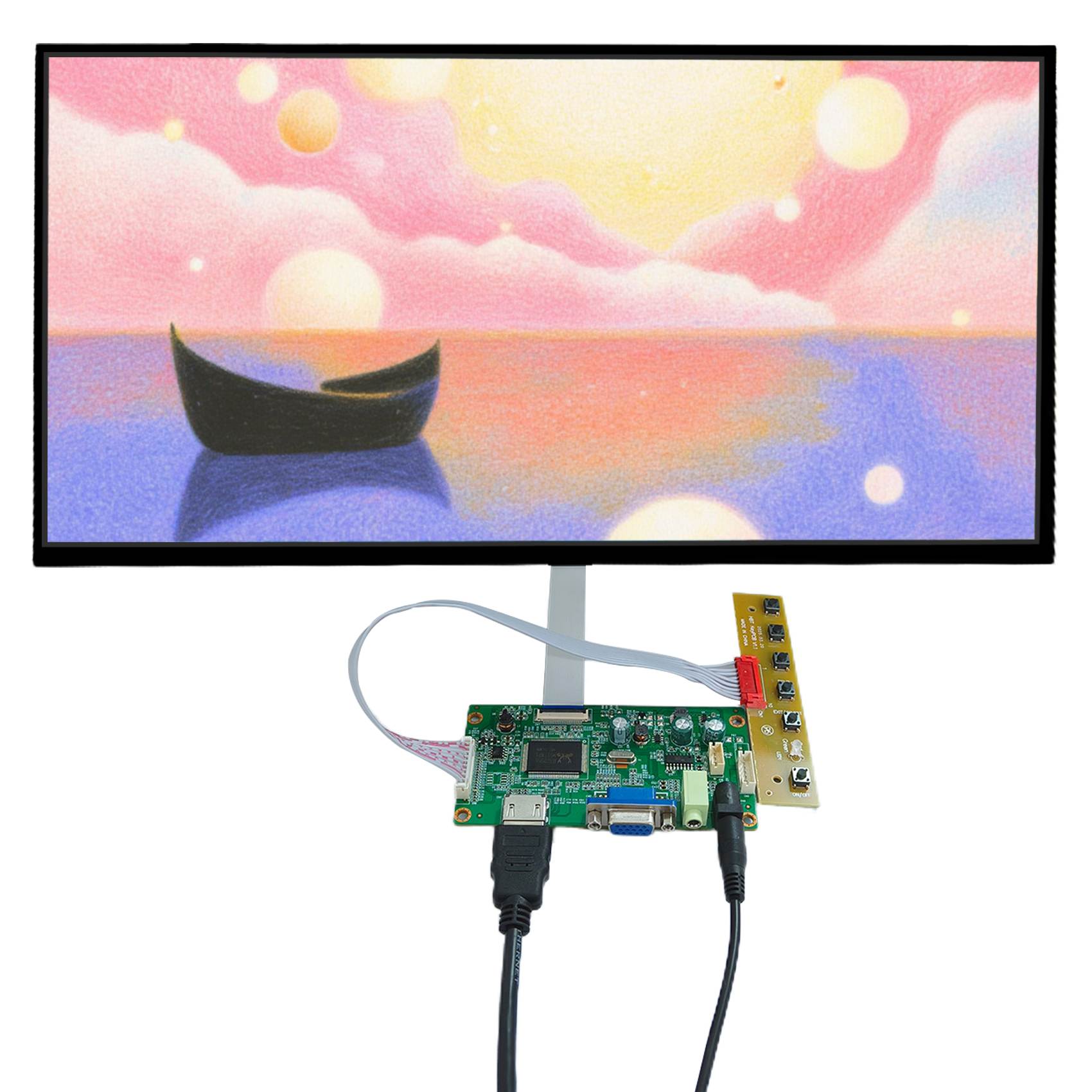

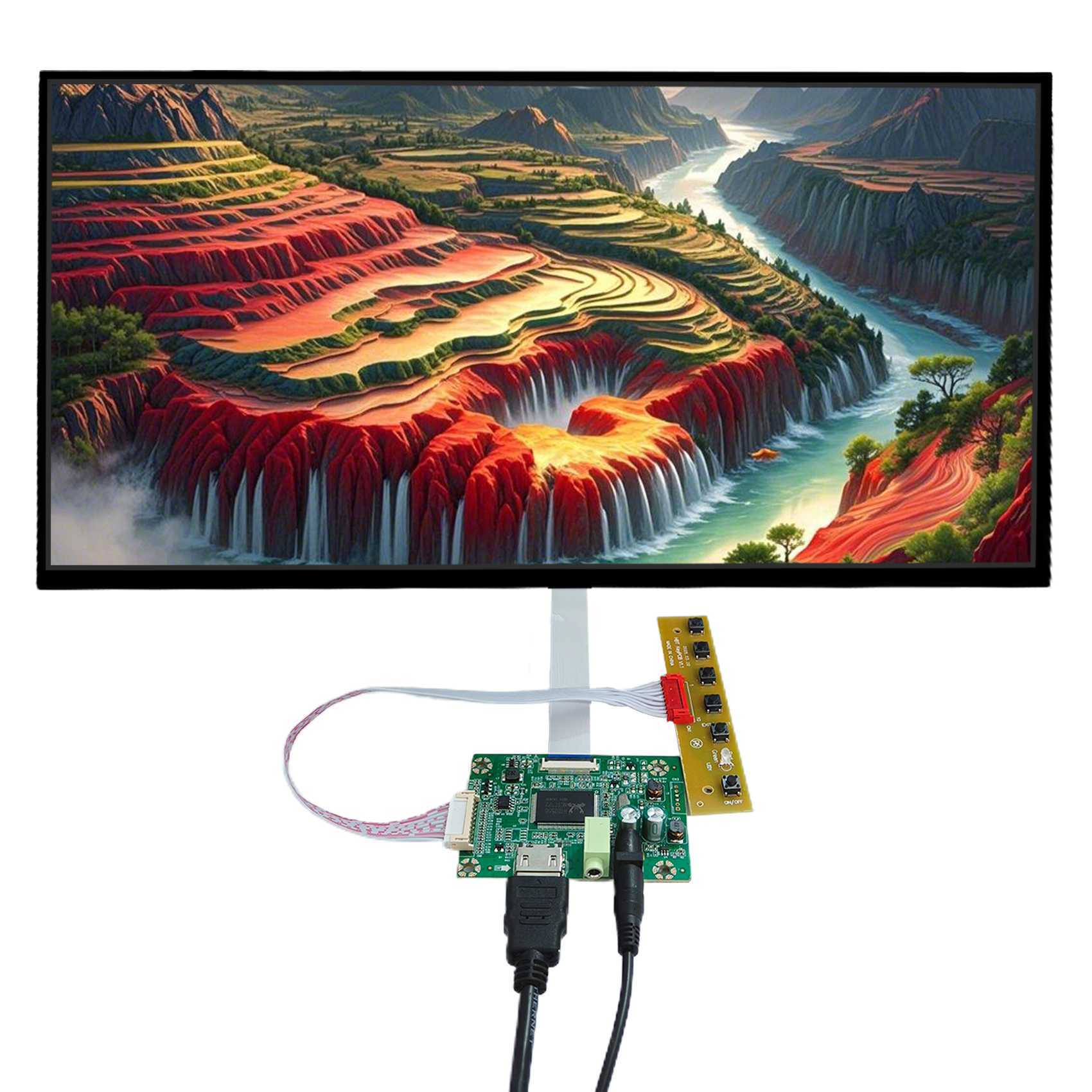

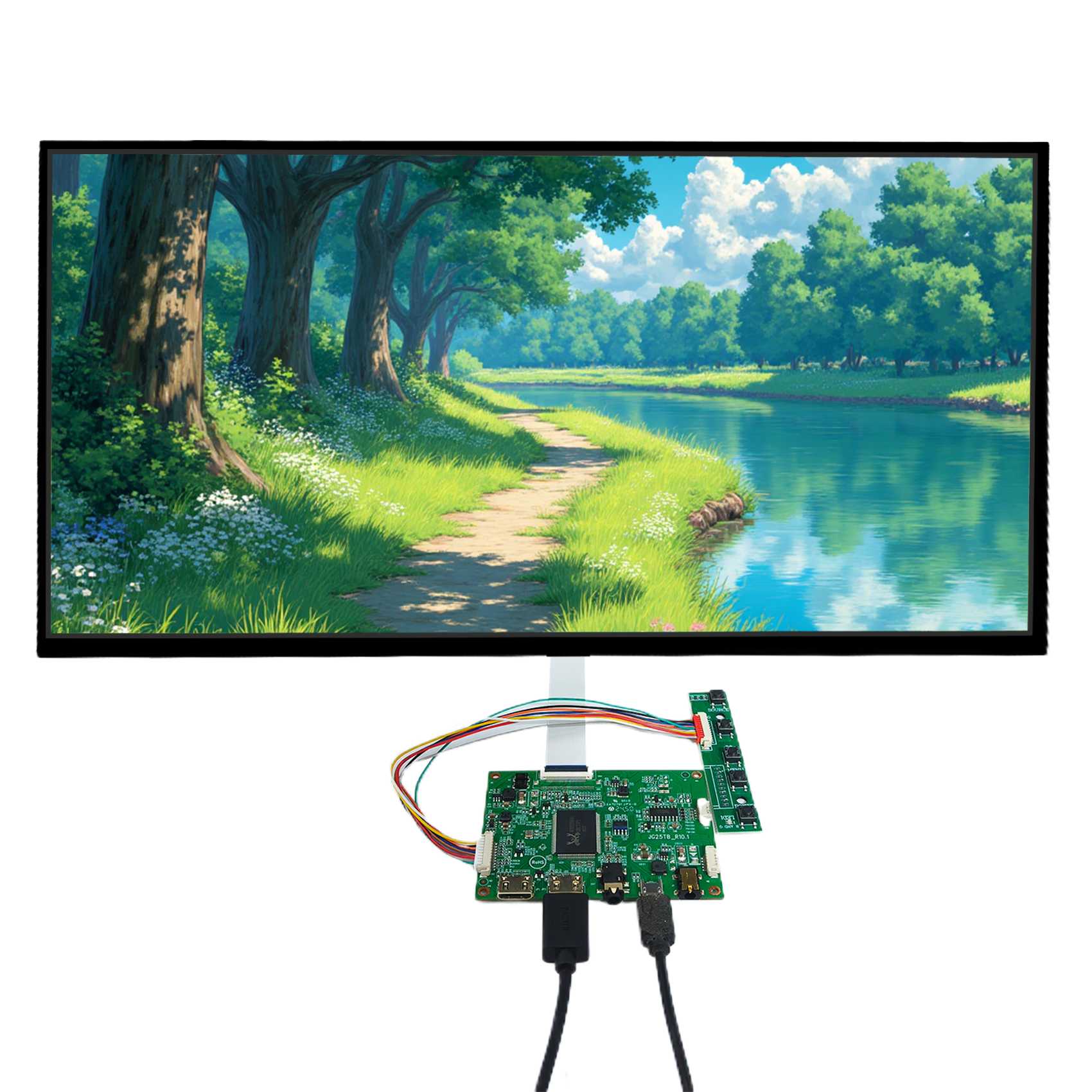

15.6" VS156CS03 1920X1080 LCD Screen:
Display New Mode IPS, Normally Black, Transmissive
Resolution 1920(RGB)×1080
Outline Size 350.6×216.15×3.2(H×V×D)mm
Display Area 344.16×193.59 (H×V)mm
Brightness 300 cd/m² (Typ.)
Contrast Ratio 800:1 (Typ.) (TM)
Display Colors 262K 72% NTSC
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface eDP (2 Lanes), Connector, 30pins
Backlight WLED
Input Voltage 3.3V (Typ.)

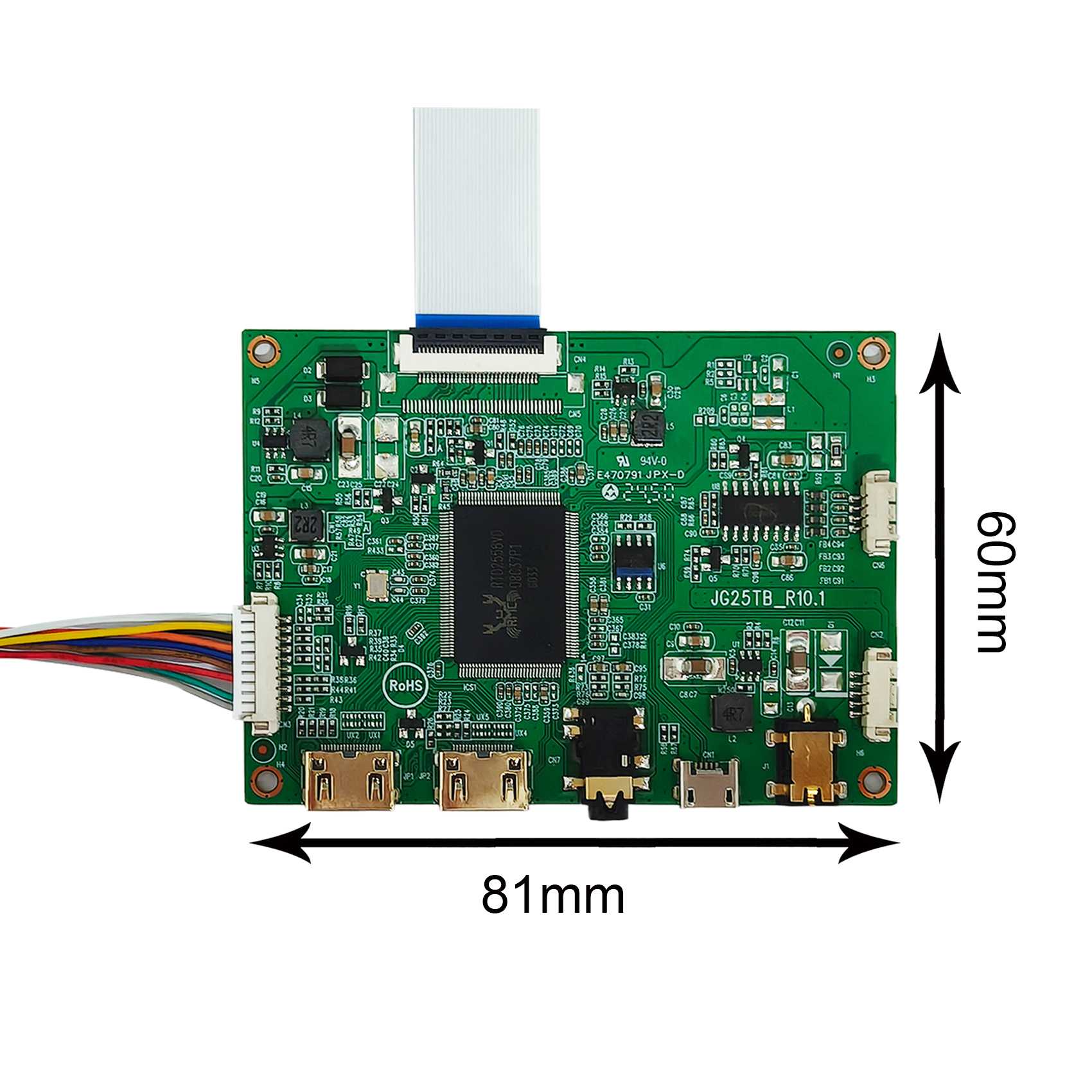

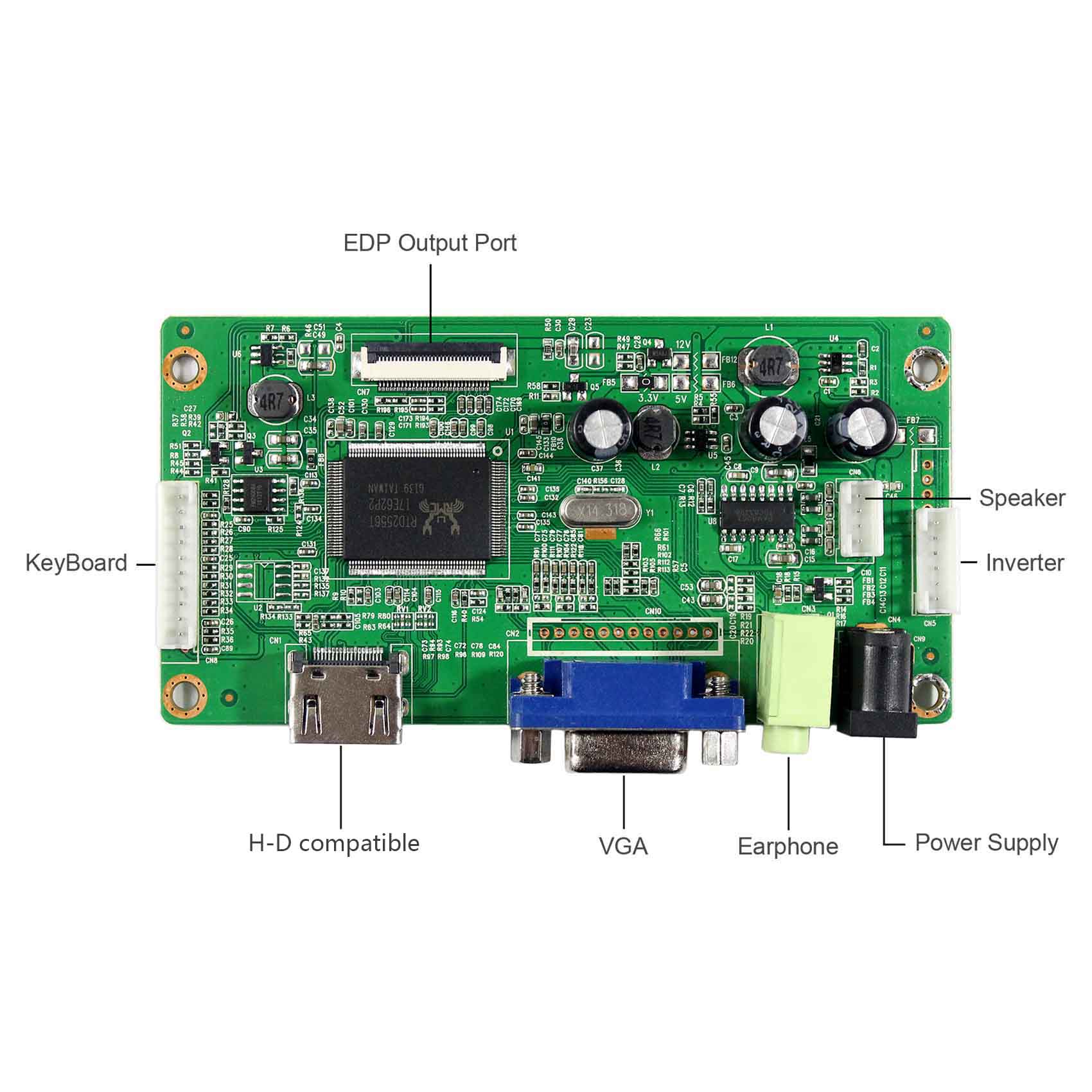

K003584 LCD Controller Board:
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <0.3W
Audio Input: 2HD-MI Mini
Audio Output: Earphone
OSD: Brightness Contrast VOL+ VOL- Language And So On
Language: English French German Spanish Italian And So On
Board Size: 82mm x 60mm x 5mm

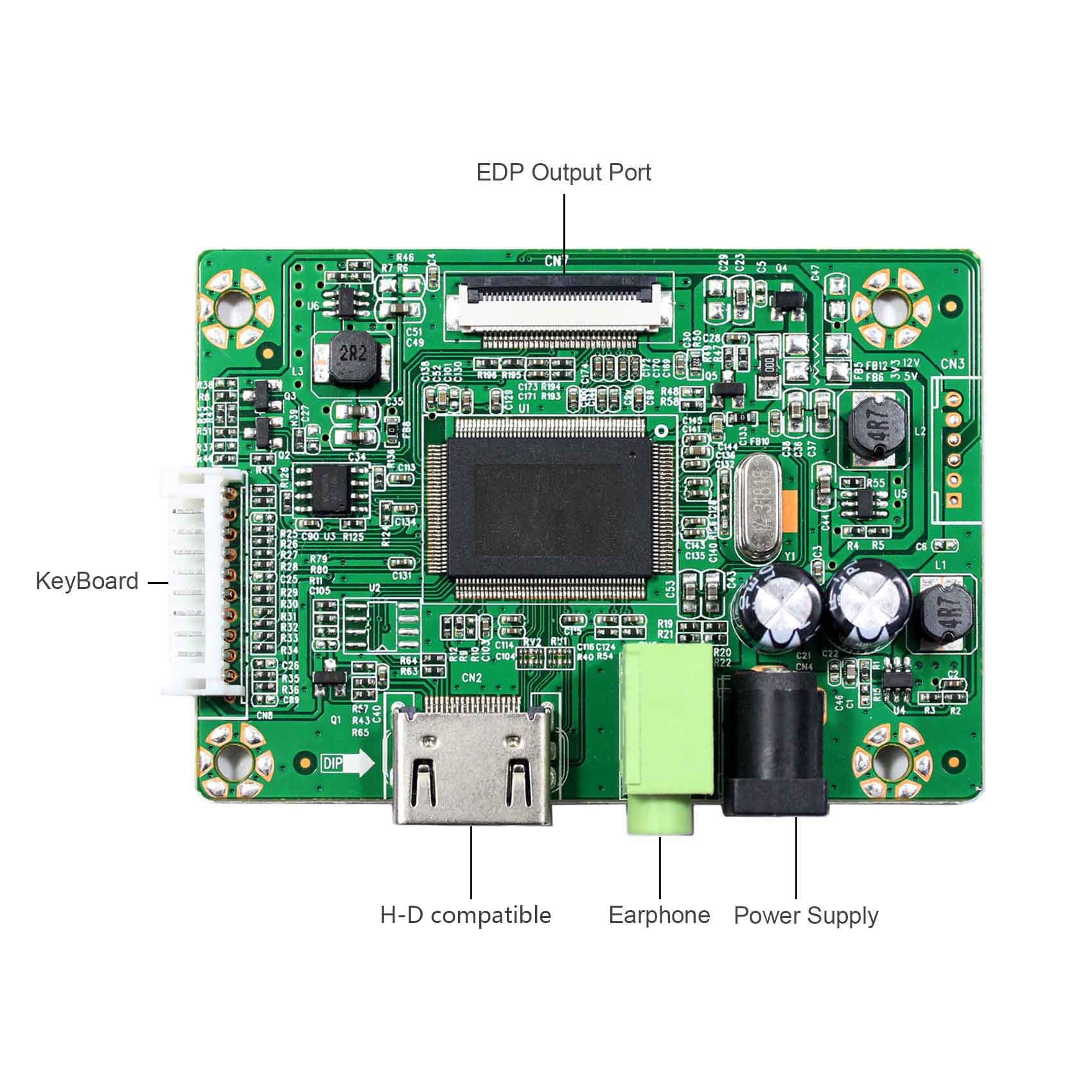

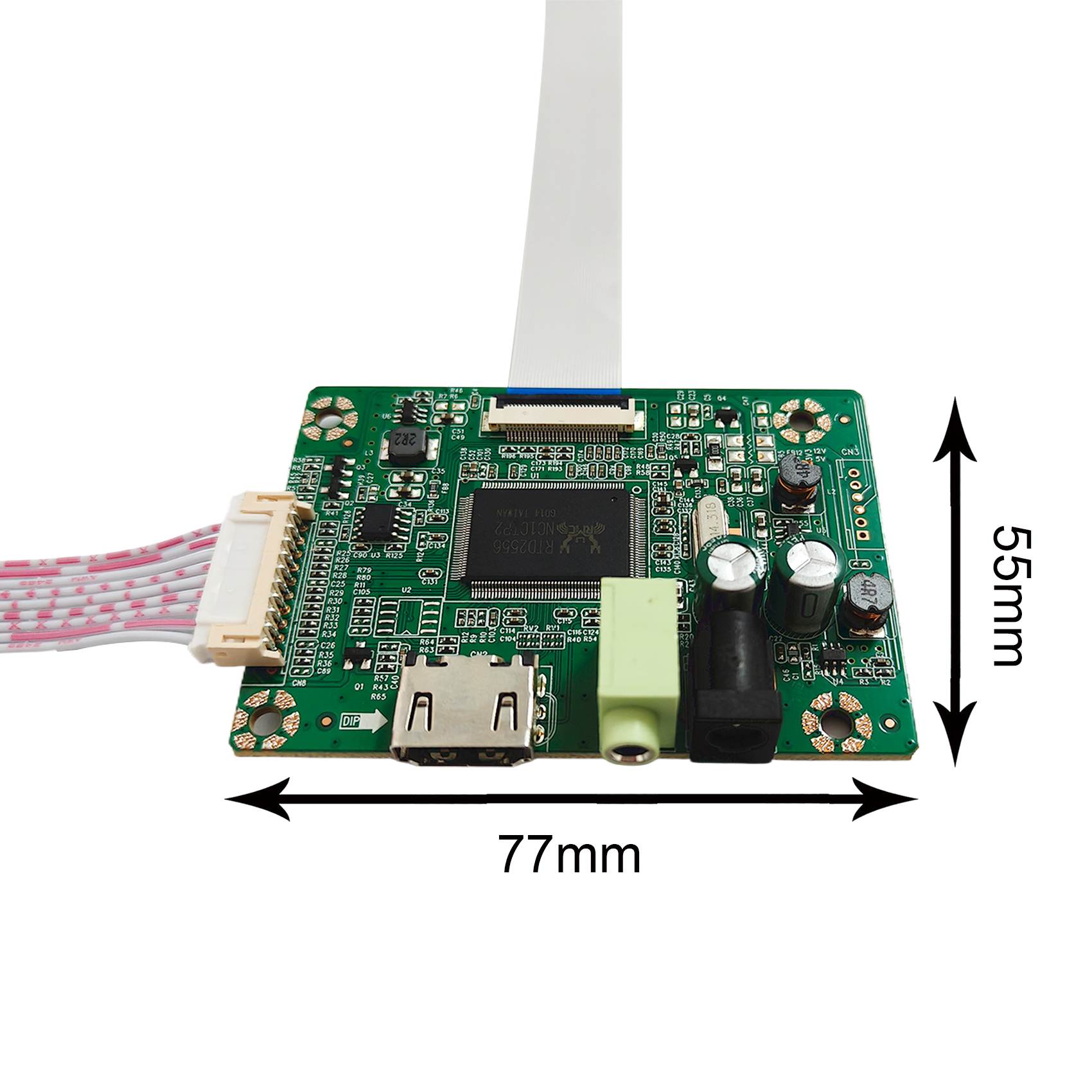

K003585 LCD Controller Board:
Input Power Adapter:12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <0.3W
Audio Input: H-D
Audio Output: Earphone
OSD: Brightness Contrast VOL+ VOL- Language And So On
Language: English
Board Size:77mm x 55mm x 16mm

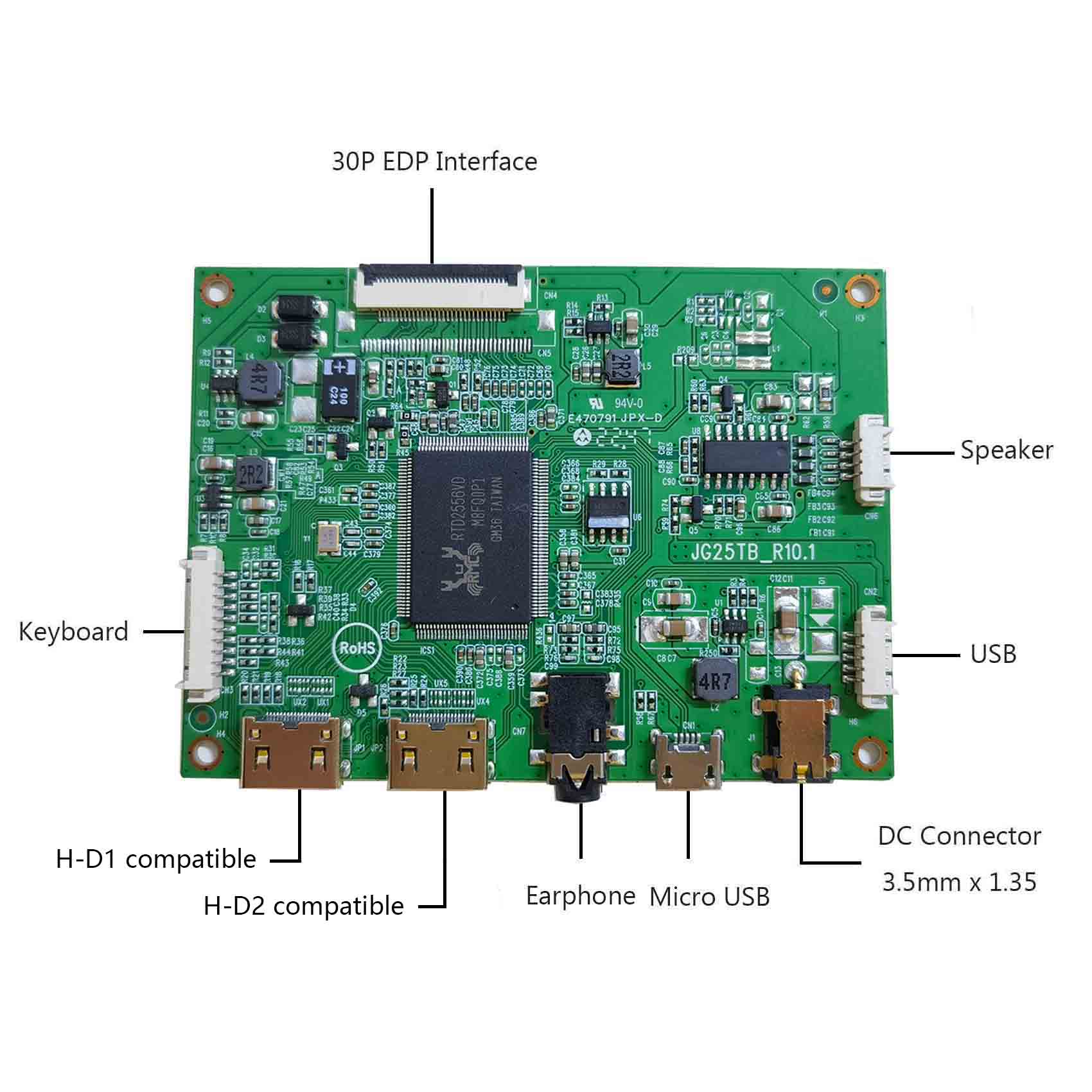

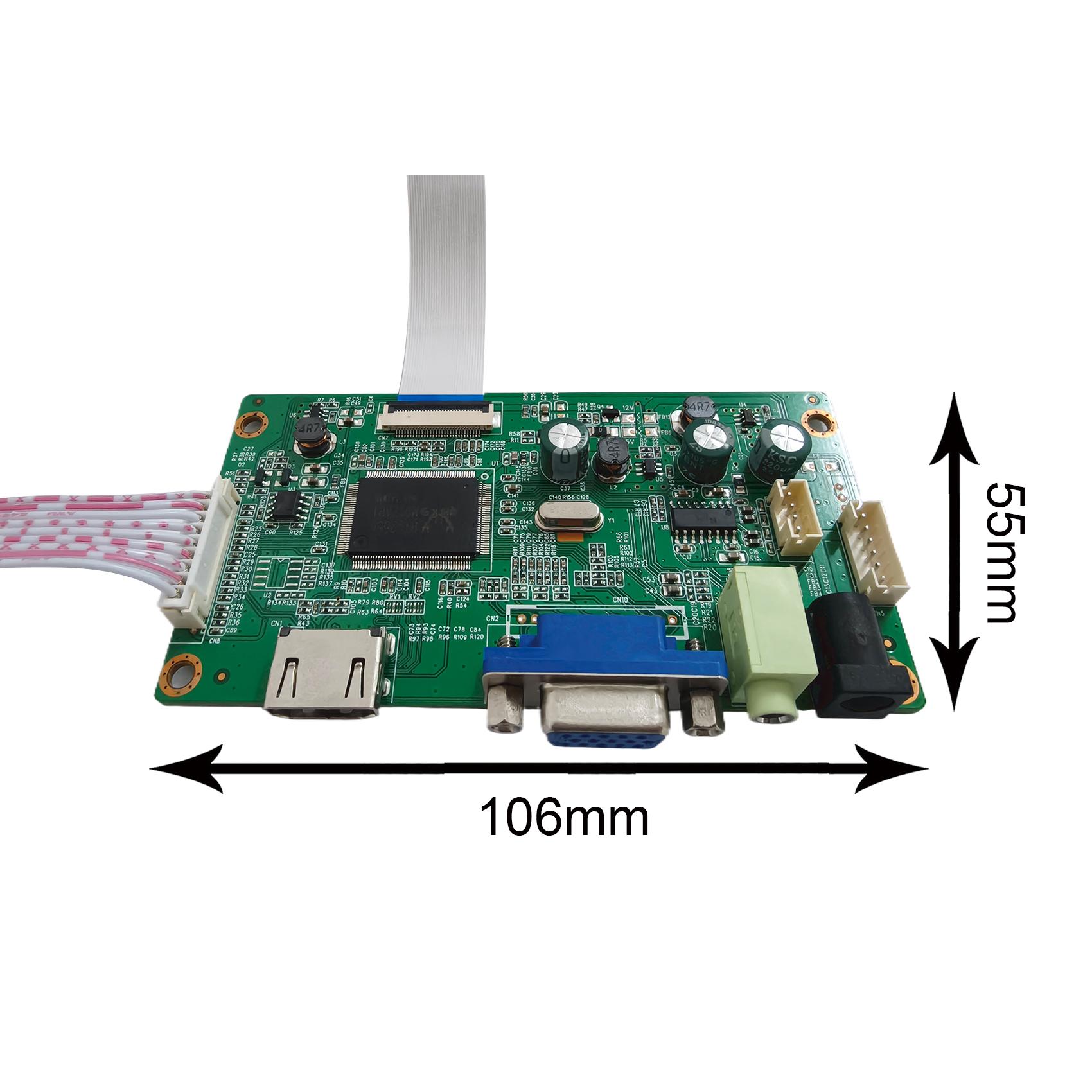

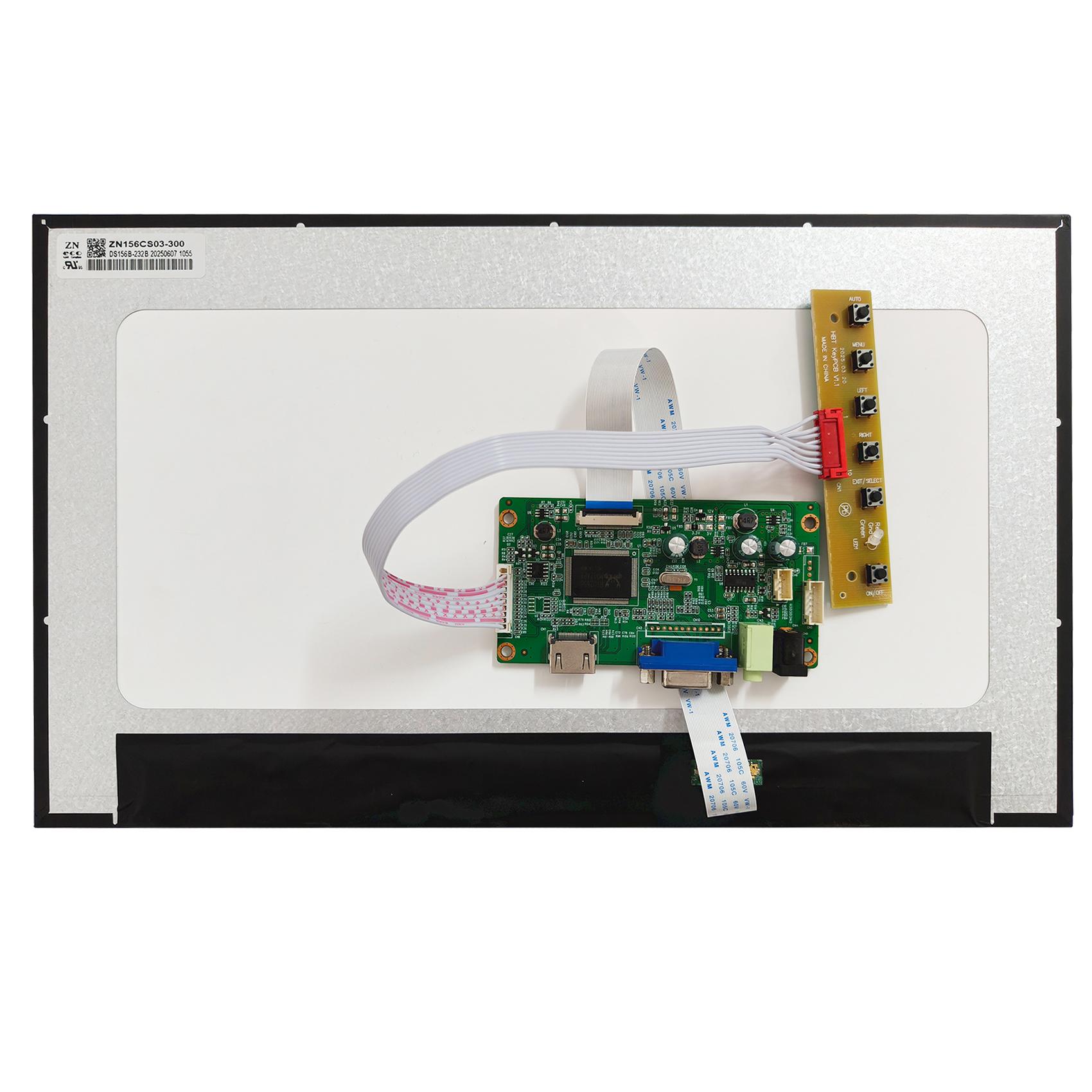

K003586 LCD Controller Board:
Input Power Adapter:12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <0.3W
Audio Input: H-D PC-Audio In
Audio Output: Speaker
OSD: Brightness Contrast VOL+ VOL- Language And So On
Language: English
Board Size: 107mm x 55mm x 16mm

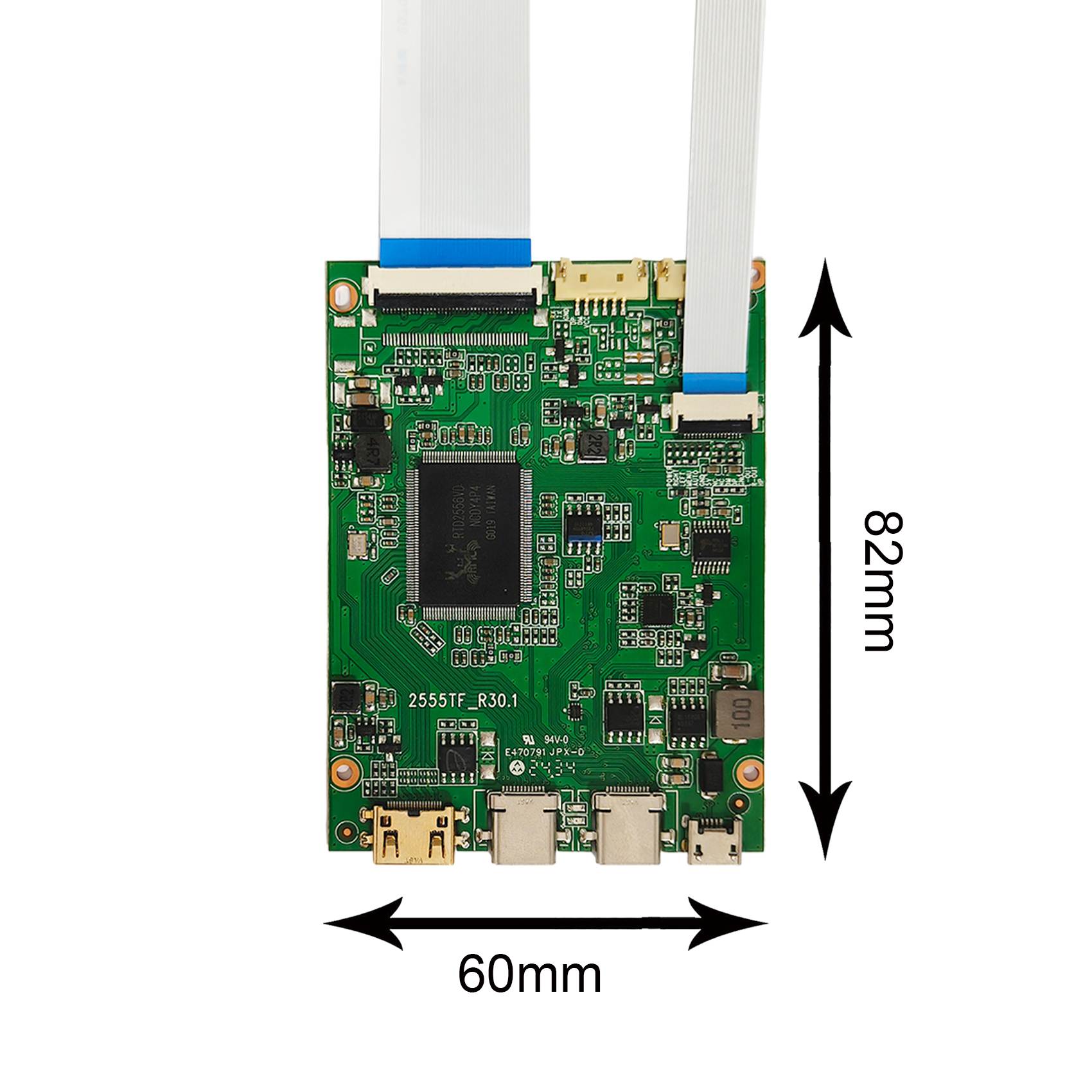

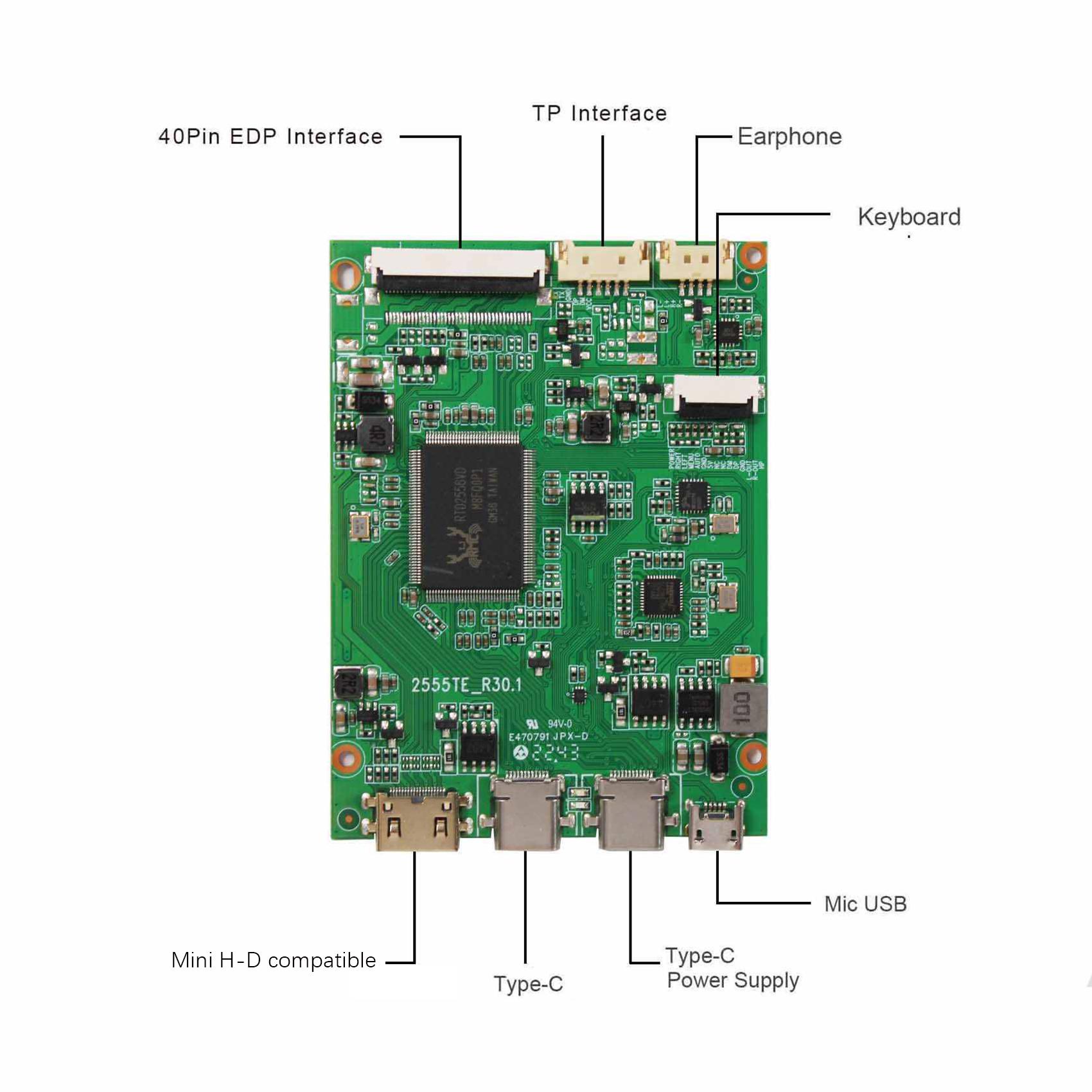

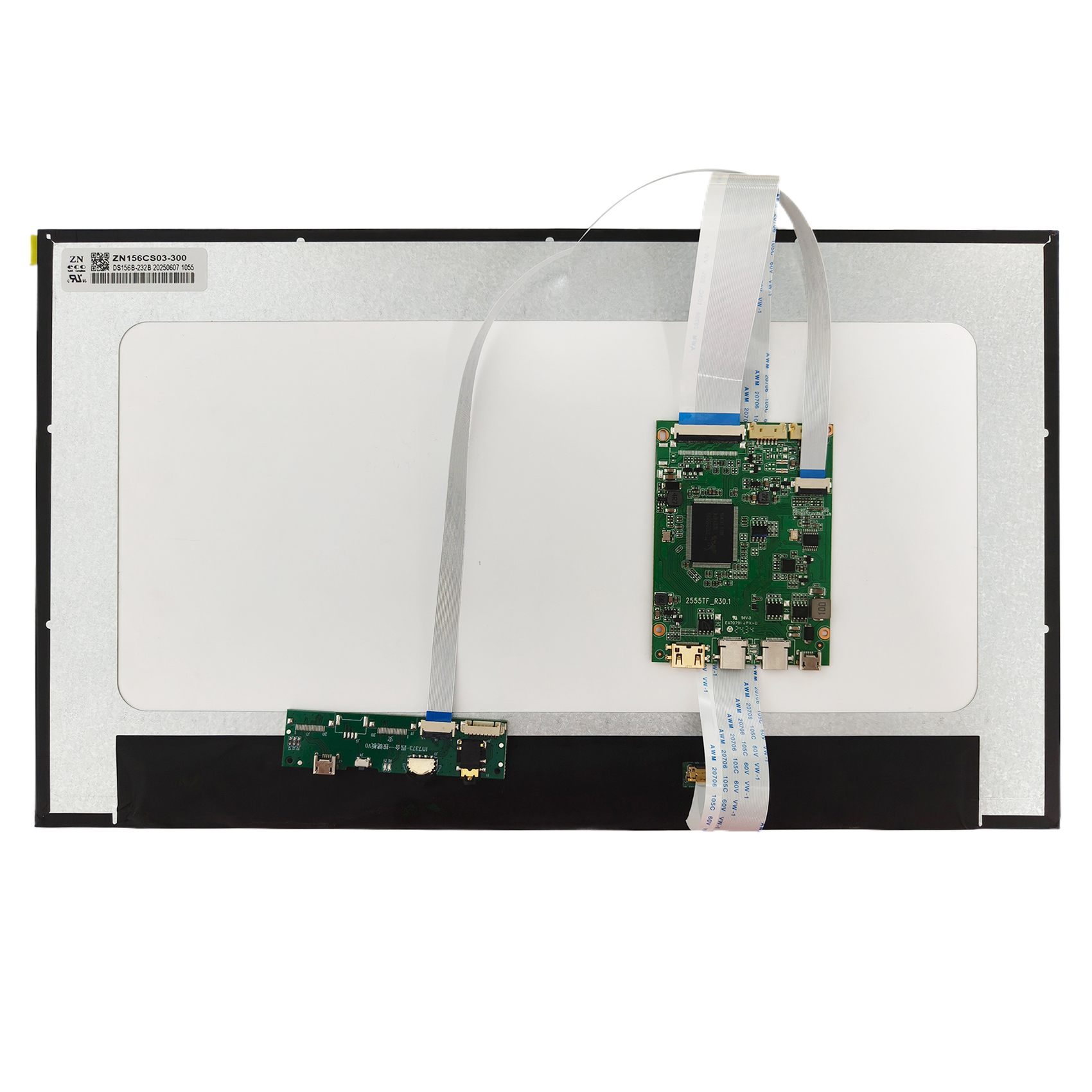

K003587 LCD Controller Board:
Input Power Adapter: Type-C connector
HDR: Support
Come In Standby Model When Not Input Signal
Standby Model <0.3W
Input: Type-C Mini H-D
Output: eDP USB (max 500mA)
Audio Output: Speaker
OSD: Brightness Contrast VOL+ VOL- Language And So On
Language: English Chinese French Deutsch Italian Espanol Portugues Turkce Polski
Nederlands Korean Japanese
Board Size: 126mm x 60mm x 4mm

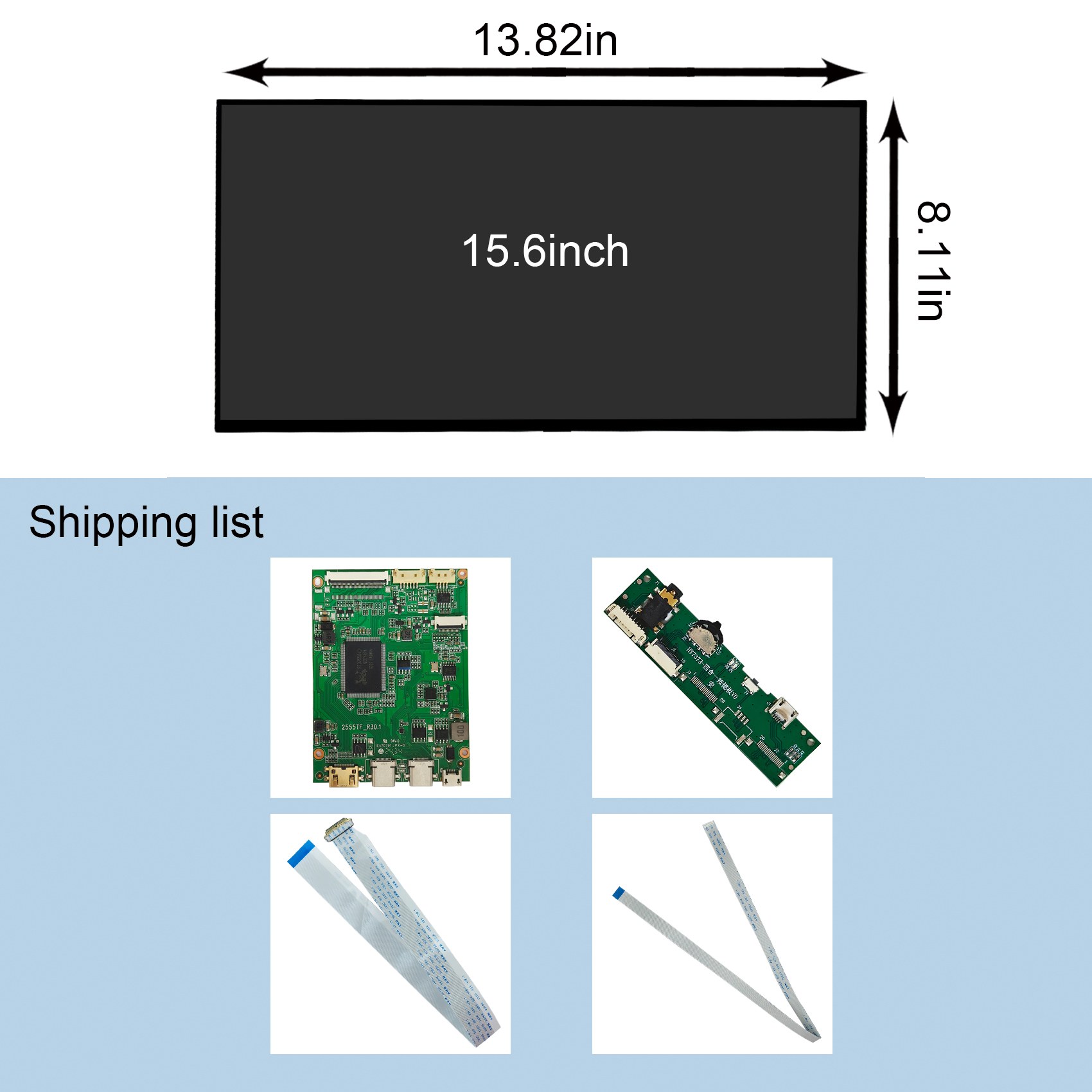

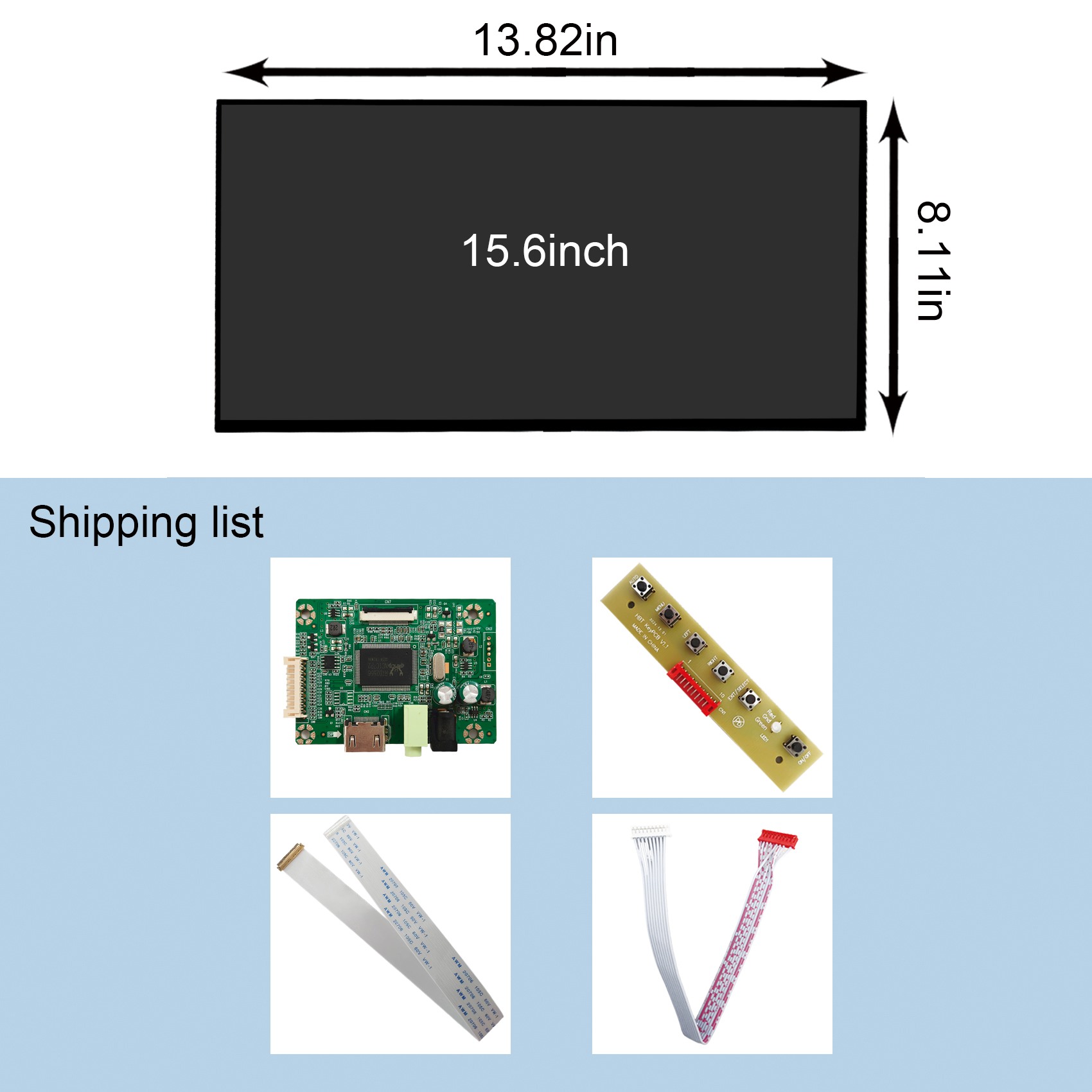

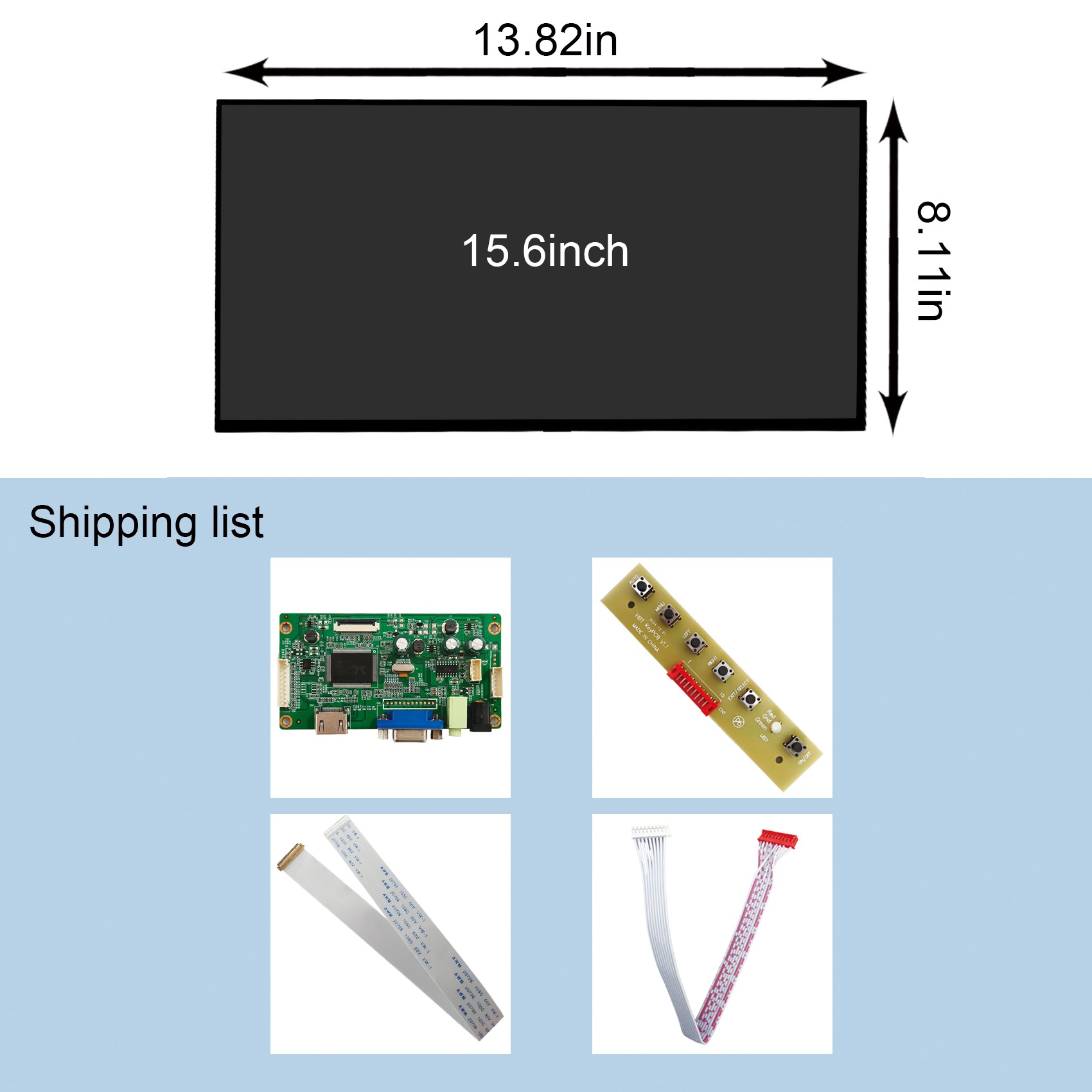

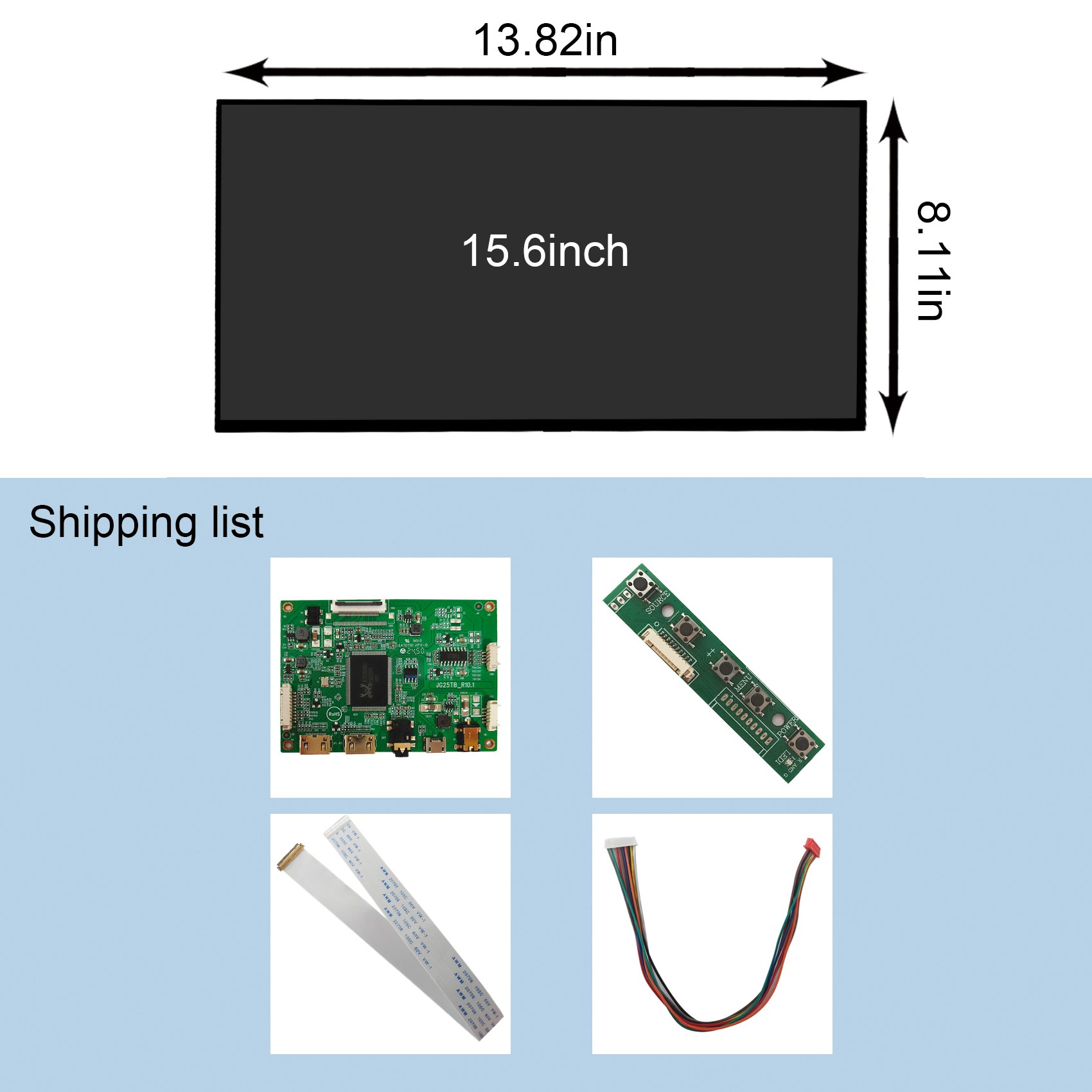

Packing list :
1× LCD Controller Board
1× 15.6inch VS156CS03 1920x1080 IPS LCD Screen
1× eDP Signal Cable
1× Keyboard With Cable
