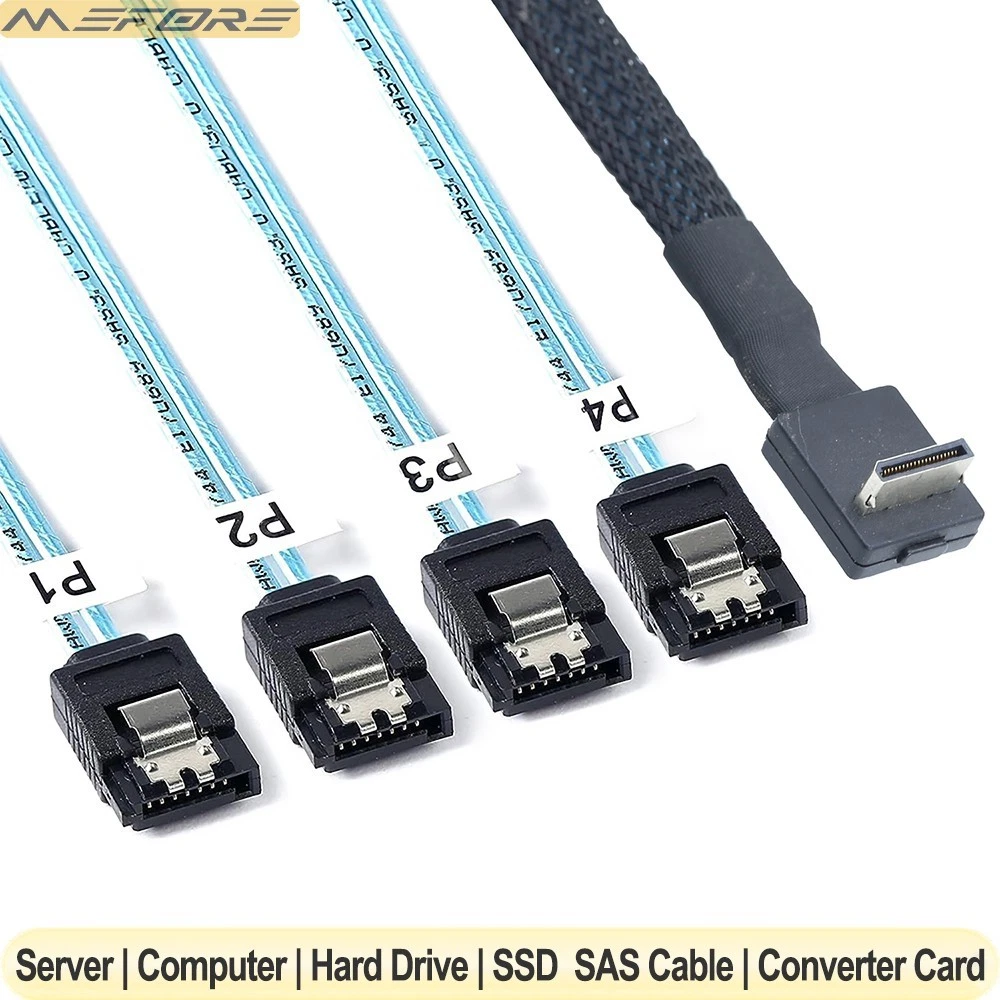

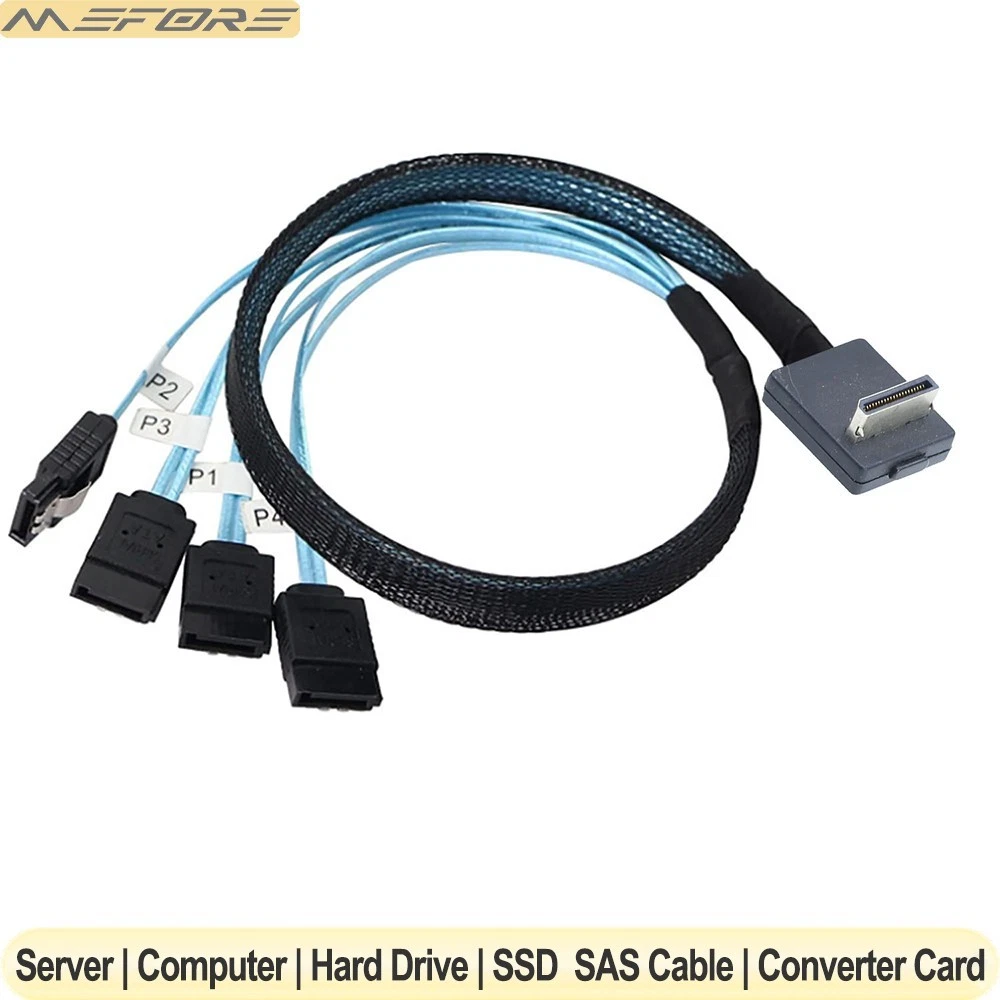

90 Degree PCIE Oculink SFF-86114I to 4-Port SATA 7P Server Hard Disk Connection Cable is a high performance data transfer cable designed for servers and storage devices. It connects to the motherboard or expansion card through the Oculink SFF-8611 interface and converts to 4 standard SATA 7-pin ports for easy connection of multiple SATA hard disks or SSDs.

Mini SAS SFF-8611 connector uses less PCB real estate and allows higher port density for internal hosts and devices. Provides point data transfer speeds up to 6 Gbit/s. Hybrid versions of the cables will allow for a smooth transition from 6GB to 12GB.

Serial Attached SCSI (SAS) is a high-speed data storage interface designed for high-throughput and fast data access.

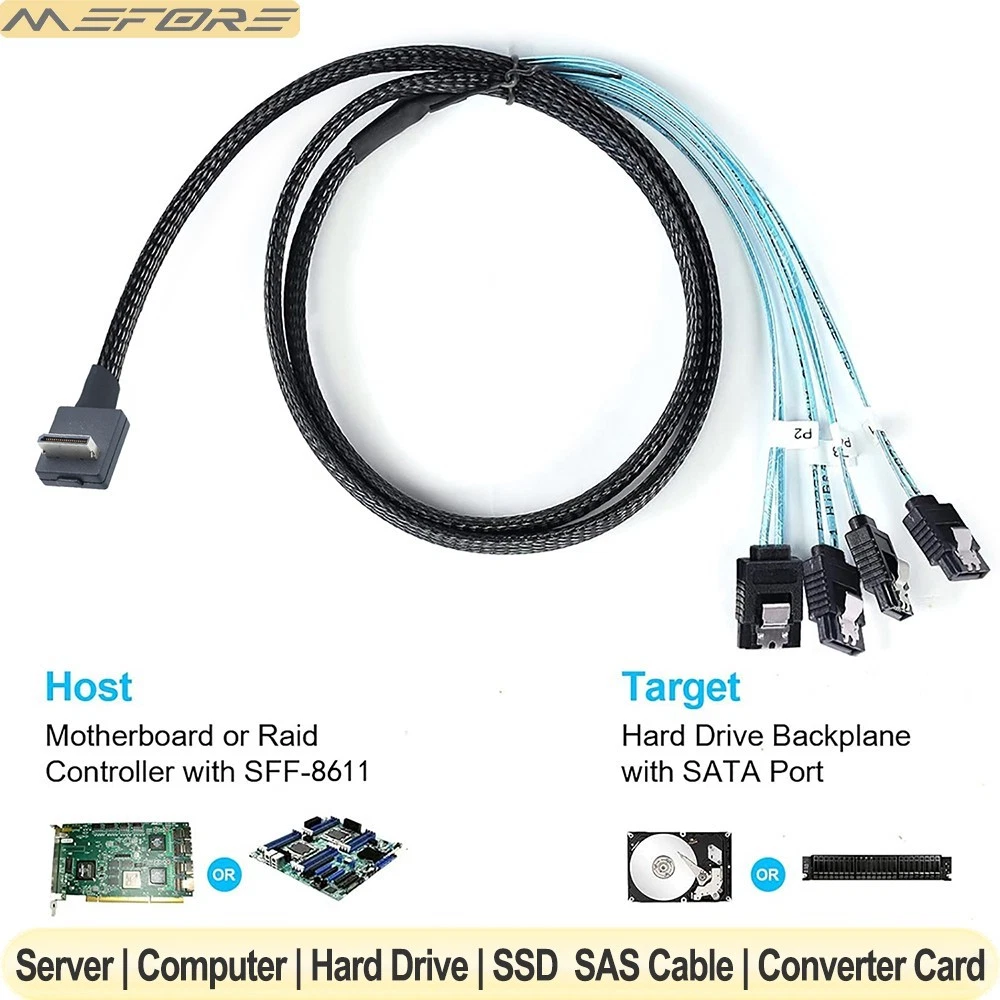

*Before purchasing this cable, please make sure Mini SAS SFF-8611 is on your motherboard or RAID Controller. If SFF-8611 is on your backplane, this cable will not work well.

Supports SATA III standard, providing up to 6Gbps transfer rate to ensure efficient and stable data transfer.

Expanded to 4 SATA 7-pin interfaces through one Oculink SFF-8611 interface, 4 SATA hard disks or SSDs can be connected at the same time to meet multi-drive storage needs.

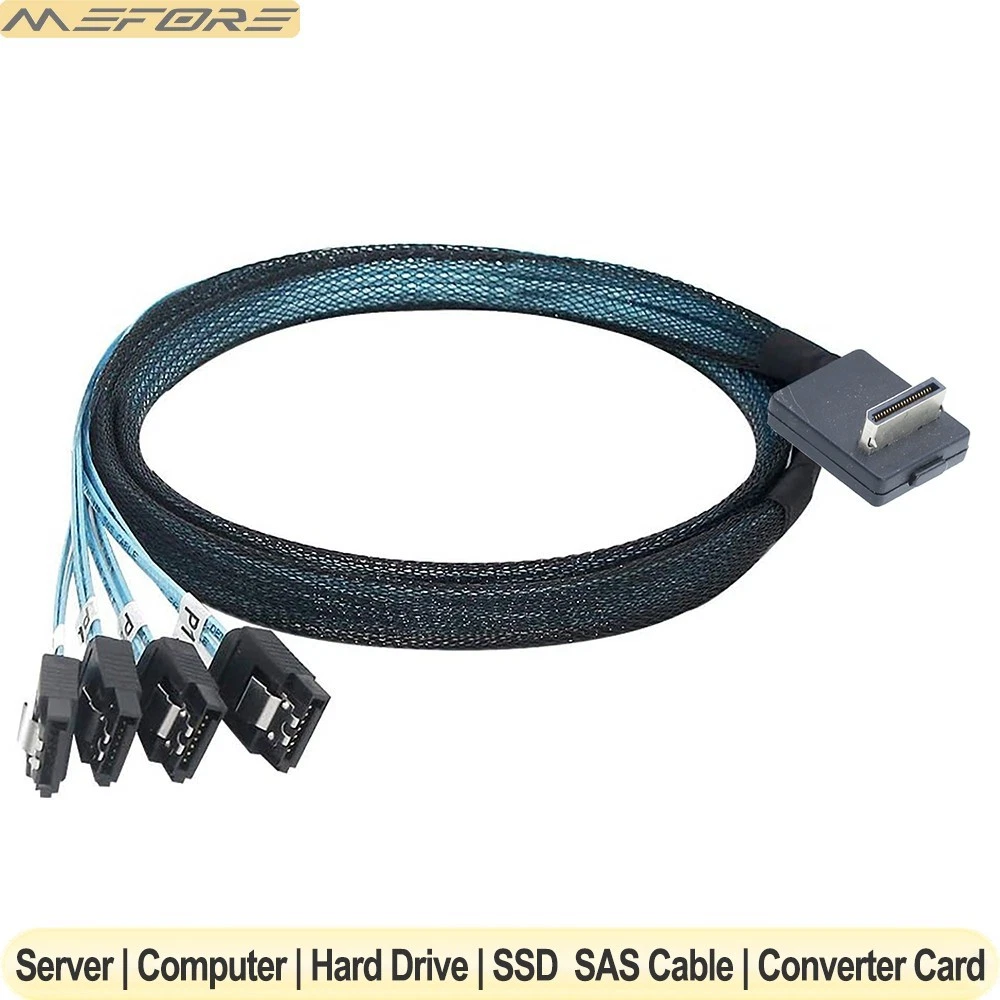

Adopting 90-degree elbow design saves space and facilitates cabling in a narrow chassis, reduces cable bending and squeezing, and improves system heat dissipation.

The cables are made of high-quality copper cores and shielding to ensure signal transmission stability and anti-interference capability, suitable for high-density server environments.

Compatible with a variety of server motherboards and storage devices, suitable for data centers, enterprise servers, workstations and other scenarios. Plug and play, no additional drivers or software required, easy to install, plug and play, rapid deployment.



Applications:

1. RAID (Redundant Array of Independent Disks )

2. Workstations

3. Rack-mount server

4. Servers

5. Storage rack



Signal Integrity

1. Mated Connector Impedance: 100 ohm±15%

2. Cable Absolute Impedance: 100 ohm±10%

3. Cable Pair Matching: ±5 ohm

4. Common Mode Impedance: 25 to 40 ohms

5. Insertion loss: -6dB maximum up to 4.5Ghz

6. Crosstalk: -26 dB up to 6Ghz

Connector A: PCIe Oculink SAS SFF-8611 90 Degree

Connector B: 4x SATA 7Pin

Cable Length: 0.5m/1.0m

Temperature range: -20ºC-80ºC



Packing List: 1 X Oculink SAS SFF-8611 90Degree to 4-Port SATA Conversion Cable
